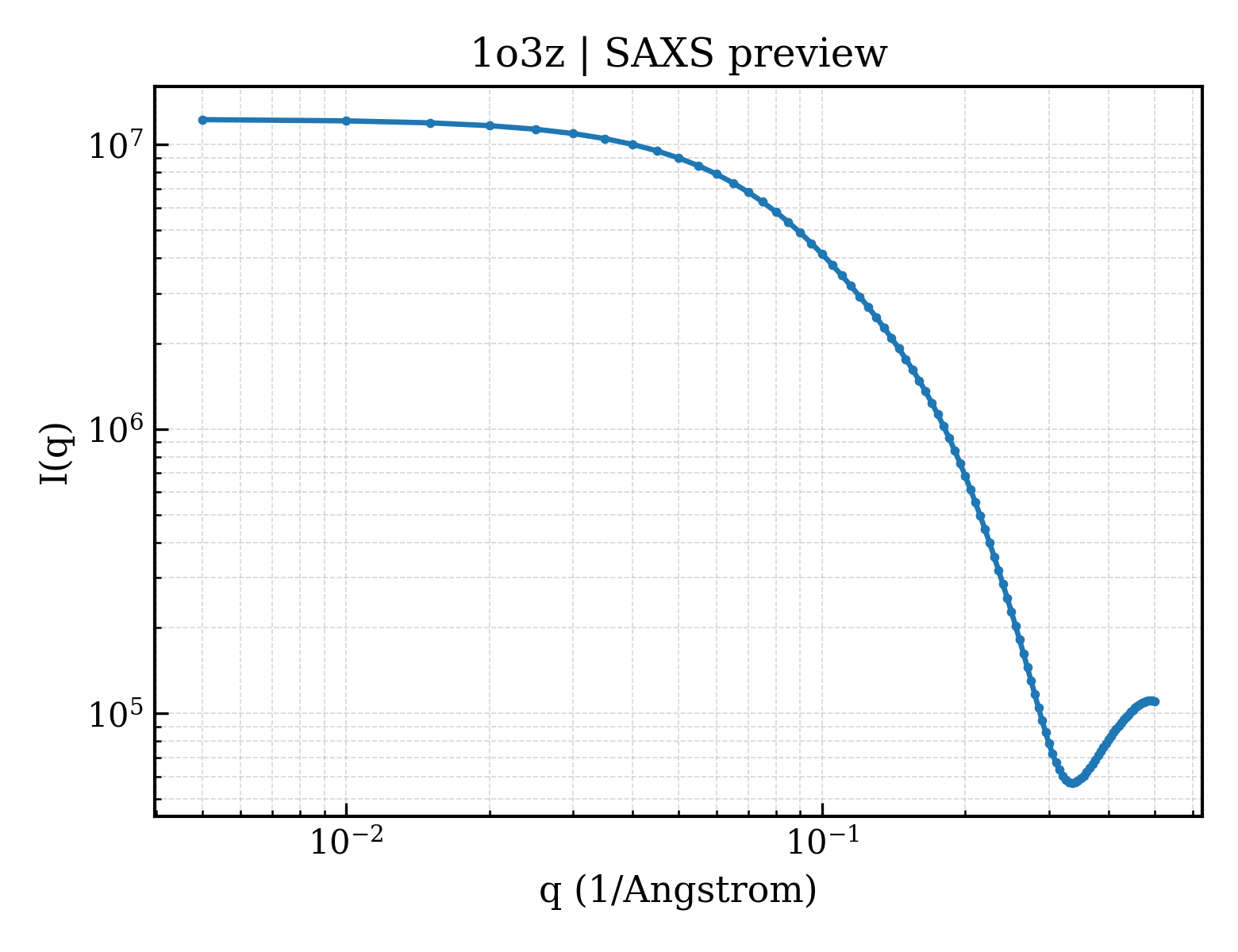

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1o3z |
| 沉积日期 deposition_date | 2003-05-16 |
| 结构标题 title | HIV-1 DIS(MAL) DUPLEX RU HEXAMINE-SOAKED |
| 关键词 keywords | HIV-1, RNA, METAL IONS, DIS; RNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 19.41 Å |
| 回转半径 Rg (电子) rg_electron | 19.43 Å |
| 零角强度 I(0) i0 | 12292500.00 |
| 分子量 molecular_weight | 15311.0 kDa |
| 排除体积 excluded_volume | 14146 ų |
| 包络体积 envelope_volume | 21587 ų |
| 水化壳体积 shell_volume | 11196 ų |
| 包络直径 envelope_diameter | 72.4 Å |
| 壳层 Rg shell_rg | 22.71 Å |
| 包络 Rg envelope_rg | 19.35 Å |
| 形状 Rg shape_rg | 19.20 Å |
| 总 Rg total_rg | 20.06 Å |
| 总原子数 total_atoms | 991 |
| 残基数 n_residues | 46 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 71.6 Å |
| Rg (实空间) rg_real | 19.77 Å |
| Rg 误差 (实空间) rg_real_error | 0.80 Å |
| I(0) (实空间) i0_real | 1.2290e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.6560e+05 |
| Rg (倒空间) rg_reciprocal | 19.72 Å |
| I(0) (倒空间) i0_reciprocal | 12290000.0000 |
| 解质量估计 total_estimate | 0.6996 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 16.1 Å |
| 偏度 Skewness skewness | 0.689 |
| 峰度 Kurtosis kurtosis | -0.083 |
| 角度范围 angular_range | — – 0.4100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1836000.0000 |
| 实空间数据点数 n_real_points | 72 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.346;
Stabil: 0.996;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.198;
Smooth: 0.864
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 59.100 Å |
| 晶胞边长 b length_b | 59.100 Å |
| 晶胞边长 c length_c | 64.100 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 12 |
对称性 Symmetry
| 空间群 space_group | P 31 2 1 |
| 空间群编号 int_tables_number | 152 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 2.650 Å |
| 最低分辨率 resolution_low | 8.000 Å |
| R 因子 r_factor | 0.2190 |
| R_work r_work | 0.2190 |
| R_free r_free | 0.2280 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | HIV-1 DIS(MAL) GENOMIC RNA |
| 分子量 formula_weight | 7402.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polyribonucleotide |
| 链编号 strand_id | A,B |
| 原子数 atom_count | 1296 |
CUUGCUGAGGUGCACACAGCAAG
Entity 2
non-polymer
| 描述 description | MAGNESIUM ION |
| 分子量 formula_weight | 24.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 8 |
Entity 3
non-polymer
| 描述 description | RUTHENIUM ION |
| 分子量 formula_weight | 101.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 3 |
Entity 4
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 237 |
A crystallographic study of the binding of 13 metal ions to two related RNA duplexes.
Nucleic Acids Res. (2003)
