1o7t
Metal nanoclusters bound to the Ferric Binding Protein from Neisseria gonorrhoeae.
SAXS 散射曲线 SAXS Profile

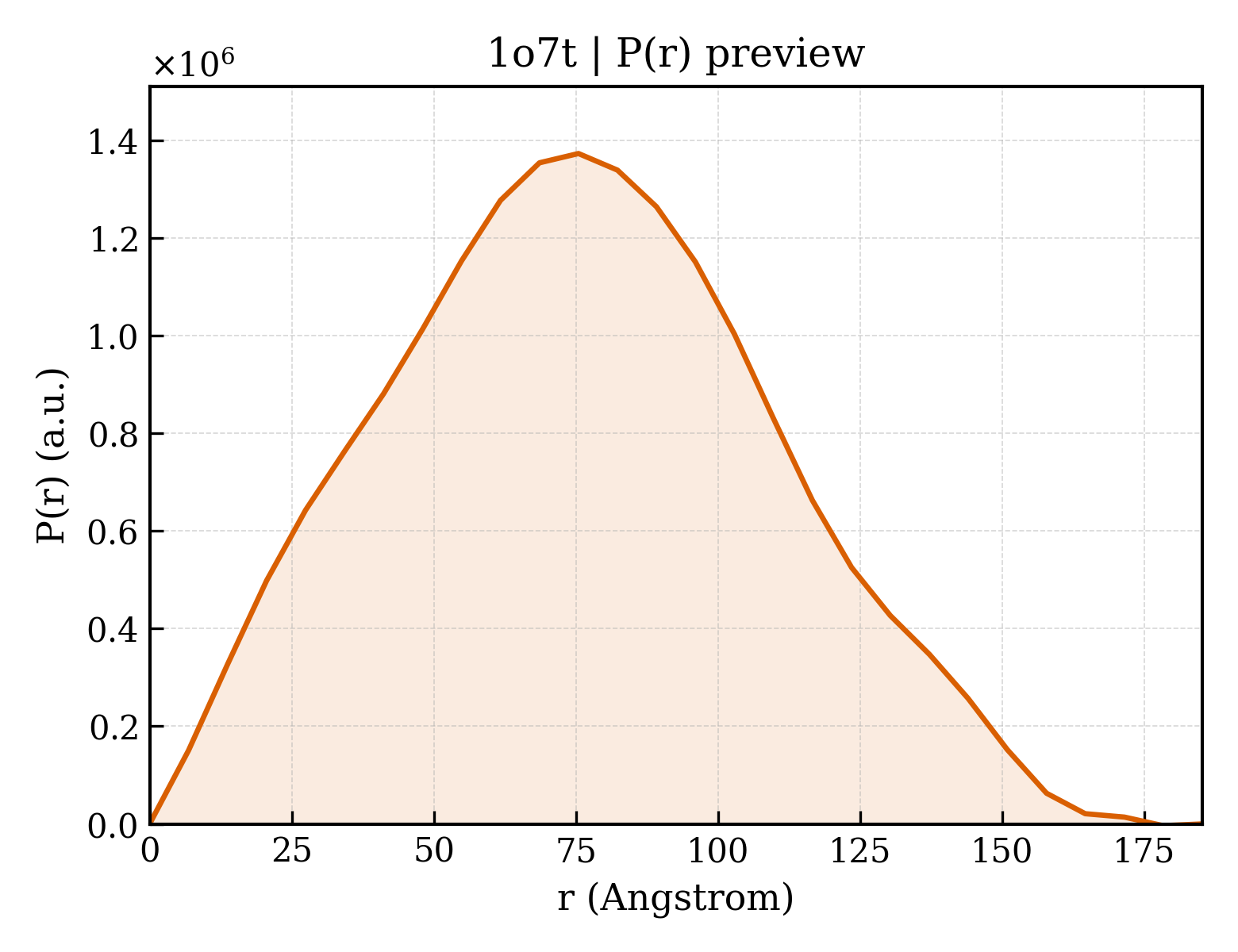

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1o7t |
| 沉积日期 deposition_date | 2002-11-12 |
| 结构标题 title | Metal nanoclusters bound to the Ferric Binding Protein from Neisseria gonorrhoeae. |
| 关键词 keywords | METAL-BINDING PROTEIN, PERIPLASMIC FERRIC BINDING PROTEIN, HAFNIUM, METAL-OXO CLUSTER, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 58.81 Å |
| 回转半径 Rg (电子) rg_electron | 58.80 Å |
| 零角强度 I(0) i0 | 1507210000.00 |
| 分子量 molecular_weight | 313650.0 kDa |
| 排除体积 excluded_volume | 386150 ų |
| 包络体积 envelope_volume | 613520 ų |
| 水化壳体积 shell_volume | 88034 ų |
| 包络直径 envelope_diameter | 182.0 Å |
| 壳层 Rg shell_rg | 60.04 Å |
| 包络 Rg envelope_rg | 56.15 Å |
| 形状 Rg shape_rg | 58.82 Å |
| 总 Rg total_rg | 58.76 Å |
| 总原子数 total_atoms | 21629 |
| 残基数 n_residues | 2781 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 185.2 Å |
| Rg (实空间) rg_real | 58.68 Å |
| Rg 误差 (实空间) rg_real_error | 1.58 Å |
| I(0) (实空间) i0_real | 1.5070e+09 |
| I(0) 误差 (实空间) i0_real_error | 2.9300e+07 |
| Rg (倒空间) rg_reciprocal | 58.89 Å |
| I(0) (倒空间) i0_reciprocal | 1508000000.0000 |
| 解质量估计 total_estimate | 0.8360 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 75.5 Å |
| 偏度 Skewness skewness | 0.142 |
| 峰度 Kurtosis kurtosis | -0.531 |
| 角度范围 angular_range | — – 0.1350 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 32920000.0000 |
| 实空间数据点数 n_real_points | 28 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 27 domains
SCOP 2.08 (9 domains)
| 结构域编号 domain_id | d1o7ta_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7tb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7tc_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7td_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7te_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7tf_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7tg_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7th_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
| 结构域编号 domain_id | d1o7ti_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.94 — Periplasmic binding protein-like II |
| 超家族 Superfamily superfamily | c.94.1 — Periplasmic binding protein-like II |
| 家族 Family family | c.94.1.1 — Phosphate binding protein-like |
CATH v4.4 (18 domains)
| 结构域编号 domain_id | 1o7tA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tD01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tE01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tE02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tF01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tF02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tG01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tG02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tH01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tH02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tI01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
| 结构域编号 domain_id | 1o7tI02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 190 — D-Maltodextrin-Binding Protein; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Periplasmic binding protein-like II |
