1ocj

Mutant D416A of the CELLOBIOHYDROLASE CEL6A FROM HUMICOLA INSOLENS in complex with a THIOPENTASACCHARIDE at 1.3 angstrom resolution

Method: X-RAY DIFFRACTION D_max: 61.1 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

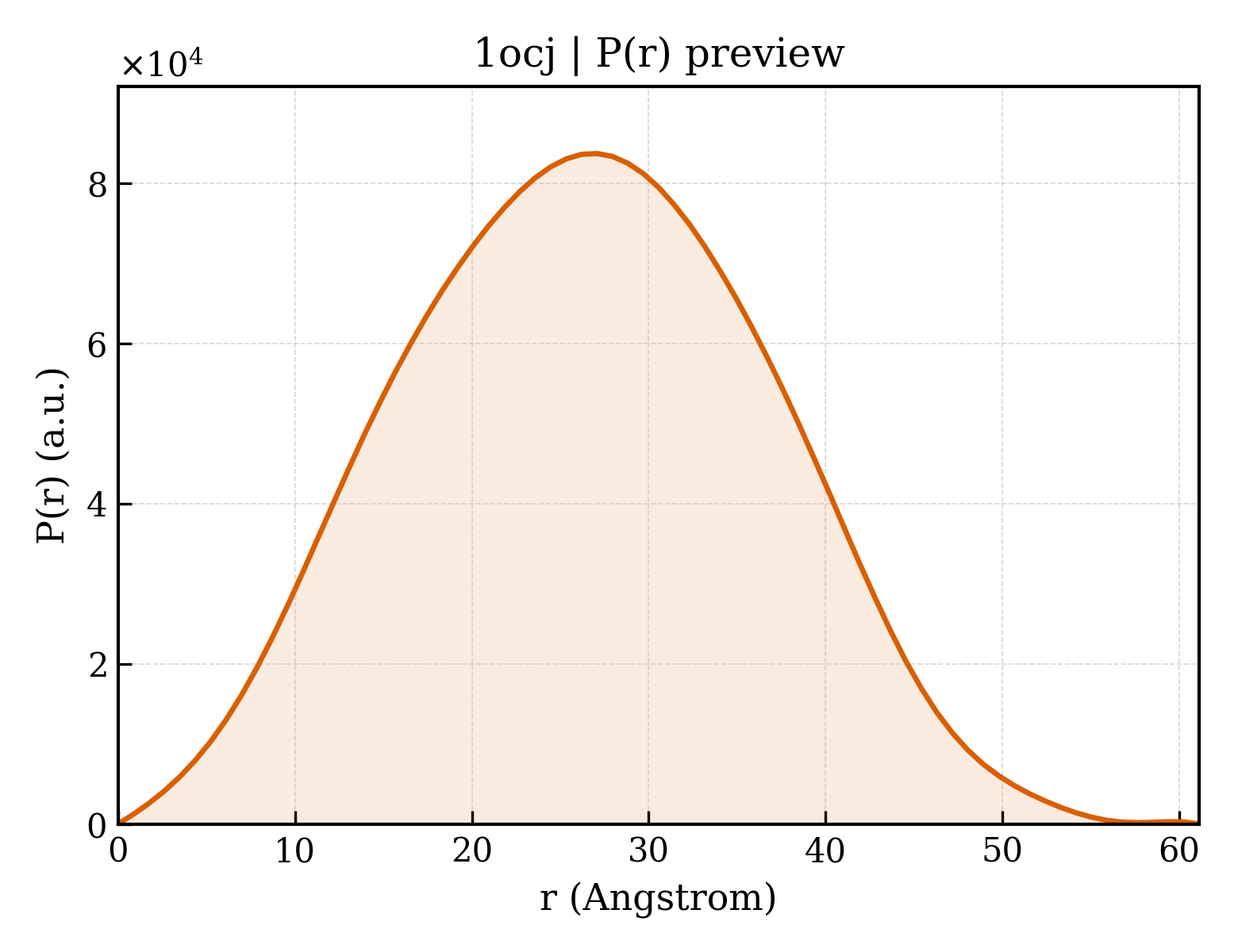

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ocj
沉积日期 deposition_date	2003-02-07
结构标题 title	Mutant D416A of the CELLOBIOHYDROLASE CEL6A FROM HUMICOLA INSOLENS in complex with a THIOPENTASACCHARIDE at 1.3 angstrom resolution
关键词 keywords	HYDROLASE, CELLULOSE DEGRADATION, PROCESSIVE MECHANISM GLYCOSIDE HYDROLASE FAMILY 6; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	20.22 Å
回转半径 Rg (电子) rg_electron	19.09 Å
零角强度 I(0) i0	28989900.00
分子量 molecular_weight	40850.0 kDa
排除体积 excluded_volume	50749 Å³
包络体积 envelope_volume	55631 Å³
水化壳体积 shell_volume	23413 Å³
包络直径 envelope_diameter	62.9 Å
壳层 Rg shell_rg	26.42 Å
包络 Rg envelope_rg	19.31 Å
形状 Rg shape_rg	19.08 Å
总 Rg total_rg	20.01 Å
总原子数 total_atoms	2880
残基数 n_residues	360
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	61.1 Å
Rg (实空间) rg_real	20.06 Å
Rg 误差 (实空间) rg_real_error	0.28 Å
I(0) (实空间) i0_real	2.8990e+07
I(0) 误差 (实空间) i0_real_error	3.8240e+05
Rg (倒空间) rg_reciprocal	20.09 Å
I(0) (倒空间) i0_reciprocal	28990000.0000
解质量估计 total_estimate	0.9007
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.1 Å
偏度 Skewness skewness	0.051
峰度 Kurtosis kurtosis	-0.491
角度范围 angular_range	— – 0.3950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8206000.0000
实空间数据点数 n_real_points	71
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.997

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	CELLOBIOHYDROLASE II
分子量 formula_weight	39970.5 kDa
EC 编号 ec_number	3.2.1.91
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3331

YNGNPFEGVQLWANNYYRSEVHTLAIPQITDPALRAAASAVAEVPSFQWLDRNVTVDTLLVQTLSEIREANQAGANPQYAAQIVVYDLPDRDCAAAASNGEWAIANNGVNNYKAYINRIREILISFSDVRTILVIEPDSLANMVTNMNVPKCSGAASTYRELTIYALKQLDLPHVAMYMDAGHAGWLGWPANIQPAAELFAKIYEDAGKPRAVRGLATNVANYNAWSVSSPPPYTSPNPNYDEKHYIEAFRPLLEARGFPAQFIVDQGRSGKQPTGQKEWGHWCNAIGTGFGMRPTANTGHQYVDAFVWVKPGGECDGTSDTTAARYAYHCGLEDALKPAPEAGQWFNEYFIQLLRNANPPF

来源 Source

来源生物 organism	HUMICOLA INSOLENS
NCBI 分类编号 ncbi_taxonomy_id	34413
宿主生物 host_organism	ASPERGILLUS ORYZAE

Entity 2 branched

描述 description	;beta-D-glucopyranose-(1-4)-1,4-dithio-beta-D-glucopyranose-(1-4)-1,4-dithio-beta-D-glucopyranose-(1-4)-4-thio-beta-D-glucopyranose-(1-4)-methyl 4-thio-alpha-D-glucopyranoside ;
分子量 formula_weight	939.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	ACETIC ACID
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	402

▼

6. 折叠分类 (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

结构域编号 domain_id	d1ocja_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.6 — 7-stranded beta/alpha barrel
超家族 Superfamily superfamily	c.6.1 — Glycosyl hydrolases family 6, cellulases
家族 Family family	c.6.1.1 — Glycosyl hydrolases family 6, cellulases

CATH v4.4 (1 domains)

结构域编号 domain_id	1ocjA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	40 — 1, 4-beta cellobiohydrolase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	47.440 Å
晶胞边长 b length_b	67.552 Å
晶胞边长 c length_c	53.663 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.87 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.300 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.1460
R_work r_work	0.1450
R_free r_free	0.1740
