1. Protein Identity and Related Structures Protein Identity & Related Structures

Sucrose porin

Salmonella typhimurium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 3 其他Polymer 6	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose × 6 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SCRY_SALTM
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain P； PDBConstruct 1–413； UniProt 93–505 Author chain R； PDBConstruct 1–413； UniProt 93–505 Author chain Q； PDBConstruct 1–413； UniProt 93–505

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oh2
Deposition date deposition_date	2003-05-21
Structure title title	Sucrose-Specific Porin, with Bound Sucrose Molecules
Keywords keywords	MEMBRANE PROTEIN, OUTER MEMBRANE PROTEIN, TRANSPORT, SUGAR TRANSPORT, TRANSMEMBRANE; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1oh2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

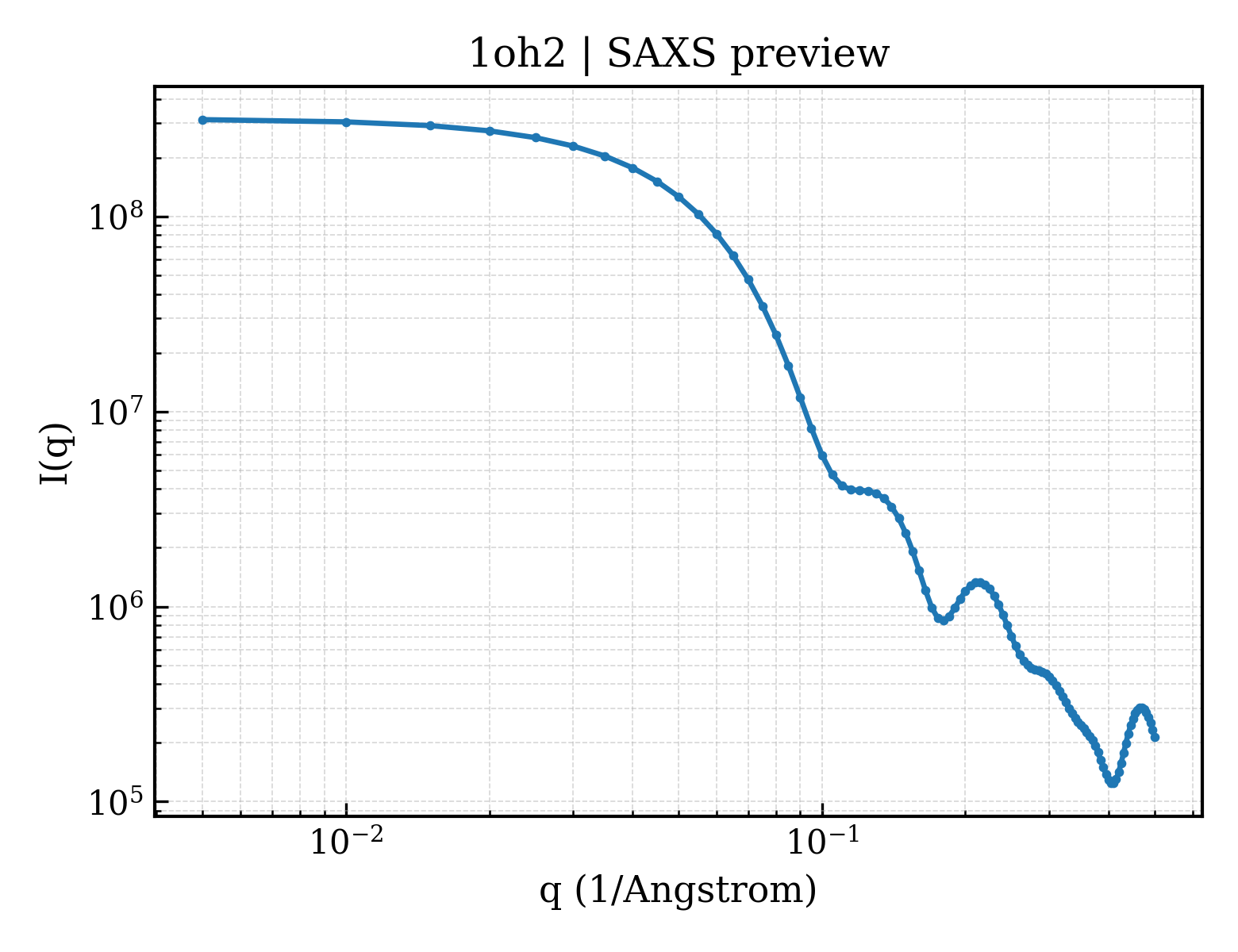

1oh2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

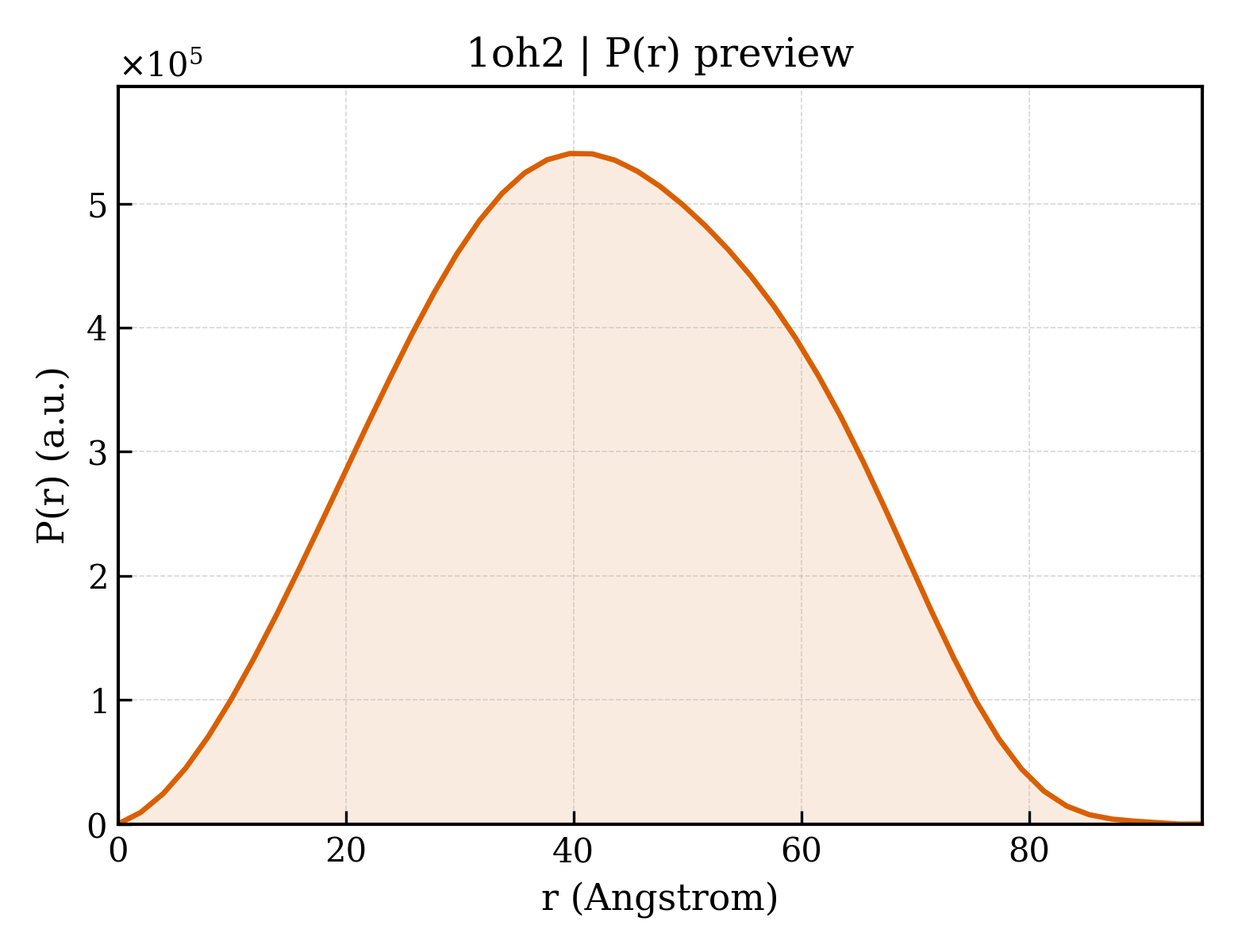

1oh2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.66 Å
Rg (electron density)	31.88 Å
Total Rg	32.55 Å
Atom count	9717
Residues	1239
Excluded volume	169770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1oh2__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Sucrose porin
Molecular weight formula_weight	45333.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,R
Atom count atom_count	9717

SGFEFHGYARSGVIMNDSGASTKSGAYITPAGETGGAIGRLGNQADTYVEMNLEHKQTLDNGATTRFKVMVADGQTSYNDWTASTSDLNVRQAFVELGNLPTFAGPFKGSTLWAGKRFDRDNFDIHWIDSDVVFLAGTGGGIYDVKWNDGLRSNFSLYGRNFGDIDDSSNSVQNYILTMNHFAGPLQMMVSGLRAKDNDERKDSNGNLAKGDAANTGVHALLGLHNDSFYGLRDGSSKTALLYGHGLGAEVKGIGSDGALRPGADTWRIASYGTTPLSENWSVAPAMLAQRSKDRYADGDSYQWATFNLRLIQAINQNFALAYEGSYQYMDLKPEGYNDRQAVNGSFYKLTFAPTFKVGSIGDFFSRPEIRFYTSWMDWSKKLNNYASDDALGSDGFNSGGEWSFGVQMETWF

Source Source

Source organism organism	Salmonella typhimurium
NCBI taxonomy ID ncbi_taxonomy_id	90371
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Sucrose porin
Molecular weight formula_weight	44923.4 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

SGFEFHGYAPSGVIMNDSGASTKSGAYITPAGETGGAIGPLGNAADTYVIMNLEHKQTLDNGATTRFKVMVADGQTSYNDWTASTSDLNVLQAFVELGNLPTFAGPFKGSTLWAGKRFDRDNFAIHWILSCVVFLAGTGGGIYDVKWNDGLRSNFSLYGRNFGDIDDSSNSVQNYILTMNHFAGPLQMMVSGLRAKDNDERKDSNGNLAKGDAANTGVHALLGLHNDSFYGLRDGSSKTALLYGHGLGAEVKGIGSDGALRPGADTWRIASYGTTPLSENWSVAPAMLAQRSKDRYADGDSYQWATFNLRLIQAINQNFALAYEGSYQYMDLKPEGYNDRQAVNGSFYKLTFAPTFKVGSIGDFFSRPEIRFYTSWMDWSKKLNNYASDDALGSDGFNSGGEWSFGVQMETAF

Source Source

Source organism organism	Salmonella typhimurium
NCBI taxonomy ID ncbi_taxonomy_id	90371
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1oh2p_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.3 — Porins
Family Family family	f.4.3.2 — Maltoporin-like

Domain ID domain_id	d1oh2q_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.3 — Porins
Family Family family	f.4.3.2 — Maltoporin-like

Domain ID domain_id	d1oh2r_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.3 — Porins
Family Family family	f.4.3.2 — Maltoporin-like

CATH v4.4 (3 domains)

Domain ID domain_id	1oh2P00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	170 — Maltoporin; Chain A
Homologous superfamily homologous superfamily	10 — Porin, LamB type

Domain ID domain_id	1oh2Q00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	170 — Maltoporin; Chain A
Homologous superfamily homologous superfamily	10 — Porin, LamB type

Domain ID domain_id	1oh2R00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	170 — Maltoporin; Chain A
Homologous superfamily homologous superfamily	10 — Porin, LamB type

▶

Unit-cell length a length_a	111.800 Å
Unit-cell length b length_b	111.800 Å
Unit-cell length c length_c	147.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2070
R_work r_work	0.2070
R_free r_free	0.2460
