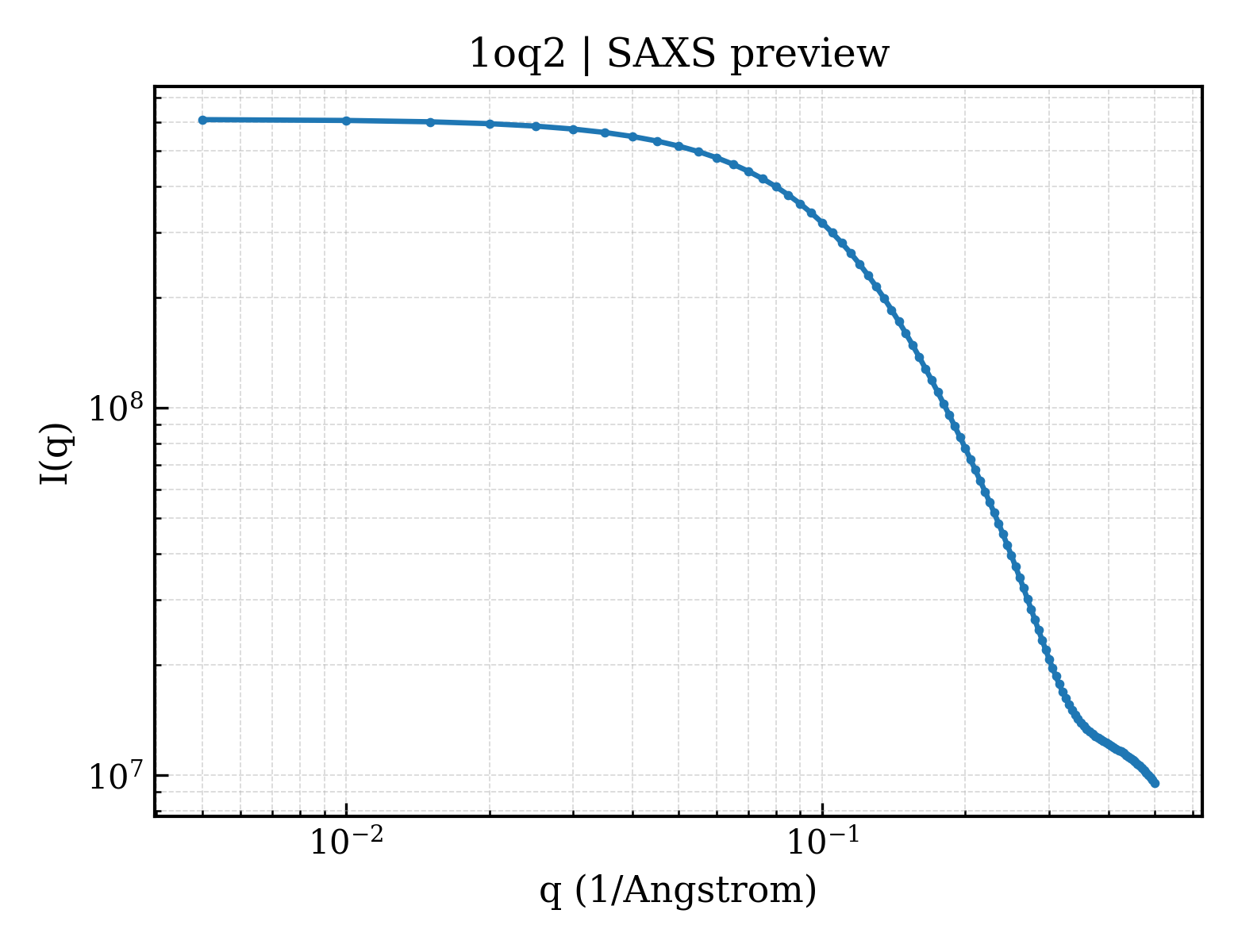

SAXS 散射曲线 SAXS Profile

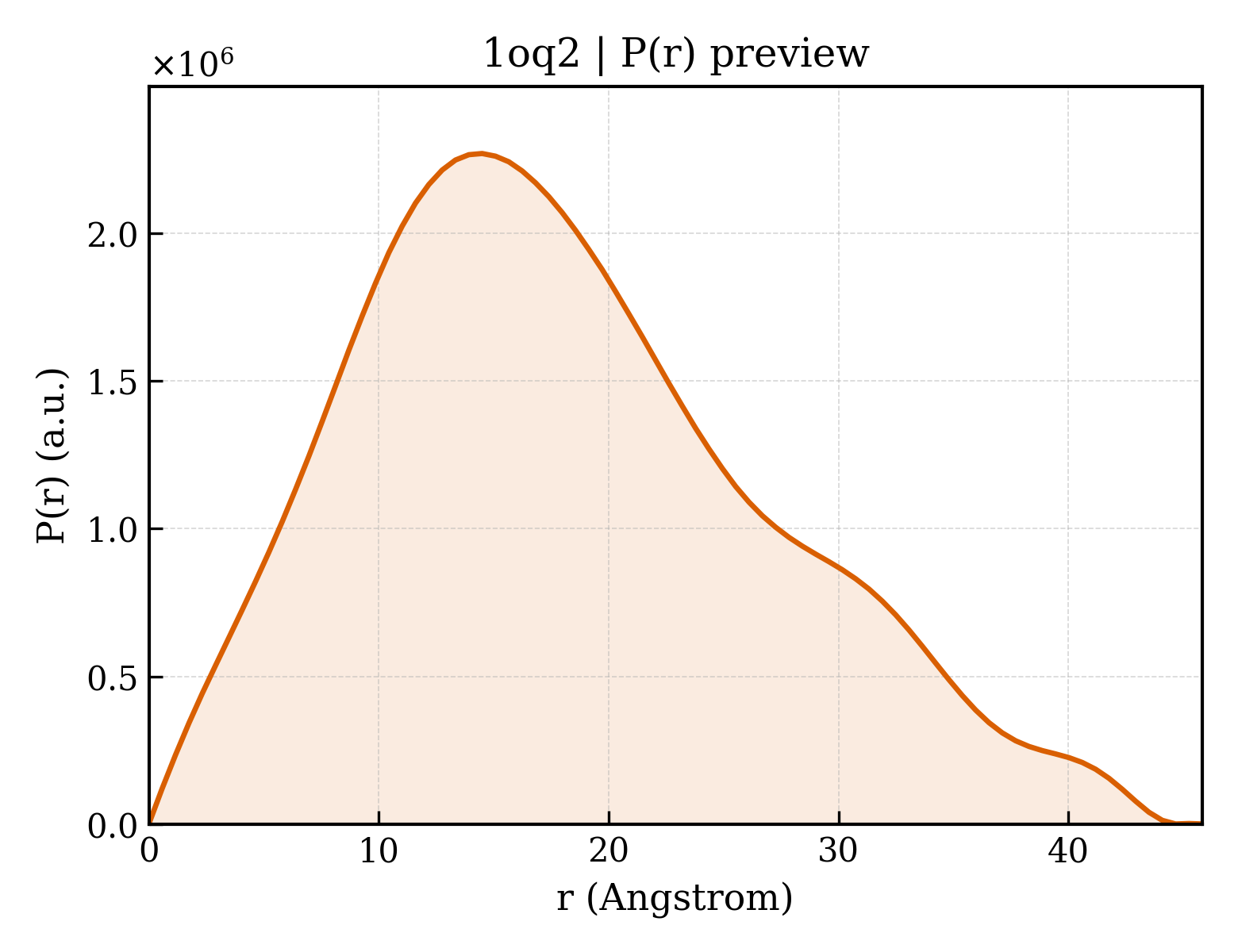

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1oq2 |
| 沉积日期 deposition_date | 2003-03-07 |
| 结构标题 title | NMR structure of hemimethylated GATC site |
| 关键词 keywords | GATC, AGATCT, hemimethylation, SeqA, MutH, N6-methyl, Dam (DNA adenine methyltransferase), DNA; DNA |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 14.10 Å |
| 回转半径 Rg (电子) rg_electron | 14.23 Å |
| 零角强度 I(0) i0 | 609231000.00 |
| 分子量 molecular_weight | 124560.0 kDa |
| 排除体积 excluded_volume | 120650 ų |
| 包络体积 envelope_volume | 13207 ų |
| 水化壳体积 shell_volume | 8451 ų |
| 包络直径 envelope_diameter | 51.4 Å |
| 壳层 Rg shell_rg | 18.70 Å |
| 包络 Rg envelope_rg | 15.15 Å |
| 形状 Rg shape_rg | 14.14 Å |
| 总 Rg total_rg | 14.44 Å |
| 总原子数 total_atoms | 12937 |
| 残基数 n_residues | 391 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 45.8 Å |
| Rg (实空间) rg_real | 14.23 Å |
| Rg 误差 (实空间) rg_real_error | 0.39 Å |
| I(0) (实空间) i0_real | 6.0920e+08 |
| I(0) 误差 (实空间) i0_real_error | 6.8100e+06 |
| Rg (倒空间) rg_reciprocal | 14.22 Å |
| I(0) (倒空间) i0_reciprocal | 609200000.0000 |
| 解质量估计 total_estimate | 0.8318 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 14.5 Å |
| 偏度 Skewness skewness | 0.467 |
| 峰度 Kurtosis kurtosis | -0.331 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 79980.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.892;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.840;
Smooth: 0.294
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 1.000 Å |
| 晶胞边长 b length_b | 1.000 Å |
| 晶胞边长 c length_c | 1.000 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 1 |
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
Entity 1
polymer
| 描述 description | 5'-D(*GP*CP*GP*AP*GP*AP*TP*CP*TP*GP*CP*G)-3' |
| 分子量 formula_weight | 3703.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 12937 |
GCGAGATCTGCG
Entity 2
polymer
| 描述 description | 5'-D(*CP*GP*CP*AP*GP*(6MA)P*TP*CP*TP*CP*GP*C)-3' |
| 分子量 formula_weight | 3637.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
CGCAGATCTCGC
Structure and dynamics of hemimethylated GATC sites: implications for DNA-SeqA recognition
J.Biol.Chem. (2003)
Files (7)
- pr_distribution /app/data/pr_computation/oq/1oq2/pr_distribution.json
- pr_output /app/data/pr_computation/oq/1oq2/1oq2.pr.out
- pr_plot /app/data/visualization/pr_computation/oq/1oq2/1oq2_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/oq/1oq2/1oq2.dat
- saxs_fit /app/data/saxs_computation/oq/1oq2/1oq2.fit
- saxs_log /app/data/saxs_computation/oq/1oq2/1oq2.log
- saxs_plot /app/data/visualization/saxs_computation/oq/1oq2/1oq2_saxs_profile.png
