SAXSdb — 1oum

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Purine nucleoside phosphorylase

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 1–238 Chain B； UniProt 1–238 Chain C； UniProt 1–238	Mutation：M64V	TAL 9-(6-DEOXY-ALPHA-L-TALOFURANOSYL)-6-METHYLPURINE × 6 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium citrate, 30% ammonium sulfate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.260

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1OUM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A69 PURINE NUCLEOSIDE PHOSPHORYLASE IN COMPLEX WITH FORMYCIN B AND SULPHATE (PHOSPHATE) Deposited 1998-03-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa）	Not recorded	SO4 SULFATE ION × 6 FMB FORMYCIN B × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.3；28-35% AMMONIUM SULPHATE, 50 MM CITRATE BUFFER, PH 5.2-5.4, pH 5.3	Resolution 2.10 Å
1ECP PURINE NUCLEOSIDE PHOSPHORYLASE Deposited 1995-07-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa） Chain D 1–238（238 aa） Chain E 1–238（238 aa） Chain F 1–238（238 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.290
1K9S PURINE NUCLEOSIDE PHOSPHORYLASE FROM E. COLI IN COMPLEX WITH FORMYCIN A DERIVATIVE AND PHOSPHATE Deposited 2001-10-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa） Chain C 1–237（237 aa） Chain D 1–237（237 aa） Chain E 1–237（237 aa） Chain F 1–237（237 aa）	Not recorded	PO4 PHOSPHATE ION × 6 FM2 2-(7-AMINO-6-METHYL-3H-PYRAZOLO[4,3-D]PYRIMIDIN-3-YL)-5-HYDROXYMETHYL-TETRAHYDRO-FURAN-3,4-DIOL × 3 FM1 2-HYDROXYMETHYL-5-(7-METHYLAMINO-3H-PYRAZOLO[4,3-D]PYRIMIDIN-3-YL)-TETRAHYDRO-FURAN-3,4-DIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；28-35% ammonium sulphate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.184
1OTX Purine Nucleoside Phosphorylase M64V mutant Deposited 2003-03-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa）	Mutation：M64V Mutation：M64V Mutation：M64V	PO4 PHOSPHATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium citrate, 30%ammonium sulfate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.247
1OTY Native PNP +ALLO Deposited 2003-03-23	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa）	Not recorded	PO4 PHOSPHATE ION × 6 6MP 6-METHYLPURINE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium citrate, 30% ammonium sulfate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.236
1OU4 Native PNP +Talo Deposited 2003-03-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa）	Not recorded	PO4 PHOSPHATE ION × 6 6MP 6-METHYLPURINE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium Citrate, 30% ammonium sulfate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.244
1OV6 M64V PNP + ALLO Deposited 2003-03-25	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Fragment：Purine Nuleoside Phosphorylase Chain B 1–238（238 aa） Fragment：Purine Nuleoside Phosphorylase Chain C 1–238（238 aa） Fragment：Purine Nuleoside Phosphorylase	Mutation：M64V Mutation：M64V Mutation：M64V	PO4 PHOSPHATE ION × 6 DBM 9-(6-DEOXY-BETA-D-ALLOFURANOSYL)-6-METHYLPURINE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium citrate, 30% ammonium sulfate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.258
1OVG M64V PNP +MePdr Deposited 2003-03-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–238（238 aa） Chain B 1–238（238 aa） Chain C 1–238（238 aa）	Mutation：M64V Mutation：M64V Mutation：M64V	PO4 PHOSPHATE ION × 6 MDR 9-(2-DEOXY-BETA-D-RIBOFURANOSYL)-6-METHYLPURINE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；295 K；50mM sodium citrate, 30% ammonium sulfate , pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.20 Å R-free 0.259
3UT6 Crystal structure of E. Coli PNP complexed with PO4 and formycin A Deposited 2011-11-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain C 2–238（237 aa）	Not recorded	FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 6 PO4 PHOSPHATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 5.2；291 K；50mM citrate buffer, 35% ammonium phosphate (w/v), pH 5.2, hanging drop, temperature 291K	Resolution 1.90 Å R-free 0.187
4TTI Crystal structure of double mutant E. Coli purine nucleoside phosphorylase with 4 FMC molecules Deposited 2014-06-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: Hexameric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain C 2–238（237 aa） Chain D 2–238（237 aa） Chain E 2–238（237 aa） Chain F 2–238（237 aa）	Not recorded	FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 4 PO4 PHOSPHATE ION × 6 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；50 mM citric buffer, 34 % ammonium sulphate	Resolution 1.89 Å R-free 0.210
4TTJ Crystal structure of double mutant E. Coli purine nucleoside phosphorylase with 6 FMC molecules Deposited 2014-06-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: Hexameric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain D 2–238（237 aa）	Not recorded	PO4 PHOSPHATE ION × 6 FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 6 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；50 mM citric buffer, 32 % ammonium sulphate	Resolution 1.87 Å R-free 0.194
5IU6 Crystal structure of E.coli purine nucleoside phosphorylase with 7-deazahypoxanthine Deposited 2016-03-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain C 2–238（237 aa）	Not recorded	7HX 7H-pyrrolo[2,3-d]pyrimidin-4-ol × 6 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；294 K；AMMONIUM SULPHATE	Resolution 2.51 Å R-free 0.200
6XZ2 Crystal structure of E. Coli purine nucleoside phosphorylase mutant Y160W with SO4 and Formycin A Deposited 2020-01-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain C 2–238（237 aa）	Mutation：Y160W Mutation：Y160W Mutation：Y160W	SO4 SULFATE ION × 6 FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；50 mM citrate buffer pH 5.2, 14 % ammonium sulphate (w/v)	Resolution 1.65 Å R-free 0.192
6XZ2 Crystal structure of E. Coli purine nucleoside phosphorylase mutant Y160W with SO4 and Formycin A Deposited 2020-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 2–238（237 aa） Chain B 2–238（237 aa） Chain C 2–238（237 aa）	Mutation：Y160W Mutation：Y160W Mutation：Y160W	SO4 SULFATE ION × 3 FMC (1S)-1-(7-amino-1H-pyrazolo[4,3-d]pyrimidin-3-yl)-1,4-anhydro-D-ribitol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；50 mM citrate buffer pH 5.2, 14 % ammonium sulphate (w/v)	Resolution 1.65 Å R-free 0.192
9FPE Wild type Purine Nucleoside Phosphorylase from E.coli in complex with N2,3-etheno-2-aminopurine Deposited 2024-06-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–239（239 aa） Chain B 1–239（239 aa） Chain C 1–239（239 aa）	Not recorded	GOL GLYCEROL × 6 A1IEC N,2,3-etheno-2-aminopurine × 6 PO4 PHOSPHATE ION × 6 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；Citrate buffer pH 5.2, amonium sulphate 15% w/v	Resolution 1.35 Å R-free 0.213
9FXE D204N mutant of Purine Nucleoside Phosphorylase from E.coli in complex with N2,3-etheno-2-aminopurine Deposited 2024-07-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–239（239 aa） Chain B 1–239（239 aa） Chain C 1–239（239 aa）	Not recorded	PO4 PHOSPHATE ION × 6 A1IEC N,2,3-etheno-2-aminopurine × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；Citrate buffer pH 5.2, amonium sulphate 24% w/v	Resolution 2.12 Å R-free 0.233

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DEOD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–238； UniProt 1–238 Author chain B； PDBConstruct 1–238； UniProt 1–238 Author chain C； PDBConstruct 1–238； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oum
Deposition date deposition_date	2003-03-24
Structure title title	M64V PNP +Talo
Keywords keywords	M64V, PNP, Talo, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.00 Å
Radius of gyration Rg (electron density) rg_electron	33.55 Å
Forward intensity I(0) i0	97069400.00
Molecular weight molecular_weight	77757.0 kDa
Excluded volume excluded_volume	97089 Å³
Envelope volume envelope_volume	127670 Å³
Hydration-shell volume shell_volume	33195 Å³
Envelope diameter envelope_diameter	98.9 Å
Shell Rg shell_rg	38.77 Å
Envelope Rg envelope_rg	32.59 Å
Shape Rg shape_rg	33.56 Å
Total Rg total_rg	33.93 Å
Total atoms total_atoms	5446
Residues n_residues	711
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

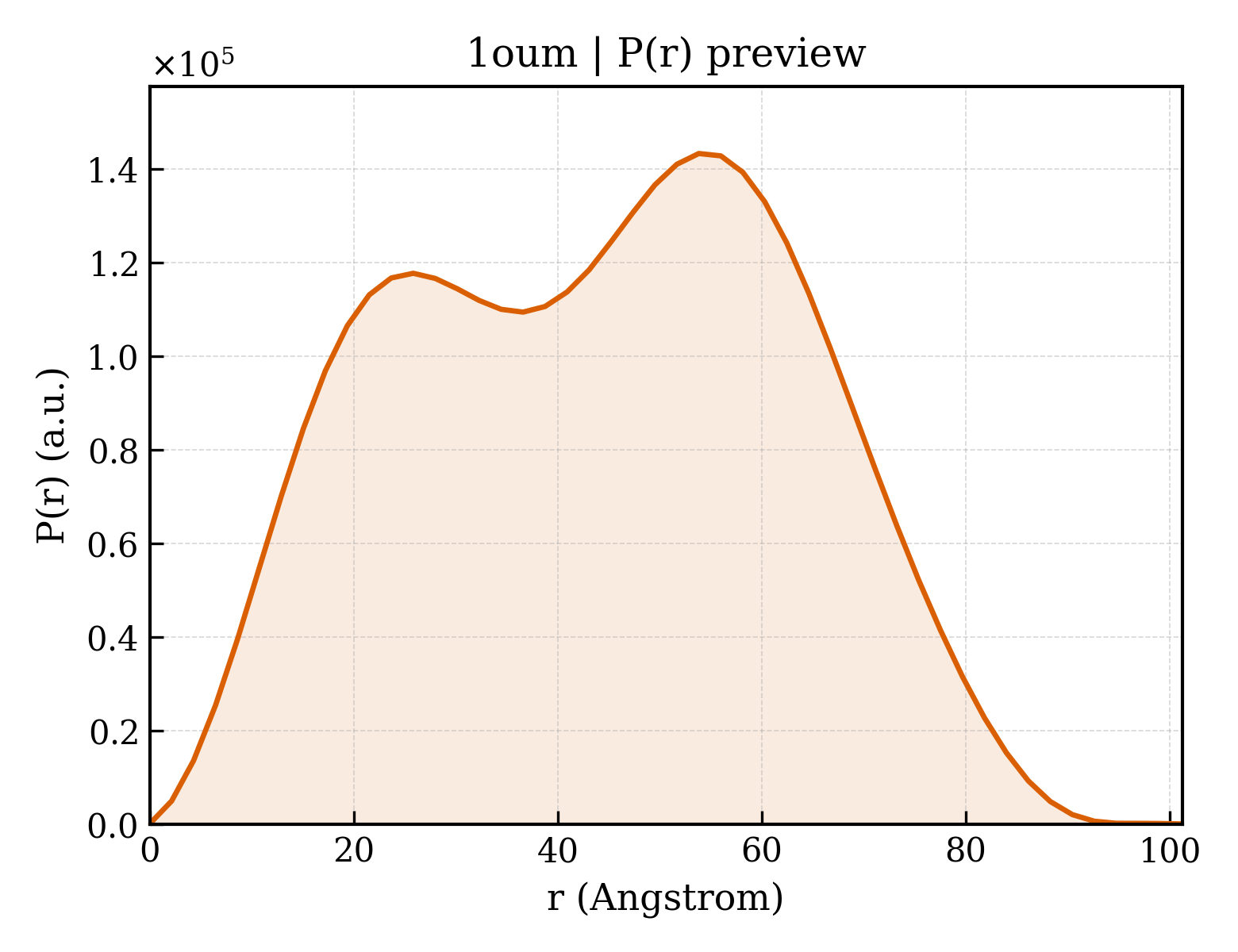

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.2 Å
Rg (real space) rg_real	33.89 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	9.7070e+07
I(0) uncertainty (real space) i0_real_error	1.5430e+06
Rg (reciprocal space) rg_reciprocal	33.96 Å
I(0) (reciprocal space) i0_reciprocal	97080000.0000
Solution quality estimate total_estimate	0.8901
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	53.8 Å
Skewness Skewness skewness	-0.020
Kurtosis Kurtosis kurtosis	-0.915
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20700000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.947

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Purine nucleoside phosphorylase
Molecular weight formula_weight	25818.7 kDa
EC 编号 ec_number	2.4.2.1
Mutation mutation	M64V
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5638

ATPHINAEMGDFADVVLMPGDPLRAKYIAETFLEDAREVNNVRGMLGFTGTYKGRKISVMGHGVGIPSCSIYTKELITDFGVKKIIRVGSCGAVLPHVKLRDVVIGMGACTDSKVNRIRFKDHDFAAIADFDMVRNAVDAAKALGIDARVGNLFSADLFYSPDGEMFDVMEKYGILGVEMEAAGIYGVAAEFGAKALTICTVSDHIRTHEQTTAAERQTTFNDMIKIALESVLLGDKE

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	9-(6-DEOXY-ALPHA-L-TALOFURANOSYL)-6-METHYLPURINE
Molecular weight formula_weight	280.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	192

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ouma_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1oumb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1oumc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

CATH v4.4 (3 domains)

Domain ID domain_id	1oumA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1oumB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1oumC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	120.940 Å
Unit-cell length b length_b	120.940 Å
Unit-cell length c length_c	241.780 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	24.900 Å
R factor r_factor	0.2280
R_work r_work	0.2280
R_free r_free	0.2600
