1pyi

CRYSTAL STRUCTURE OF A PPR1-DNA COMPLEX: DNA RECOGNITION BY PROTEINS CONTAINING A ZN2CYS6 BINUCLEAR CLUSTER

Method: X-RAY DIFFRACTION D_max: 69.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

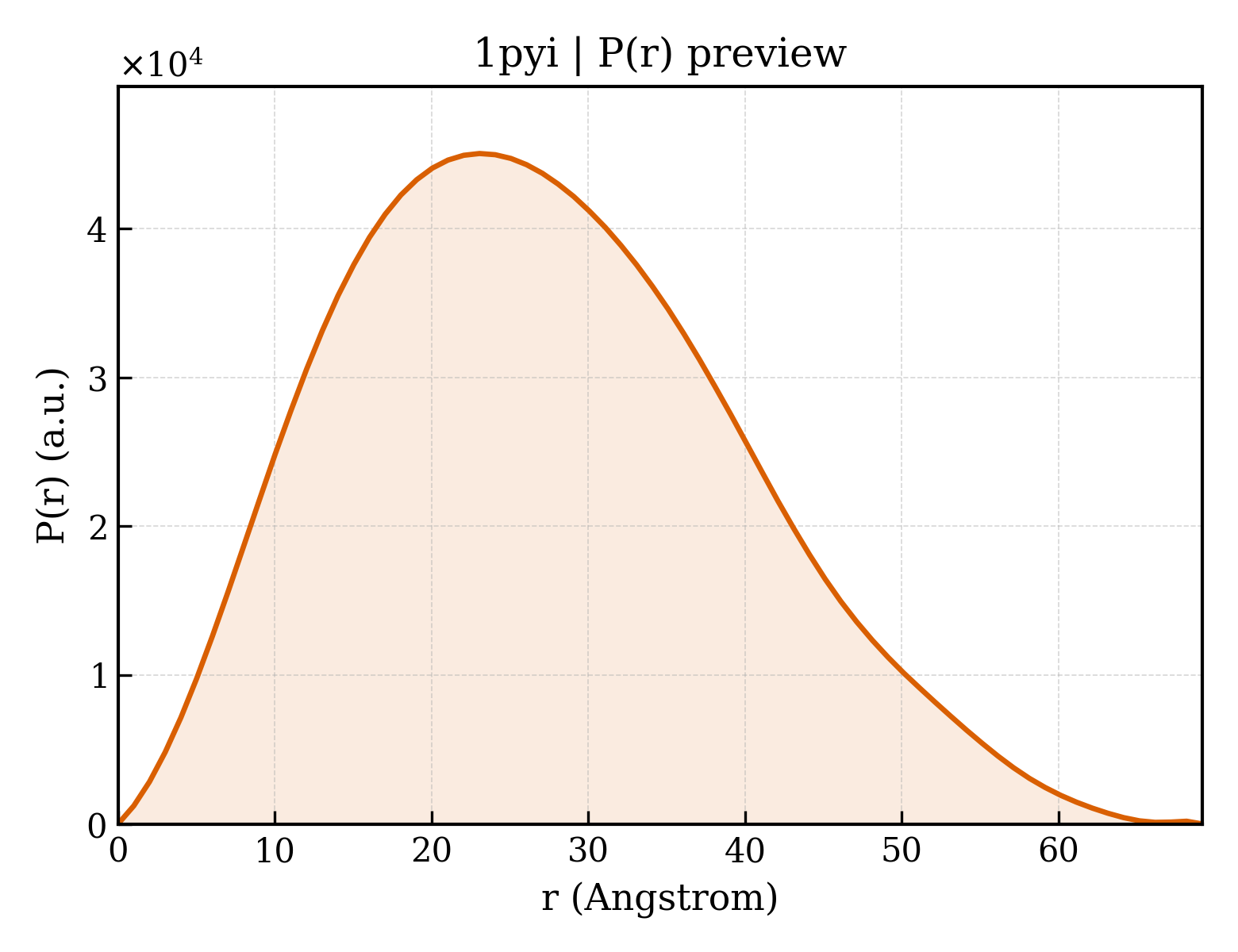

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1pyi
沉积日期 deposition_date	1995-01-04
结构标题 title	CRYSTAL STRUCTURE OF A PPR1-DNA COMPLEX: DNA RECOGNITION BY PROTEINS CONTAINING A ZN2CYS6 BINUCLEAR CLUSTER
关键词 keywords	PROTEIN-DNA COMPLEX, TRANSCRIPTION-DNA COMPLEX, GAL4, ZINC FINGER, ZN2CYS6, BINUCLEAR CLUSTER, TRANSCRIPTION FACTOR; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	20.94 Å
回转半径 Rg (电子) rg_electron	20.44 Å
零角强度 I(0) i0	18698300.00
分子量 molecular_weight	26844.0 kDa
排除体积 excluded_volume	31024 Å³
包络体积 envelope_volume	39294 Å³
水化壳体积 shell_volume	17102 Å³
包络直径 envelope_diameter	68.5 Å
壳层 Rg shell_rg	25.60 Å
包络 Rg envelope_rg	20.42 Å
形状 Rg shape_rg	20.44 Å
总 Rg total_rg	21.05 Å
总原子数 total_atoms	1825
残基数 n_residues	186
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	69.2 Å
Rg (实空间) rg_real	20.99 Å
Rg 误差 (实空间) rg_real_error	0.45 Å
I(0) (实空间) i0_real	1.8700e+07
I(0) 误差 (实空间) i0_real_error	2.4630e+05
Rg (倒空间) rg_reciprocal	20.98 Å
I(0) (倒空间) i0_reciprocal	18700000.0000
解质量估计 total_estimate	0.8981
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.1 Å
偏度 Skewness skewness	0.347
峰度 Kurtosis kurtosis	-0.404
角度范围 angular_range	— – 0.3800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1354000.0000
实空间数据点数 n_real_points	70
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.980

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	;DNA (5'-D(TPCPGPGPCPAPAPTPTPGPCPCPGPA)-3') ;
分子量 formula_weight	4280.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D,E
原子数 atom_count	1826

TCGGCAATTGCCGA

Entity 2 polymer

描述 description	PROTEIN (PYRIMIDINE PATHWAY REGULATOR 1)
分子量 formula_weight	10956.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MKSRTACKRCRLKKIKCDQEFPSCKRCAKLEVPCVSLDPATGKDVPRSYVFFLEDRLAVMMRVLKEYGVDPTKIRGNIPATSDDEPFDLKKYSSVS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1pyia1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1pyia2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1pyib1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.38 — Zn2/Cys6 DNA-binding domain
超家族 Superfamily superfamily	g.38.1 — Zn2/Cys6 DNA-binding domain
家族 Family family	g.38.1.1 — Zn2/Cys6 DNA-binding domain

结构域编号 domain_id	d1pyib2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

CATH v4.4 (2 domains)

结构域编号 domain_id	1pyiA01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

结构域编号 domain_id	1pyiB00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	240 — CD2-Gal4
同源超家族 H-superfamily homologous superfamily	10 — Zn(2)-C6 fungal-type DNA-binding domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	53.800 Å
晶胞边长 b length_b	92.600 Å
晶胞边长 c length_c	174.700 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2450
R_work r_work	—
R_free r_free	0.3300

fit	/app/data/saxs_computation/py/1pyi/1pyi.fit
pddf	/app/data/pr_computation/py/1pyi/1pyi.pr.out
profile	/app/data/saxs_computation/py/1pyi/1pyi.dat
