SAXSdb — 1q0x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fab 9B1, light chain

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 22–117	Not recorded	Fab 9B1, heavy chain × 1 SO4 SULFATE ION × 2 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.6；298 K；22% PEG MME 2000, 0.2M ammonium sulfate, 0.1M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K, pH 4.60	Resolution 1.60 Å R-free 0.251

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1Q0X	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1P4B Three-Dimensional Structure Of a Single Chain Fv Fragment Complexed With The peptide GCN4(7P-14P). Deposited 2003-04-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 22–117（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 4000, tris/HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293KK	Resolution 2.35 Å R-free 0.300
1P4I Crystal Structure of scFv against peptide GCN4 Deposited 2003-04-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 22–117（96 aa）	Mutation：N36S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；293 K；ammonium sulfate, sodium citrate, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.260
1SM3 CRYSTAL STRUCTURE OF THE TUMOR SPECIFIC ANTIBODY SM3 COMPLEX WITH ITS PEPTIDE EPITOPE Deposited 1997-12-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 22–234（213 aa） Fragment：FAB FRAGMENT	Not recorded	CD CADMIUM ION × 8 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 1.95 Å R-free 0.283

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LV1A_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 2–97； UniProt 22–117

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q0x
Deposition date deposition_date	2003-07-17
Structure title title	Anti-morphine Antibody 9B1 Unliganded Form
Keywords keywords	ANTI-MORPHINE ANTIBODY, FAB FRAGMENT, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.85 Å
Radius of gyration Rg (electron density) rg_electron	24.83 Å
Forward intensity I(0) i0	35835700.00
Molecular weight molecular_weight	45802.0 kDa
Excluded volume excluded_volume	57045 Å³
Envelope volume envelope_volume	71242 Å³
Hydration-shell volume shell_volume	24195 Å³
Envelope diameter envelope_diameter	78.5 Å
Shell Rg shell_rg	31.81 Å
Envelope Rg envelope_rg	24.36 Å
Shape Rg shape_rg	24.81 Å
Total Rg total_rg	25.70 Å
Total atoms total_atoms	3219
Residues n_residues	417
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

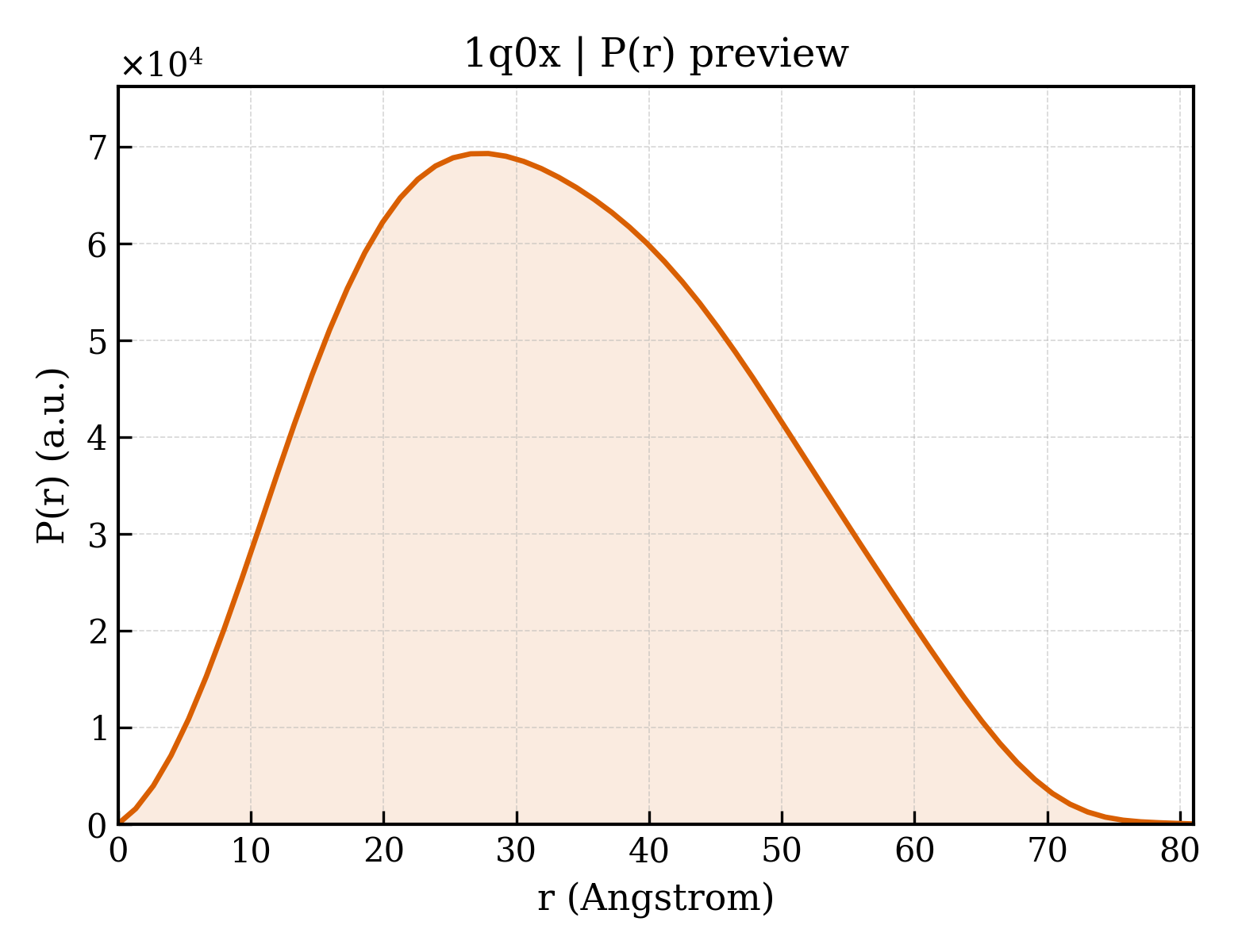

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.0 Å
Rg (real space) rg_real	25.82 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	3.5840e+07
I(0) uncertainty (real space) i0_real_error	4.9910e+05
Rg (reciprocal space) rg_reciprocal	25.83 Å
I(0) (reciprocal space) i0_reciprocal	35840000.0000
Solution quality estimate total_estimate	0.9094
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	27.9 Å
Skewness Skewness skewness	0.242
Kurtosis Kurtosis kurtosis	-0.631
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	6373000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.950

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fab 9B1, light chain
Molecular weight formula_weight	22525.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3546

DAVVTQESALTTSPGETVTLTCRSSTGAVTTSNYANWVQEKPDHLFTGLIGGTNNRAPGVPARFSGSLIGDKAALTITGAQTEDEAIYFCALWSNNKLVFGGGTKLTVLGQPKSSPTVTLFPPSSEELSTAKATLVCTITDFYPGVVTVDWKVDGTPVTAGMETTQPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHSSNKTLSRA

Entity 2 Entity 2 polymer

Description description	Fab 9B1, heavy chain
Molecular weight formula_weight	23758.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLQQSGAELMKPGASVKISCKATGYTFSSYWIEWVKQRPGHGLEWIGEILPGSGDTIFNEKFKGKATFTADTSSNTAYMQLSSLTSEDSAVYYCARWVLDYYGMDYWGQGTSLTVSSASTTPPSVYPLAPGGHHHHHHSAMVTLGCLVKGYFPEPVTVVWNKGSLSTGTHTFPAVLAADLYTLSSSVTVSASSWPGQSVTCNVAHPASSTKVDKKIAPS

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	327

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1q0xh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1q0xh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1q0xl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1q0xl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	1q0xH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1q0xH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1q0xL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1q0xL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	56.514 Å
Unit-cell length b length_b	59.924 Å
Unit-cell length c length_c	114.706 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2510

fit	/app/data/saxs_computation/q0/1q0x/1q0x.fit
pddf	/app/data/pr_computation/q0/1q0x/1q0x.pr.out
profile	/app/data/saxs_computation/q0/1q0x/1q0x.dat
