1q12

Crystal Structure of the ATP-bound E. coli MalK

Method: X-RAY DIFFRACTION D_max: 196.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin transport ATP-binding protein malK

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–371 Chain B； UniProt 1–371	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.8；273 K；PEG 4000, glycerol, Sodium Acetate, Tris, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.60 Å R-free 0.286
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–371 Chain D； UniProt 1–371	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.8；273 K；PEG 4000, glycerol, Sodium Acetate, Tris, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.60 Å R-free 0.286

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1Q12	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q1B Crystal structure of E. coli MalK in the nucleotide-free form Deposited 2003-07-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；293 K；PEG 4000, glycerol, Sodium Acetate, Tris, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.304
1Q1B Crystal structure of E. coli MalK in the nucleotide-free form Deposited 2003-07-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–371（371 aa） Chain D 1–371（371 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；293 K；PEG 4000, glycerol, Sodium Acetate, Tris, pH 8.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.304
1Q1E The ATPase component of E. coli maltose transporter (MalK) in the nucleotide-free form Deposited 2003-07-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG5K MME, (NH4)2SO4, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.276
2AWN Crystal structure of the ADP-Mg-bound E. Coli MALK (Crystallized with ATP-Mg) Deposited 2005-09-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM ATP-Mg2+, 0.2M Magnesium Formate, 15%~20% PEG3350, 15% Glycerol , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.271
2AWN Crystal structure of the ADP-Mg-bound E. Coli MALK (Crystallized with ATP-Mg) Deposited 2005-09-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–371（371 aa） Chain D 1–371（371 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM ATP-Mg2+, 0.2M Magnesium Formate, 15%~20% PEG3350, 15% Glycerol , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.271
2AWO Crystal structure of the ADP-Mg-bound E. Coli MALK (Crystallized with ADP-Mg) Deposited 2005-09-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM ADP-Mg2+, 0.2M Magnesium Formate, 15%~20% PEG3350, 15% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.277
2AWO Crystal structure of the ADP-Mg-bound E. Coli MALK (Crystallized with ADP-Mg) Deposited 2005-09-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–371（371 aa） Chain D 1–371（371 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM ADP-Mg2+, 0.2M Magnesium Formate, 15%~20% PEG3350, 15% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.277
3FH6 Crystal structure of the resting state maltose transporter from E. coli Deposited 2008-12-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；11.5 % PEG 4000, 0.1M ADA pH 6.5, 0.1 M NaCl, 0.1 M Li2SO4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.50 Å R-free 0.363
3FH6 Crystal structure of the resting state maltose transporter from E. coli Deposited 2008-12-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–371（371 aa） Chain D 1–371（371 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；11.5 % PEG 4000, 0.1M ADA pH 6.5, 0.1 M NaCl, 0.1 M Li2SO4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 4.50 Å R-free 0.363
3GD7 Crystal structure of human NBD2 complexed with N6-Phenylethyl-ATP (P-ATP) Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 219–371（153 aa）	Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D	B44 N-(2-phenylethyl)adenosine 5'-(tetrahydrogen triphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；1.1-1.25 M tri-sodium citrate, pH 5.5-8, sitting drop, temperature 277K, VAPOR DIFFUSION	Resolution 2.70 Å R-free 0.308
3GD7 Crystal structure of human NBD2 complexed with N6-Phenylethyl-ATP (P-ATP) Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 219–371（153 aa）	Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D	B44 N-(2-phenylethyl)adenosine 5'-(tetrahydrogen triphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；1.1-1.25 M tri-sodium citrate, pH 5.5-8, sitting drop, temperature 277K, VAPOR DIFFUSION	Resolution 2.70 Å R-free 0.308
3GD7 Crystal structure of human NBD2 complexed with N6-Phenylethyl-ATP (P-ATP) Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 219–371（153 aa）	Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D	B44 N-(2-phenylethyl)adenosine 5'-(tetrahydrogen triphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；1.1-1.25 M tri-sodium citrate, pH 5.5-8, sitting drop, temperature 277K, VAPOR DIFFUSION	Resolution 2.70 Å R-free 0.308
3GD7 Crystal structure of human NBD2 complexed with N6-Phenylethyl-ATP (P-ATP) Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 219–371（153 aa）	Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D	B44 N-(2-phenylethyl)adenosine 5'-(tetrahydrogen triphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；1.1-1.25 M tri-sodium citrate, pH 5.5-8, sitting drop, temperature 277K, VAPOR DIFFUSION	Resolution 2.70 Å R-free 0.308
3GD7 Crystal structure of human NBD2 complexed with N6-Phenylethyl-ATP (P-ATP) Deposited 2009-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 219–371（153 aa） Chain B 219–371（153 aa） Chain C 219–371（153 aa） Chain D 219–371（153 aa）	Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D Mutation：Q1280E, Y1307N, E1308A, Q1309A, W1310H, H1402A, Q1411D	B44 N-(2-phenylethyl)adenosine 5'-(tetrahydrogen triphosphate) × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；1.1-1.25 M tri-sodium citrate, pH 5.5-8, sitting drop, temperature 277K, VAPOR DIFFUSION	Resolution 2.70 Å R-free 0.308
3PUV Crystal Structure of an outward-facing MBP-Maltose transporter complex bound to ADP-VO4 Deposited 2010-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 10 UMQ UNDECYL-MALTOSIDE × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 VO4 VANADATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；27% PEG 400, 0.1M HEPES, 10 mM magnesium chloride, 50 mM sodium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K, pH 7.5	Resolution 2.40 Å R-free 0.253
3PUW Crystal Structure of an outward-facing MBP-Maltose transporter complex bound to ADP-AlF4 Deposited 2010-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 10 UMQ UNDECYL-MALTOSIDE × 1 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ALF TETRAFLUOROALUMINATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；27 % PEG 400, 0.1 M HEPES, 10 mM magnesium chloride, 50 mM sodium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K, pH 7.5	Resolution 2.30 Å R-free 0.255
3PUX Crystal Structure of an outward-facing MBP-Maltose transporter complex bound to ADP-BeF3 Deposited 2010-12-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	UMQ UNDECYL-MALTOSIDE × 1 PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 10 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 BEF BERYLLIUM TRIFLUORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；27% PEG 400, 0.1 M HEPES, 10 mM magnesium chloride, 50 mM sodium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K, pH 7.5	Resolution 2.30 Å R-free 0.265
3RLF Crystal structure of the maltose-binding protein/maltose transporter complex in an outward-facing conformation bound to MgAMPPNP Deposited 2011-04-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	UMQ UNDECYL-MALTOSIDE × 1 PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 4 MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；28% PEG 4000, 0.1M sodium hepes pH 7.5, 0.2M sodium chloride, 0.05M magnesium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.254
4JBW Crystal structure of E. coli maltose transporter MalFGK2 in complex with its regulatory protein EIIAglc Deposited 2013-02-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–371（371 aa） Chain B 1–371（371 aa）	Not recorded	PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；295 K；13% PEG monomethylether 2000, 100mM Sodium cacodylate pH 5.6, 100mM Non Detergent Sulfobetaine (NDSB-256), VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.91 Å R-free 0.281
4JBW Crystal structure of E. coli maltose transporter MalFGK2 in complex with its regulatory protein EIIAglc Deposited 2013-02-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–371（371 aa） Chain D 1–371（371 aa）	Not recorded	PGV (1R)-2-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL (11E)-OCTADEC-11-ENOATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；295 K；13% PEG monomethylether 2000, 100mM Sodium cacodylate pH 5.6, 100mM Non Detergent Sulfobetaine (NDSB-256), VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.91 Å R-free 0.281
9BCR Cryo-EM structure of a bacterial prototype ATP-binding cassette transporter MalFGK2. Deposited 2024-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–371（370 aa） Chain D 2–371（370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
9NQJ Cryo-EM structure of a bacterial prototype ATP-binding cassette transporter MalFGK2. Deposited 2025-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–371（370 aa） Chain B 2–371（370 aa）	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 VO4 VANADATE ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

13 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MALK_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–371； UniProt 1–371 Author chain B； PDBConstruct 1–371； UniProt 1–371 Author chain C； PDBConstruct 1–371； UniProt 1–371 Author chain D； PDBConstruct 1–371； UniProt 1–371

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

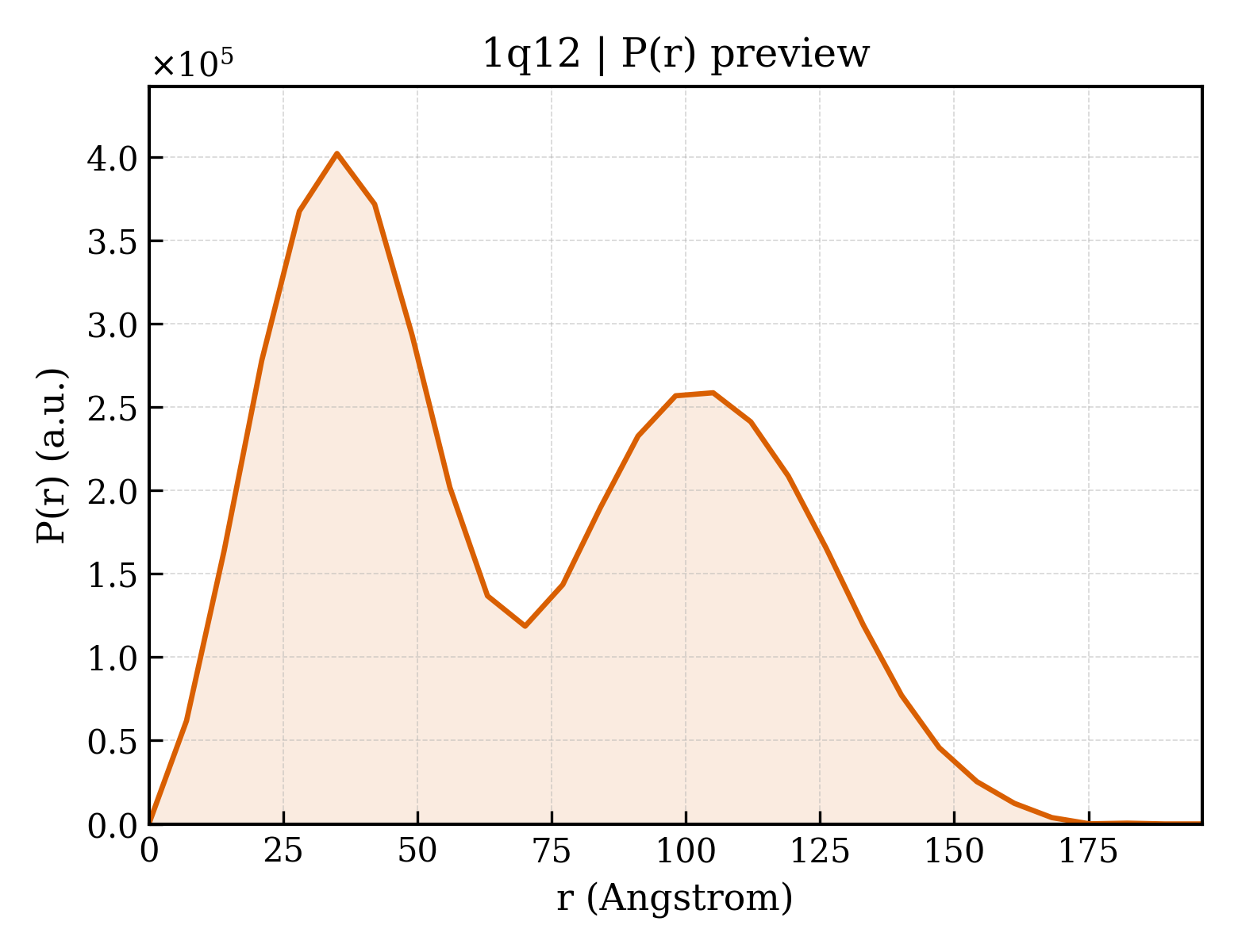

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1q12
Deposition date deposition_date	2003-07-18
Structure title title	Crystal Structure of the ATP-bound E. coli MalK
Keywords keywords	ATP-binding cassette, transport protein; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	55.85 Å
Radius of gyration Rg (electron density) rg_electron	56.26 Å
Forward intensity I(0) i0	385340000.00
Molecular weight molecular_weight	164350.0 kDa
Excluded volume excluded_volume	205850 Å³
Envelope volume envelope_volume	305560 Å³
Hydration-shell volume shell_volume	44349 Å³
Envelope diameter envelope_diameter	185.6 Å
Shell Rg shell_rg	62.45 Å
Envelope Rg envelope_rg	53.76 Å
Shape Rg shape_rg	56.28 Å
Total Rg total_rg	56.37 Å
Total atoms total_atoms	11536
Residues n_residues	1468
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	196.2 Å
Rg (real space) rg_real	56.37 Å
Rg uncertainty (real space) rg_real_error	2.94 Å
I(0) (real space) i0_real	3.8530e+08
I(0) uncertainty (real space) i0_real_error	8.9260e+06
Rg (reciprocal space) rg_reciprocal	55.35 Å
I(0) (reciprocal space) i0_reciprocal	384700000.0000
Solution quality estimate total_estimate	0.6274
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	35.0 Å
Skewness Skewness skewness	0.286
Kurtosis Kurtosis kurtosis	-1.144
Angular range angular_range	— – 0.1400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	51570000.0000
Real-space data points n_real_points	29
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.024; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.180; Smooth: 0.899

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Maltose/maltodextrin transport ATP-binding protein malK
Molecular weight formula_weight	42184.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11546

MASVQLQNVTKAWGEVVVSKDINLDIHEGEFVVFVGPSGCGKSTLLRMIAGLETITSGDLFIGEKRMNDTPPAERGVGMVFQSYALYPHLSVAENMSFGLKLAGAKKEVINQRVNQVAEVLQLAHLLDRKPKALSGGQRQRVAIGRTLVAEPSVFLLDEPLSNLDAALRVQMRIEISRLHKRLGRTMIYVTHDQVEAMTLADKIVVLDAGRVAQVGKPLELYHYPADRFVAGFIGSPKMNFLPVKVTATAIDQVQVELPMPNRQQVWLPVESRDVQVGANMSLGIRPEHLLPSDIADVILEGEVQVVEQLGNETQIHIQIPSIRQNLVYRQNDVVLVEEGATFAIGLPPERCHLFREDGTACRRLHKEPGVASASHHHHHH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10

▼

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1q12a1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1q12a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d1q12b1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1q12b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d1q12c1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1q12c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d1q12d1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1q12d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

CATH v4.4 (12 domains)

Domain ID domain_id	1q12A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1q12A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1q12A03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1q12B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1q12B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1q12B03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1q12C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1q12C02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1q12C03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1q12D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1q12D02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1q12D03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	59.880 Å
Unit-cell length b length_b	97.278 Å
Unit-cell length c length_c	101.862 Å
Unit-cell angle α angle_alpha	74.59 °
Unit-cell angle β angle_beta	82.47 °
Unit-cell angle γ angle_gamma	76.85 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	14.800 Å
R factor r_factor	0.2580
R_work r_work	0.2580
R_free r_free	0.2860

fit	/app/data/saxs_computation/q1/1q12/1q12.fit
pddf	/app/data/pr_computation/q1/1q12/1q12.pr.out
profile	/app/data/saxs_computation/q1/1q12/1q12.dat
