SAXSdb — 1qe5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PENTOSYLTRANSFERASE

OrganismNot specified

UniProt P81989

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 9–282 Chain B； UniProt 9–282 Chain C； UniProt 9–282	Fragment：RESIDUES 9-282	PO4 PHOSPHATE ION × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；PEG 4000, cacodylate, Ca-acetate, sodium phosphate, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.260

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1QE5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C3X PURINE NUCLEOSIDE PHOSPHORYLASE FROM CELLULOMONAS SP. IN COMPLEX WITH 8-IODO-GUANINE Deposited 1999-07-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 9–282（274 aa） Chain B 9–282（274 aa） Chain C 9–282（274 aa）	Not recorded	PO4 PHOSPHATE ION × 3 8IG 8-IODO-GUANINE × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, CACODYLATE, CA-ACETATE, SODIUM PHOSPHATE, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.251

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PUNA_CELSP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–266； UniProt 9–282 Author chain B； PDBConstruct 1–266； UniProt 9–282 Author chain C； PDBConstruct 1–266； UniProt 9–282

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qe5
Deposition date deposition_date	1999-07-13
Structure title title	PURINE NUCLEOSIDE PHOSPHORYLASE FROM CELLULOMONAS SP. IN COMPLEX WITH PHOSPHATE
Keywords keywords	ENZYME, PURINE NUCLEOSIDE PHOSPHORYLASE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.51 Å
Radius of gyration Rg (electron density) rg_electron	28.45 Å
Forward intensity I(0) i0	115084000.00
Molecular weight molecular_weight	82841.0 kDa
Excluded volume excluded_volume	103090 Å³
Envelope volume envelope_volume	127440 Å³
Hydration-shell volume shell_volume	37296 Å³
Envelope diameter envelope_diameter	91.2 Å
Shell Rg shell_rg	36.01 Å
Envelope Rg envelope_rg	28.34 Å
Shape Rg shape_rg	28.44 Å
Total Rg total_rg	29.16 Å
Total atoms total_atoms	5830
Residues n_residues	798
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	87.0 Å
Rg (real space) rg_real	29.39 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	1.1510e+08
I(0) uncertainty (real space) i0_real_error	1.6480e+06
Rg (reciprocal space) rg_reciprocal	29.44 Å
I(0) (reciprocal space) i0_reciprocal	115100000.0000
Solution quality estimate total_estimate	0.9103
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	37.0 Å
Skewness Skewness skewness	0.173
Kurtosis Kurtosis kurtosis	-0.602
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	42540000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.984; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.888

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PENTOSYLTRANSFERASE
Molecular weight formula_weight	27546.2 kDa
EC 编号 ec_number	2.4.2.1
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6092

PPLDDPATDPFLVARAAADHIAQATGVEGHDMALVLGSGWGGAAELLGEVVAEVPTHEIPGFSSVTRSIRVERADGSVRHALVLGSRTHLYEGKGVRAVVHGVRTAAATGAETLILTNGCGGLNQEWGAGTPVLLSDHINLTARSPLEGPTFVDLTDVYSPRLRELAHRVDPTLPEGVYAQFPGPHYETPAEVRMAGILGADLVGMSTTLEAIAARHCGLEVLGVSLVTNLAAGISPTPLSHAEVIEAGQAAGPRISALLADIAKR

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	262

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1qe5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1qe5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1qe5c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

CATH v4.4 (3 domains)

Domain ID domain_id	1qe5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1qe5B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1qe5C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.120 Å
Unit-cell length b length_b	108.900 Å
Unit-cell length c length_c	119.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	28.000 Å
R factor r_factor	—
R_work r_work	0.2000
R_free r_free	0.2600

fit	/app/data/saxs_computation/qe/1qe5/1qe5.fit
pddf	/app/data/pr_computation/qe/1qe5/1qe5.pr.out
profile	/app/data/saxs_computation/qe/1qe5/1qe5.dat

PURINE NUCLEOSIDE PHOSPHORYLASE FROM CELLULOMONAS SP. IN COMPLEX WITH PHOSPHATE

1. Protein Identity and Related Structures Protein Identity & Related Structures

PENTOSYLTRANSFERASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

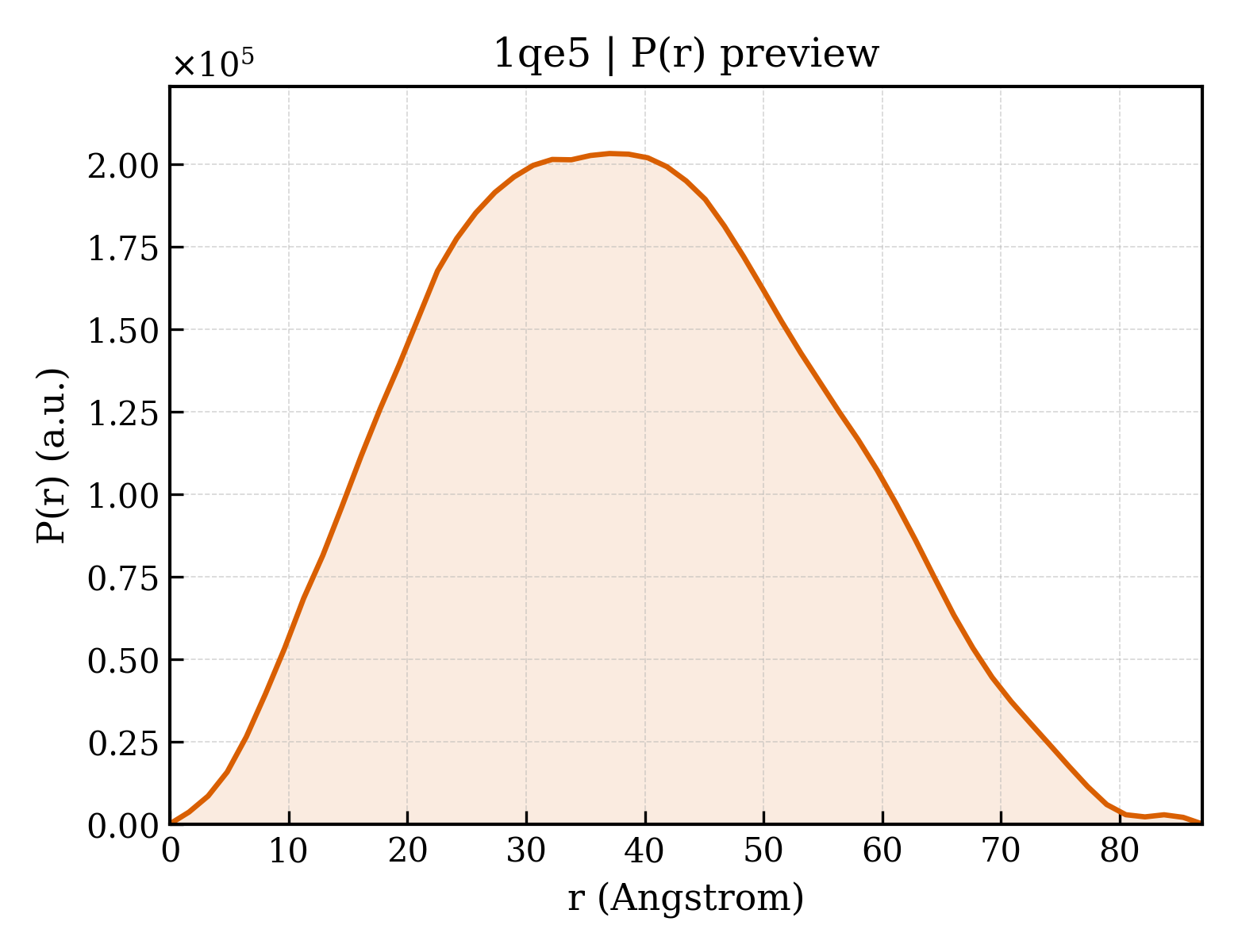

P(r) Distance Distribution P(r) Distribution
