1qz0

Crystal Structure of the Yersinia Pestis Phosphatase YopH in Complex with a Phosphotyrosyl Mimetic-Containing Hexapeptide

Method: X-RAY DIFFRACTION D_max: 107.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

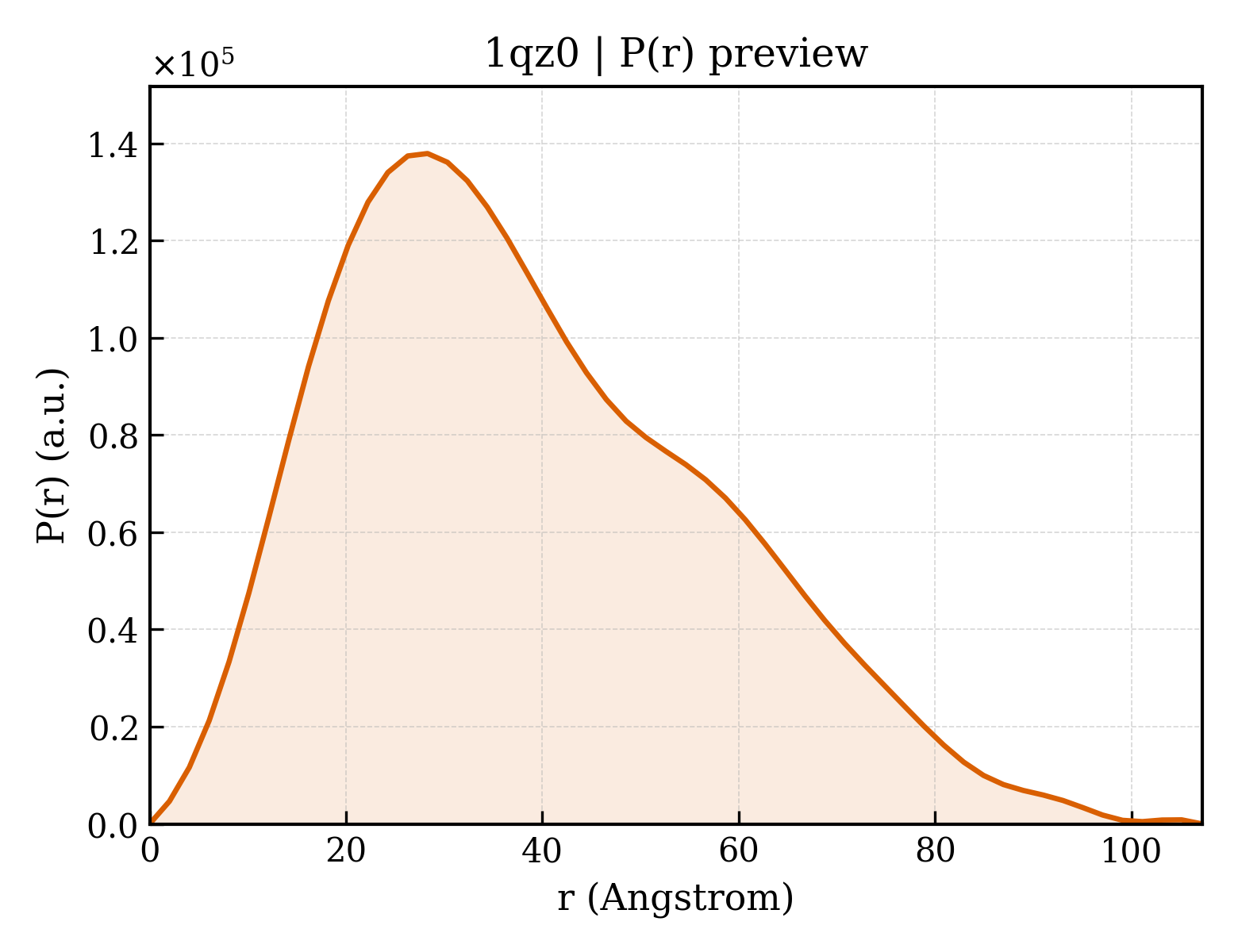

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qz0
沉积日期 deposition_date	2003-09-15
结构标题 title	Crystal Structure of the Yersinia Pestis Phosphatase YopH in Complex with a Phosphotyrosyl Mimetic-Containing Hexapeptide
关键词 keywords	PHOSPHATASE, PTPASE, YOPH, DEPHOSPHORYLASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.16 Å
回转半径 Rg (电子) rg_electron	29.89 Å
零角强度 I(0) i0	77752900.00
分子量 molecular_weight	65015.0 kDa
排除体积 excluded_volume	79651 Å³
包络体积 envelope_volume	98581 Å³
水化壳体积 shell_volume	29004 Å³
包络直径 envelope_diameter	114.4 Å
壳层 Rg shell_rg	34.69 Å
包络 Rg envelope_rg	29.91 Å
形状 Rg shape_rg	29.88 Å
总 Rg total_rg	30.34 Å
总原子数 total_atoms	4534
残基数 n_residues	580
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.2 Å
Rg (实空间) rg_real	30.42 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	7.7750e+07
I(0) 误差 (实空间) i0_real_error	1.3390e+06
Rg (倒空间) rg_reciprocal	30.31 Å
I(0) (倒空间) i0_reciprocal	77750000.0000
解质量估计 total_estimate	0.8137
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.3 Å
偏度 Skewness skewness	0.545
峰度 Kurtosis kurtosis	-0.285
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21240000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.629; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.703; Smooth: 0.985

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Protein-tyrosine phosphatase yopH
分子量 formula_weight	33553.9 kDa
EC 编号 ec_number	3.1.3.48
突变 mutation	C235R
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	5137

MRERPHTSGHHGAGEARATAPSTVSPYGPEARAELSSRLTTLRNTLAPATNDPRYLQACGGEKLNRFRDIQCRRQTAVRADLNANYIQVGNTRTIACQYPLQSQLESHFRMLAENRTPVLAVLASSSEIANQRFGMPDYFRQSGTYGSITVESKMTQQVGLGDGIMADMYTLTIREAGQKTISVPVVHVGNWPDQTAVSSEVTKALASLVDQTAETKRNMYESKGSSAVADDSKLRPVIHCRAGVGRTAQLIGAMCMNDSRNSQLSVEDMVSQMRVQRNGIMVQKDEQLDVLIKLAEGQGRPLLNS

来源 Source

来源生物 organism	Yersinia pestis
NCBI 分类编号 ncbi_taxonomy_id	632
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	ASP-ALA-ASP-GLU-FTY-LEU-NH2
分子量 formula_weight	836.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,E,F

DADEYLX

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	603

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1qz0a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
超家族 Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
家族 Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

结构域编号 domain_id	d1qz0b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.45 — (Phosphotyrosine protein) phosphatases II
超家族 Superfamily superfamily	c.45.1 — (Phosphotyrosine protein) phosphatases II
家族 Family family	c.45.1.2 — Higher-molecular-weight phosphotyrosine protein phosphatases

CATH v4.4 (2 domains)

结构域编号 domain_id	1qz0A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

结构域编号 domain_id	1qz0B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	47.292 Å
晶胞边长 b length_b	53.450 Å
晶胞边长 c length_c	69.066 Å
晶胞夹角 α angle_alpha	109.61 °
晶胞夹角 β angle_beta	104.75 °
晶胞夹角 γ angle_gamma	89.98 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.500 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	—
R_work r_work	0.1880
R_free r_free	0.2090
