1qzv

Crystal structure of plant photosystem I

Method: X-RAY DIFFRACTION D_max: 223.6 Å Quality: GOOD

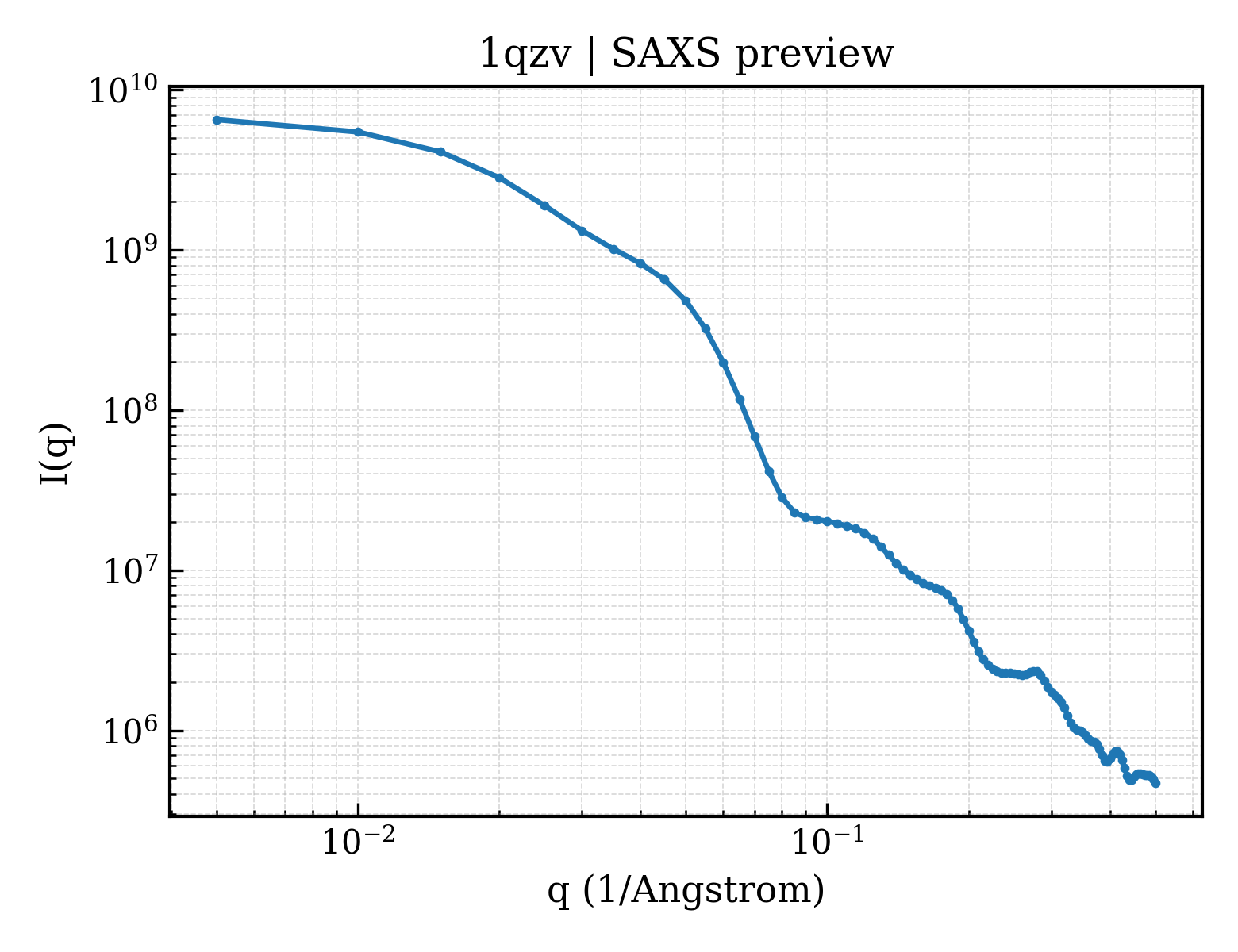

SAXS 散射曲线 SAXS Profile

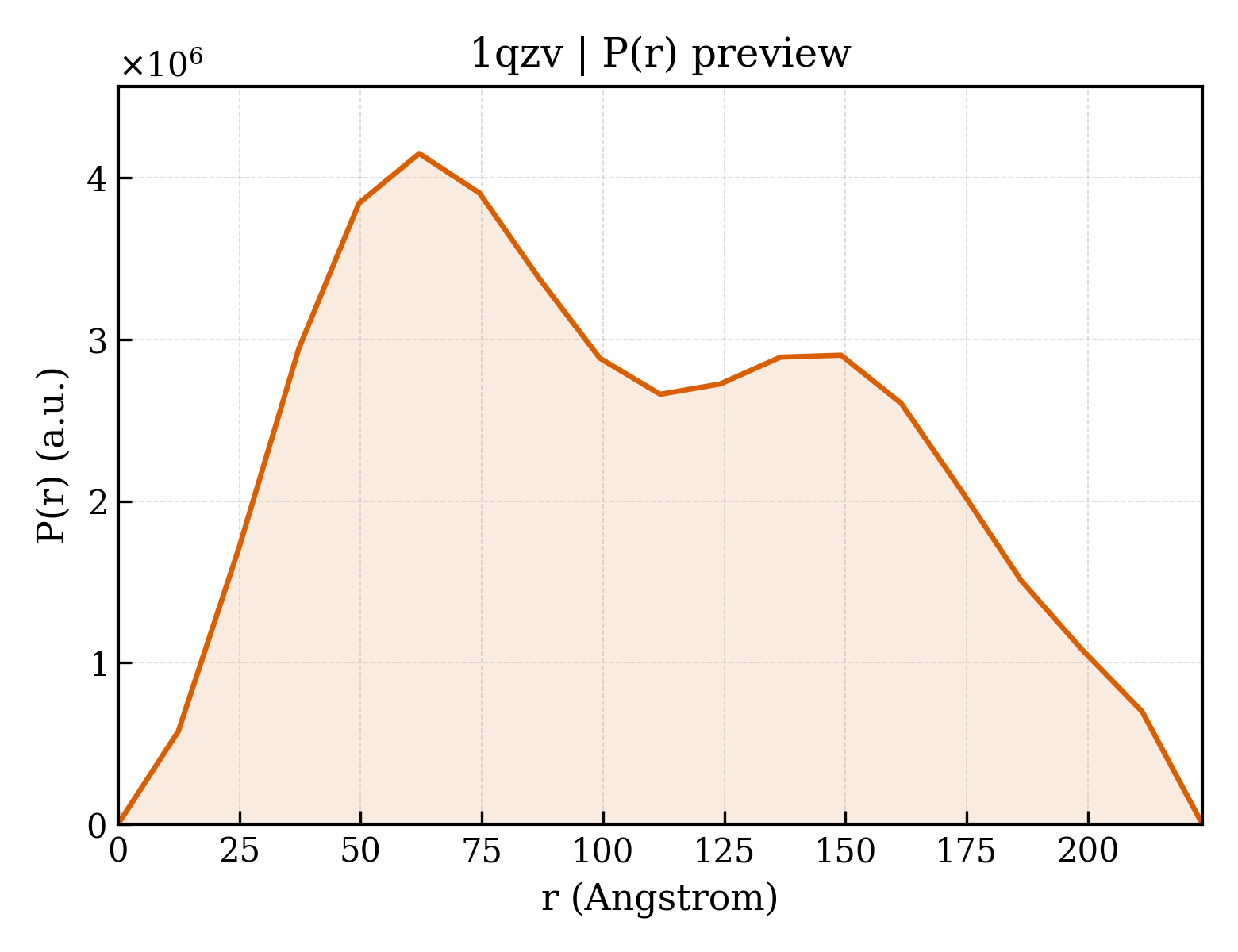

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qzv
沉积日期 deposition_date	2003-09-18
结构标题 title	Crystal structure of plant photosystem I
关键词 keywords	PHOTOSYNTHESIS, PLANT PHOTOSYNTHETIC REACTION CENTER, PERIPHERAL ANTENNA, LIGHT-HARVESTING SYSTEM, PLANT MEMBRANE PROTEIN COMPLEX; PHOTOSYNTHESIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.41 Å
回转半径 Rg (电子) rg_electron	85.05 Å
零角强度 I(0) i0	6932460000.00
分子量 molecular_weight	715080.0 kDa
排除体积 excluded_volume	1334000 Å³
包络体积 envelope_volume	1307600 Å³
水化壳体积 shell_volume	129690 Å³
包络直径 envelope_diameter	279.8 Å
壳层 Rg shell_rg	82.13 Å
包络 Rg envelope_rg	80.38 Å
形状 Rg shape_rg	85.21 Å
总 Rg total_rg	84.93 Å
总原子数 total_atoms	8450
残基数 n_residues	—
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	223.6 Å
Rg (实空间) rg_real	80.91 Å
Rg 误差 (实空间) rg_real_error	0.70 Å
I(0) (实空间) i0_real	6.6360e+09
I(0) 误差 (实空间) i0_real_error	1.2340e+08
Rg (倒空间) rg_reciprocal	81.98 Å
I(0) (倒空间) i0_reciprocal	6883000000.0000
解质量估计 total_estimate	0.8774
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.1 Å
偏度 Skewness skewness	0.263
峰度 Kurtosis kurtosis	-0.963
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.0670
最高正则化参数 α highest_alpha	1225000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.916; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.761; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (19)

Entity 1 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAA
分子量 formula_weight	61804.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,P
原子数 atom_count	13938

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 2 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAB
分子量 formula_weight	62314.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,Q

Entity 3 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAC
分子量 formula_weight	6826.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,R

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 4 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAD
分子量 formula_weight	13124.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,S

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 5 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAE
分子量 formula_weight	5464.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,T

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 6 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAF
分子量 formula_weight	13804.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,U

XXXXXXXXXXXXXXXXXEKQALKKLQASLKLYADDSAPALAIKATMEXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 7 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAG
分子量 formula_weight	6315.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,V

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 8 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAH
分子量 formula_weight	4443.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,W

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 9 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAI
分子量 formula_weight	2571.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,Y

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 10 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAJ
分子量 formula_weight	3507.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,Z

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 11 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAK
分子量 formula_weight	3592.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,5

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 12 polymer

描述 description	PLANT PHOTOSYSTEM I: SUBUNIT PSAL
分子量 formula_weight	11507.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,6

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 13 polymer

描述 description	PLANT LIGHT HARVESTING COMPLEX I(LHCI): SUBUNIT LHCA1
分子量 formula_weight	9294.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,7

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 14 polymer

描述 description	PLANT LIGHT HARVESTING COMPLEX I(LHCI): SUBUNIT LHCA2
分子量 formula_weight	9805.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,8

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 15 polymer

描述 description	PLANT LIGHT HARVESTING COMPLEX I(LHCI): SUBUNIT LHCA3
分子量 formula_weight	9975.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,9

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 16 polymer

描述 description	PLANT LIGHT HARVESTING COMPLEX I(LHCI): SUBUNIT LHCA4
分子量 formula_weight	10145.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4,0

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 17 non-polymer

描述 description	CHLOROPHYLL A
分子量 formula_weight	893.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	334

Entity 18 non-polymer

描述 description	PHYLLOQUINONE
分子量 formula_weight	450.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 19 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (32 domains)

结构域编号 domain_id	d1qzv0_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv1_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv2_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv3_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv4_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv5_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv6_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv7_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv8_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzv9_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzva_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvb_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvc_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvd_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzve_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvf_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvg_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvh_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvi_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvj_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvk_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvl_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvp_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvq_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvr_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvs_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvt_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvu_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvv_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvw_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvy_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

结构域编号 domain_id	d1qzvz_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.5 — Photosystems
超家族 Superfamily superfamily	i.5.1 — Photosystems
家族 Family family	i.5.1.1 — Photosystems

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	182.283 Å
晶胞边长 b length_b	190.376 Å
晶胞边长 c length_c	220.253 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.48 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	4.440 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.4100
R_work r_work	0.4100
R_free r_free	0.4200

fit	/app/data/saxs_computation/qz/1qzv/1qzv.fit
pddf	/app/data/pr_computation/qz/1qzv/1qzv.pr.out
profile	/app/data/saxs_computation/qz/1qzv/1qzv.dat

Crystal structure of plant photosystem I

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

5. 实体与聚合体信息 (19)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 non-polymer

Entity 18 non-polymer

Entity 19 non-polymer

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (32 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
