1rai

;CRYSTAL STRUCTURE OF CTP-LIGATED T STATE ASPARTATE TRANSCARBAMOYLASE AT 2.5 ANGSTROMS RESOLUTION: IMPLICATIONS FOR ATCASE MUTANTS AND THE MECHANISM OF NEGATIVE COOPERATIVITY ;

Method: X-RAY DIFFRACTION D_max: 113.2 Å Quality: GOOD

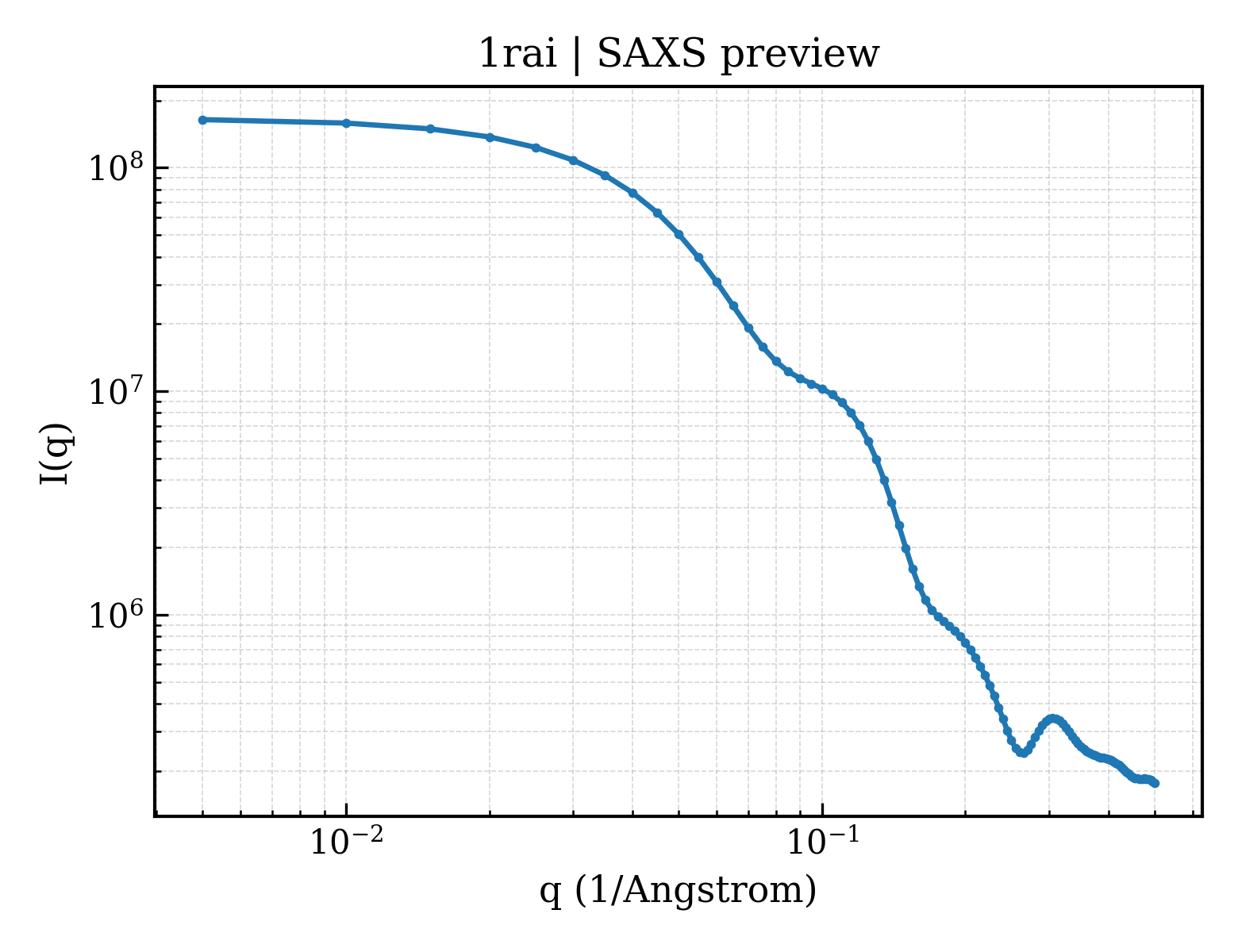

SAXS 散射曲线 SAXS Profile

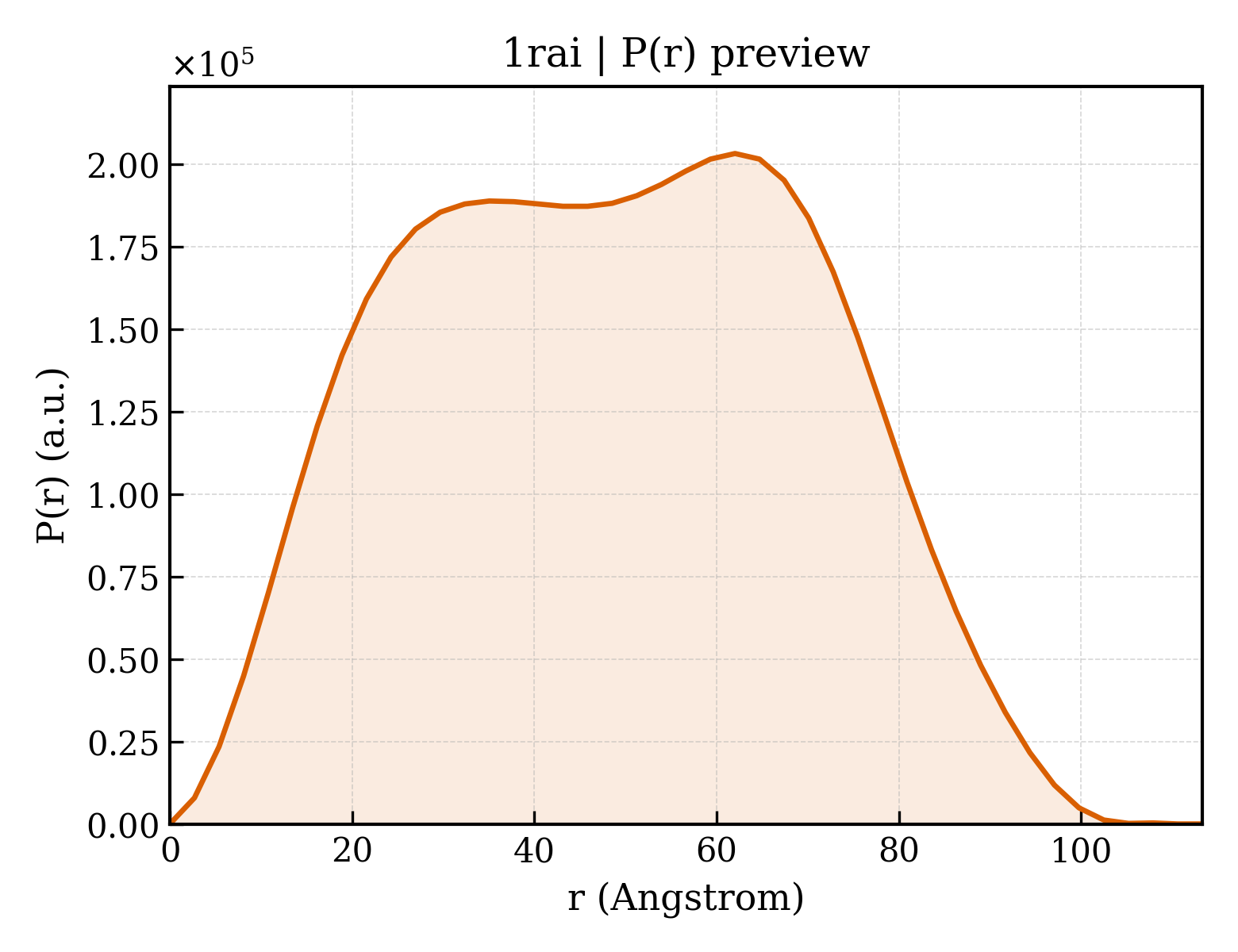

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rai
沉积日期 deposition_date	1992-08-14
结构标题 title	;CRYSTAL STRUCTURE OF CTP-LIGATED T STATE ASPARTATE TRANSCARBAMOYLASE AT 2.5 ANGSTROMS RESOLUTION: IMPLICATIONS FOR ATCASE MUTANTS AND THE MECHANISM OF NEGATIVE COOPERATIVITY ;
关键词 keywords	TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.75 Å
回转半径 Rg (电子) rg_electron	37.10 Å
零角强度 I(0) i0	166020000.00
分子量 molecular_weight	102940.0 kDa
排除体积 excluded_volume	128510 Å³
包络体积 envelope_volume	174760 Å³
水化壳体积 shell_volume	39678 Å³
包络直径 envelope_diameter	109.9 Å
壳层 Rg shell_rg	43.09 Å
包络 Rg envelope_rg	35.77 Å
形状 Rg shape_rg	37.11 Å
总 Rg total_rg	37.46 Å
总原子数 total_atoms	7224
残基数 n_residues	919
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.2 Å
Rg (实空间) rg_real	37.62 Å
Rg 误差 (实空间) rg_real_error	0.86 Å
I(0) (实空间) i0_real	1.6600e+08
I(0) 误差 (实空间) i0_real_error	2.8640e+06
Rg (倒空间) rg_reciprocal	37.71 Å
I(0) (倒空间) i0_reciprocal	166000000.0000
解质量估计 total_estimate	0.8997
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	62.0 Å
偏度 Skewness skewness	0.030
峰度 Kurtosis kurtosis	-0.898
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18810000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.875

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Aspartate carbamoyltransferase catalytic chain
分子量 formula_weight	34337.1 kDa
EC 编号 ec_number	2.1.3.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	7310

ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	83333

Entity 2 polymer

描述 description	Aspartate carbamoyltransferase regulatory chain
分子量 formula_weight	17143.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	83333

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	CYTIDINE-5'-TRIPHOSPHATE
分子量 formula_weight	483.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	81

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1raia1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1raia2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1raib1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d1raib2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

结构域编号 domain_id	d1raic1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1raic2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d1raid1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d1raid2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1raiA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1raiA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1raiB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	1raiB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

结构域编号 domain_id	1raiC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1raiC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	1raiD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	1raiD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

▶

7. 引用文献 (6)

;Crystal structure of CTP-ligated T state aspartate transcarbamoylase at 2.5 A resolution: implications for ATCase mutants and the mechanism of negative cooperativity. ;

Proteins (1993)

PMID: 8441751 · DOI: 10.1002/prot.340150206 PRIMARY

;Structural Consequences of Effector Binding to the T State of Aspartate Carbamoyltransferase: Crystal Structures of the Unligated and ATP-and Ctp-Complexed Enzymes at 2.6 Angstroms Resolution ;

Biochemistry (1990)

Structural Asymmetry in the Ctp-Liganded Form of Aspartate Carbamoyltransferase from Escherichia Coli

J.Mol.Biol. (1987)

Location of Amino Acid Alterations in Mutants of Aspartate Transcarbamoylase: Structural Aspects of Interallelic Complementation

Proc.Natl.Acad.Sci.USA (1984)

;Nucleotide Sequence of the Structural Gene (Pyrb) that Encodes the Catalytic Polypeptide of Aspartate Transcarbamoylase of Escherichia Coli ;

Proc.Natl.Acad.Sci.USA (1983)

Amino Acid Sequence of the Catalytic Subunit of Aspartate Transcarbamoylase from Escherichia Coli

Proc.Natl.Acad.Sci.USA (1983)

▶

晶胞边长 a length_a	122.130 Å
晶胞边长 b length_b	122.130 Å
晶胞边长 c length_c	142.510 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 3 2 1
空间群编号 int_tables_number	150
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	0.1820
R_work r_work	0.1820
R_free r_free	—
