SAXSdb — 1rdx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FRUCTOSE 1,6-BISPHOSPHATASE

Sus scrofa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	6-O-phosphono-beta-D-fructofuranose × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	F16P_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–337； UniProt 1–337 Author chain B； PDBConstruct 1–337； UniProt 1–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rdx
Deposition date deposition_date	1996-05-17
Structure title title	R-STATE STRUCTURE OF THE ARG 243 TO ALA MUTANT OF PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI
Keywords keywords	HYDROLASE R243A MUTANT IN THE R-STATE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rdx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rdx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

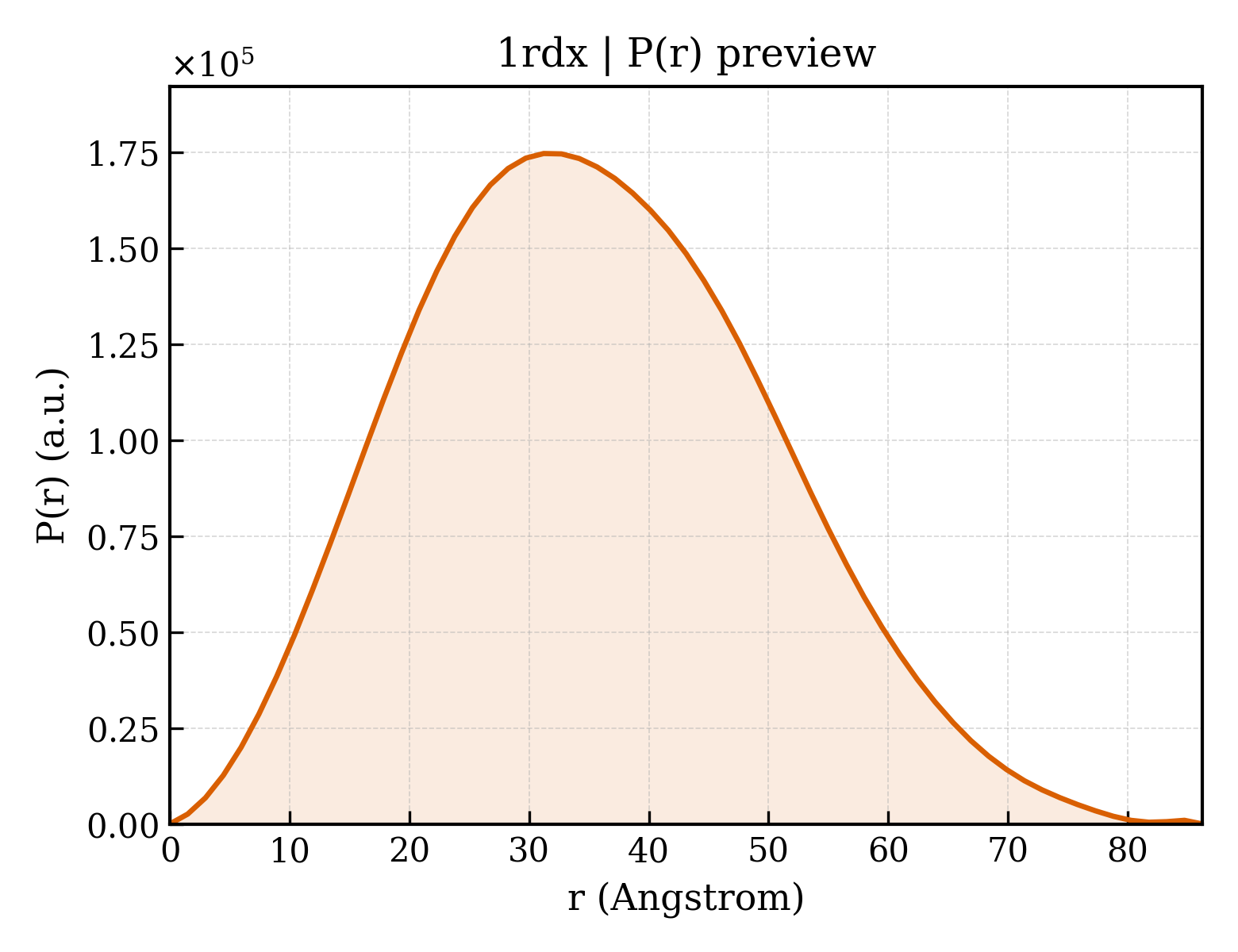

1rdx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.41 Å
Rg (electron density)	33.63 Å
Total Rg	34.12 Å
Atom count	10328
Residues	1348
Excluded volume	185690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rdx__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	FRUCTOSE 1,6-BISPHOSPHATASE
Molecular weight formula_weight	36617.1 kDa
EC 编号 ec_number	3.1.3.11
Mutation mutation	R243A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5223

TDQAAFDTNIVTLTRFVMEQGRKARGTGEMTQLLNSLCTAVKAISTAVRKAGIAHLYGIAGSTNVTGDQVKKLDVLSNDLVINVLKSSFATCVLVTEEDKNAIIVEPEKRGKYVVCFDPLDGSSNIDCLVSIGTIFGIYRKNSTDEPSEKDALQPGRNLVAAGYALYGSATMLVLAMVNGVNCFMLDPAIGEFILVDRNVKIKKKGSIYSINEGYAKEFDPAITEYIQRKKFPPDNSAPYGAAYVGSMVADVHRTLVYGGIFMYPANKKSPKGKLRLLYECNPMAYVMEKAGGLATTGKEAVLDIVPTDIHQRAPIILGSPEDVTELLEIYQKHAAK

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	6-O-phosphono-beta-D-fructofuranose
Molecular weight formula_weight	260.1 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	59

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1rdxa_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.7 — Carbohydrate phosphatase
Superfamily Superfamily superfamily	e.7.1 — Carbohydrate phosphatase
Family Family family	e.7.1.1 — Inositol monophosphatase/fructose-1,6-bisphosphatase-like

Domain ID domain_id	d1rdxb_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.7 — Carbohydrate phosphatase
Superfamily Superfamily superfamily	e.7.1 — Carbohydrate phosphatase
Family Family family	e.7.1.1 — Inositol monophosphatase/fructose-1,6-bisphosphatase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1rdxA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	540 — Fructose-1,6-Bisphosphatase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Fructose-1,6-Bisphosphatase, subunit A, domain 1

Domain ID domain_id	1rdxA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	1rdxB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	540 — Fructose-1,6-Bisphosphatase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Fructose-1,6-Bisphosphatase, subunit A, domain 1

Domain ID domain_id	1rdxB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	80 —

▶

Unit-cell length a length_a	131.310 Å
Unit-cell length b length_b	131.310 Å
Unit-cell length c length_c	66.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2970

R-STATE STRUCTURE OF THE ARG 243 TO ALA MUTANT OF PIG KIDNEY FRUCTOSE 1,6-BISPHOSPHATASE EXPRESSED IN E. COLI
