1roq

Extending the Family of UNCG-like Tetraloop Motifs: NMR Structure of a CACG Tetraloop from Coxsackievirus B3

Method: SOLUTION NMR D_max: 32.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

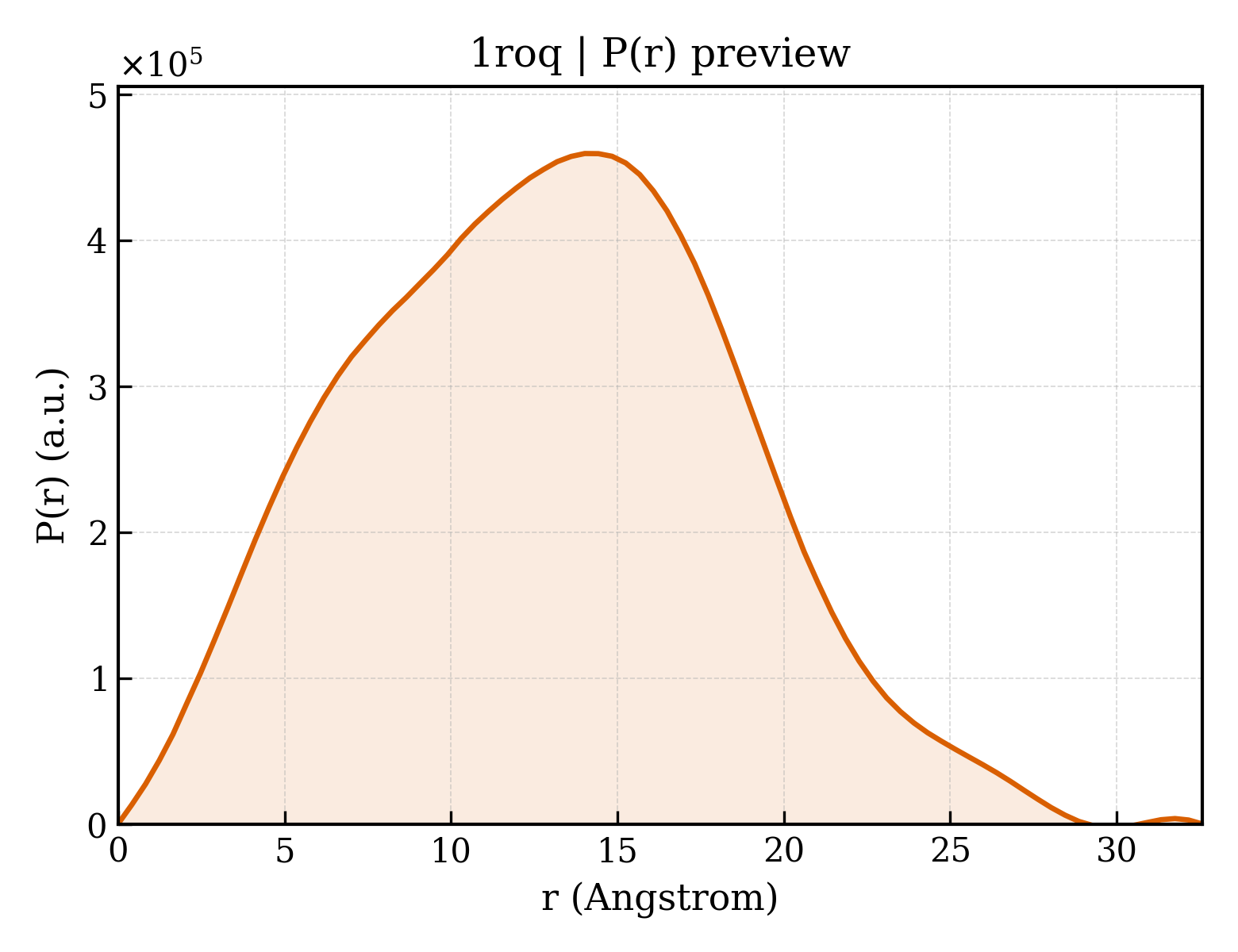

P(r) 距离分布 P(r) Distribution

P(r) distribution for 1roq

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1roq
沉积日期 deposition_date	2003-12-02
结构标题 title	Extending the Family of UNCG-like Tetraloop Motifs: NMR Structure of a CACG Tetraloop from Coxsackievirus B3
关键词 keywords	RNA tetra-loop, RNA; RNA
实验方法 method	SOLUTION NMR

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	9.95 Å
回转半径 Rg (电子) rg_electron	9.86 Å
零角强度 I(0) i0	86405200.00
分子量 molecular_weight	44578.0 kDa
排除体积 excluded_volume	41916 Å³
包络体积 envelope_volume	6691 Å³
水化壳体积 shell_volume	6085 Å³
包络直径 envelope_diameter	33.9 Å
壳层 Rg shell_rg	14.72 Å
包络 Rg envelope_rg	10.36 Å
形状 Rg shape_rg	9.72 Å
总 Rg total_rg	10.20 Å
总原子数 total_atoms	4470
残基数 n_residues	140
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	32.6 Å
Rg (实空间) rg_real	9.91 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	8.6410e+07
I(0) 误差 (实空间) i0_real_error	9.7830e+05
Rg (倒空间) rg_reciprocal	9.91 Å
I(0) (倒空间) i0_reciprocal	86410000.0000
解质量估计 total_estimate	0.8862
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	14.0 Å
偏度 Skewness skewness	0.125
峰度 Kurtosis kurtosis	-0.475
角度范围 angular_range	— – 0.5000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16970.0000
实空间数据点数 n_real_points	80
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.876; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.922

▶
