1rvt

1930 H1 Hemagglutinin in complex with LSTC

Method: X-RAY DIFFRACTION D_max: 134.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

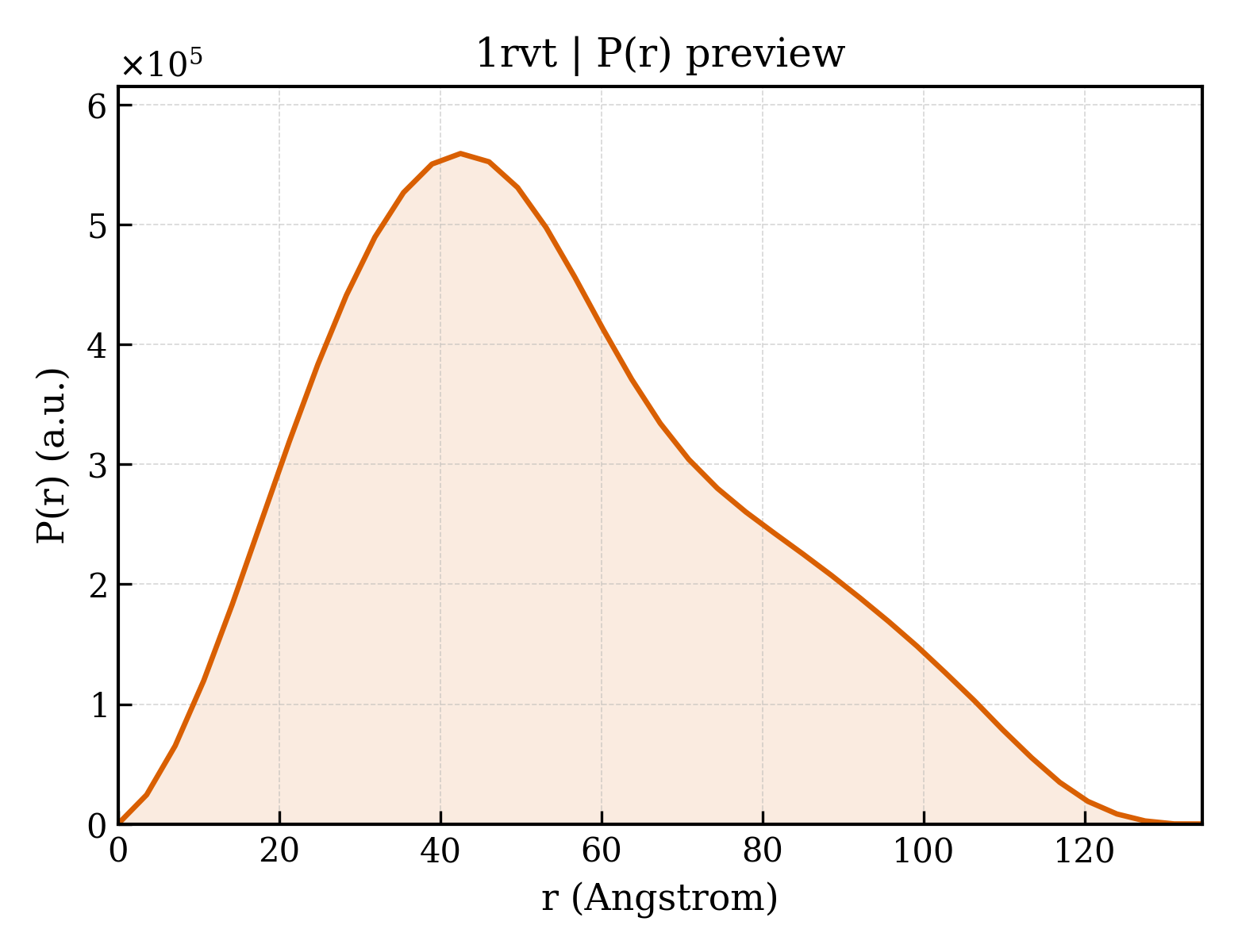

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rvt
沉积日期 deposition_date	2003-12-15
结构标题 title	1930 H1 Hemagglutinin in complex with LSTC
关键词 keywords	Hemagglutinin, Influenza A virus, Viral Protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.42 Å
回转半径 Rg (电子) rg_electron	40.88 Å
零角强度 I(0) i0	423972000.00
分子量 molecular_weight	163980.0 kDa
排除体积 excluded_volume	203200 Å³
包络体积 envelope_volume	261910 Å³
水化壳体积 shell_volume	54860 Å³
包络直径 envelope_diameter	136.7 Å
壳层 Rg shell_rg	44.43 Å
包络 Rg envelope_rg	40.55 Å
形状 Rg shape_rg	40.89 Å
总 Rg total_rg	41.04 Å
总原子数 total_atoms	11551
残基数 n_residues	1446
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.6 Å
Rg (实空间) rg_real	41.59 Å
Rg 误差 (实空间) rg_real_error	1.15 Å
I(0) (实空间) i0_real	4.2400e+08
I(0) 误差 (实空间) i0_real_error	7.0340e+06
Rg (倒空间) rg_reciprocal	41.42 Å
I(0) (倒空间) i0_reciprocal	423900000.0000
解质量估计 total_estimate	0.8391
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	42.5 Å
偏度 Skewness skewness	0.460
峰度 Kurtosis kurtosis	-0.447
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	38840000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.842; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.390

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	hemagglutinin
分子量 formula_weight	36061.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,J,L
原子数 atom_count	12143

ATNADTLCIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDSHNGKLCRLGGIAPLQLGKCNIAGWLLGNPECDLLLTVSSWSYIVETSNSDNGTCYPGDFIDYEELREQLSSVSSFEKFEIFPKTSSWPNHETTRGVTAACPYAGASSFYRNLLWLVKKGNSYPKLSKSYVNNKGKEVLVLWGVHHPPTSTDQQSLYQNADAYVSVGSSKYDRRFTPEIAARPKVRGQAGRMNYYWTLLEPGDTITFEATGNLVAPRYAFALNRGSGSGIITSDAPVHDCDTKCQTPHGAINSSLPFQNIHPVTIGECPKYVKSTKLRMATGLRNIPAR

Entity 2 polymer

描述 description	hemagglutinin
分子量 formula_weight	18180.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K,M

GLFGAIAGFIEGGWTGLIDGWYGYHHQNEQGSGYAADQKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNNLERRIKNLNKKVDDGFLDVWTYNAELLVLLENERTLDFHDSNVKNLYEKARSQLRNNAKEIGNGCFEFYHKCDDACMESVRNGTYDYP

Entity 3 branched

描述 description	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose
分子量 formula_weight	471.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 branched

描述 description	;N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose ;
分子量 formula_weight	998.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-alpha-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	592

▼

6. 折叠分类 (SCOP + CATH) 15 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1rvth_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1rvti_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1rvtj_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1rvtk_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1rvtl_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.2 — Influenza hemagglutinin headpiece

结构域编号 domain_id	d1rvtm_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (9 domains)

结构域编号 domain_id	1rvtH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1rvtH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1rvtI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1rvtJ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1rvtJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1rvtK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1rvtL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	77 — Hemagglutinin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hemagglutinin Chain A, Domain 2

结构域编号 domain_id	1rvtL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	209 — Hemagglutinin (Ha1 Chain); Chain: A; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Haemagglutinin, alpha/beta domain, HA1 chain

结构域编号 domain_id	1rvtM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	204.296 Å
晶胞边长 b length_b	83.300 Å
晶胞边长 c length_c	177.380 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	106.15 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2470

fit	/app/data/saxs_computation/rv/1rvt/1rvt.fit
pddf	/app/data/pr_computation/rv/1rvt/1rvt.pr.out
profile	/app/data/saxs_computation/rv/1rvt/1rvt.dat
