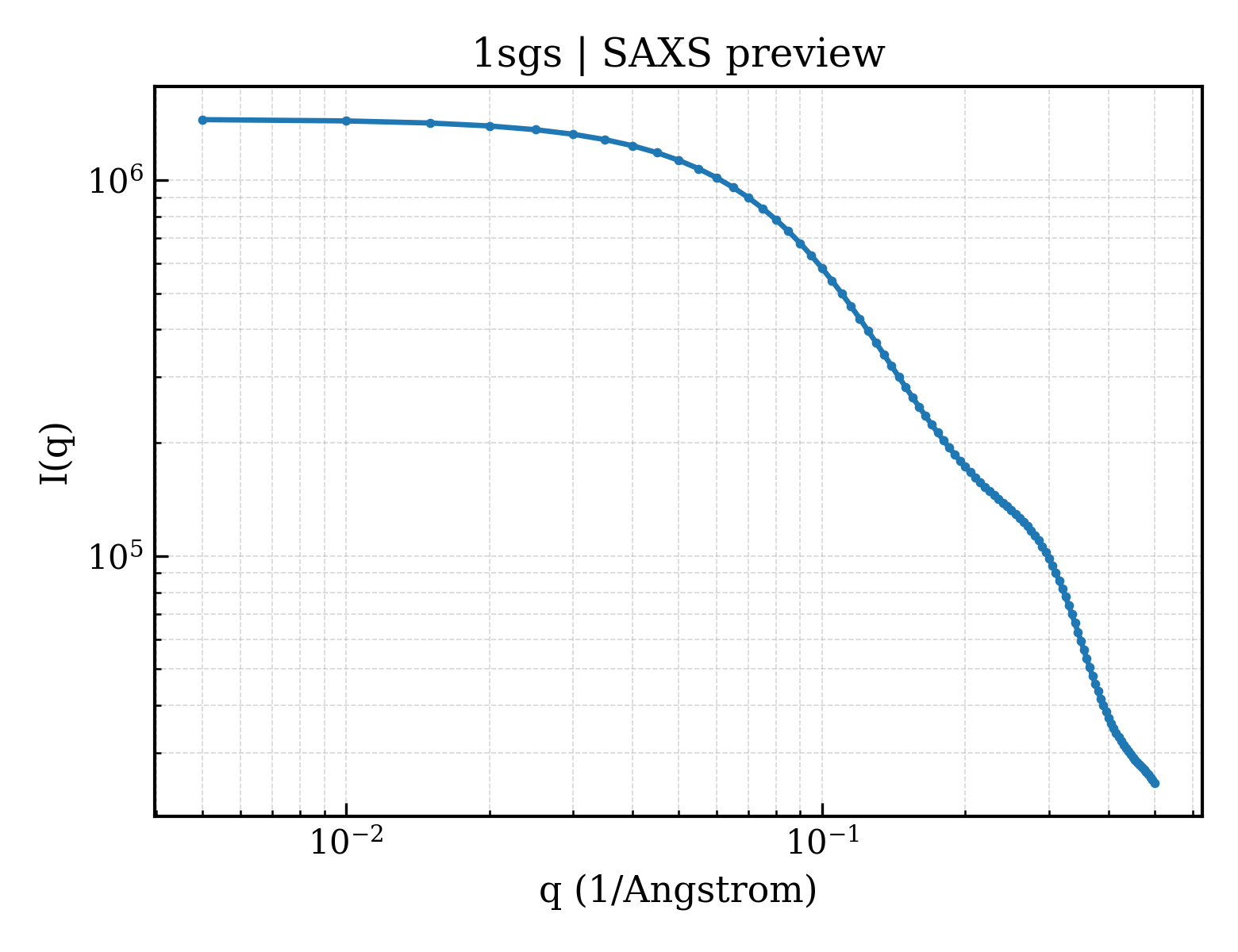

SAXS 散射曲线 SAXS Profile

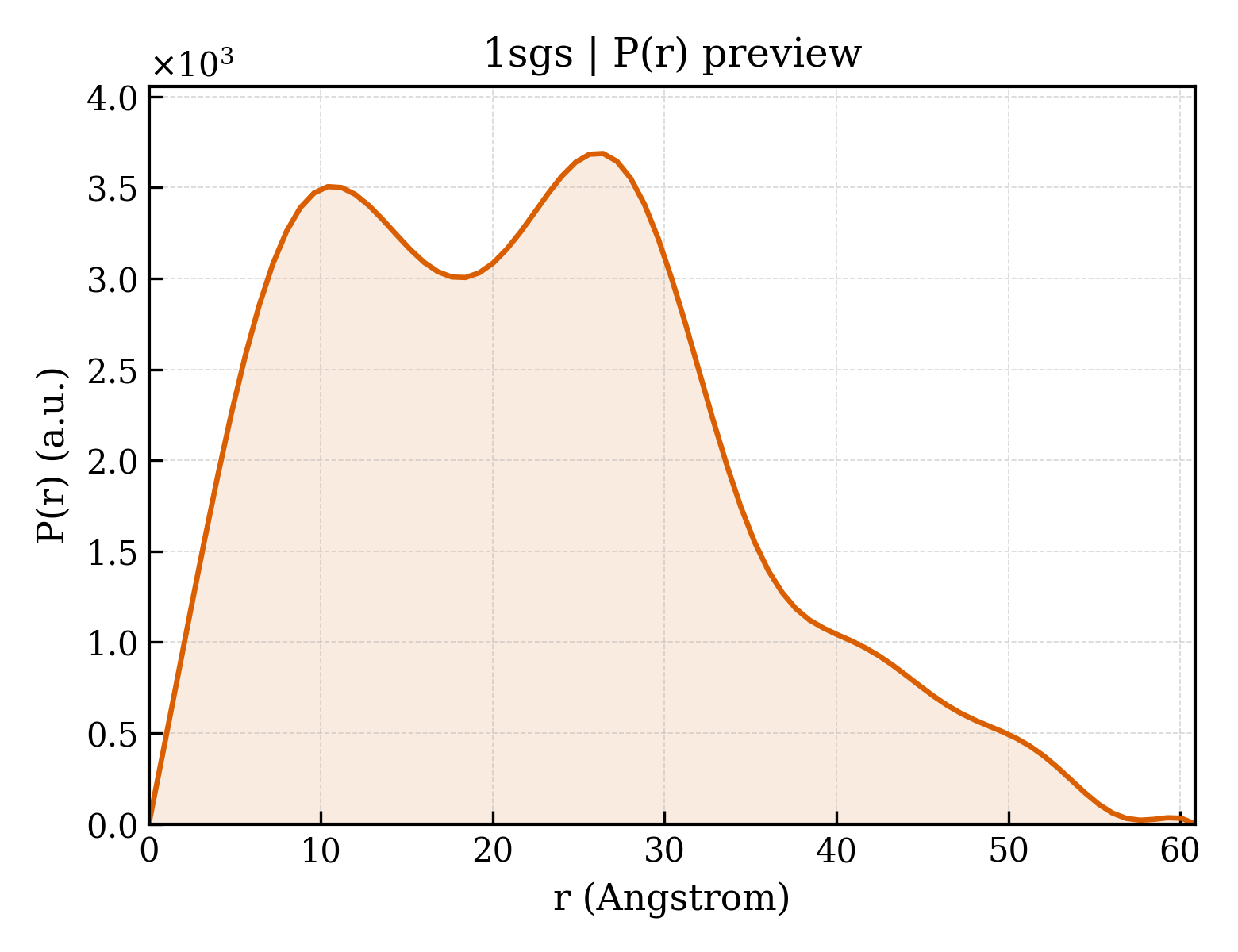

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1sgs |
| 沉积日期 deposition_date | 2004-02-24 |
| 结构标题 title | Crystal structure of a free kB DNA |
| 关键词 keywords | free kB DNA, Calcium binding, NF-kB binding, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 17.32 Å |
| 回转半径 Rg (电子) rg_electron | 17.47 Å |
| 零角强度 I(0) i0 | 1450980.00 |
| 分子量 molecular_weight | 5426.0 kDa |
| 排除体积 excluded_volume | 5342 ų |
| 包络体积 envelope_volume | 9358 ų |
| 水化壳体积 shell_volume | 5642 ų |
| 包络直径 envelope_diameter | 60.0 Å |
| 壳层 Rg shell_rg | 19.36 Å |
| 包络 Rg envelope_rg | 17.34 Å |
| 形状 Rg shape_rg | 17.27 Å |
| 总 Rg total_rg | 18.03 Å |
| 总原子数 total_atoms | 350 |
| 残基数 n_residues | 17 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 60.9 Å |
| Rg (实空间) rg_real | 17.58 Å |
| Rg 误差 (实空间) rg_real_error | 0.57 Å |
| I(0) (实空间) i0_real | 1.4510e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.8820e+04 |
| Rg (倒空间) rg_reciprocal | 17.55 Å |
| I(0) (倒空间) i0_reciprocal | 1451000.0000 |
| 解质量估计 total_estimate | 0.7478 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 26.4 Å |
| 偏度 Skewness skewness | 0.451 |
| 峰度 Kurtosis kurtosis | -0.359 |
| 角度范围 angular_range | — – 0.4600 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 50510.0000 |
| 实空间数据点数 n_real_points | 77 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.479;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.300;
Smooth: 0.980
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 38.916 Å |
| 晶胞边长 b length_b | 38.916 Å |
| 晶胞边长 c length_c | 158.910 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 18 |
对称性 Symmetry
| 空间群 space_group | H 3 2 |
| 空间群编号 int_tables_number | 155 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.600 Å |
| 最低分辨率 resolution_low | 14.370 Å |
| R 因子 r_factor | 0.2070 |
| R_work r_work | 0.2070 |
| R_free r_free | 0.2180 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | kB DNA |
| 分子量 formula_weight | 5187.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 457 |
CGCTGGAAATTTCCAGC
Entity 2
non-polymer
| 描述 description | CALCIUM ION |
| 分子量 formula_weight | 40.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 6 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 107 |
Crystal structure of a free kappaB DNA: insights into DNA recognition by transcription factor NF-kappaB.
J.Mol.Biol. (2005)
