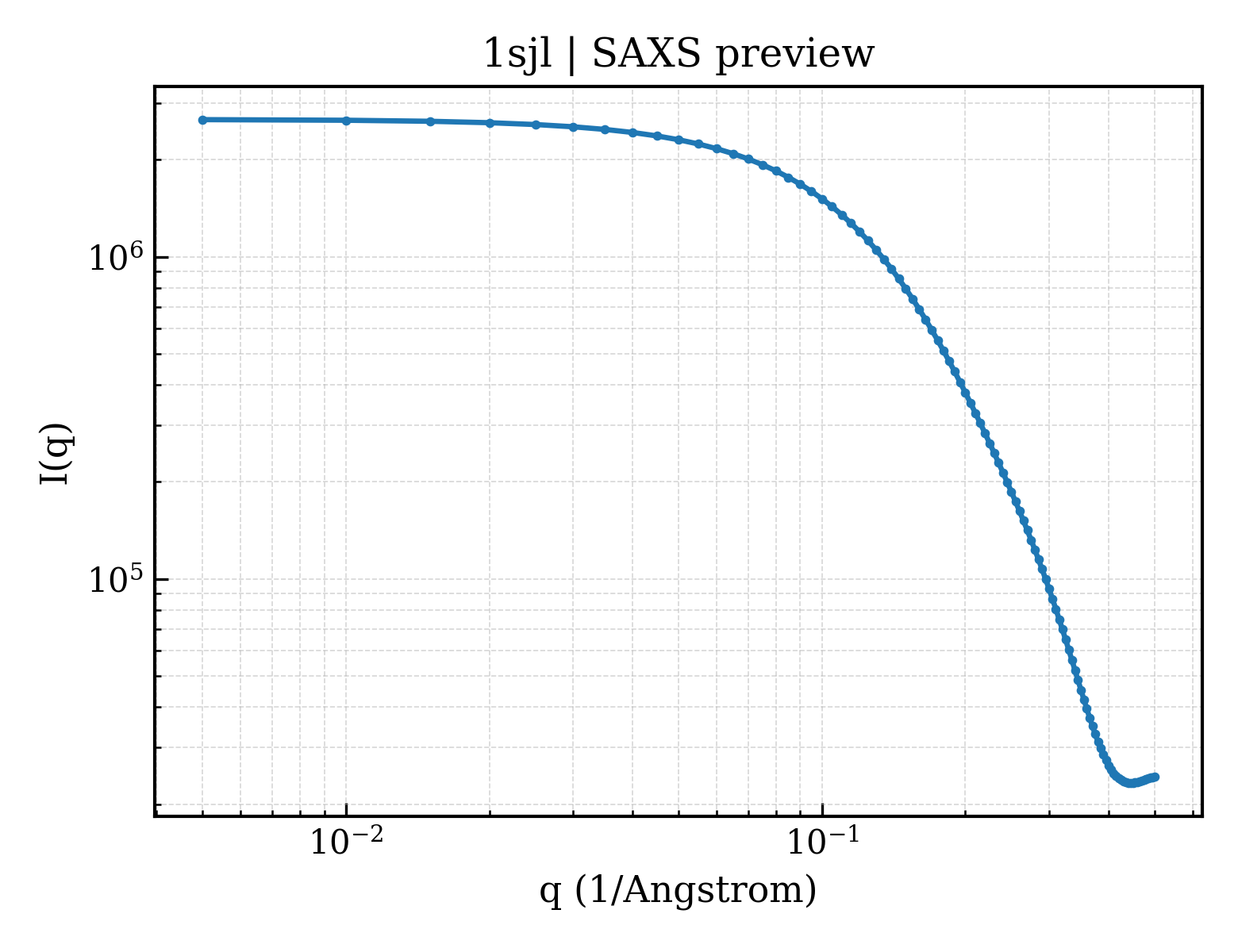

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1sjl |
| 沉积日期 deposition_date | 1997-07-22 |
| 结构标题 title | A DUPLEX DNA WITH AN ABASIC SITE IN A DA TRACT, BETA FORM, NMR, MINIMIZED AVERAGE STRUCTURE |
| 关键词 keywords | DUPLEX DNA WITH AN ABASIC SITE IN A DA TRACT, DAMAGED DNA, AT TRACT DNA, DEOXYRIBONUCLEIC ACID, DNA; DNA |
| 实验方法 method | SOLUTION NMR |
| 回转半径 Rg (Guinier) rg_guinier | 13.14 Å |
| 回转半径 Rg (电子) rg_electron | 12.73 Å |
| 零角强度 I(0) i0 | 2668250.00 |
| 分子量 molecular_weight | 7203.0 kDa |
| 排除体积 excluded_volume | 6991 ų |
| 包络体积 envelope_volume | 8828 ų |
| 水化壳体积 shell_volume | 6790 ų |
| 包络直径 envelope_diameter | 50.3 Å |
| 壳层 Rg shell_rg | 16.58 Å |
| 包络 Rg envelope_rg | 13.00 Å |
| 形状 Rg shape_rg | 12.65 Å |
| 总 Rg total_rg | 13.43 Å |
| 总原子数 total_atoms | 748 |
| 残基数 n_residues | 23 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 50.0 Å |
| Rg (实空间) rg_real | 13.24 Å |
| Rg 误差 (实空间) rg_real_error | 0.52 Å |
| I(0) (实空间) i0_real | 2.6680e+06 |
| I(0) 误差 (实空间) i0_real_error | 3.5760e+04 |
| Rg (倒空间) rg_reciprocal | 13.24 Å |
| I(0) (倒空间) i0_reciprocal | 2668000.0000 |
| 解质量估计 total_estimate | 0.7809 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 13.3 Å |
| 偏度 Skewness skewness | 0.517 |
| 峰度 Kurtosis kurtosis | -0.109 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 261000.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.566;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.484;
Smooth: 0.966
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 1.000 Å |
| 晶胞边长 b length_b | 1.000 Å |
| 晶胞边长 c length_c | 1.000 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 1 |
对称性 Symmetry
| 空间群 space_group | P 1 |
| 空间群编号 int_tables_number | 1 |
| 晶系 crystal_system | — |
Entity 1
polymer
| 描述 description | ;DNA (5'-D(*CP*GP*CP*AP*AP*AP*AP*AP*TP*GP*CP*G)-3')
; |
| 分子量 formula_weight | 3680.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 748 |
CGCAAAAATGCG
Entity 2
polymer
| 描述 description | ;DNA (5'-D(*CP*GP*CP*AP*TP*TP*(AAB)P*TP*TP*GP*CP*G)-3')
; |
| 分子量 formula_weight | 3536.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | B |
CGCATTXTTGCG
Solution structure of a duplex DNA with an abasic site in a dA tract.
Biochemistry (1997)
Files (7)
- pr_distribution /app/data/pr_computation/sj/1sjl/pr_distribution.json
- pr_output /app/data/pr_computation/sj/1sjl/1sjl.pr.out
- pr_plot /app/data/visualization/pr_computation/sj/1sjl/1sjl_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/sj/1sjl/1sjl.dat
- saxs_fit /app/data/saxs_computation/sj/1sjl/1sjl.fit
- saxs_log /app/data/saxs_computation/sj/1sjl/1sjl.log
- saxs_plot /app/data/visualization/saxs_computation/sj/1sjl/1sjl_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/sj/1sjl/1sjl.fit |
| pddf |
/app/data/pr_computation/sj/1sjl/1sjl.pr.out |
| profile |
/app/data/saxs_computation/sj/1sjl/1sjl.dat |
