SAXSdb — 1sps

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SRC SH2 DOMAIN

Rous sarcoma virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 144–247	Not recorded	PEPTIDE YEEI × 1 （P03079）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 144–247	Not recorded	PEPTIDE YEEI × 1 （P03079）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 144–247	Not recorded	PEPTIDE YEEI × 1 （P03079）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1SPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BKL SELF-ASSOCIATED APO SRC SH2 DOMAIN Deposited 1997-05-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 145–249（105 aa） Fragment：SH2 DOMAIN	Mutation：INS(GS) AT N-TERMINUS, INS(EFIVTD) AT C-TERMINUS, BYPRODUCT OF CLONING	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；2M AMMONIUM SULFATE PH 6.6 , 25 MG/ML SRC SH2, SITTING DROPS, vapor diffusion - sitting drop	Resolution 2.10 Å R-free 0.304
1BKM COCRYSTAL STRUCTURE OF D-AMINO ACID SUBSTITUTED PHOSPHOPEPTIDE COMPLEX Deposited 1997-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–249（105 aa） Fragment：DOMAIN	Mutation：INS(G0,S1), INS(EFIVTD) AT C-TERMINUS	1C5 [[O-PHOSPHONO-N-ACETYL-TYROSINYL]-GLUTAMYL-3[CYCLOHEXYLMETHYL]ALANINYL]-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；5% PEG 6K, 0.1M TRIS, PH 8, SITTING DROP EXPERIMENT, PROTEIN 50 MG/ML, INHIBITOR 4 MG/ML, 4:4:2 RATIO (WELL:PROT:INHIB), pH 8.0, vapor diffusion - sitting drop	Resolution 2.00 Å R-free 0.275
1IS0 Crystal Structure of a Complex of the Src SH2 Domain with Conformationally Constrained Peptide Inhibitor Deposited 2001-11-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 144–249（106 aa） Fragment：SH2 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；53% MPD, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.272
1IS0 Crystal Structure of a Complex of the Src SH2 Domain with Conformationally Constrained Peptide Inhibitor Deposited 2001-11-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 144–249（106 aa） Fragment：SH2 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；53% MPD, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.90 Å R-free 0.272
1KC2 structure of the triple (Lys(beta)D3Ala, Asp(beta)C8Ala, AspCD2Ala) mutant of the Src SH2 domain bound to the PQpYEEIPI peptide Deposited 2001-11-07	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 145–247（103 aa） Fragment：SH2 domain	Mutation：D190A, D192A, K200A	CO COBALT (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.267
1NZL Crystal Structure of Src SH2 domain bound to doubly phosphorylated peptide PQpYEpYIPI Deposited 2003-02-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–247（103 aa） Fragment：SH2 domain	Not recorded	CL CHLORIDE ION × 2 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；296 K；PEG 4000,magnesium chloride, hepes, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 1.90 Å R-free 0.265
1NZL Crystal Structure of Src SH2 domain bound to doubly phosphorylated peptide PQpYEpYIPI Deposited 2003-02-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 145–247（103 aa） Fragment：SH2 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；296 K；PEG 4000,magnesium chloride, hepes, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 1.90 Å R-free 0.265
1NZV Crystal Structure of Src SH2 domain bound to doubly phosphorylated peptide PQpYIpYVPA Deposited 2003-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–247（103 aa） Fragment：SH2 domain	Not recorded	CL CHLORIDE ION × 2 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；296 K；PEG 4000, magnesium chloride,Hepes, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.10 Å R-free 0.271
1NZV Crystal Structure of Src SH2 domain bound to doubly phosphorylated peptide PQpYIpYVPA Deposited 2003-02-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 145–247（103 aa） Fragment：SH2 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；296 K；PEG 4000, magnesium chloride,Hepes, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.10 Å R-free 0.271
1SHA CRYSTAL STRUCTURE OF THE PHOSPHOTYROSINE RECOGNITION DOMAIN SH2 OF V-SRC COMPLEXED WITH TYROSINE-PHOSPHORYLATED PEPTIDES Deposited 1992-08-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 143–246（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å
1SHB CRYSTAL STRUCTURE OF THE PHOSPHOTYROSINE RECOGNITION DOMAIN SH2 OF V-SRC COMPLEXED WITH TYROSINE-PHOSPHORYLATED PEPTIDES Deposited 1992-08-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 143–246（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1SKJ COCRYSTAL STRUCTURE OF UREA-SUBSTITUTED PHOSPHOPEPTIDE COMPLEX Deposited 1997-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 142–252（111 aa） Fragment：SH2 DOMAIN	Mutation：N-TERMINAL INS(GS) AND C-TERMINAL INS(EFIVTD)	UR2 4-[3-CARBOXYMETHYL-3-(4-PHOSPHONOOXY-BENZYL)-UREIDO]-4-[(3-CYCLOHEXYL-PROPYL)-METHYL-CARBAMOYL]BUTYRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG 6K, 0.1M ODIUM CACODYLATE PH 6, HANGING DROP EXPERIMENT, PROTEIN 29 MG/ ML, INHIBITOR 4 MG/ML, 4:4:2 RATIO (WELL:PROT:INHIB), pH 6.0, vapor diffusion - hanging drop	Resolution 2.00 Å R-free 0.275
1SPR BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS Deposited 1993-03-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 144–247（104 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1SPR BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS Deposited 1993-03-05	Different oligomeric state Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 144–247（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1SPR BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS Deposited 1993-03-05	Different oligomeric state Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 144–247（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1SPR BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS Deposited 1993-03-05	Different oligomeric state Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 144–247（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SRC_RSVSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–104； UniProt 144–247 Author chain B； PDBConstruct 1–104； UniProt 144–247 Author chain C； PDBConstruct 1–104； UniProt 144–247

PEPTIDE YEEI

Hamster polyomavirus

UniProt P03079

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 321–331	Non-standard monomer：Yes (specific site not provided by mmCIF)	SRC SH2 DOMAIN × 1 （P00524）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 321–331	Non-standard monomer：Yes (specific site not provided by mmCIF)	SRC SH2 DOMAIN × 1 （P00524）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 321–331	Non-standard monomer：Yes (specific site not provided by mmCIF)	SRC SH2 DOMAIN × 1 （P00524）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1SPS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AOT NMR STRUCTURE OF THE FYN SH2 DOMAIN COMPLEXED WITH A PHOSPHOTYROSYL PEPTIDE, MINIMIZED AVERAGE STRUCTURE Deposited 1997-07-10	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 321–331（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293 K	Resolution not provided
1AOU NMR STRUCTURE OF THE FYN SH2 DOMAIN COMPLEXED WITH A PHOSPHOTYROSYL PEPTIDE, 22 STRUCTURES Deposited 1997-07-10	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 321–331（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293 K	Resolution not provided
1LCJ SH2 (SRC HOMOLOGY-2) DOMAIN OF HUMAN P56-LCK TYROSINE KINASE COMPLEXED WITH THE 11 RESIDUE PHOSPHOTYROSYL PEPTIDE EPQPYEEIPIYL Deposited 1994-12-12	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 321–331（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TAMI_POVHA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–11； UniProt 321–331 Author chain E； PDBConstruct 1–11； UniProt 321–331 Author chain F； PDBConstruct 1–11； UniProt 321–331

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sps
Deposition date deposition_date	1993-03-05
Structure title title	BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS
Keywords keywords	TRANSFERASE(PHOSPHOTRANSFERASE); TRANSFERASE(PHOSPHOTRANSFERASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.02 Å
Radius of gyration Rg (electron density) rg_electron	36.06 Å
Forward intensity I(0) i0	24441000.00
Molecular weight molecular_weight	38506.0 kDa
Excluded volume excluded_volume	47856 Å³
Envelope volume envelope_volume	70897 Å³
Hydration-shell volume shell_volume	17416 Å³
Envelope diameter envelope_diameter	114.9 Å
Shell Rg shell_rg	39.90 Å
Envelope Rg envelope_rg	34.57 Å
Shape Rg shape_rg	36.07 Å
Total Rg total_rg	36.36 Å
Total atoms total_atoms	3353
Residues n_residues	329
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.8 Å
Rg (real space) rg_real	36.32 Å
Rg uncertainty (real space) rg_real_error	1.25 Å
I(0) (real space) i0_real	2.4440e+07
I(0) uncertainty (real space) i0_real_error	4.1570e+05
Rg (reciprocal space) rg_reciprocal	36.14 Å
I(0) (reciprocal space) i0_reciprocal	24440000.0000
Solution quality estimate total_estimate	0.4274
Solution quality rating solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.4 Å
Skewness Skewness skewness	0.182
Kurtosis Kurtosis kurtosis	-1.171
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1302000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.097; Stabil: 1.000; Sysdev: 0.101; Positv: 1.000; Valcen: 0.119; Smooth: 0.839

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SRC SH2 DOMAIN
Molecular weight formula_weight	11970.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3473

QAEEWYFGKITRRESERLLLNPENPRGTFLVRESETTKGAYCLSVSDFDNAKGLNVKHYKIRKLDSGGFYITSRTQFSSLQQLVAYYSKHADGLCHRLTNVCPT

来源 Source

来源生物 organism	Rous sarcoma virus
NCBI Class编号 ncbi_taxonomy_id	11886

Entity 2 Entity 2 polymer

Description description	PEPTIDE YEEI
Molecular weight formula_weight	1473.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

EPQYEEIPIYL

来源 Source

来源生物 organism	Hamster polyomavirus
NCBI Class编号 ncbi_taxonomy_id	10626

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1spsa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

Domain ID domain_id	d1spsb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

Domain ID domain_id	d1spsc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

CATH v4.4 (3 domains)

Domain ID domain_id	1spsA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

Domain ID domain_id	1spsB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

Domain ID domain_id	1spsC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	93.300 Å
Unit-cell length b length_b	93.300 Å
Unit-cell length c length_c	55.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1800
R_work r_work	0.1800
R_free r_free	—

fit	/app/data/saxs_computation/sp/1sps/1sps.fit
pddf	/app/data/pr_computation/sp/1sps/1sps.pr.out
profile	/app/data/saxs_computation/sp/1sps/1sps.dat

BINDING OF A HIGH AFFINITY PHOSPHOTYROSYL PEPTIDE TO THE SRC SH2 DOMAIN: CRYSTAL STRUCTURES OF THE COMPLEXED AND PEPTIDE-FREE FORMS

1. Protein Identity and Related Structures Protein Identity & Related Structures

SRC SH2 DOMAIN

State in the Current Structure

Other States of the Same Protein in the Database

PEPTIDE YEEI

State in the Current Structure

Other States of the Same Protein in the Database

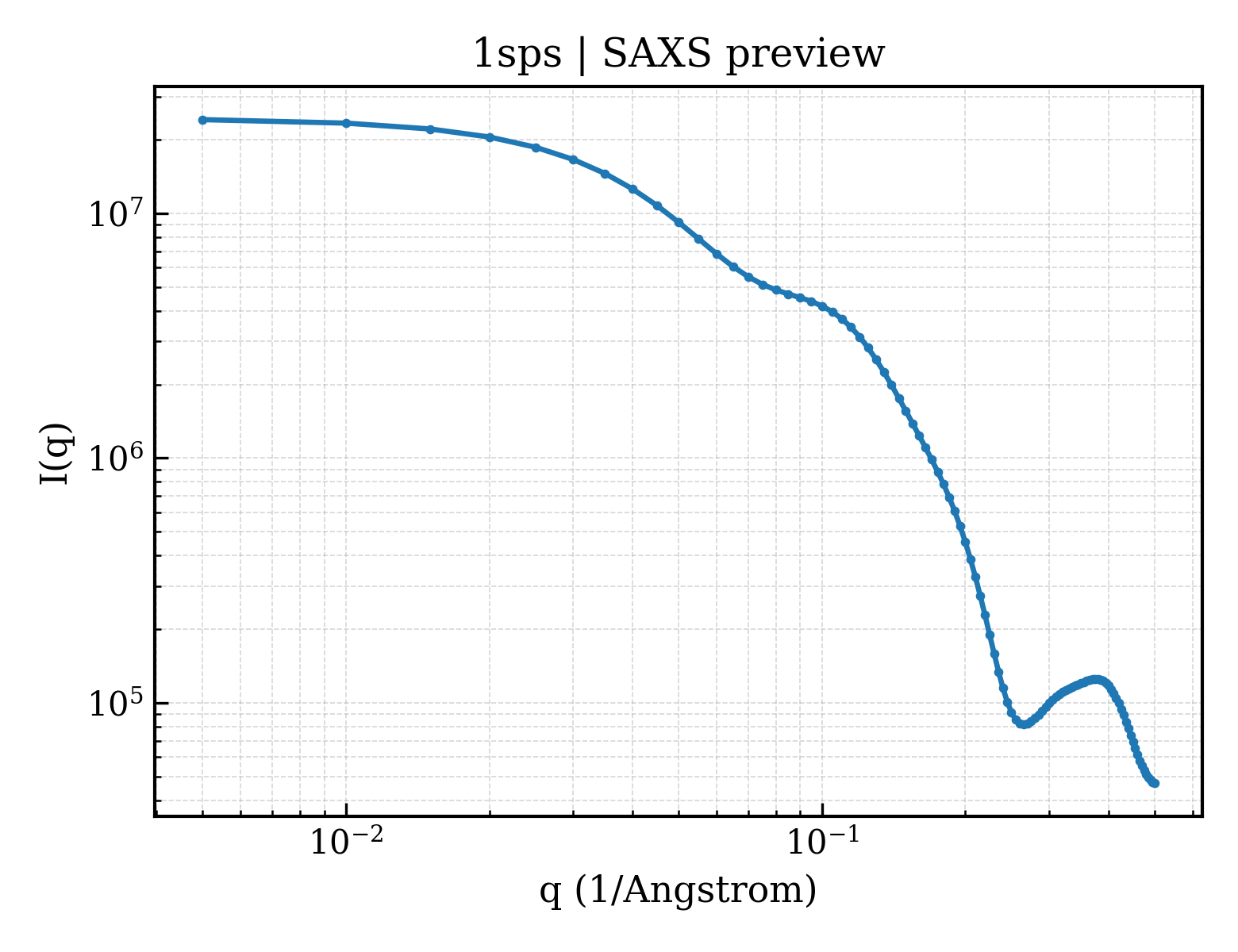

SAXS scattering curve SAXS Profile

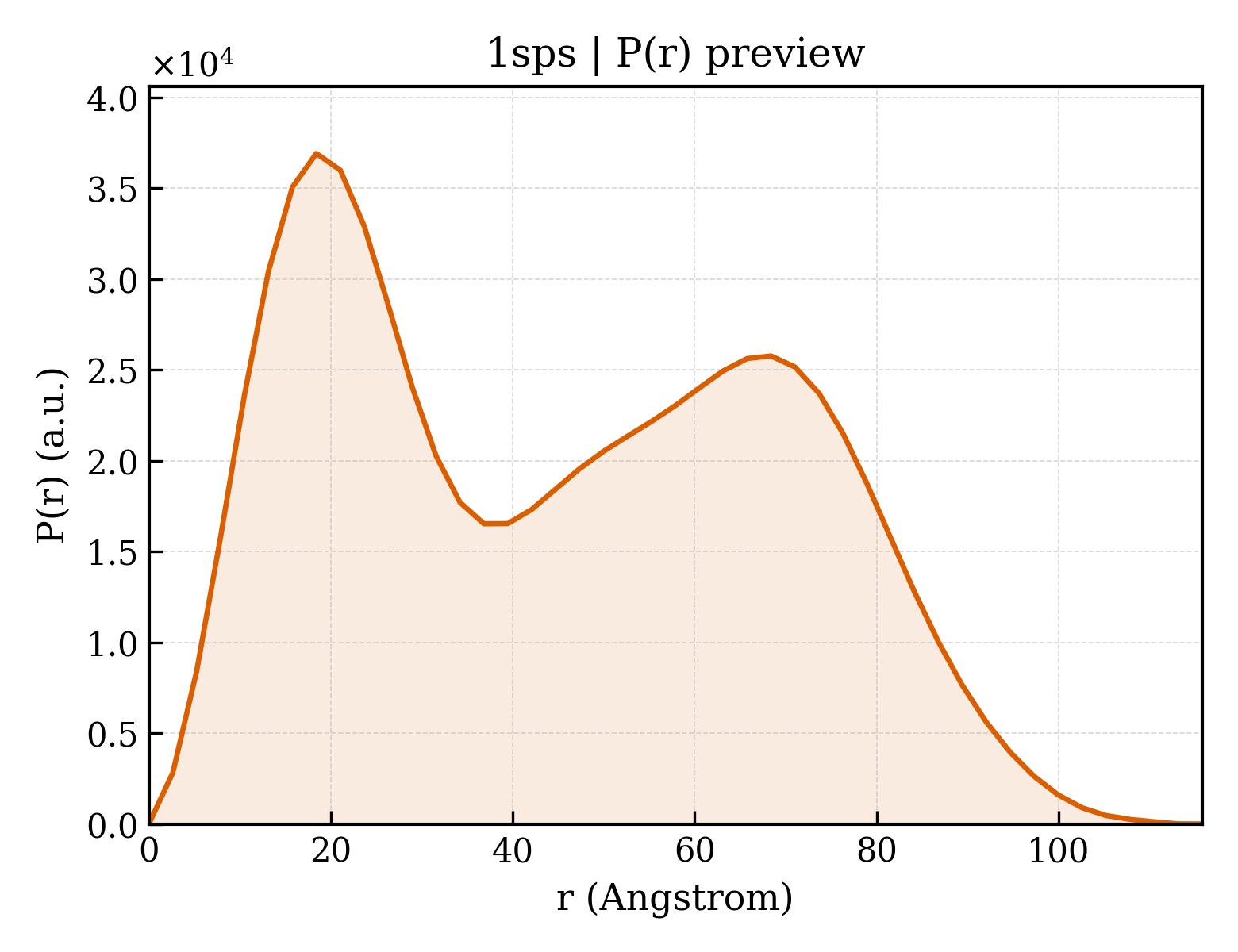

P(r) Distance Distribution P(r) Distribution
