1tmm

Crystal structure of ternary complex of E.coli HPPK(W89A) with MGAMPCPP and 6-Hydroxymethylpterin

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 3 CHLORIDE ION × 2 ACETATE ION × 3 DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 6-HYDROXYMETHYLPTERIN × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 2 CHLORIDE ION × 1 ACETATE ION × 1 DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 6-HYDROXYMETHYLPTERIN × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HPPK_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 1–158 Author chain B； PDBConstruct 1–158； UniProt 1–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tmm
Deposition date deposition_date	2004-06-10
Structure title title	Crystal structure of ternary complex of E.coli HPPK(W89A) with MGAMPCPP and 6-Hydroxymethylpterin
Keywords keywords	;PYROPHOSPHOKINASE, PYROPHOSPHORYL TRANSFER, CATALYTIC MECHANISM, FOLATE, HPPK, PTERIN, 6-HYDROXYMETHYL-7, 8-DIHYDROPTERIN, 6-HYDROXYMETHYLPTERIN, TERNARY COMPLEX, SUBSTRATE SPECIFICITY, PRODUCT RELEASE, ANTIMICROBIAL AGENT, DRUG DESIGN, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tmm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tmm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

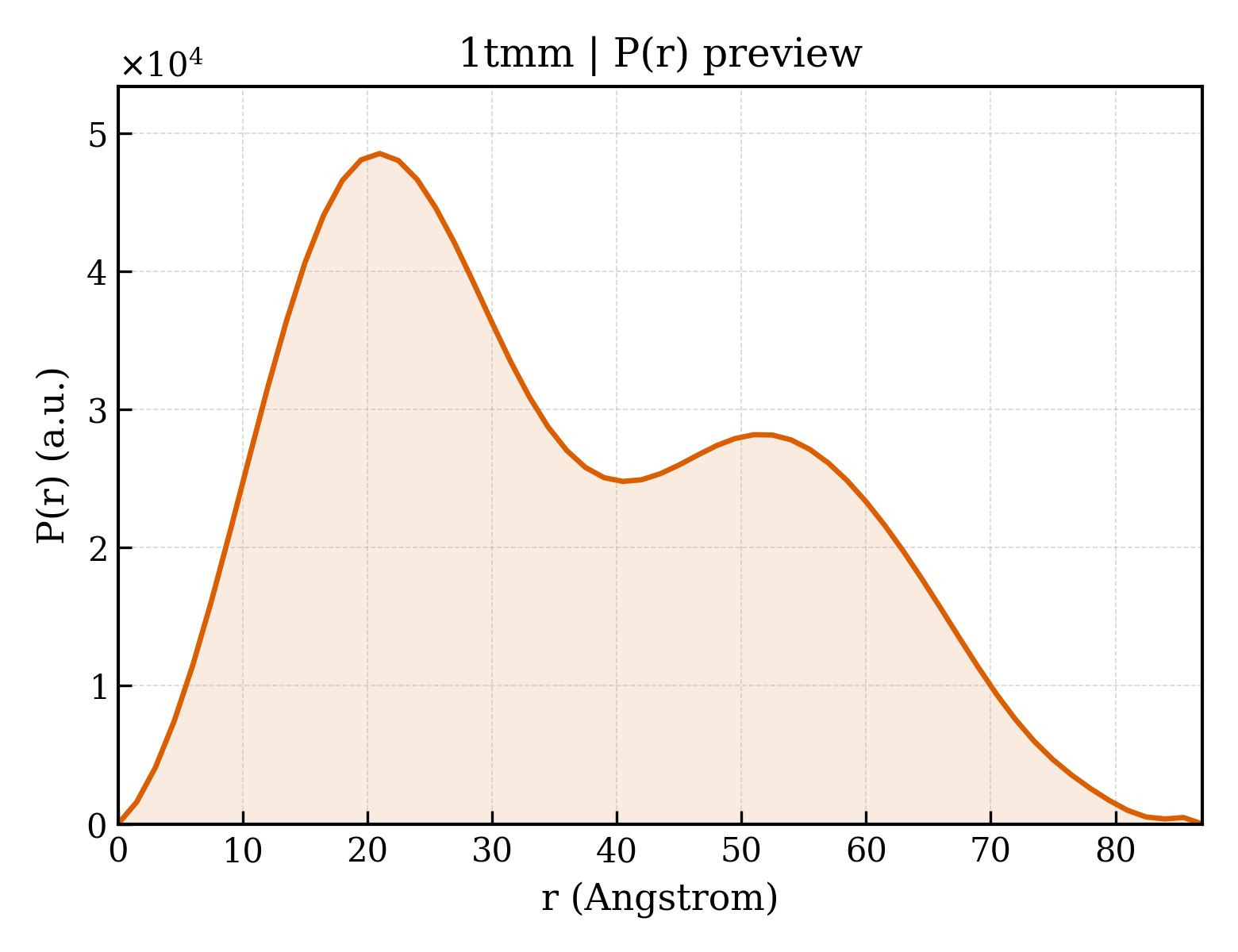

1tmm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.04 Å
Rg (electron density)	14.85 Å
Total Rg	15.90 Å
Atom count	1326
Residues	158
Excluded volume	23497 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tmm__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1tmm__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
Molecular weight formula_weight	17851.4 kDa
EC 编号 ec_number	2.7.6.3
Mutation mutation	W89A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3337

TVAYIAIGSNLASPLEQVNAALKALGDIPESHILTVSSFYRTPPLGPQDQPDYLNAAVALETSLAPEELLNHTQRIELQQGRVRKAERAGPRTLDLDIMLFGNEVINTERLTVPHYDMKNRGFMLWPLFEIAPELVFPDGEMLRQILHTRAFDKLNKW

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
Molecular weight formula_weight	505.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	6-HYDROXYMETHYLPTERIN
Molecular weight formula_weight	193.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	652

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1tmma_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.30 — 6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase, HPPK
Family Family family	d.58.30.1 — 6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase, HPPK

Domain ID domain_id	d1tmmb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.30 — 6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase, HPPK
Family Family family	d.58.30.1 — 6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase, HPPK

CATH v4.4 (2 domains)

Domain ID domain_id	1tmmA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	560 — 7,8-Dihydro-6-hydroxymethylpterin-pyrophosphokinase HPPK

Domain ID domain_id	1tmmB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	560 — 7,8-Dihydro-6-hydroxymethylpterin-pyrophosphokinase HPPK

▶

Unit-cell length a length_a	47.992 Å
Unit-cell length b length_b	47.392 Å
Unit-cell length c length_c	71.438 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.250 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1320
R_work r_work	—
R_free r_free	0.1640

Crystal structure of ternary complex of E.coli HPPK(W89A) with MGAMPCPP and 6-Hydroxymethylpterin
