1tpu
S96P CHANGE IS A SECOND-SITE SUPPRESSOR FOR H95N SLUGGISH MUTANT TRIOSEPHOSPHATE ISOMERASE
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1tpu |
| 沉积日期 deposition_date | 1994-11-07 |
| 结构标题 title | S96P CHANGE IS A SECOND-SITE SUPPRESSOR FOR H95N SLUGGISH MUTANT TRIOSEPHOSPHATE ISOMERASE |
| 关键词 keywords | ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE); ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE) |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 25.33 Å |
| 回转半径 Rg (电子) rg_electron | 24.36 Å |
| 零角强度 I(0) i0 | 46902400.00 |
| 分子量 molecular_weight | 52964.0 kDa |
| 排除体积 excluded_volume | 66357 ų |
| 包络体积 envelope_volume | 76368 ų |
| 水化壳体积 shell_volume | 26635 ų |
| 包络直径 envelope_diameter | 82.0 Å |
| 壳层 Rg shell_rg | 31.40 Å |
| 包络 Rg envelope_rg | 24.43 Å |
| 形状 Rg shape_rg | 24.38 Å |
| 总 Rg total_rg | 25.10 Å |
| 总原子数 total_atoms | 3728 |
| 残基数 n_residues | 490 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

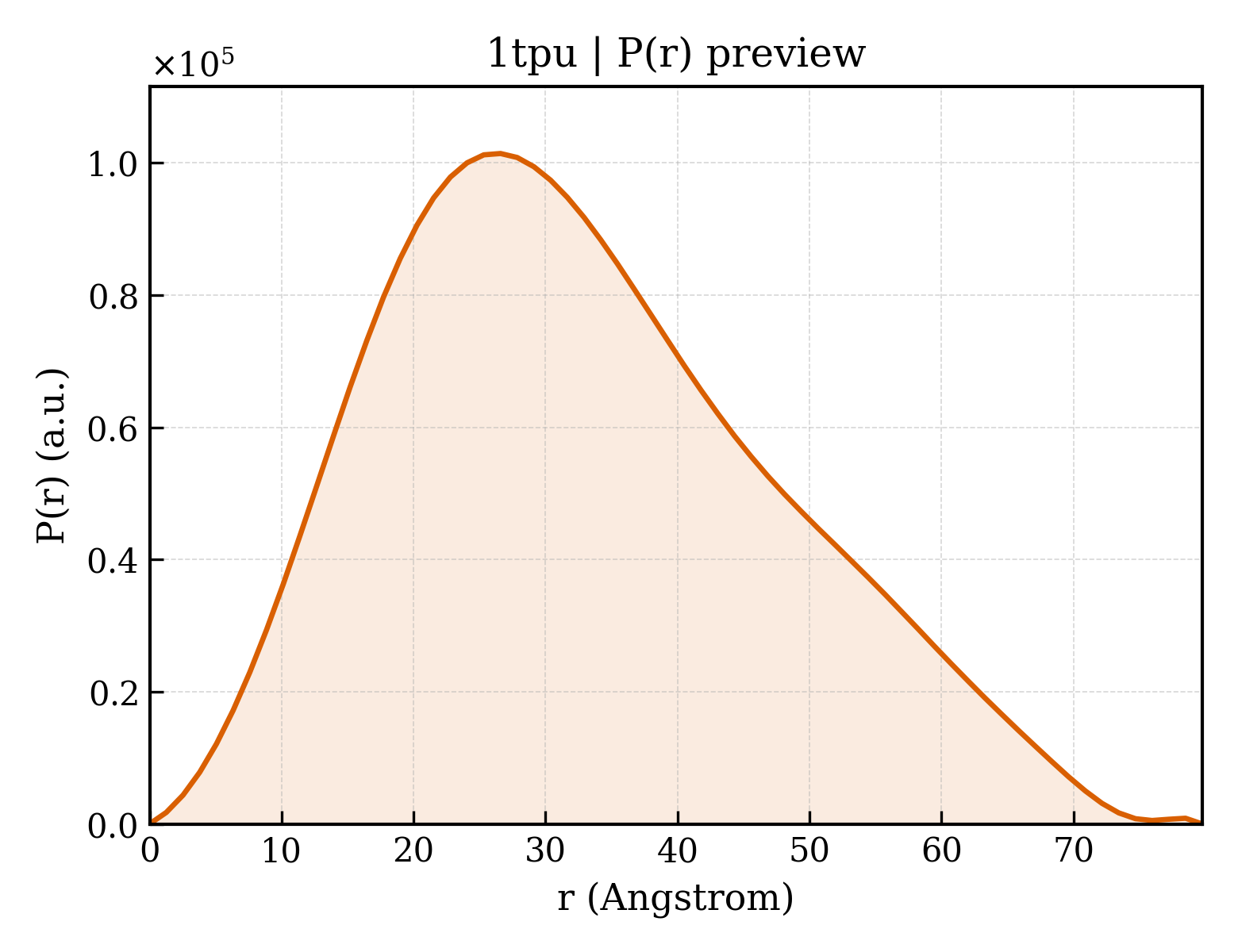

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 79.8 Å |
| Rg (实空间) rg_real | 25.37 Å |
| Rg 误差 (实空间) rg_real_error | 0.45 Å |
| I(0) (实空间) i0_real | 4.6900e+07 |
| I(0) 误差 (实空间) i0_real_error | 6.5540e+05 |
| Rg (倒空间) rg_reciprocal | 25.36 Å |
| I(0) (倒空间) i0_reciprocal | 46900000.0000 |
| 解质量估计 total_estimate | 0.8947 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 26.6 Å |
| 偏度 Skewness skewness | 0.404 |
| 峰度 Kurtosis kurtosis | -0.450 |
| 角度范围 angular_range | — – 0.3150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 15720000.0000 |
| 实空间数据点数 n_real_points | 64 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.897; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.969 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1tpua_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.1 — Triosephosphate isomerase (TIM) |
| 家族 Family family | c.1.1.1 — Triosephosphate isomerase (TIM) |
| 结构域编号 domain_id | d1tpub_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.1 — Triosephosphate isomerase (TIM) |
| 家族 Family family | c.1.1.1 — Triosephosphate isomerase (TIM) |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1tpuA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
| 结构域编号 domain_id | 1tpuB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
