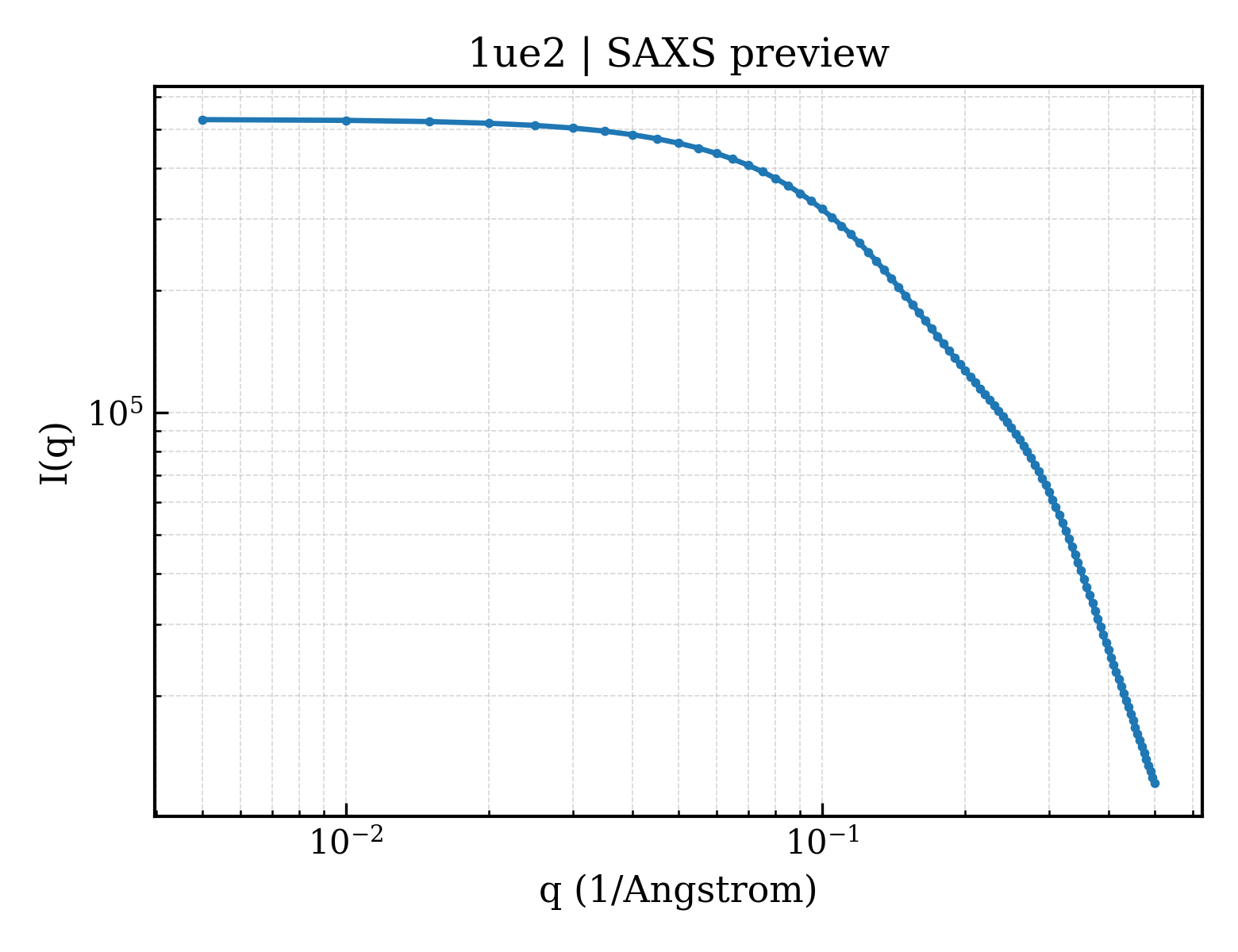

SAXS 散射曲线 SAXS Profile

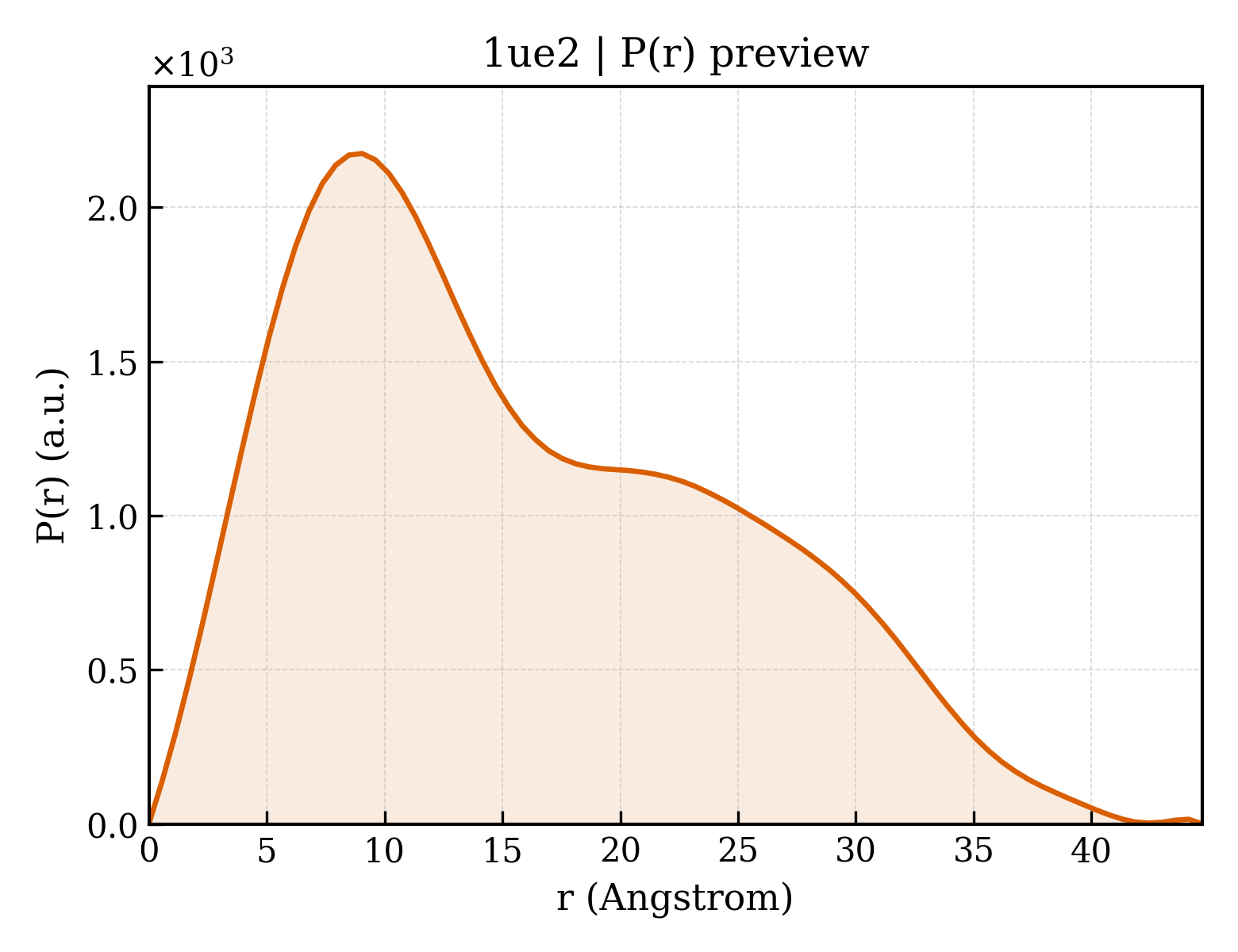

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1ue2 |
| 沉积日期 deposition_date | 2003-05-08 |
| 结构标题 title | Crystal structure of d(GC38GAAAGCT) |
| 关键词 keywords | DNA, base-intercalated duplex, mini-hairpin structure, sheared G:A pair, zipper-like duplex; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 12.58 Å |
| 回转半径 Rg (电子) rg_electron | 12.33 Å |
| 零角强度 I(0) i0 | 528406.00 |
| 分子量 molecular_weight | 2792.0 kDa |
| 排除体积 excluded_volume | 2506 ų |
| 包络体积 envelope_volume | 3985 ų |
| 水化壳体积 shell_volume | 3515 ų |
| 包络直径 envelope_diameter | 41.9 Å |
| 壳层 Rg shell_rg | 15.12 Å |
| 包络 Rg envelope_rg | 12.50 Å |
| 形状 Rg shape_rg | 12.18 Å |
| 总 Rg total_rg | 13.05 Å |
| 总原子数 total_atoms | 173 |
| 残基数 n_residues | 8 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 44.7 Å |
| Rg (实空间) rg_real | 12.82 Å |
| Rg 误差 (实空间) rg_real_error | 0.44 Å |
| I(0) (实空间) i0_real | 5.2840e+05 |
| I(0) 误差 (实空间) i0_real_error | 6.0270e+03 |
| Rg (倒空间) rg_reciprocal | 12.81 Å |
| I(0) (倒空间) i0_reciprocal | 528400.0000 |
| 解质量估计 total_estimate | 0.7037 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 9.1 Å |
| 偏度 Skewness skewness | 0.510 |
| 峰度 Kurtosis kurtosis | -0.672 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 16960.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.392;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.051;
Smooth: 0.920
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 36.736 Å |
| 晶胞边长 b length_b | 36.736 Å |
| 晶胞边长 c length_c | 64.754 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 120.00 ° |
| 晶胞分子数 Z z_pdb | 12 |
对称性 Symmetry
| 空间群 space_group | P 63 2 2 |
| 空间群编号 int_tables_number | 182 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.400 Å |
| 最低分辨率 resolution_low | 10.000 Å |
| R 因子 r_factor | — |
| R_work r_work | 0.2091 |
| R_free r_free | 0.2357 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | 5'-D(*GP*(C38)P*GP*AP*AP*AP*GP*CP*T)-3' |
| 分子量 formula_weight | 2890.7 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A |
| 原子数 atom_count | 249 |
GCGAAAGCT
Entity 2
non-polymer
| 描述 description | CHLORIDE ION |
| 分子量 formula_weight | 35.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 3
non-polymer
| 描述 description | MAGNESIUM ION |
| 分子量 formula_weight | 24.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 4
non-polymer
| 描述 description | COBALT HEXAMMINE(III) |
| 分子量 formula_weight | 161.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 5
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 54 |
Structure of d(GCGAAAGC) (hexagonal form): a base-intercalated duplex as a stable structure.
Acta Crystallogr.,Sect.D (2004)
Files (7)
- pr_distribution /app/data/pr_computation/ue/1ue2/pr_distribution.json
- pr_output /app/data/pr_computation/ue/1ue2/1ue2.pr.out
- pr_plot /app/data/visualization/pr_computation/ue/1ue2/1ue2_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/ue/1ue2/1ue2.dat
- saxs_fit /app/data/saxs_computation/ue/1ue2/1ue2.fit
- saxs_log /app/data/saxs_computation/ue/1ue2/1ue2.log
- saxs_plot /app/data/visualization/saxs_computation/ue/1ue2/1ue2_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/ue/1ue2/1ue2.fit |
| pddf |
/app/data/pr_computation/ue/1ue2/1ue2.pr.out |
| profile |
/app/data/saxs_computation/ue/1ue2/1ue2.dat |
