1uwe

MOLECULAR MECHANISM OF ENANTIOSELECTIVE PROTON TRANSFER TO CARBON IN CATALYTIC ANTIBODY 14D9

Method: X-RAY DIFFRACTION D_max: 128.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

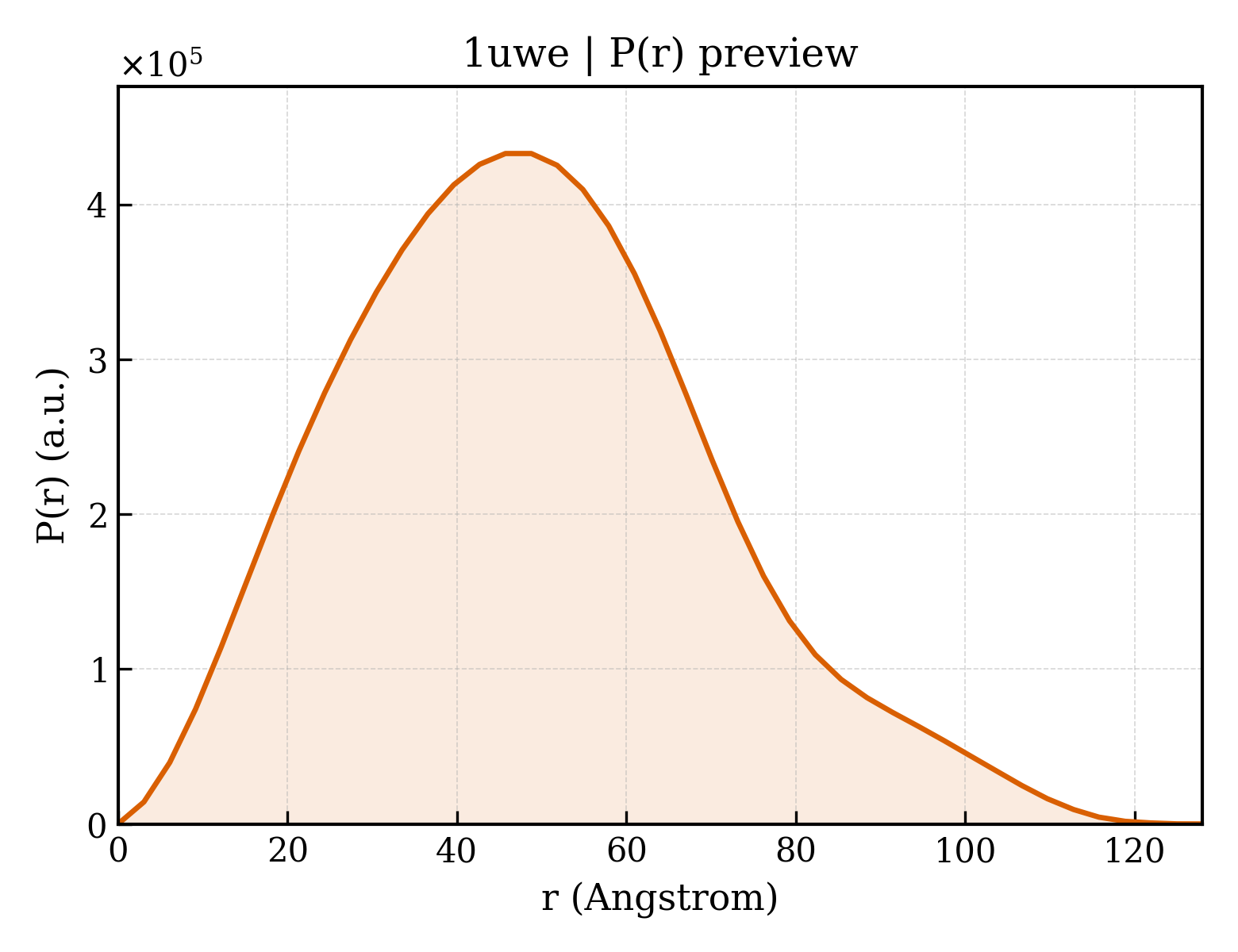

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1uwe
沉积日期 deposition_date	2004-02-05
结构标题 title	MOLECULAR MECHANISM OF ENANTIOSELECTIVE PROTON TRANSFER TO CARBON IN CATALYTIC ANTIBODY 14D9
关键词 keywords	ANTIBODY; ANTIBODY
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.67 Å
回转半径 Rg (电子) rg_electron	37.27 Å
零角强度 I(0) i0	296736000.00
分子量 molecular_weight	137300.0 kDa
排除体积 excluded_volume	170770 Å³
包络体积 envelope_volume	231430 Å³
水化壳体积 shell_volume	52491 Å³
包络直径 envelope_diameter	129.8 Å
壳层 Rg shell_rg	42.69 Å
包络 Rg envelope_rg	36.60 Å
形状 Rg shape_rg	37.27 Å
总 Rg total_rg	37.63 Å
总原子数 total_atoms	9678
残基数 n_residues	1275
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	128.0 Å
Rg (实空间) rg_real	37.68 Å
Rg 误差 (实空间) rg_real_error	1.22 Å
I(0) (实空间) i0_real	2.9670e+08
I(0) 误差 (实空间) i0_real_error	5.2070e+06
Rg (倒空间) rg_reciprocal	37.68 Å
I(0) (倒空间) i0_reciprocal	296700000.0000
解质量估计 total_estimate	0.6406
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.386
峰度 Kurtosis kurtosis	-0.144
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	36570000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 0.020; Positv: 1.000; Valcen: 1.000; Smooth: 0.879

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ANTIBODY 14D9
分子量 formula_weight	22864.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,V,Y
原子数 atom_count	9703

LLAQSGPELVKPGASVKISCAASAYSITDFTIYWVKQSHGDSLEWIGGIDPHNGGGAYNQKFRVKATLTVDTSSSTAYIHLNSLTSEDSAVYYCAIFYGNFFDYWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTAVDKAVEPKSC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	ANTIBODY 14D9
分子量 formula_weight	22940.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,U,X

LDNVMTQSPSFMSTSVGDRVSVTCAASQNVGTNVAWYQQKPGQPPKALIYSTSYRYSGVPDRFTGSGSGTDFTLTISNVNSEDLAEYFCQQYNIYPVTFGGGTKLEIKRTVAAPSVFIFPPSAEQLASGTASVVCLLNNFYPREAAVQWKVDNALQSGNSQESVTEQDSADSTYSLSSTLTLSKADYEAHAVYACEVTHQGLSSPVTKSFNRG

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	25

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1uweh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uweh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1uwel1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uwel2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1uweu1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uweu2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1uwev1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uwev2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1uwex1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uwex2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1uwey1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1uwey2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (12 domains)

结构域编号 domain_id	1uweH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweU01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweU02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweV01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweV02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweX01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweX02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweY01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1uweY02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	110.100 Å
晶胞边长 b length_b	142.790 Å
晶胞边长 c length_c	125.460 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.85 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.670 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2190
R_work r_work	0.2180
R_free r_free	0.2710

fit	/app/data/saxs_computation/uw/1uwe/1uwe.fit
pddf	/app/data/pr_computation/uw/1uwe/1uwe.pr.out
profile	/app/data/saxs_computation/uw/1uwe/1uwe.dat
