1. Protein Identity and Related Structures Protein Identity & Related Structures

cyclophilin B

Escherichia coli

UniProt P20752

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–166	Mutation：K163T	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；ammonium sulfate, methanol, sodium azide, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.221
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–166	Mutation：K163T	(SIN)APA(NIT) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；ammonium sulfate, methanol, sodium azide, Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.221

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1V9T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CLH THREE-DIMENSIONAL SOLUTION STRUCTURE OF ESCHERICHIA COLI PERIPLASMIC CYCLOPHILIN Deposited 1993-12-20	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–190（166 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1J2A Structure of E. coli cyclophilin B K163T mutant Deposited 2002-12-26	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–190（166 aa）	Mutation：K163T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.80 Å R-free 0.225
1VAI Structure of e. coli cyclophilin B K163T mutant bound to n-acetyl-ala-ala-pro-ala-7-amino-4-methylcoumarin Deposited 2004-02-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–190（166 aa）	Mutation：K163T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；AMMONIUM SULPHATE, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.229
1VAI Structure of e. coli cyclophilin B K163T mutant bound to n-acetyl-ala-ala-pro-ala-7-amino-4-methylcoumarin Deposited 2004-02-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–190（166 aa）	Mutation：K163T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；AMMONIUM SULPHATE, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.229

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PPIA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–166； UniProt 1–166 Author chain B； PDBConstruct 1–166； UniProt 1–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1v9t
Deposition date deposition_date	2004-02-03
Structure title title	Structure of E. coli cyclophilin B K163T mutant bound to succinyl-ALA-PRO-ALA-P-nitroanilide
Keywords keywords	BETA BARREL, ISOMERASE-ISOMERASE INHIBITOR complex; ISOMERASE/ISOMERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.81 Å
Radius of gyration Rg (electron density) rg_electron	26.46 Å
Forward intensity I(0) i0	22196800.00
Molecular weight molecular_weight	35862.0 kDa
Excluded volume excluded_volume	44700 Å³
Envelope volume envelope_volume	55586 Å³
Hydration-shell volume shell_volume	18513 Å³
Envelope diameter envelope_diameter	86.5 Å
Shell Rg shell_rg	31.99 Å
Envelope Rg envelope_rg	26.29 Å
Shape Rg shape_rg	26.45 Å
Total Rg total_rg	27.14 Å
Total atoms total_atoms	2531
Residues n_residues	335
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

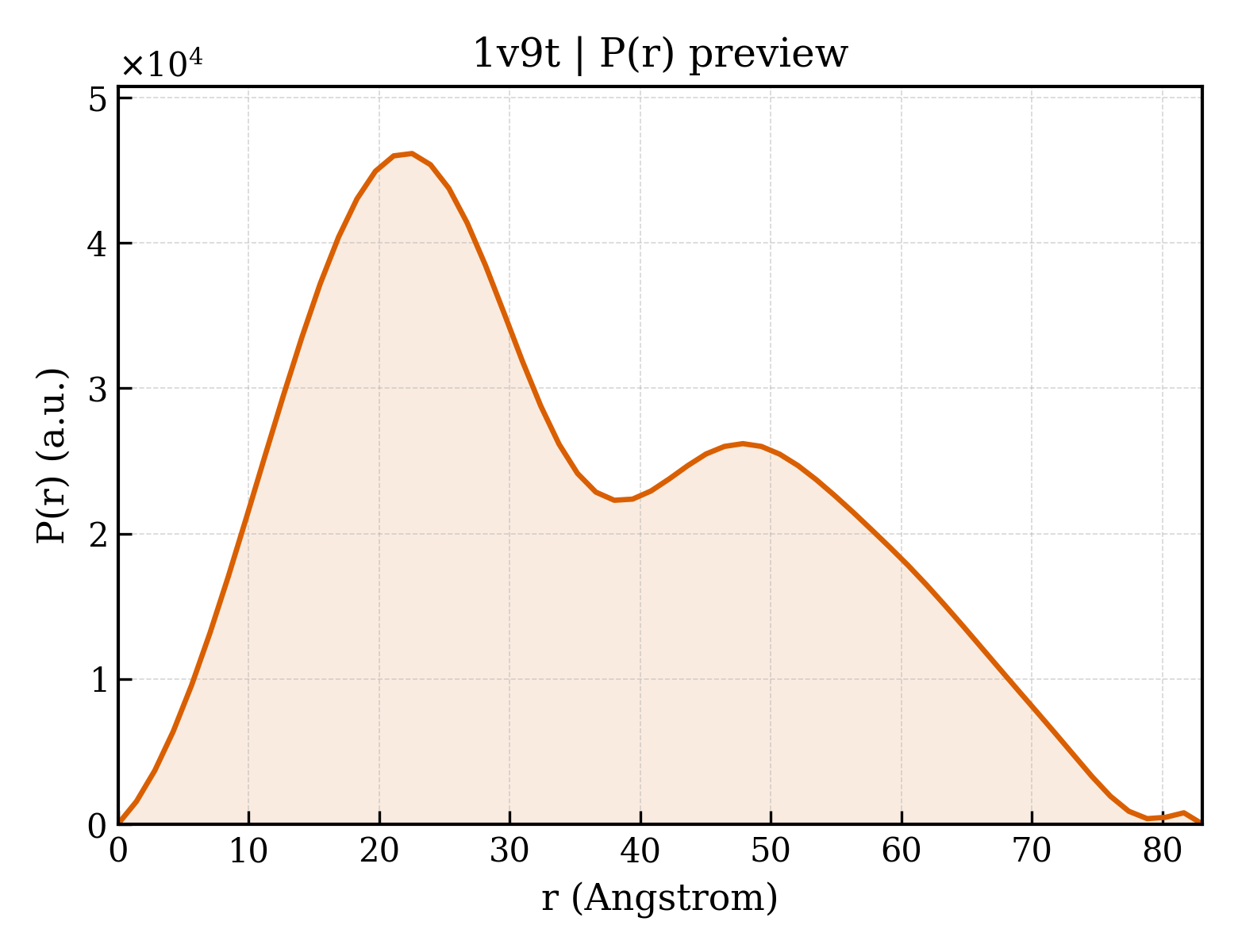

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	83.0 Å
Rg (real space) rg_real	27.07 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	2.2200e+07
I(0) uncertainty (real space) i0_real_error	3.5850e+05
Rg (reciprocal space) rg_reciprocal	26.99 Å
I(0) (reciprocal space) i0_reciprocal	22200000.0000
Solution quality estimate total_estimate	0.7653
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	22.5 Å
Skewness Skewness skewness	0.401
Kurtosis Kurtosis kurtosis	-0.837
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8765000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.569; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.598; Smooth: 0.640

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	cyclophilin B
Molecular weight formula_weight	18070.3 kDa
EC 编号 ec_number	5.2.1.8
Mutation mutation	K163T
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2712

AKGDPHVLLTTSAGNIELELDKQKAPVSVQNFVDYVNSGFYNNTTFHRVIPGFMIQGGGFTEQMQQKKPNPPIKNEADNGLRNTRGTIAMARTADKDSATSQFFINVADNAFLDHGQRDFGYAVFGKVVKGMDVADKISQVPTHDVGPYQNVPSKPVVILSATVLP

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	(SIN)APA(NIT)
Molecular weight formula_weight	477.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

XAPAX

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	181

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1v9ta_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

Domain ID domain_id	d1v9tb_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

CATH v4.4 (2 domains)

Domain ID domain_id	1v9tA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

Domain ID domain_id	1v9tB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.280 Å
Unit-cell length b length_b	79.280 Å
Unit-cell length c length_c	56.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2210

fit	/app/data/saxs_computation/v9/1v9t/1v9t.fit
pddf	/app/data/pr_computation/v9/1v9t/1v9t.pr.out
profile	/app/data/saxs_computation/v9/1v9t/1v9t.dat
