SAXSdb — 1vpw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PURINE REPRESSOR

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–340	Mutation：L54M	;DNA (5'-D(TPAPCPGPCPAPAPAPCPGPTPTPTPGPCPGPT )-3') ; × 2 HPA* HYPOXANTHINE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1VPW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BDH PURINE REPRESSOR MUTANT-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1996-07-25	Different mutation/modification	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：K55A	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
1BDI PURINE REPRESSOR MUTANT-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1996-07-25	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1DBQ DNA-BINDING REGULATORY PROTEIN Deposited 1996-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 52–340（289 aa） Fragment：COREPRESSOR-FREE COREPRESSOR-BINDING DOMAIN Chain B 52–340（289 aa） Fragment：COREPRESSOR-FREE COREPRESSOR-BINDING DOMAIN	Not recorded	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1JFS PURINE REPRESSOR MUTANT-HYPOXANTHINE-PURF OPERATOR COMPLEX Deposited 2001-06-21	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：W147F	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；PEG 4000, ammonium phosphate, ammonium sulfate, cobalt hexammine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å
1JFT PURINE REPRESSOR MUTANT-HYPOXANTHINE-PURF OPERATOR COMPLEX Deposited 2001-06-21	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：W147A	PO4 PHOSPHATE ION × 2 HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, ammonuim sulfate, ammonium phosphate, cobalt hexammine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å
1JH9 PURINE REPRESSOR MUTANT-HYPOXANTHINE-PURF OPERATOR COMPLEX Deposited 2001-06-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：W147R	PO4 PHOSPHATE ION × 4 HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, ammonium sulfate, ammonium phosphate, cobalt hexammine, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.55 Å
1JHZ Purine Repressor Mutant Corepressor Binding Domain Structure Deposited 2001-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 52–340（289 aa） Fragment：COREPRESSOR-FREE COREPRESSOR BINDING DOMAIN (Residues 53-341) Chain B 52–340（289 aa） Fragment：COREPRESSOR-FREE COREPRESSOR BINDING DOMAIN (Residues 53-341)	Mutation：W147F Mutation：W147F	MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；PEG 600, magnesium chloride, Tris HCl, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å
1PNR PURINE REPRESSOR-HYPOXANTHINE-PURF-OPERATOR COMPLEX Deposited 1995-03-29	Different mutation/modification Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.70 Å
1PRU PURINE REPRESSOR DNA-BINDING DOMAIN DNA BINDING Deposited 1995-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–55（55 aa） Fragment：DNA-BINDING	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1PRV PURINE REPRESSOR DNA-BINDING DOMAIN DNA BINDING Deposited 1995-05-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–55（55 aa） Fragment：DNA-BINDING	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1QP0 PURINE REPRESSOR-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, (NH4)2SO4, [Co(NH3)6]Cl3, Na2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å
1QP4 PURINE REPRESSOR-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, (NH4)2SO4, [CO(NH3)6]CL3, NA2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å
1QP7 PURINE REPRESSOR MUTANT-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：K55A	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, (NH4)3PO4, [CO(NH3)6]CL3, NA2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å
1QPZ PURINE REPRESSOR-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1QQA PURINE REPRESSOR MUTANT-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：K55A	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, (NH4)3PO4, (NH4)2SO4, [CO(NH3)6]CL3, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å
1QQB PURINE REPRESSOR MUTANT-HYPOXANTHINE-PALINDROMIC OPERATOR COMPLEX Deposited 1999-06-01	Different mutation/modification Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；PEG 4000, (NH4)3PO4, (NH4)2SO4, [CO(NH3)6]CL3, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å
1WET STRUCTURE OF THE PURR-GUANINE-PURF OPERATOR COMPLEX Deposited 1997-04-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	GUN GUANINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；pH 7.50, VAPOR DIFFUSION, HANGING DROP	Resolution 2.60 Å
1ZAY PURINE REPRESSOR-HYPOXANTHINE-MODIFIED-PURF-OPERATOR COMPLEX Deposited 1998-12-16	Different mutation/modification Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Not recorded	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.70 Å
2PUA CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190A	6MP 6-METHYLPURINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.90 Å
2PUB CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190A	ADE ADENINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.70 Å
2PUC CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190A	GUN GUANINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.60 Å
2PUD CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190Q	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；pH 7.50, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.60 Å
2PUE CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different ligand/ion Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190Q	ADE ADENINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.70 Å
2PUF CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190Q	GUN GUANINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 3.00 Å
2PUG CRYSTAL STRUCTURE OF THE LACI FAMILY MEMBER, PURR, BOUND TO DNA: MINOR GROOVE BINDING BY ALPHA HELICES Deposited 1997-10-04	Different mutation/modification Different experimental conditions	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–340（340 aa）	Mutation：R190Q	HPA HYPOXANTHINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；pH 7.40, VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.70 Å

25 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PURR_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–340； UniProt 1–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vpw
Deposition date deposition_date	1998-02-27
Structure title title	STRUCTURE OF THE PURR MUTANT, L54M, BOUND TO HYPOXANTHINE AND PURF OPERATOR DNA
Keywords keywords	COMPLEX (DNA-BINDING PROTEIN-DNA), DNA-BINDING REGULATORY PROTEIN, MINOR GROOVE BENDING, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.03 Å
Radius of gyration Rg (electron density) rg_electron	28.98 Å
Forward intensity I(0) i0	36824100.00
Molecular weight molecular_weight	43150.0 kDa
Excluded volume excluded_volume	52313 Å³
Envelope volume envelope_volume	69302 Å³
Hydration-shell volume shell_volume	22697 Å³
Envelope diameter envelope_diameter	106.5 Å
Shell Rg shell_rg	32.19 Å
Envelope Rg envelope_rg	29.41 Å
Shape Rg shape_rg	28.93 Å
Total Rg total_rg	29.44 Å
Total atoms total_atoms	3007
Residues n_residues	355
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

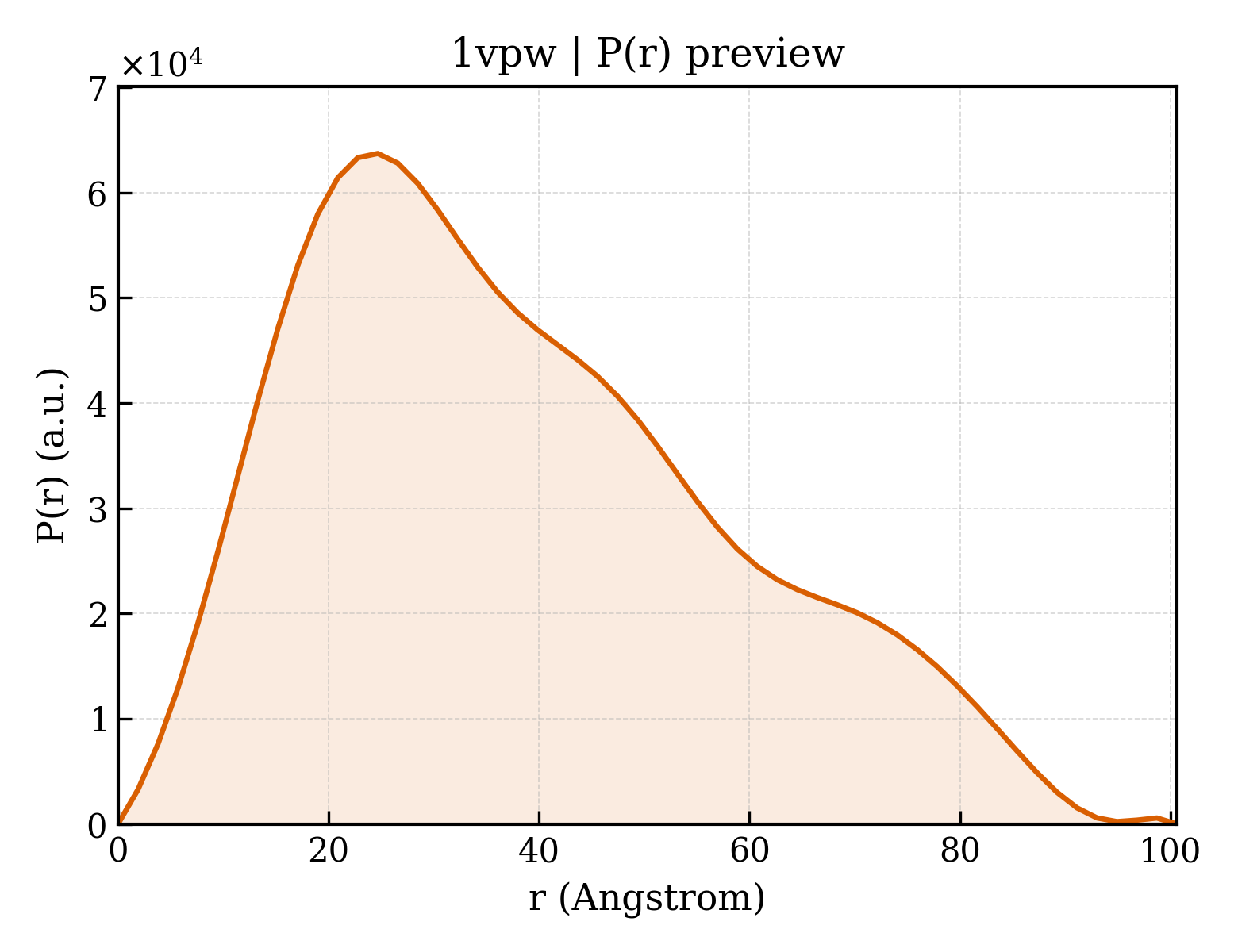

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.6 Å
Rg (real space) rg_real	30.39 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	3.6820e+07
I(0) uncertainty (real space) i0_real_error	6.2020e+05
Rg (reciprocal space) rg_reciprocal	30.24 Å
I(0) (reciprocal space) i0_reciprocal	36820000.0000
Solution quality estimate total_estimate	0.8171
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.7 Å
Skewness Skewness skewness	0.531
Kurtosis Kurtosis kurtosis	-0.499
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5026000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.713; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.564; Smooth: 0.917

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(TPAPCPGPCPAPAPAPCPGPTPTPTPGPCPGP*T )-3') ;
Molecular weight formula_weight	5202.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	3057

TACGCAAACGTTTGCGT

Entity 2 Entity 2 polymer

Description description	PURINE REPRESSOR
Molecular weight formula_weight	38109.6 kDa
Mutation mutation	L54M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

ATIKDVAKRANVSTTTVSHVINKTRFVAEETRNAVWAAIKELHYSPSAVARSMKVNHTKSIGLLATSSEAAYFAEIIEAVEKNCFQKGYTLILGNAWNNLEKQRAYLSMMAQKRVDGLLVMCSEYPEPLLAMLEEYRHIPMVVMDWGEAKADFTDAVIDNAFEGGYMAGRYLIERGHREIGVIPGPLERNTGAGRLAGFMKAMEEAMIKVPESWIVQGDFEPESGYRAMQQILSQPHRPTAVFCGGDIMAMGALCAADEMGLRVPQDVSLIGYDNVRNARYFTPALTTIHQPKDSLGETAFNMLLDRIVNKREEPQSIEVHPRLIERRSVADGPFRDYRR

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	HYPOXANTHINE
Molecular weight formula_weight	136.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	50

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1vpwa1
Class class	a — All alpha proteins
Fold Fold fold	a.35 — lambda repressor-like DNA-binding domains
Superfamily Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
Family Family family	a.35.1.5 — GalR/LacI-like bacterial regulator

Domain ID domain_id	d1vpwa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

CATH v4.4 (3 domains)

Domain ID domain_id	1vpwA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	260 — 434 Repressor (Amino-terminal Domain)
Homologous superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

Domain ID domain_id	1vpwA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1vpwA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

▶

8. Citations (1)

▶

Unit-cell length a length_a	175.890 Å
Unit-cell length b length_b	94.930 Å
Unit-cell length c length_c	81.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.1740
R_free r_free	—

fit	/app/data/saxs_computation/vp/1vpw/1vpw.fit
pddf	/app/data/pr_computation/vp/1vpw/1vpw.pr.out
profile	/app/data/saxs_computation/vp/1vpw/1vpw.dat
