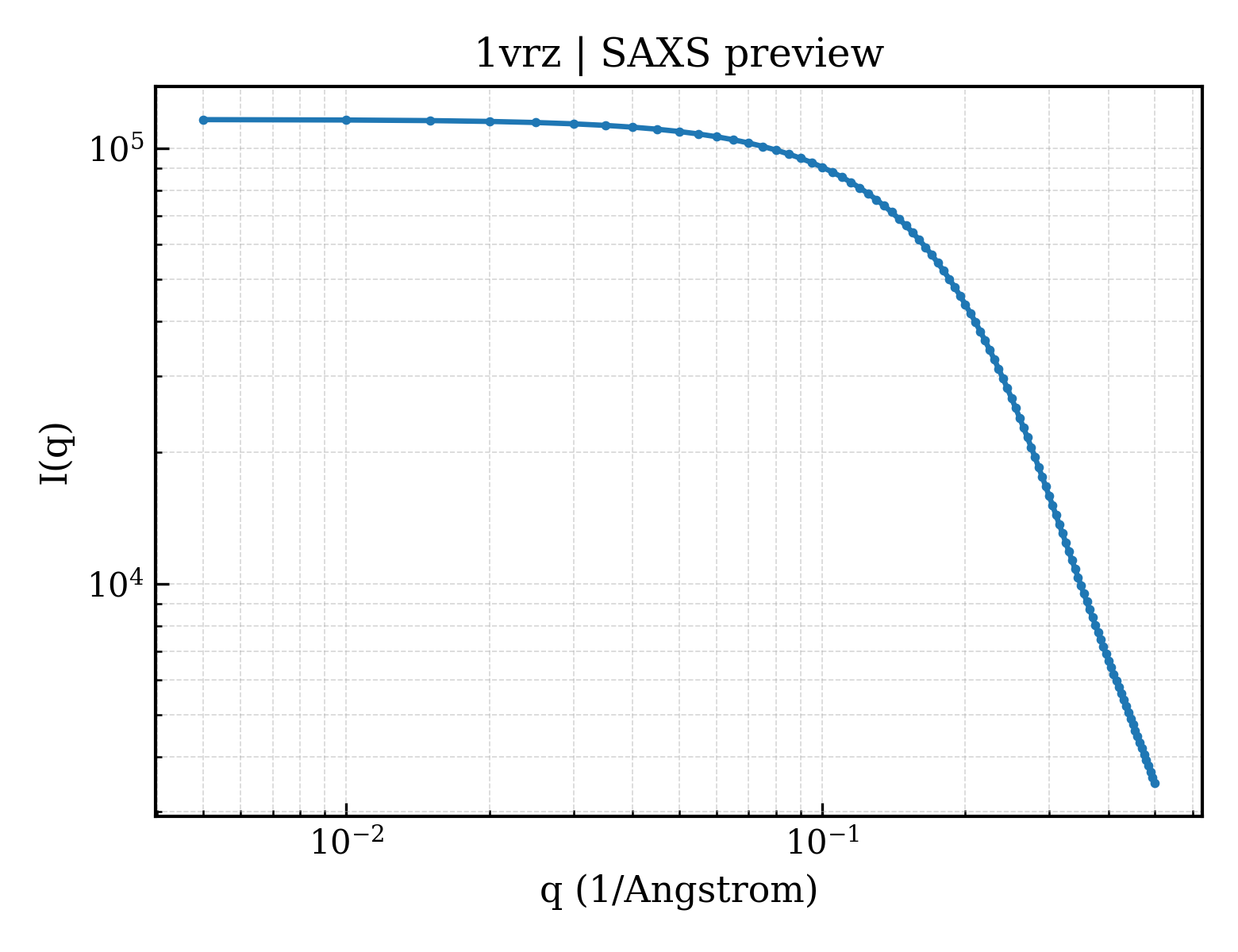

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1vrz |
| 沉积日期 deposition_date | 2005-10-14 |
| 结构标题 title | Helix turn helix motif |
| 关键词 keywords | HTH, HELIX-TURN-HELIX MOTIF, DE NOVO PROTEIN; DE NOVO PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 8.68 Å |
| 回转半径 Rg (电子) rg_electron | 7.38 Å |
| 零角强度 I(0) i0 | 116231.00 |
| 分子量 molecular_weight | 2235.0 kDa |
| 排除体积 excluded_volume | 2952 ų |
| 包络体积 envelope_volume | 2912 ų |
| 水化壳体积 shell_volume | 3847 ų |
| 包络直径 envelope_diameter | 25.0 Å |
| 壳层 Rg shell_rg | 11.60 Å |
| 包络 Rg envelope_rg | 7.73 Å |
| 形状 Rg shape_rg | 7.37 Å |
| 总 Rg total_rg | 9.35 Å |
| 总原子数 total_atoms | 290 |
| 残基数 n_residues | 13 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 29.8 Å |
| Rg (实空间) rg_real | 8.72 Å |
| Rg 误差 (实空间) rg_real_error | 0.35 Å |
| I(0) (实空间) i0_real | 1.1620e+05 |
| I(0) 误差 (实空间) i0_real_error | 1.1740e+03 |
| Rg (倒空间) rg_reciprocal | 8.71 Å |
| I(0) (倒空间) i0_reciprocal | 116200.0000 |
| 解质量估计 total_estimate | 0.8750 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 9.4 Å |
| 偏度 Skewness skewness | 0.364 |
| 峰度 Kurtosis kurtosis | -0.321 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 7612.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.865;
Stabil: 0.996;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.857;
Smooth: 0.933
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 46.651 Å |
| 晶胞边长 b length_b | 20.987 Å |
| 晶胞边长 c length_c | 14.449 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 94.66 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 4 |
对称性 Symmetry
| 空间群 space_group | C 1 2 1 |
| 空间群编号 int_tables_number | 5 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.050 Å |
| 最低分辨率 resolution_low | 12.710 Å |
| R 因子 r_factor | 0.1254 |
| R_work r_work | 0.1254 |
| R_free r_free | — |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | DE NOVO DESIGNED 21 RESIDUE PEPTIDE |
| 分子量 formula_weight | 2141.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A |
| 原子数 atom_count | 303 |
XGFAFFAFFAGGGGFALFALFAX
Entity 2
non-polymer
| 描述 description | ACETATE ION |
| 分子量 formula_weight | 59.0 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 13 |
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1vrza1 |
| 类 Class class | k — Designed proteins |
| 折叠类型 Fold fold | k.15 — helix-turn-helix motif |
| 超家族 Superfamily superfamily | k.15.1 — helix-turn-helix motif |
| 家族 Family family | k.15.1.1 — helix-turn-helix motif |
De Novo Design and Characterization of a Helical Hairpin Eicosapeptide; Emergence of an Anion Receptor in the Linker Region.
Structure (2004)
