SAXSdb — 1vwk

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1vwk
沉积日期 deposition_date	1997-03-03
结构标题 title	STREPTAVIDIN-CYCLO-[5-S-VALERAMIDE-HPQGPPC]K-NH2
关键词 keywords	;COMPLEX (BIOTIN-BINDING PROTEIN-PEPTIDE), LINEAR THIOETHER-CONTAINING PEPTIDE ENGINEERED, COMPLEX (BIOTIN-BINDING PROTEIN-PEPTIDE) complex ;; COMPLEX (BIOTIN-BINDING PROTEIN/PEPTIDE)
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	18.69 Å
回转半径 Rg (电子) rg_electron	17.64 Å
零角强度 I(0) i0	14606900.00
分子量 molecular_weight	27561.0 kDa
排除体积 excluded_volume	34000 Å³
包络体积 envelope_volume	39558 Å³
水化壳体积 shell_volume	18437 Å³
包络直径 envelope_diameter	67.2 Å
壳层 Rg shell_rg	24.20 Å
包络 Rg envelope_rg	18.21 Å
形状 Rg shape_rg	17.58 Å
总 Rg total_rg	18.78 Å
总原子数 total_atoms	3793
残基数 n_residues	260
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	61.9 Å
Rg (实空间) rg_real	18.59 Å
Rg 误差 (实空间) rg_real_error	0.43 Å
I(0) (实空间) i0_real	1.4610e+07
I(0) 误差 (实空间) i0_real_error	2.0050e+05
Rg (倒空间) rg_reciprocal	18.61 Å
I(0) (倒空间) i0_reciprocal	14610000.0000
解质量估计 total_estimate	0.8010
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	22.9 Å
偏度 Skewness skewness	0.198
峰度 Kurtosis kurtosis	-0.378
角度范围 angular_range	— – 0.4250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3934000.0000
实空间数据点数 n_real_points	74
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.804; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	STREPTAVIDIN
分子量 formula_weight	12965.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D
原子数 atom_count	4671

AEAGITGTWYNQLGSTFIVTAGADGALTGTYESAVGNAESRYVLTGRYDSAPATDGSGTALGWTVAWKNNYRNAHSATTWSGQYVGGAEARINTQWLLTSGTTEANAWKSTLVGHDTFTKVKP

Entity 2 polymer

描述 description	PEPTIDE LIGAND CONTAINING HPQ
分子量 formula_weight	863.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,P

HPQGPPCKX

Entity 3 non-polymer

描述 description	PENTANOIC ACID
分子量 formula_weight	102.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	171

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1vwkb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.61 — Streptavidin-like
超家族 Superfamily superfamily	b.61.1 — Avidin/streptavidin
家族 Family family	b.61.1.1 — Avidin/streptavidin

结构域编号 domain_id	d1vwkd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.61 — Streptavidin-like
超家族 Superfamily superfamily	b.61.1 — Avidin/streptavidin
家族 Family family	b.61.1.1 — Avidin/streptavidin

CATH v4.4 (2 domains)

结构域编号 domain_id	1vwkB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	128 — Lipocalin
同源超家族 H-superfamily homologous superfamily	30 — Avidin-like

结构域编号 domain_id	1vwkD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	128 — Lipocalin
同源超家族 H-superfamily homologous superfamily	30 — Avidin-like

▶

7. 引用文献 (7)

;In crystals of complexes of streptavidin with peptide ligands containing the HPQ sequence the pKa of the peptide histidine is less than 3.0. ;

J.Biol.Chem. (1997)

PMID: 9148939 · DOI: 10.1074/jbc.272.20.13220 PRIMARY

;Structure-Based Design Tools: Structural and Thermodynamic Comparison with Biotin of a Small Molecule that Binds Streptavidin with Micromolar Affinity ;

J.Am.Chem.Soc. (1996)

Preparation of a Protein-Dimerizing Ligand by Topochemistry and Structure-Based Design

J.Am.Chem.Soc. (1996)

Topochemical Catalysis Achieved by Structure-Based Ligand Design

J.Biol.Chem. (1995)

Topochemistry for Preparing Ligands that Dimerize Receptors

Chem.Biol. (1995)

;Binding to Protein Targets of Peptidic Leads Discovered by Phage Display: Crystal Structures of Streptavidin-Bound Linear and Cyclic Peptide Ligands Containing the Hpq Sequence ;

Biochemistry (1995)

Structure-Based Design of High Affinity Streptavidin Binding Cyclic Peptide Ligands Containing Thioether Cross-Links

J.Am.Chem.Soc. (1995)

▶

晶胞边长 a length_a	95.010 Å
晶胞边长 b length_b	105.420 Å
晶胞边长 c length_c	47.970 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	1.450 Å
最低分辨率 resolution_low	7.500 Å
R 因子 r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2400

fit	/app/data/saxs_computation/vw/1vwk/1vwk.fit
pddf	/app/data/pr_computation/vw/1vwk/1vwk.pr.out
profile	/app/data/saxs_computation/vw/1vwk/1vwk.dat

STREPTAVIDIN-CYCLO-[5-S-VALERAMIDE-HPQGPPC]K-NH2

SAXS 散射曲线 SAXS Profile

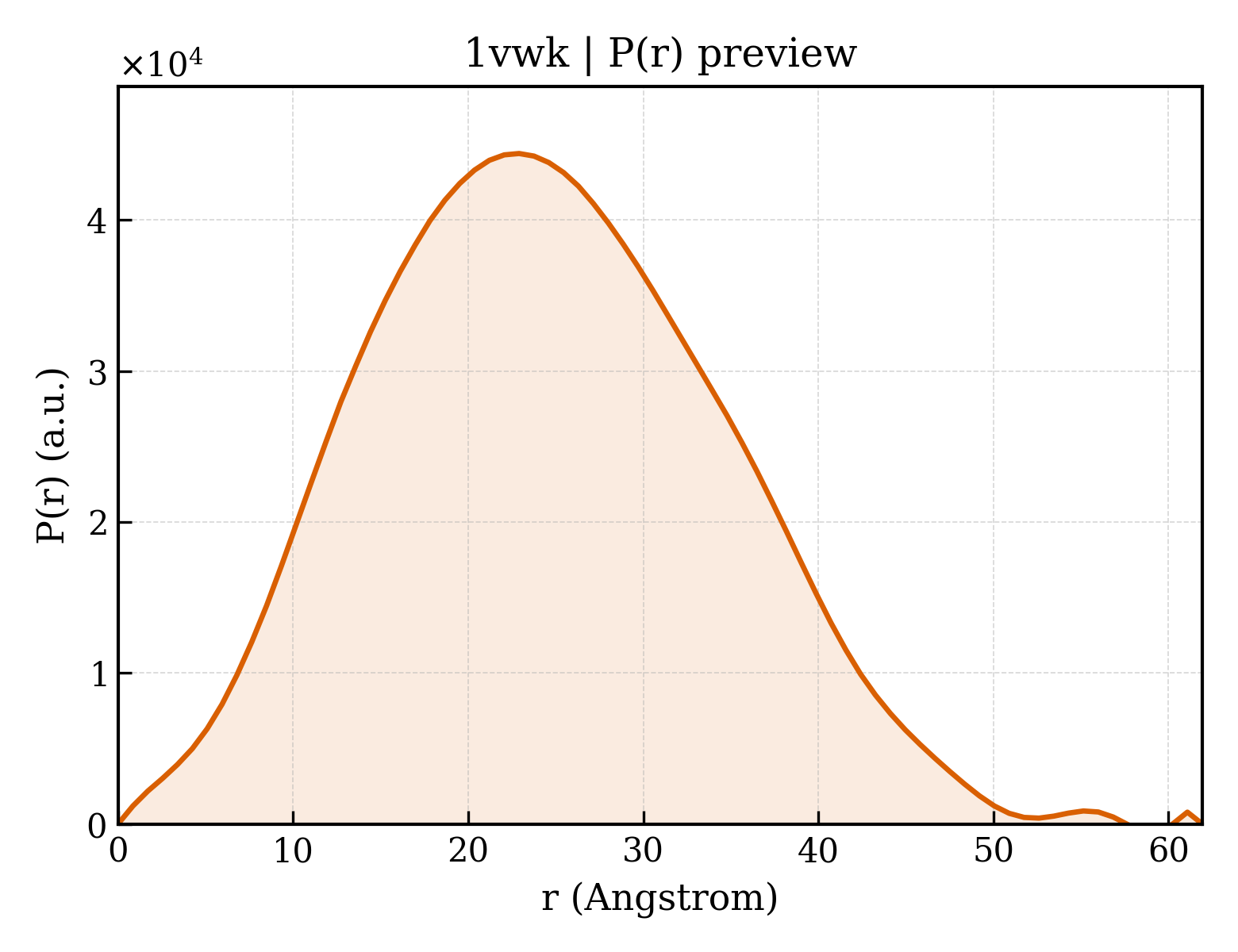

P(r) 距离分布 P(r) Distribution
