1wc7

FAB FRAGMENT OF PLP-DEPENDENT CATALYTIC ANTIBODY 15A9 IN COMPLEX WITH PHOSPHOPYRIDOXYL-L-ALANINE

Method: X-RAY DIFFRACTION D_max: 117.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

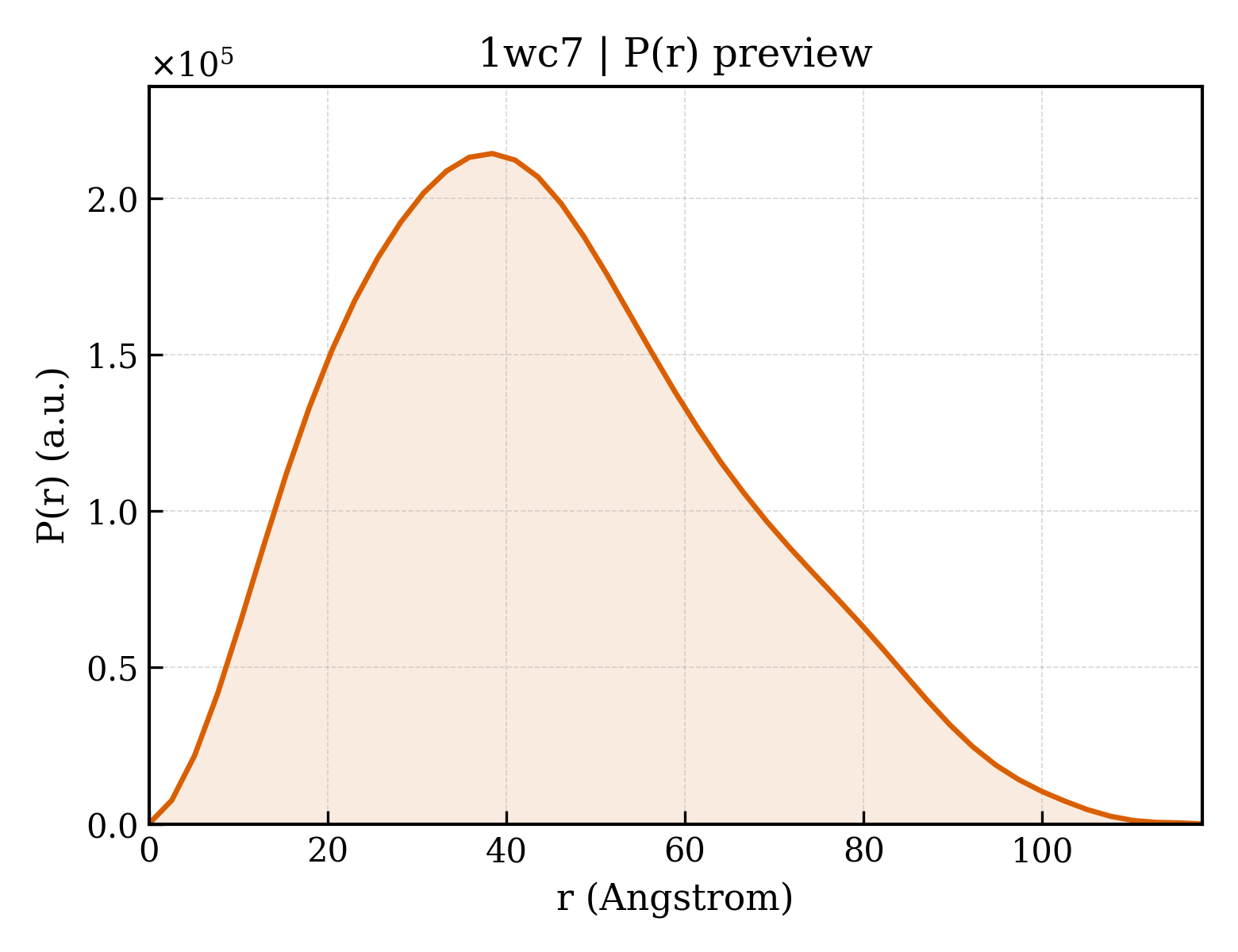

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wc7
沉积日期 deposition_date	2004-11-09
结构标题 title	FAB FRAGMENT OF PLP-DEPENDENT CATALYTIC ANTIBODY 15A9 IN COMPLEX WITH PHOSPHOPYRIDOXYL-L-ALANINE
关键词 keywords	ANTIBODY, CATALYTIC ANTIBODY, TRANSAMINATION, PYRIDOXAL-PHOSPHATE, PHOSPHOPYRIDOXYL-L-ALANINE; ANTIBODY
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.62 Å
回转半径 Rg (电子) rg_electron	34.30 Å
零角强度 I(0) i0	142993000.00
分子量 molecular_weight	92701.0 kDa
排除体积 excluded_volume	114340 Å³
包络体积 envelope_volume	149790 Å³
水化壳体积 shell_volume	38266 Å³
包络直径 envelope_diameter	120.9 Å
壳层 Rg shell_rg	39.00 Å
包络 Rg envelope_rg	34.01 Å
形状 Rg shape_rg	34.32 Å
总 Rg total_rg	34.59 Å
总原子数 total_atoms	6491
残基数 n_residues	849
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.9 Å
Rg (实空间) rg_real	34.75 Å
Rg 误差 (实空间) rg_real_error	1.22 Å
I(0) (实空间) i0_real	1.4300e+08
I(0) 误差 (实空间) i0_real_error	2.5770e+06
Rg (倒空间) rg_reciprocal	34.67 Å
I(0) (倒空间) i0_reciprocal	143000000.0000
解质量估计 total_estimate	0.8749
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.4 Å
偏度 Skewness skewness	0.427
峰度 Kurtosis kurtosis	-0.367
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12440000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.868

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	FAB FRAGMENT OF CATALYTIC ANTIBODY 15A9, LIGHT CHAIN
分子量 formula_weight	23355.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,L
原子数 atom_count	6610

DIELTQSPAIMAASPGEKVTITCSATSGVNYMHWFQQKPGTSPKLWIYSTSNLASAVPARFSGSGSGTSYSLTISRMEAEDAATYYCQQRSTYPFTFGGGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	MUS MUSCULUS

Entity 2 polymer

描述 description	FAB FRAGMENT OF CATALYTIC ANTIBODY 15A9, HEAVY CHAIN
分子量 formula_weight	24501.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,H

EVKLQESGGGLVQPGHSLRLSCATSGFTFTDYYMSWVRQPPGKALEWLGLIRNKANGYTKEYSASVKGRFTISRDNSQSILYLQMNALRAEDSATYYCVRDKGSYGNYEAWFAYWGQGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKIVPRD

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	MUS MUSCULUS

Entity 3 non-polymer

描述 description	IODIDE ION
分子量 formula_weight	126.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 non-polymer

描述 description	ALANYL-PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	320.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	119

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1wc7a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.0 — automated matches

结构域编号 domain_id	d1wc7a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1wc7b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1wc7b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1wc7h1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1wc7h2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1wc7l1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.0 — automated matches

结构域编号 domain_id	d1wc7l2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

结构域编号 domain_id	1wc7A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1wc7L02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	63.476 Å
晶胞边长 b length_b	81.691 Å
晶胞边长 c length_c	79.330 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	89.98 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.330 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2222
R_work r_work	—
R_free r_free	0.3086

fit	/app/data/saxs_computation/wc/1wc7/1wc7.fit
pddf	/app/data/pr_computation/wc/1wc7/1wc7.pr.out
profile	/app/data/saxs_computation/wc/1wc7/1wc7.dat
