1wg6
Solution structure of PDZ domain in protein XP_110852
SAXS 散射曲线 SAXS Profile

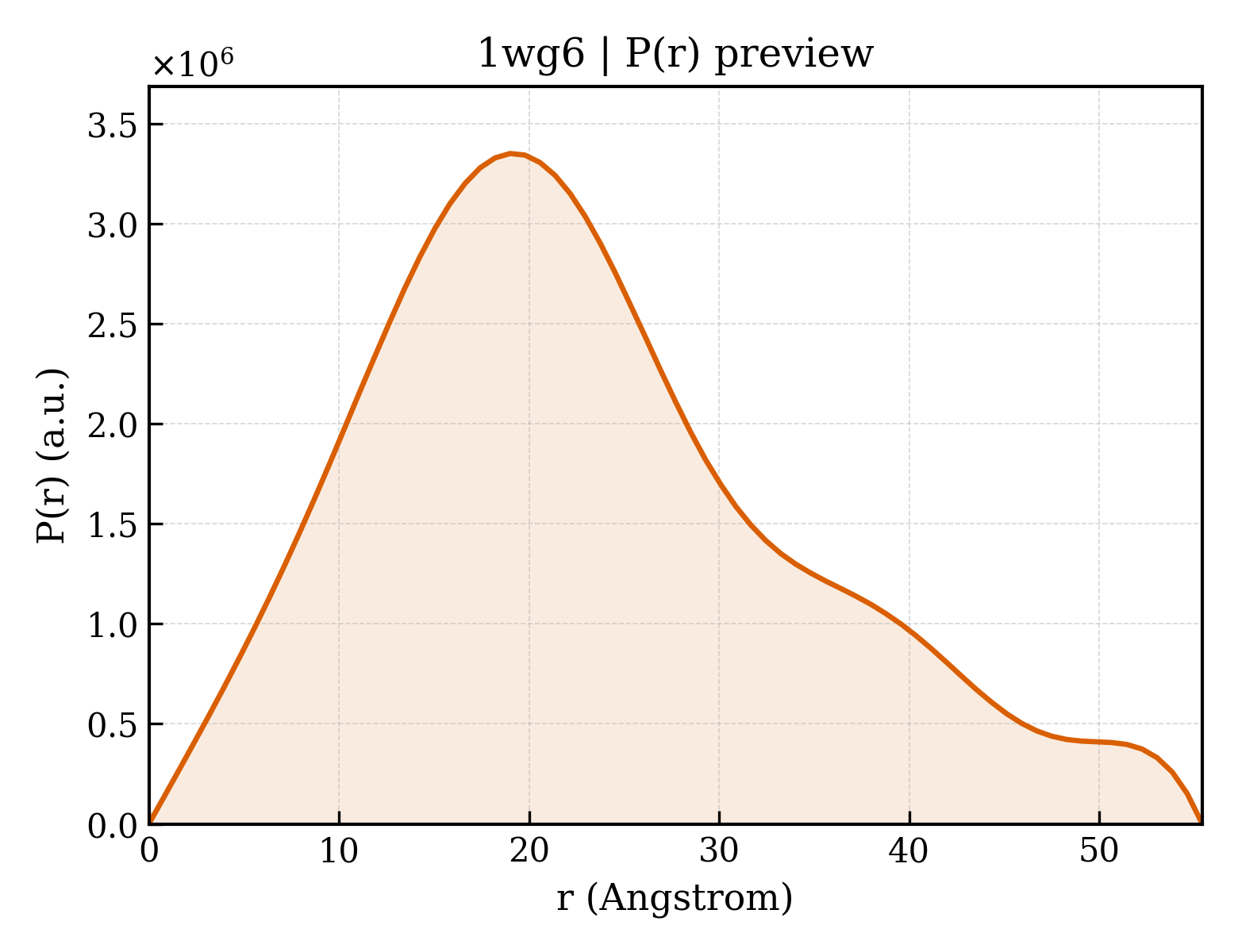

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1wg6 |
| 沉积日期 deposition_date | 2004-05-27 |
| 结构标题 title | Solution structure of PDZ domain in protein XP_110852 |
| 关键词 keywords | structural genomics, PDZ domain, RIKEN Structural Genomics/Proteomics Initiative, RSGI, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 20.33 Å |
| 回转半径 Rg (电子) rg_electron | 19.90 Å |
| 零角强度 I(0) i0 | 1118860000.00 |
| 分子量 molecular_weight | 266360.0 kDa |
| 排除体积 excluded_volume | 328160 ų |
| 包络体积 envelope_volume | 105860 ų |
| 水化壳体积 shell_volume | 28900 ų |
| 包络直径 envelope_diameter | 108.3 Å |
| 壳层 Rg shell_rg | 35.94 Å |
| 包络 Rg envelope_rg | 36.33 Å |
| 形状 Rg shape_rg | 19.90 Å |
| 总 Rg total_rg | 20.32 Å |
| 总原子数 total_atoms | 37420 |
| 残基数 n_residues | 2540 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 55.4 Å |
| Rg (实空间) rg_real | 18.08 Å |
| Rg 误差 (实空间) rg_real_error | 0.15 Å |
| I(0) (实空间) i0_real | 1.0580e+09 |
| I(0) 误差 (实空间) i0_real_error | 1.0420e+07 |
| Rg (倒空间) rg_reciprocal | 20.99 Å |
| I(0) (倒空间) i0_reciprocal | 1119000000.0000 |
| 解质量估计 total_estimate | 0.6489 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 19.0 Å |
| 偏度 Skewness skewness | 0.576 |
| 峰度 Kurtosis kurtosis | -0.136 |
| 角度范围 angular_range | — – 0.3900 Å−1 |
| 当前正则化参数 α current_alpha | 2.0910 |
| 最高正则化参数 α highest_alpha | 299600.0000 |
| 实空间数据点数 n_real_points | 71 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.015; Oscil: 0.850; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1wg6a1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.36 — PDZ domain-like |
| 超家族 Superfamily superfamily | b.36.1 — PDZ domain-like |
| 家族 Family family | b.36.1.1 — PDZ domain |
| 结构域编号 domain_id | d1wg6a2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1wg6a3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (1 domains)
| 结构域编号 domain_id | 1wg6A01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 42 — Pdz3 Domain |
| 同源超家族 H-superfamily homologous superfamily | 10 — PDZ domain |
