SAXSdb — 1wr0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SKD1 protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–77	Fragment：MIT DOMAIN	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) NaCl 50mM；Pressure 1 NMR sample composition：1mM protein U-15N; 20mM Tris buffer; 50mM NaCl; 95% H2O, 5% D2O; 1mM DTT \| 95% H2O/5% D2O NMR sample composition：1mM protein U-15N,13C; 20mM Tris buffer; 50mM NaCl; 95% H2O, 5% D2O; 1mM DTT \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1WR0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XWI Crystal Structure of VPS4B Deposited 2004-11-01	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 123–444（322 aa） Fragment：residues 123-444	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；300 K；Ammonium Sulfate, HEPES, NaCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K, pH 7.50	Resolution 2.80 Å R-free 0.260
2CPT Solution structure of MIT domain from human SKD1 Deposited 2005-05-19	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–104（104 aa） Fragment：MIT domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM NaCl；Pressure ambient NMR sample composition 1.11mM 13C, 15N-labeled protein; 20mM d-Tris-HCl; 100mM NaCl; 1mM d10-DTT; 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2JQH VPS4B MIT Deposited 2007-06-01	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–86（86 aa） Fragment：MIT domain, residues 1-86	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.65；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 1.8 mM [U-100% 13C; U-100% 15N] VPS4B MIT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2JQK VPS4B MIT-CHMP2B Complex Deposited 2007-06-02	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–86（86 aa） Fragment：MIT domain, residues 1-86	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.65；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.48 mM [U-100% 13C; U-100% 15N] VPS4B MIT, 4.8 mM CHMP2B(195-213), 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 2.84 mM VPS4B MIT, 0.26 mM [U-100% 13C; U-100% 15N] CHMP2B(195-213), 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
4U7Y Structure of the complex of VPS4B MIT and IST1 MIM Deposited 2014-07-31	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–89（89 aa） Fragment：MIT domain (UNP residues 1-89)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；299 K；2.58 M Na-malonate	Resolution 2.50 Å R-free 0.271
7L9X Structure of VPS4B in complex with an allele-specific covalent inhibitor Deposited 2021-01-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–444（444 aa）	Not recorded	XQV N-{3-[(8-phenyl[1,2,4]triazolo[1,5-a]pyridin-2-yl)amino]phenyl}propanamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；100 mM NH4SO4, 100 mM Hepes pH 7.5, 10% PEG 4000	Resolution 2.81 Å R-free 0.267

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VPS4B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–81； UniProt 1–77

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wr0
Deposition date deposition_date	2004-10-07
Structure title title	Structural characterization of the MIT domain from human Vps4b
Keywords keywords	;VPS4b, SKD1, MIT DOMAIN, ESCORT, MVB, SNPs, PROTEIN TRANSPORT, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; PROTEIN TRANSPORT
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.58 Å
Radius of gyration Rg (electron density) rg_electron	14.19 Å
Forward intensity I(0) i0	493117000.00
Molecular weight molecular_weight	183850.0 kDa
Excluded volume excluded_volume	228560 Å³
Envelope volume envelope_volume	26184 Å³
Hydration-shell volume shell_volume	13196 Å³
Envelope diameter envelope_diameter	63.5 Å
Shell Rg shell_rg	23.01 Å
Envelope Rg envelope_rg	18.73 Å
Shape Rg shape_rg	14.16 Å
Total Rg total_rg	14.47 Å
Total atoms total_atoms	25700
Residues n_residues	1620
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.5 Å
Rg (real space) rg_real	14.70 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	4.9310e+08
I(0) uncertainty (real space) i0_real_error	6.5290e+06
Rg (reciprocal space) rg_reciprocal	14.69 Å
I(0) (reciprocal space) i0_reciprocal	493100000.0000
Solution quality estimate total_estimate	0.5460
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.8 Å
Skewness Skewness skewness	0.539
Kurtosis Kurtosis kurtosis	-0.039
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	215400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.336; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.321; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1wr0a1
Class class	a — All alpha proteins
Fold Fold fold	a.7 — Spectrin repeat-like
Superfamily Superfamily superfamily	a.7.14 — MIT domain
Family Family family	a.7.14.1 — MIT domain

Domain ID domain_id	d1wr0a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1wr0A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	80 — Phosphotransferase system, lactose/cellobiose-type IIA subunit

▶

8. Citations (1)

▶

Description description	SKD1 protein
Molecular weight formula_weight	9207.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25700

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/wr/1wr0/1wr0.fit
pddf	/app/data/pr_computation/wr/1wr0/1wr0.pr.out
profile	/app/data/saxs_computation/wr/1wr0/1wr0.dat

Structural characterization of the MIT domain from human Vps4b

1. Protein Identity and Related Structures Protein Identity & Related Structures

SKD1 protein

State in the Current Structure

Other States of the Same Protein in the Database

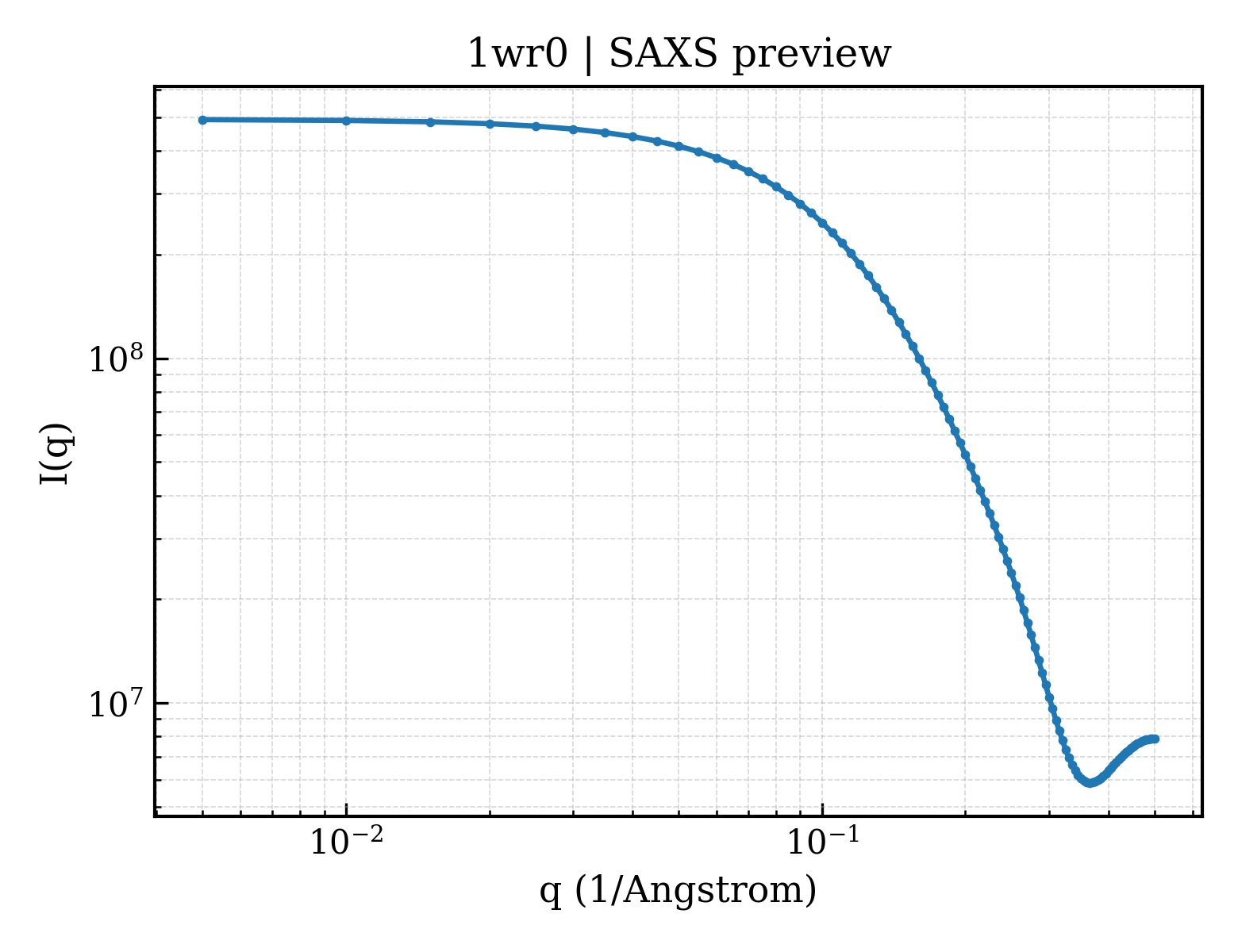

SAXS scattering curve SAXS Profile

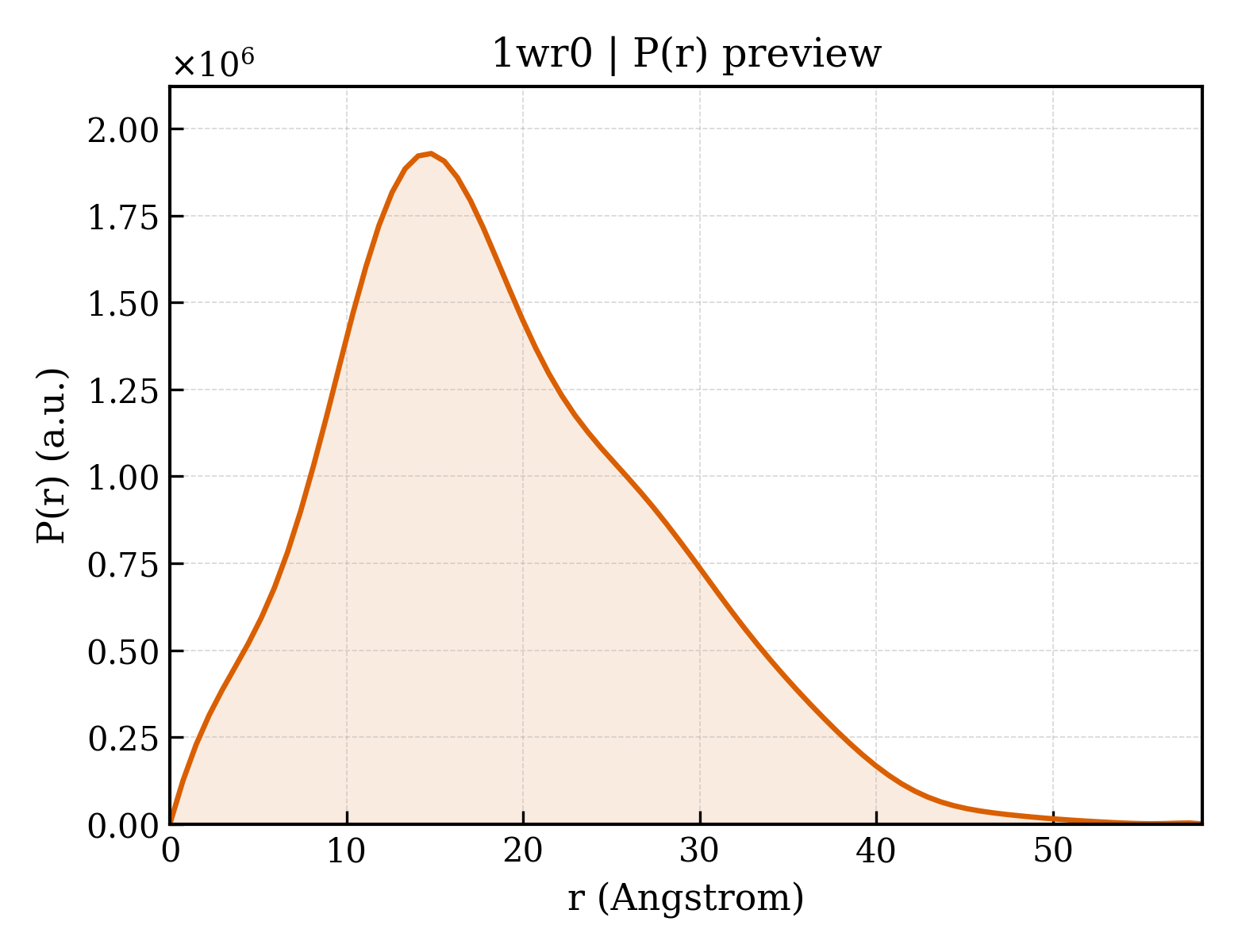

P(r) Distance Distribution P(r) Distribution
