1wul

High Resolution Structure Of The Reduced State Of [Nife]Hydrogenase From Desulufovibrio Vulgaris Miyazaki F

Method: X-RAY DIFFRACTION D_max: 84.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

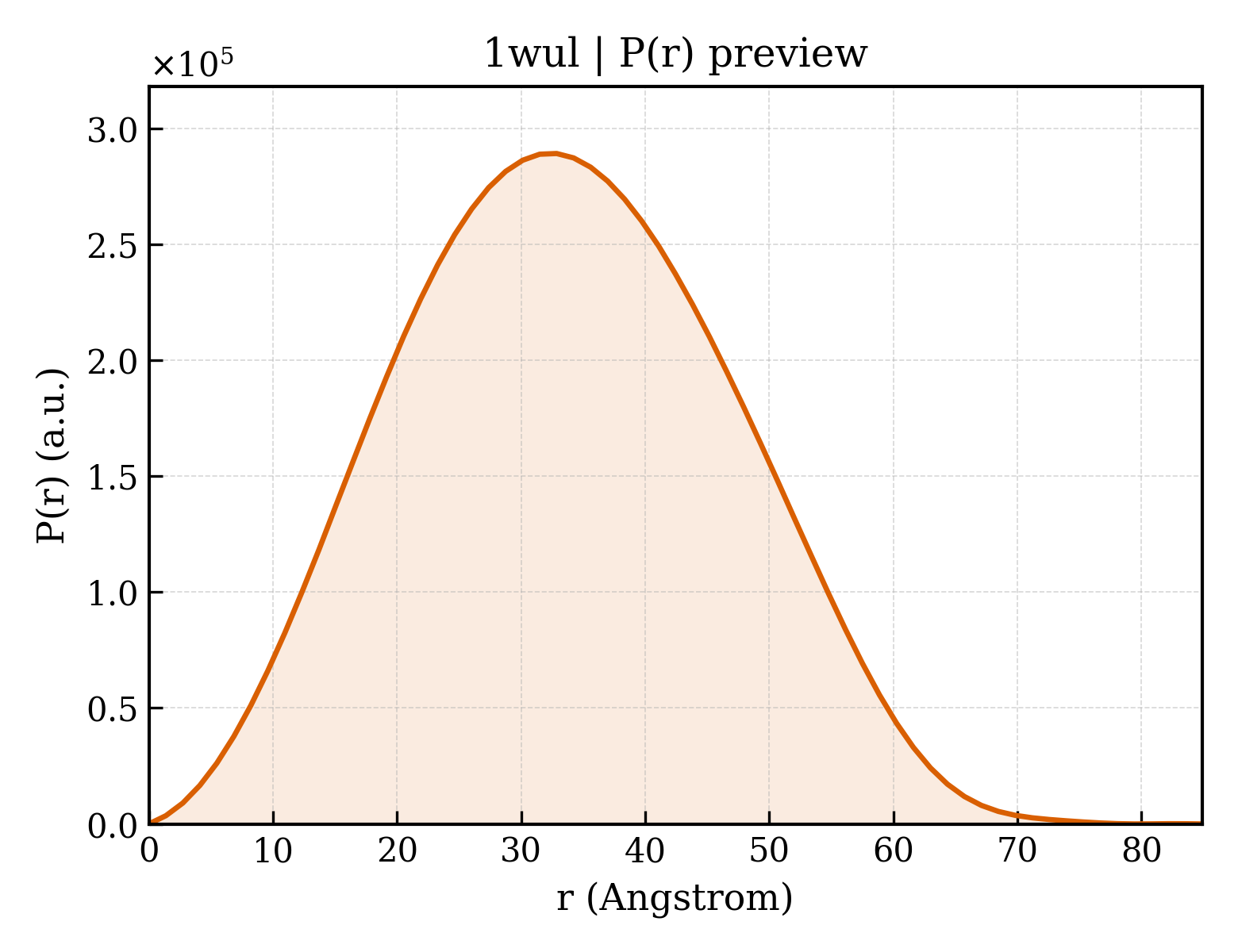

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wul
沉积日期 deposition_date	2004-12-07
结构标题 title	High Resolution Structure Of The Reduced State Of [Nife]Hydrogenase From Desulufovibrio Vulgaris Miyazaki F
关键词 keywords	High resolution crystal structure, [NiFe]hydrogenase, Oxidoreductase, reduced state; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.66 Å
回转半径 Rg (电子) rg_electron	24.69 Å
零角强度 I(0) i0	128820000.00
分子量 molecular_weight	89597.0 kDa
排除体积 excluded_volume	111800 Å³
包络体积 envelope_volume	122570 Å³
水化壳体积 shell_volume	38628 Å³
包络直径 envelope_diameter	83.2 Å
壳层 Rg shell_rg	34.14 Å
包络 Rg envelope_rg	25.02 Å
形状 Rg shape_rg	24.71 Å
总 Rg total_rg	25.51 Å
总原子数 total_atoms	6261
残基数 n_residues	800
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.9 Å
Rg (实空间) rg_real	25.48 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	1.2880e+08
I(0) 误差 (实空间) i0_real_error	1.7670e+06
Rg (倒空间) rg_reciprocal	25.53 Å
I(0) (倒空间) i0_reciprocal	128800000.0000
解质量估计 total_estimate	0.8763
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.9 Å
偏度 Skewness skewness	0.107
峰度 Kurtosis kurtosis	-0.503
角度范围 angular_range	— – 0.3100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	30770000.0000
实空间数据点数 n_real_points	63
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 1.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Periplasmic [NiFe] hydrogenase small subunit
分子量 formula_weight	28789.7 kDa
EC 编号 ec_number	1.12.2.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S
原子数 atom_count	7040

LMGPRRPSVVYLHNAECTGCSESVLRAFEPYIDTLILDTLSLDYHETIMAAAGDAAEAALEQAVNSPHGFIAVVEGGIPTAANGIYGKVANHTMLDICSRILPKAQAVIAYGTCATFGGVQAAKPNPTGAKGVNDALKHLGVKAINIAGCPPNPYNLVGTIVYYLKNKAAPELDSLNRPTMFFGQTVHEQCPRLPHFDAGEFAPSFESEEARKGWCLYELGCKGPVTMNNCPKIKFNQTNWPVDAGHPCIGCSEPDFWDAMTPFYQN

Entity 2 polymer

描述 description	Periplasmic [NiFe] hydrogenase large subunit
分子量 formula_weight	59224.4 kDa
EC 编号 ec_number	1.12.2.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

SSYSGPIVVDPVTRIEGHLRIEVEVENGKVKNAYSSSTLFRGLEIILKGRDPRDAQHFTQRTCGVCTYTHALASTRCVDNAVGVHIPKNATYIRNLVLGAQYLHDHIVHFYHLHALDFVDVTAALKADPAKAAKVASSISPRKTTAADLKAVQDKLKTFVETGQLGPFTNAYFLGGHPAYYLDPETNLIATAHYLEALRLQVKAARAMAVFGAKNPHTQFTVVGGVTCYDALTPQRIAEFEALWKETKAFVDEVYIPDLLVVAAAYKDWTQYGGTDNFITFGEFPKDEYDLNSRFFKPGVVFKRDFKNIKPFDKMQIEEHVRHSWYEGAEARHPWKGQTQPKYTDLHGDDRYSWMKAPRYMGEPMETGPLAQVLIAYSQGHPKVKAVTDAVLAKLGVGPEALFSTLGRTAARGIETAVIAEYVGVMLQEYKDNIAKGDNVICAPWEMPKQAEGVGFVNAPRGGLSHWIRIEDGKIGNFQLVVPSTWTLGPRCDKNKLSPVEASLIGTPVADAKRPVEILRTVHSFDPCIACGVH

Entity 3 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	FE3-S4 CLUSTER
分子量 formula_weight	295.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	(4S)-2-METHYL-2,4-PENTANEDIOL
分子量 formula_weight	118.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	NI-FE REDUCED ACTIVE CENTER
分子量 formula_weight	198.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	(4R)-2-METHYLPENTANE-2,4-DIOL
分子量 formula_weight	118.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	776

▼

6. 折叠分类 (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1wull_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.18 — HydB/Nqo4-like
超家族 Superfamily superfamily	e.18.1 — HydB/Nqo4-like
家族 Family family	e.18.1.1 — Nickel-iron hydrogenase, large subunit

结构域编号 domain_id	d1wuls_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.19 — HydA/Nqo6-like
超家族 Superfamily superfamily	e.19.1 — HydA/Nqo6-like
家族 Family family	e.19.1.1 — Nickel-iron hydrogenase, small subunit

CATH v4.4 (3 domains)

结构域编号 domain_id	1wulL00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	645 — Cytochrome-c3 Hydrogenase; chain B
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 Hydrogenase, chain B

结构域编号 domain_id	1wulS01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	700 — NADH:ubiquinone oxidoreductase-like, 20kDa subunit

结构域编号 domain_id	1wulS02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	480 — Cytochrome-c3 Hydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cytochrome-c3 hydrogenase, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	98.116 Å
晶胞边长 b length_b	126.016 Å
晶胞边长 c length_c	66.731 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1220
R_work r_work	0.1190
R_free r_free	0.1690
