SAXSdb — 1x39

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1x39
沉积日期 deposition_date	2005-05-02
结构标题 title	Crystal structure of barley beta-D-glucan glucohydrolase isoenzyme exo1 in complex with gluco-phenylimidazole
关键词 keywords	2-domain fold, ligand-protein complex, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.50 Å
回转半径 Rg (电子) rg_electron	24.82 Å
零角强度 I(0) i0	76150800.00
分子量 molecular_weight	68381.0 kDa
排除体积 excluded_volume	85540 Å³
包络体积 envelope_volume	96803 Å³
水化壳体积 shell_volume	32001 Å³
包络直径 envelope_diameter	92.9 Å
壳层 Rg shell_rg	32.81 Å
包络 Rg envelope_rg	25.26 Å
形状 Rg shape_rg	24.80 Å
总 Rg total_rg	25.69 Å
总原子数 total_atoms	4796
残基数 n_residues	602
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.6 Å
Rg (实空间) rg_real	25.51 Å
Rg 误差 (实空间) rg_real_error	0.77 Å
I(0) (实空间) i0_real	7.6150e+07
I(0) 误差 (实空间) i0_real_error	1.1430e+06
Rg (倒空间) rg_reciprocal	25.51 Å
I(0) (倒空间) i0_reciprocal	76150000.0000
解质量估计 total_estimate	0.8535
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.0 Å
偏度 Skewness skewness	0.447
峰度 Kurtosis kurtosis	-0.084
角度范围 angular_range	— – 0.3100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24420000.0000
实空间数据点数 n_real_points	63
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.706; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.983

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	beta-D-glucan exohydrolase isoenzyme ExoI
分子量 formula_weight	65054.1 kDa
EC 编号 ec_number	3.2.1.58
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5670

DYVLYKDATKPVEDRVADLLGRMTLAEKIGQMTQIERLVATPDVLRDNFIGSLLSGGGSVPRKGATAKEWQDMVDGFQKACMSTRLGIPMIYGIDAVHGQNNVYGATIFPHNVGLGATRDPYLVKRIGEATALEVRATGIQYAFAPCIAVCRDPRWGRCYESYSEDRRIVQSMTELIPGLQGDVPKDFTSGMPFVAGKNKVAACAKHFVGDGGTVDGINENNTIINREGLMNIHMPAYKNAMDKGVSTVMISYSSWNGVKMHANQDLVTGYLKDTLKFKGFVISDWEGIDRITTPAGSDYSYSVKASILAGLDMIMVPNKYQQFISILTGHVNGGVIPMSRIDDAVTRILRVKFTMGLFENPYADPAMAEQLGKQEHRDLAREAARKSLVLLKNGKTSTDAPLLPLPKKAPKILVAGSHADNLGYQCGGWTIEWQGDTGRTTVGTTILEAVKAAVDPSTVVVFAENPDAEFVKSGGFSYAIVAVGEHPYTETKGDNLNLTIPEPGLSTVQAVCGGVRCATVLISGRPVVVQPLLAASDALVAAWLPGSEGQGVTDALFGDFGFTGRLPRTWFKSVDQLPMNVGDAHYDPLFRLGYGLTTNAT

Entity 2 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[beta-D-xylopyranose-(1-2)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1230.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	;beta-D-xylopyranose-(1-2)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	864.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	(5R,6R,7S,8S)-3-(ANILINOMETHYL)-5,6,7,8-TETRAHYDRO-5-(HYDROXYMETHYL)-IMIDAZO[1,2-A]PYRIDINE-6,7,8-TRIOL
分子量 formula_weight	305.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	874

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1x39a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.7 — NagZ-like

结构域编号 domain_id	d1x39a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.11 — Beta-D-glucan exohydrolase, C-terminal domain-like
家族 Family family	c.23.11.1 — Beta-D-glucan exohydrolase, C-terminal domain-like

CATH v4.4 (2 domains)

结构域编号 domain_id	1x39A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	300 — Glycoside hydrolase, family 3, N-terminal domain

结构域编号 domain_id	1x39A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1700 — Glycoside hydrolase family 3 C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	99.991 Å
晶胞边长 b length_b	99.991 Å
晶胞边长 c length_c	184.386 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	48.300 Å
R 因子 r_factor	0.1600
R_work r_work	0.1590
R_free r_free	0.1850

fit	/app/data/saxs_computation/x3/1x39/1x39.fit
pddf	/app/data/pr_computation/x3/1x39/1x39.pr.out
profile	/app/data/saxs_computation/x3/1x39/1x39.dat

Crystal structure of barley beta-D-glucan glucohydrolase isoenzyme exo1 in complex with gluco-phenylimidazole

SAXS 散射曲线 SAXS Profile

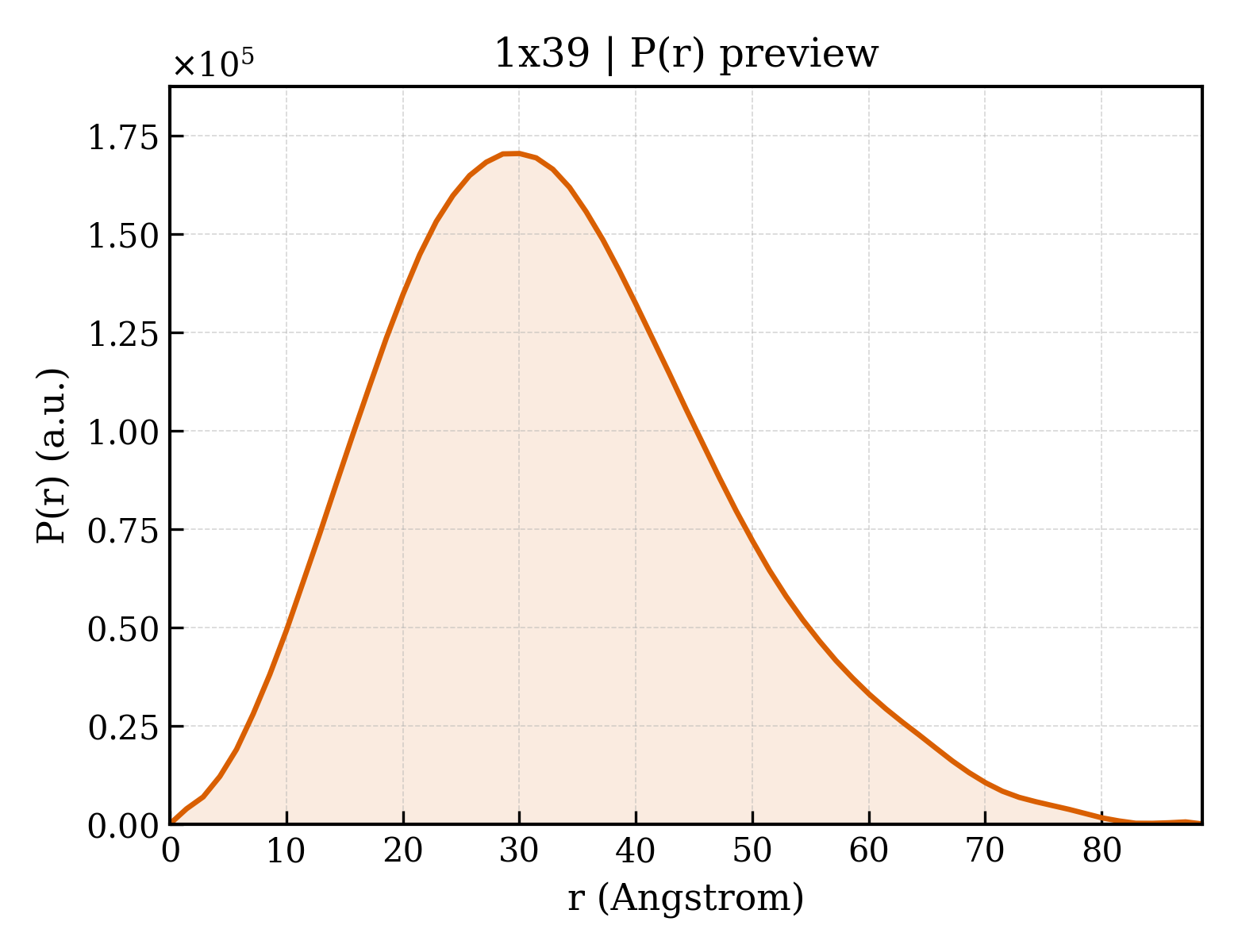

P(r) 距离分布 P(r) Distribution
