1ykv
;Crystal structure of the Diels-Alder ribozyme complexed with the product of the reaction between N-pentylmaleimide and covalently attached 9-hydroxymethylanthracene ;

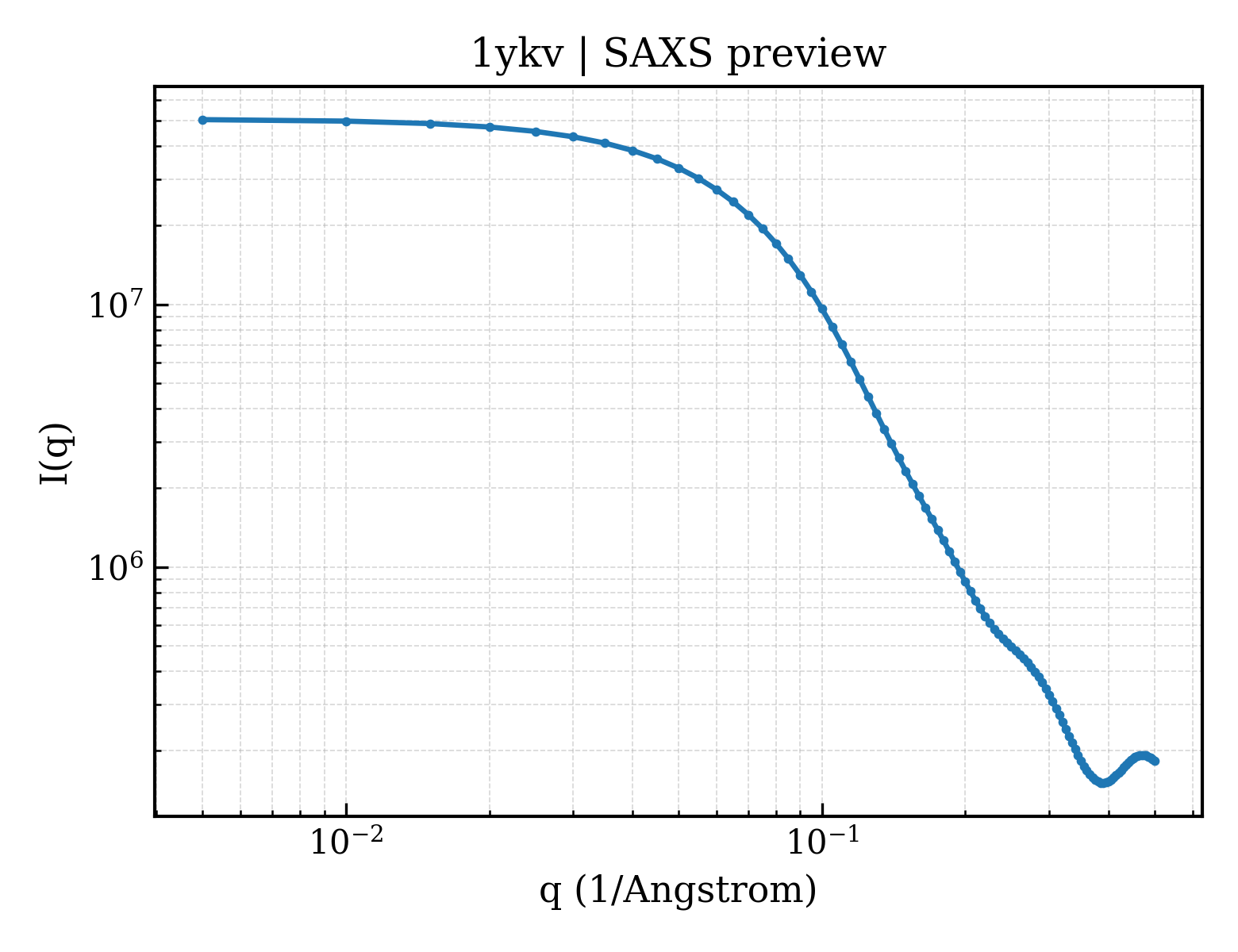

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1ykv |
| 沉积日期 deposition_date | 2005-01-18 |
| 结构标题 title | ;Crystal structure of the Diels-Alder ribozyme complexed with the product of the reaction between N-pentylmaleimide and covalently attached 9-hydroxymethylanthracene ; |
| 关键词 keywords | carbon-carbon bond, catalytic mechanism, Diels-Alder reaction, ribozyme, RNA; RNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 22.69 Å |
| 回转半径 Rg (电子) rg_electron | 22.26 Å |
| 零角强度 I(0) i0 | 50689200.00 |
| 分子量 molecular_weight | 32625.0 kDa |
| 排除体积 excluded_volume | 30849 ų |
| 包络体积 envelope_volume | 46316 ų |
| 水化壳体积 shell_volume | 18945 ų |
| 包络直径 envelope_diameter | 80.6 Å |
| 壳层 Rg shell_rg | 26.96 Å |
| 包络 Rg envelope_rg | 22.30 Å |
| 形状 Rg shape_rg | 22.18 Å |
| 总 Rg total_rg | 22.74 Å |
| 总原子数 total_atoms | 2155 |
| 残基数 n_residues | 98 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 78.2 Å |
| Rg (实空间) rg_real | 22.68 Å |
| Rg 误差 (实空间) rg_real_error | 0.82 Å |
| I(0) (实空间) i0_real | 5.0690e+07 |
| I(0) 误差 (实空间) i0_real_error | 7.4220e+05 |
| Rg (倒空间) rg_reciprocal | 22.69 Å |
| I(0) (倒空间) i0_reciprocal | 50690000.0000 |
| 解质量估计 total_estimate | 0.8795 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 27.2 Å |
| 偏度 Skewness skewness | 0.297 |
| 峰度 Kurtosis kurtosis | -0.437 |
| 角度范围 angular_range | — – 0.3500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2392000.0000 |
| 实空间数据点数 n_real_points | 67 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.830; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.994 |
