1yuh

FAB FRAGMENT

Method: X-RAY DIFFRACTION D_max: 117.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

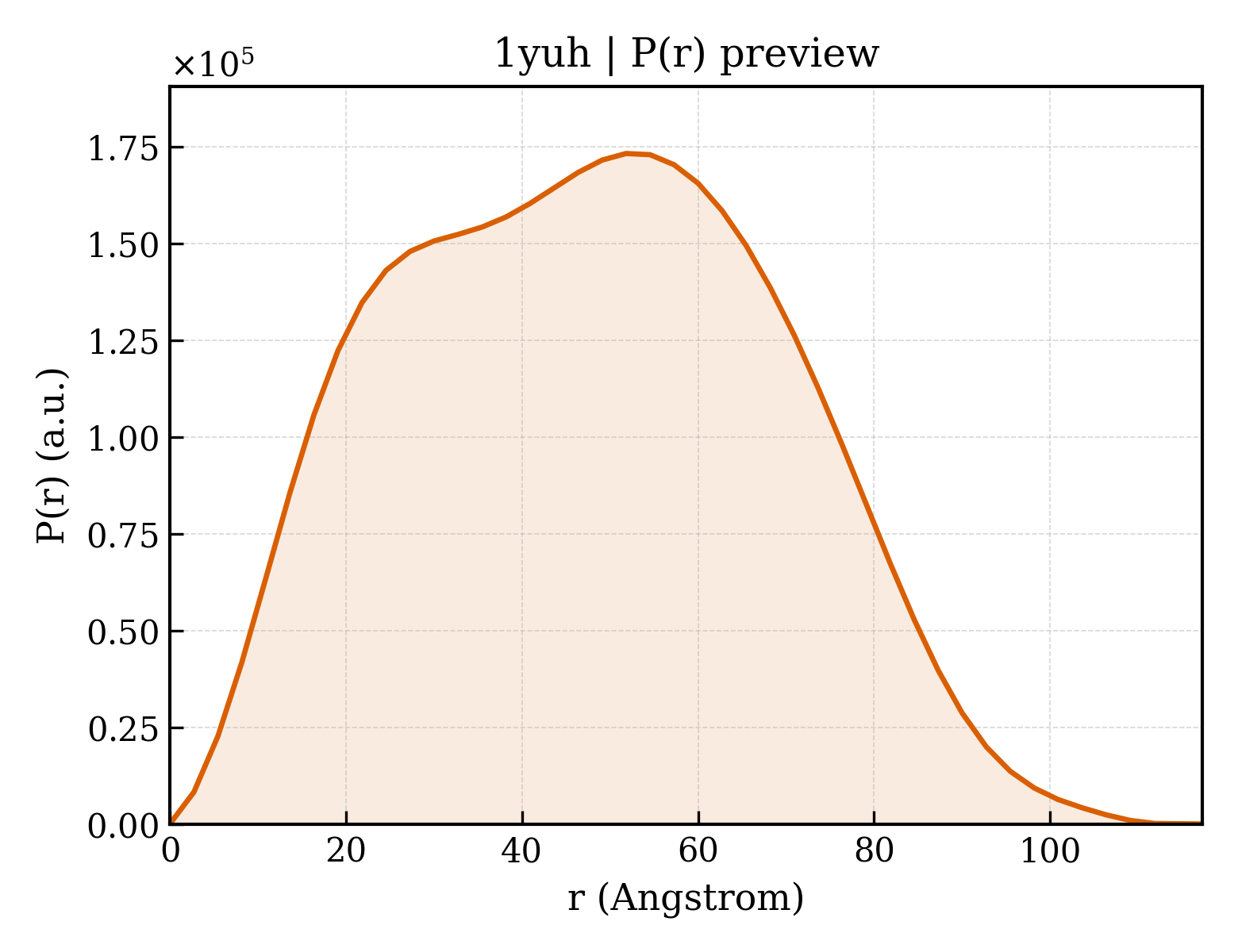

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1yuh
沉积日期 deposition_date	1996-01-30
结构标题 title	FAB FRAGMENT
关键词 keywords	ANTI-NITROPHENOL, LAMBDA LIGHT CHAIN, IMMUNOGLOBULIN, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.91 Å
回转半径 Rg (电子) rg_electron	36.28 Å
零角强度 I(0) i0	135292000.00
分子量 molecular_weight	92758.0 kDa
排除体积 excluded_volume	115700 Å³
包络体积 envelope_volume	162420 Å³
水化壳体积 shell_volume	37369 Å³
包络直径 envelope_diameter	117.6 Å
壳层 Rg shell_rg	43.09 Å
包络 Rg envelope_rg	34.52 Å
形状 Rg shape_rg	36.27 Å
总 Rg total_rg	36.81 Å
总原子数 total_atoms	6526
残基数 n_residues	858
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.3 Å
Rg (实空间) rg_real	36.84 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	1.3530e+08
I(0) 误差 (实空间) i0_real_error	2.3850e+06
Rg (倒空间) rg_reciprocal	36.89 Å
I(0) (倒空间) i0_reciprocal	135300000.0000
解质量估计 total_estimate	0.8919
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	51.8 Å
偏度 Skewness skewness	0.107
峰度 Kurtosis kurtosis	-0.741
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11760000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.831

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	88C6/12 FAB (LIGHT CHAIN)
分子量 formula_weight	22672.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,A
原子数 atom_count	6530

AVVTQESALTTSPGETVTLTCRSSTGAVTTSNYANWVQEKPDRLFTGLIGGTNNRGPGVPARFSGSLIGDKAALTITGAQTEDEAIYFCALWYSNHWVFGGGTKLTVLGQPKSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTEGMETTQPSKQSNNKYMASSYLTLSARAWERHASYSCQVTHEGHTVEKSLSRA

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

Entity 2 polymer

描述 description	88C6/12 FAB (HEAVY CHAIN)
分子量 formula_weight	23434.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,B

QVQFQQSGAELVKPGASVKLSCKASGYTFTSYLMHWIKQRPGRGLEWIGRIDPNNVVTKFNEKFKSKATLTVDKPSSTAYMELSSLTSEDSAVYYCARYAYCRPMDYWGQGTTVTVSSAATTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGALSSGVHTFPAVLQSDLYTLSSSVTVPASTWPSGTVTCNVAHPASSTAVDKKIVPR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090

Entity 3 non-polymer

描述 description	4-HYDROXY-3-NITROPHENYLACETYL-EPSILON-AMINOCAPROIC ACID
分子量 formula_weight	310.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1yuha1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1yuha2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1yuhb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1yuhb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1yuhh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1yuhh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1yuhl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1yuhl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

结构域编号 domain_id	1yuhA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1yuhL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	81.200 Å
晶胞边长 b length_b	86.900 Å
晶胞边长 c length_c	131.100 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	6.000 Å
R 因子 r_factor	0.1900
R_work r_work	0.1900
R_free r_free	—

fit	/app/data/saxs_computation/yu/1yuh/1yuh.fit
pddf	/app/data/pr_computation/yu/1yuh/1yuh.pr.out
profile	/app/data/saxs_computation/yu/1yuh/1yuh.dat
