SAXSdb — 1zc1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin fusion degradation protein 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–208	Fragment：N domain, residues 1-208	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；307 K；Ionic strength (raw mmCIF value) 20 mM Phosphate 50mM NaCl；Pressure 1 NMR sample composition：0.2mM Ufd1 \| 50mM Phosphate, 20mM NaCl,pH6.0	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ZC1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6JWJ Npl4 in complex with Ufd1 Deposited 2019-04-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 288–305（18 aa）	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；90mM BisTris-HCl (pH 7.5), 19% PEG 3350, 10mM ATP	Resolution 1.58 Å R-free 0.206
8DAR Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex unbound but in the presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.00 Å
8DAS Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two ubiquitin moieties in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (intA) Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.50 Å
8DAT Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to three ubiquitin moieties in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (intB) Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.80 Å
8DAU Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two folded ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (uA) Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.70 Å
8DAV Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 2 (uC) Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.50 Å
8DAW Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to three ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 2 (uD) Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 1–361（361 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.60 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UFD1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–208； UniProt 1–208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zc1
Deposition date deposition_date	2005-04-10
Structure title title	Ufd1 exhibits the AAA-ATPase fold with two distinct ubiquitin interaction sites
Keywords keywords	Ufd1, double-psi-beta-barrel, PROTEIN TURNOVER; PROTEIN TURNOVER
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.90 Å
Radius of gyration Rg (electron density) rg_electron	19.59 Å
Forward intensity I(0) i0	1551820000.00
Molecular weight molecular_weight	348340.0 kDa
Excluded volume excluded_volume	441500 Å³
Envelope volume envelope_volume	100770 Å³
Hydration-shell volume shell_volume	30898 Å³
Envelope diameter envelope_diameter	104.1 Å
Shell Rg shell_rg	34.30 Å
Envelope Rg envelope_rg	29.63 Å
Shape Rg shape_rg	19.61 Å
Total Rg total_rg	19.89 Å
Total atoms total_atoms	48975
Residues n_residues	3120
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.3 Å
Rg (real space) rg_real	18.62 Å
Rg uncertainty (real space) rg_real_error	0.08 Å
I(0) (real space) i0_real	1.4760e+09
I(0) uncertainty (real space) i0_real_error	1.2630e+07
Rg (reciprocal space) rg_reciprocal	20.07 Å
I(0) (reciprocal space) i0_reciprocal	1552000000.0000
Solution quality estimate total_estimate	0.6851
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	21.8 Å
Skewness Skewness skewness	0.292
Kurtosis Kurtosis kurtosis	-0.345
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	2.4770
Highest regularization parameter α highest_alpha	1984000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.003; Oscil: 0.979; Stabil: 0.991; Sysdev: 0.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1zc1A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	40 — Barwin-like endoglucanases
Homologous superfamily homologous superfamily	50 — Ubiquitin fusion degradation protein UFD1, N-terminal domain

Domain ID domain_id	1zc1A02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	330 — Vcp-like ATPase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Description description	Ubiquitin fusion degradation protein 1
Molecular weight formula_weight	23249.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	48975

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/zc/1zc1/1zc1.fit
pddf	/app/data/pr_computation/zc/1zc1/1zc1.pr.out
profile	/app/data/saxs_computation/zc/1zc1/1zc1.dat

Ufd1 exhibits the AAA-ATPase fold with two distinct ubiquitin interaction sites

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin fusion degradation protein 1

State in the Current Structure

Other States of the Same Protein in the Database

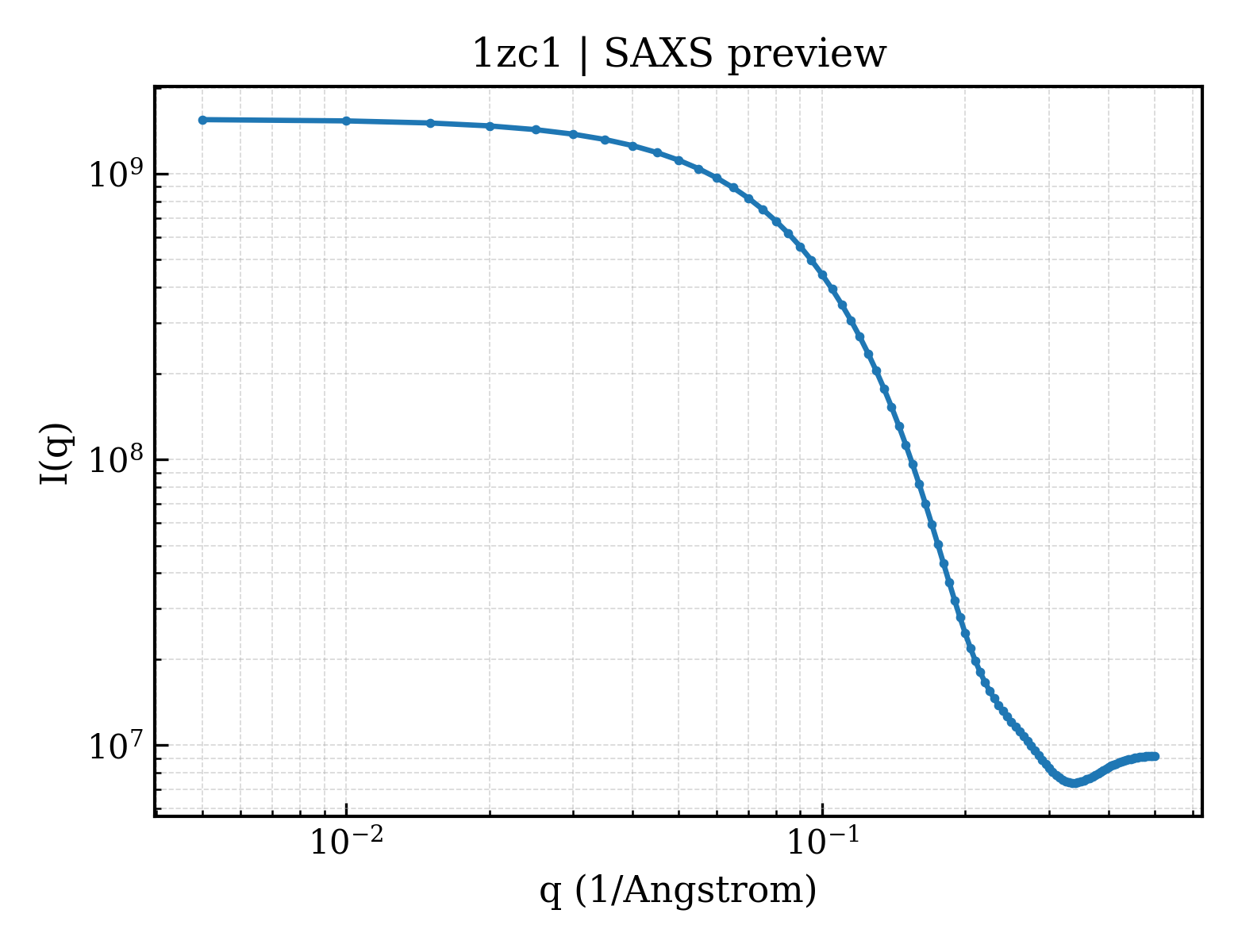

SAXS scattering curve SAXS Profile

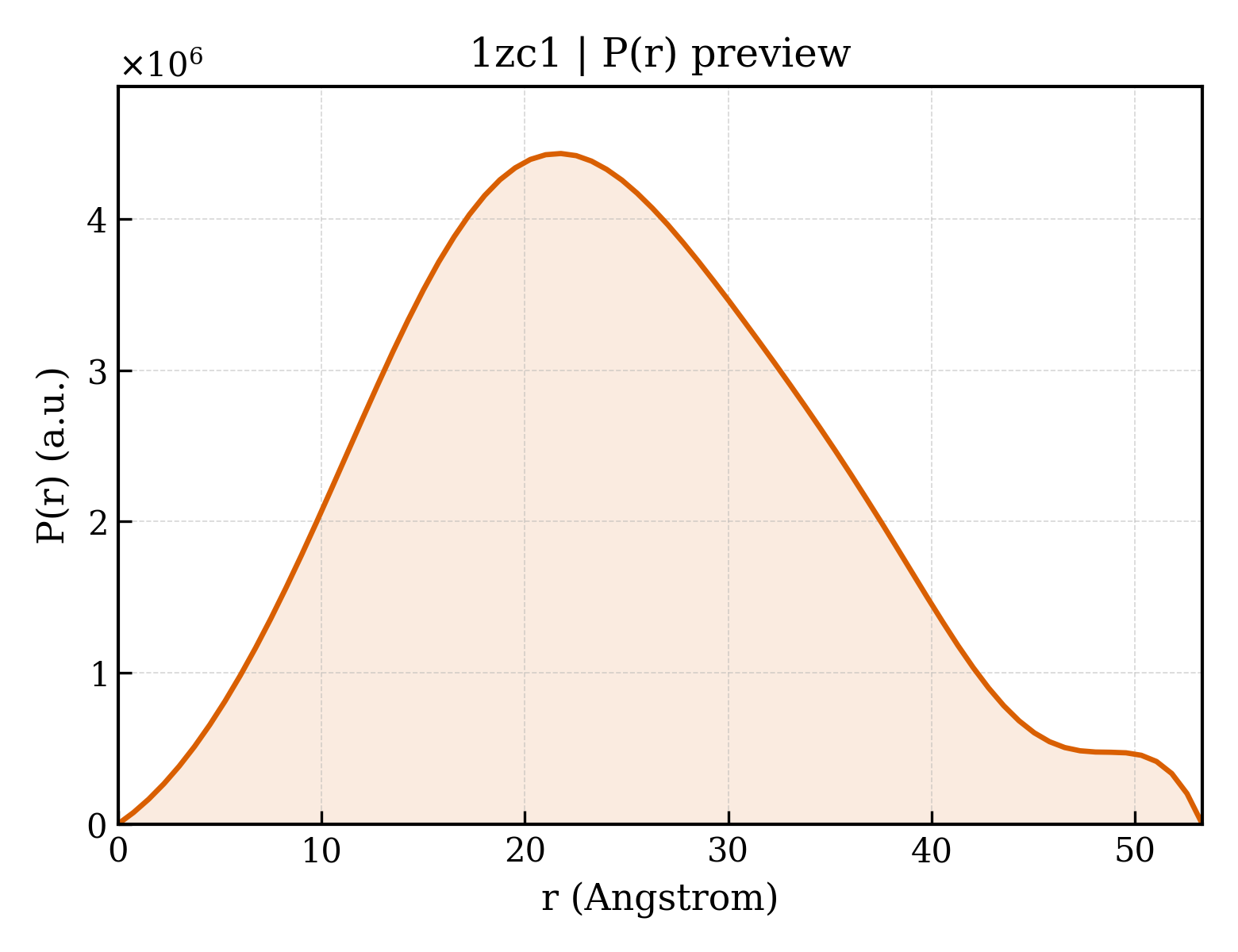

P(r) Distance Distribution P(r) Distribution
