1zc8

Coordinates of tmRNA, SmpB, EF-Tu and h44 fitted into Cryo-EM map of the 70S ribosome and tmRNA complex

Method: ELECTRON MICROSCOPY D_max: 215.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

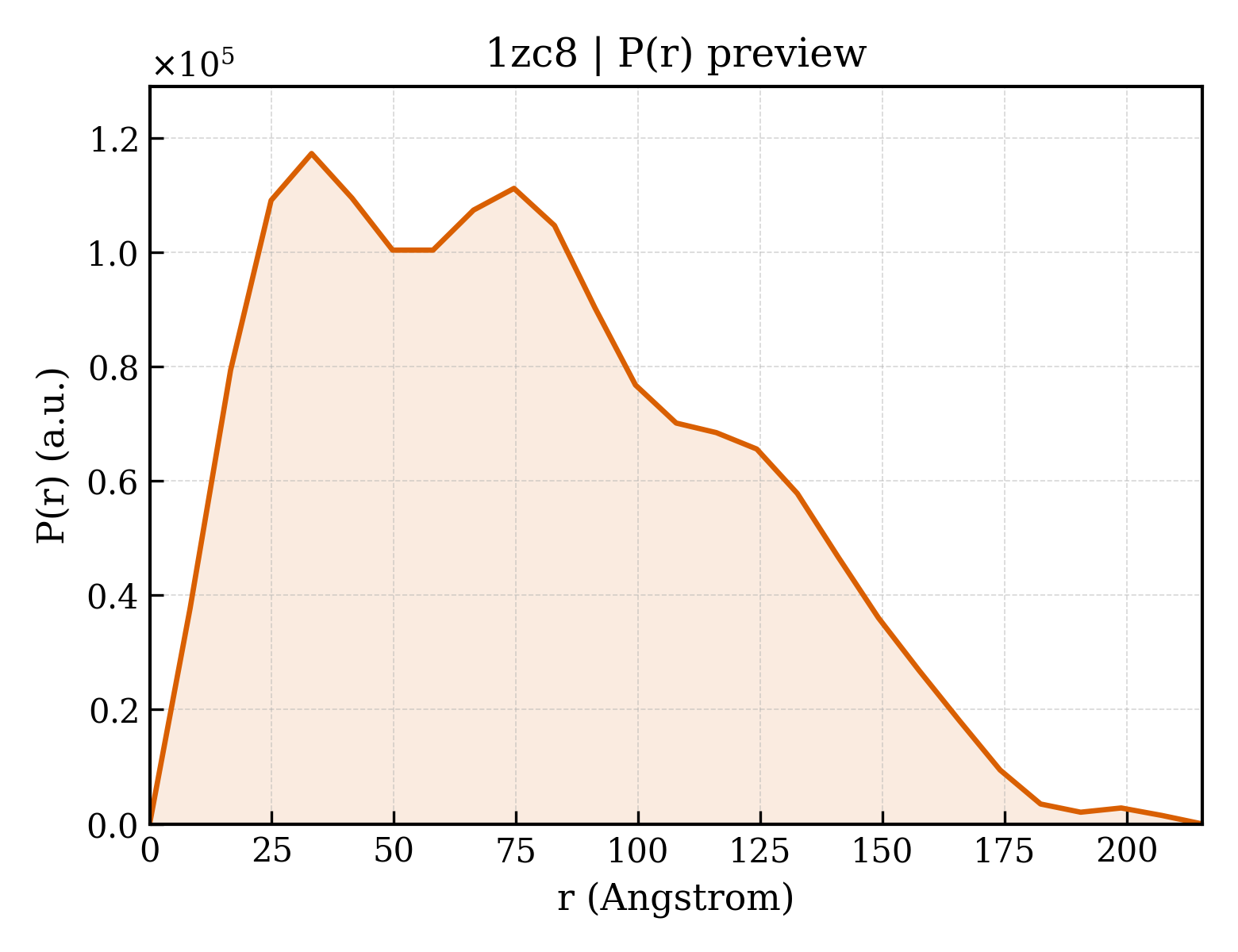

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1zc8
沉积日期 deposition_date	2005-04-11
结构标题 title	Coordinates of tmRNA, SmpB, EF-Tu and h44 fitted into Cryo-EM map of the 70S ribosome and tmRNA complex
关键词 keywords	SmpB, tmRNA, EF-Tu, h44, 30S, 16s rRNA, Cryo-EM, trans-translation, 70S, RNA binding protein-RNA COMPLEX; RNA binding protein/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.34 Å
回转半径 Rg (电子) rg_electron	50.29 Å
零角强度 I(0) i0	161773000.00
分子量 molecular_weight	72626.0 kDa
排除体积 excluded_volume	76103 Å³
包络体积 envelope_volume	269700 Å³
水化壳体积 shell_volume	38867 Å³
包络直径 envelope_diameter	231.1 Å
壳层 Rg shell_rg	54.21 Å
包络 Rg envelope_rg	64.62 Å
形状 Rg shape_rg	60.95 Å
总 Rg total_rg	49.70 Å
总原子数 total_atoms	416
残基数 n_residues	416
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	215.5 Å
Rg (实空间) rg_real	61.19 Å
Rg 误差 (实空间) rg_real_error	3.10 Å
I(0) (实空间) i0_real	1.6180e+08
I(0) 误差 (实空间) i0_real_error	3.3970e+06
Rg (倒空间) rg_reciprocal	59.57 Å
I(0) (倒空间) i0_reciprocal	161300000.0000
解质量估计 total_estimate	0.7360
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	33.2 Å
偏度 Skewness skewness	0.423
峰度 Kurtosis kurtosis	-0.612
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	7704000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.440; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.559; Smooth: 0.687

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	TLD 16S ribosomal RNA
分子量 formula_weight	18951.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	951

GGGGCUGAUUCUGGAUUCGACGGGAUAUUUCGGACGCGGGUUCAACUCCCGCCAGCUCC

Entity 2 polymer

描述 description	H2 16S rRNA
分子量 formula_weight	5162.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UUGCGAAACAUGUAGG

Entity 3 polymer

描述 description	H2b d mRNA
分子量 formula_weight	10013.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

CCCAAGGUGCAUGCGCAUGUAGUACCGAGGA

Entity 4 polymer

描述 description	protein kinase 4 mRNA
分子量 formula_weight	9738.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	G

CGAGGGGCGGUUGGCCUCGUAAAAAGCCGC

Entity 5 polymer

描述 description	H5 16S ribosomal RNA
分子量 formula_weight	9206.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	F

CUUUAGCAGCUUAAUAACCUGCUUAGAGC

Entity 6 polymer

描述 description	protein kinase 2 mRNA
分子量 formula_weight	18915.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	H

CCUCUCUCCCUAGCCUCCGCUCUUAGGACGGGGAUCAAGAGAGGUCAAACCCAAAAGAG

Entity 7 polymer

描述 description	protein kinase 3
分子量 formula_weight	15808.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	I

AUCGCGUGGAAGCCCUGCCUGGGGUUGAAGCGUUAAAACUUAAUCAGGC

Entity 8 polymer

描述 description	protein kinase 4 mRNA
分子量 formula_weight	16782.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	J

GUUUGUUAGUGGCGUGUCCGUCCGCAGCUGGCAAGCGAAUGUAAAGACUGAC

Entity 9 polymer

描述 description	H44 16S ribosomal RNA
分子量 formula_weight	29593.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Z

GCCCGUCACGCCAUGGGAGCGGGCUCUACCCGAAGUCGCCGGGAGCCUACGGGCAGGCGCCGAGGGUAGGGCCCGUGACUGGGGCGAAGUC

Entity 10 polymer

描述 description	SsrA-binding protein
分子量 formula_weight	15087.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

GKSDKIIPIAENKEAKAKYDILETYEAGIVLKGSEVKSLREKGTVSFKDSFVRIENGEAWLYNLYIAPYKHATIENHDPLRKRKLLLHKREIMRLYGKVQEKGYTIIPLKLYWKNNKVKVLIALAKGKKL

Entity 11 polymer

描述 description	Elongation factor Tu
分子量 formula_weight	44743.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

AKGEFIRTKPHVNVGTIGHVDHGKTTLTAALTYVAAAENPNVEVKDYGDIDKAPEERARGITINTAHVEYETAKRHYSHVDCPGHADYIKNMITGAAQMDGAILVVSAADGPMPQTREHILLARQVGVPYIVVFMNKVDMVDDPELLDLVEMEVRDLLNQYEFPGDEVPVIRGSALLALEEMHKNPKTKRGENEWVDKIWELLDAIDEYIPTPVRDVDKPFLMPVEDVFTITGRGTVATGRIERGKVKVGDEVEIVGLAPETRKTVVTGVEMHRKTLQEGIAGDNVGLLLRGVSREEVERGQVLAKPGSITPHTKFEASVYILKKEEGGRHTGFFTGYRPQFYFRTTDVTGVVRLPQGVEMVMPGDNVTFTVELIKPVALEEGLRFAIREGGRTVGAGVVTKILE

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1zc8k1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.111 — Small protein B (SmpB)
超家族 Superfamily superfamily	b.111.1 — Small protein B (SmpB)
家族 Family family	b.111.1.1 — Small protein B (SmpB)

结构域编号 domain_id	d1zc8y1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
超家族 Superfamily superfamily	b.43.3 — Translation proteins
家族 Family family	b.43.3.1 — Elongation factors

结构域编号 domain_id	d1zc8y2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
超家族 Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
家族 Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

结构域编号 domain_id	d1zc8y3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

▶

7. 引用文献 (6)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	13.00 Å
分辨率测定方法 resolution_method	3D projection matching: conjugate gradients with regularization
颗粒数 num_particles	27644

fit	/app/data/saxs_computation/zc/1zc8/1zc8.fit
pddf	/app/data/pr_computation/zc/1zc8/1zc8.pr.out
profile	/app/data/saxs_computation/zc/1zc8/1zc8.dat
