1zcf

L-asparaginase from Erwinia carotovora

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.

Assembly Composition of the Current Entry

Assembly	Physical composition	Protein state	蛋白 / DNA / RNA / 其他Polymer	Data consistency
1	Protein homooligomer	Homooligomer	4 / 0 / 0 / 0	Consistent with protein count
2	Protein homooligomer	Homooligomer	4 / 0 / 0 / 0	Consistent with protein count

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zcf
Deposition date deposition_date	2005-04-12
Structure title title	L-asparaginase from Erwinia carotovora
Keywords keywords	Erwinia carotovora, L-asparaginase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zcf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

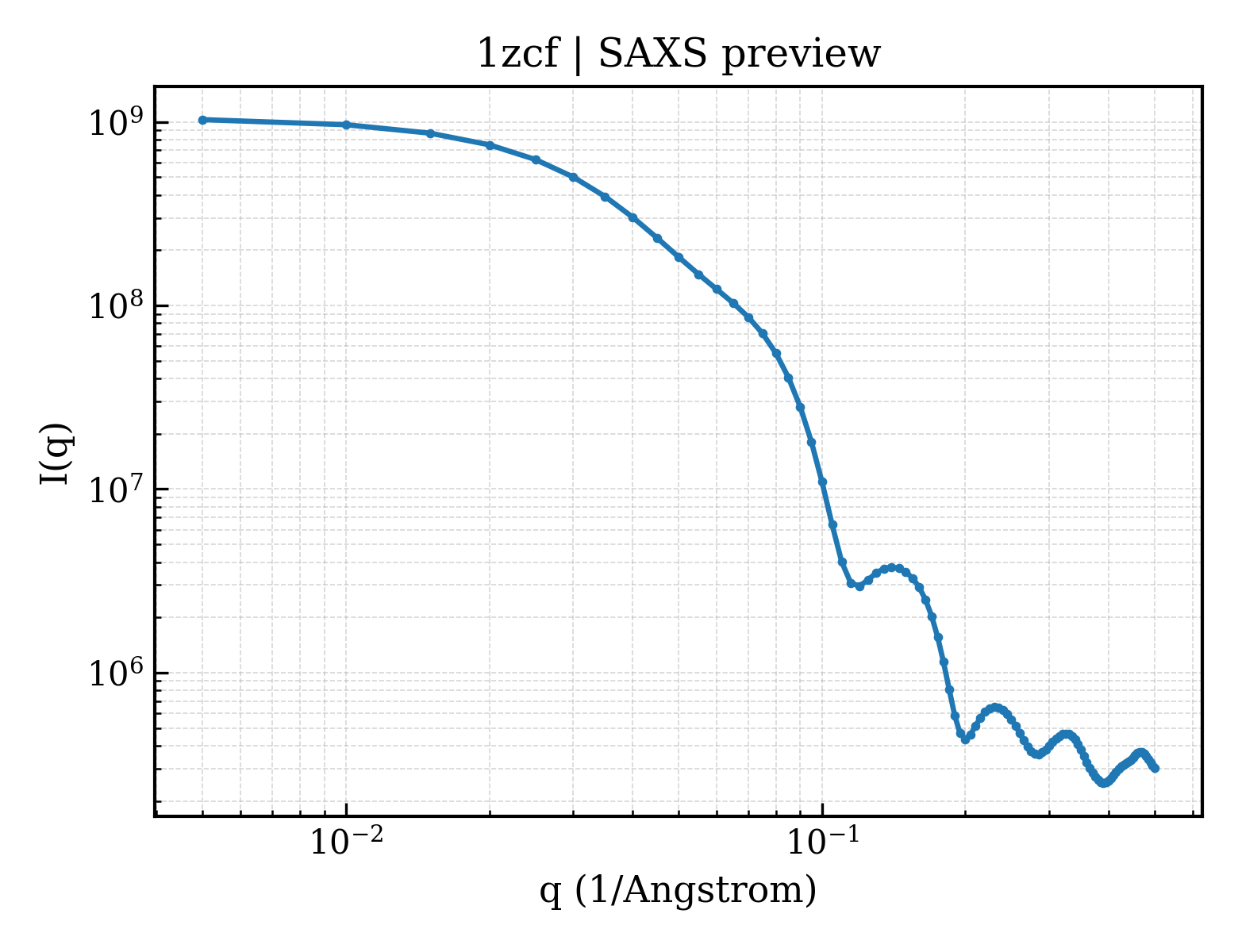

1zcf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

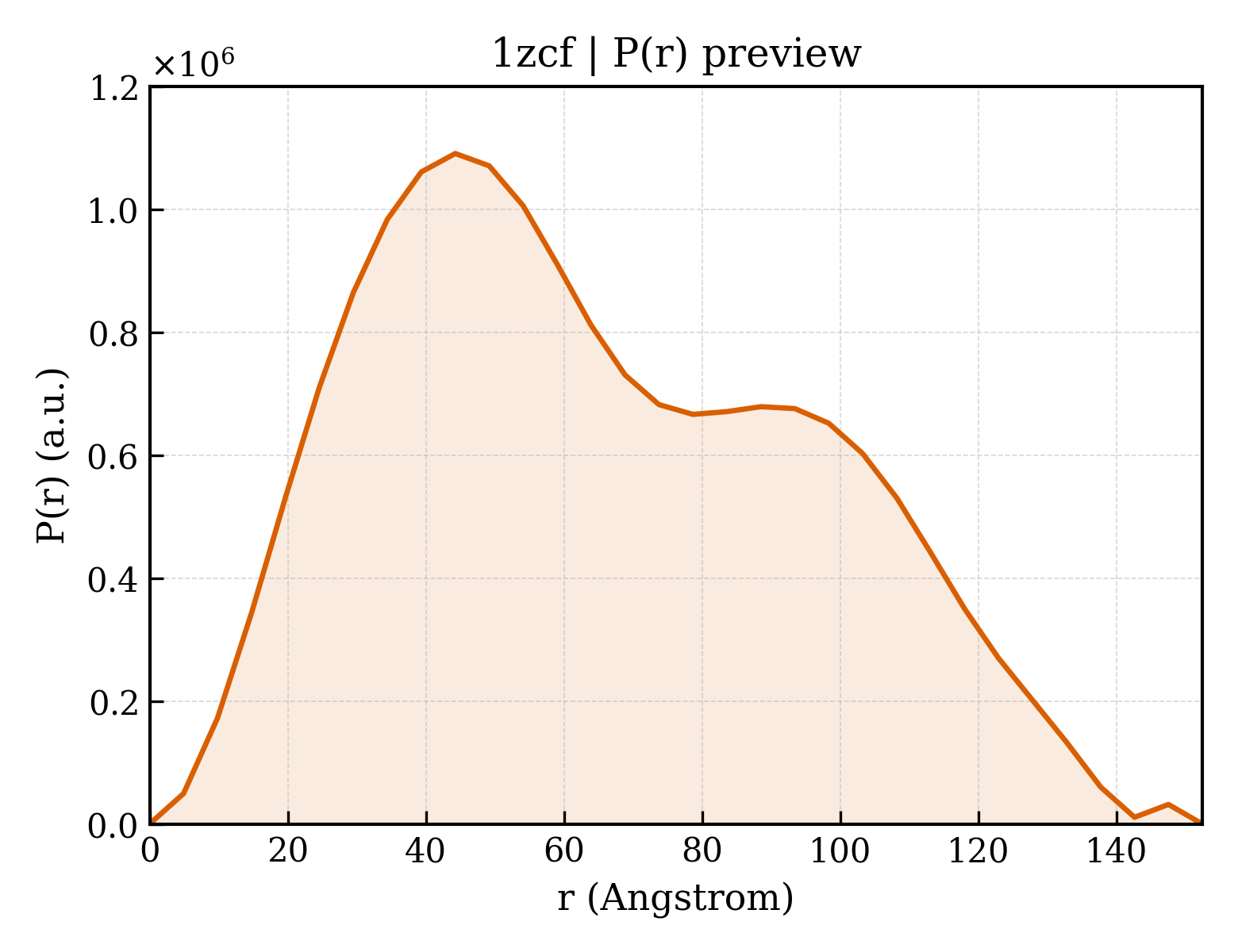

1zcf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.33 Å
Rg (electron density)	30.29 Å
Total Rg	31.23 Å
Atom count	9648
Residues	1300
Excluded volume	172800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zcf__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zcf__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1zcfa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcff_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d1zcfh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

CATH v4.4 (16 domains)

Domain ID domain_id	1zcfA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1zcfH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	1zcfH02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	76.643 Å
Unit-cell length b length_b	141.992 Å
Unit-cell length c length_c	260.391 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2820

Description description	L-asparaginase
Molecular weight formula_weight	34528.3 kDa
EC 编号 ec_number	3.5.1.1
Source method src_method	man
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	19296

L-asparaginase from Erwinia carotovora

1. Protein Identity and Related Structures Protein Identity & Related Structures

Assembly Composition of the Current Entry

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1zcf__assembly_1__model_1

1zcf__assembly_1__model_1 | I(q)

1zcf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (1)

Source organism organism	Pectobacterium atrosepticum
NCBI taxonomy ID ncbi_taxonomy_id	218491
Host organism host_organism	Escherichia coli BL21(DE3)
