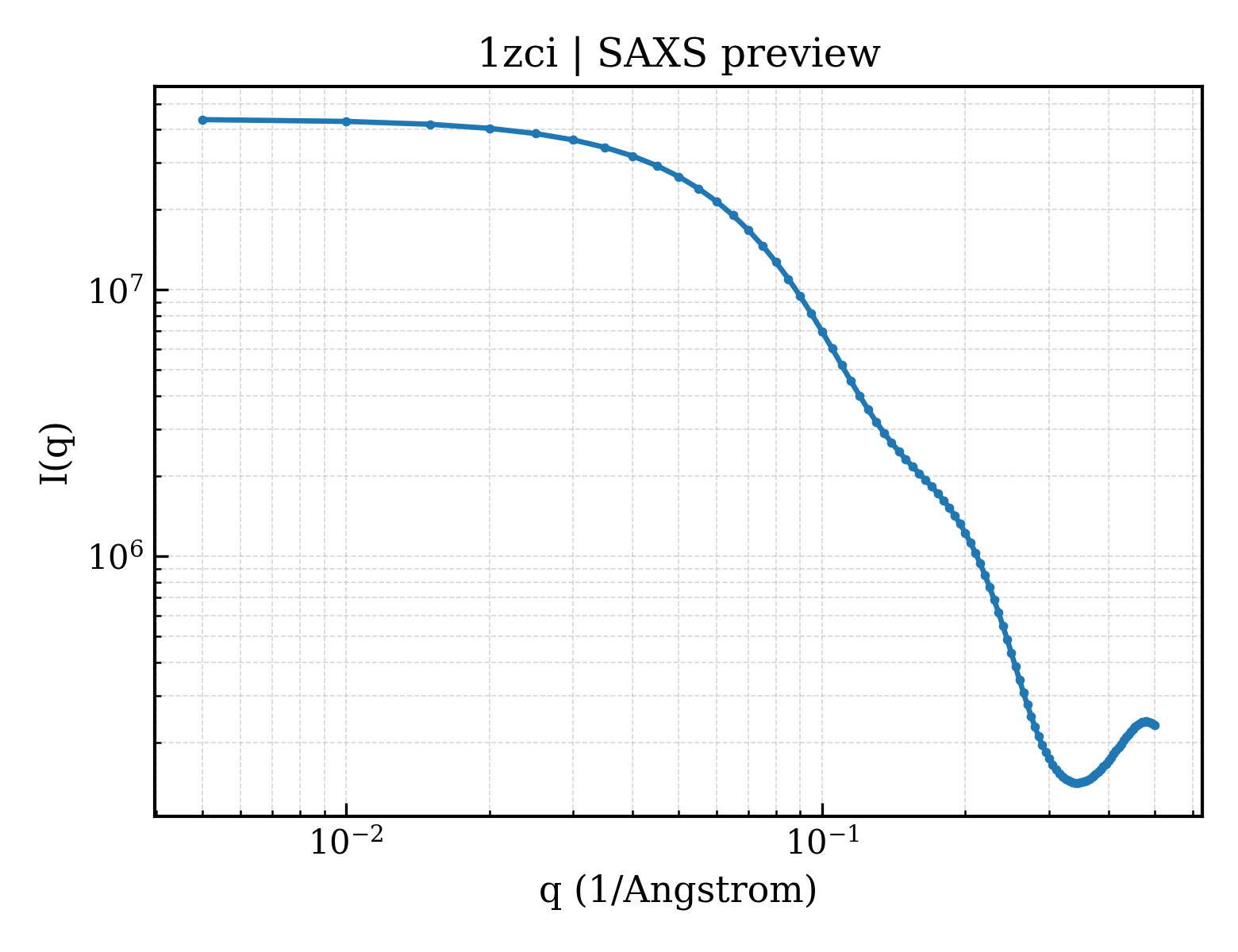

SAXS 散射曲线 SAXS Profile

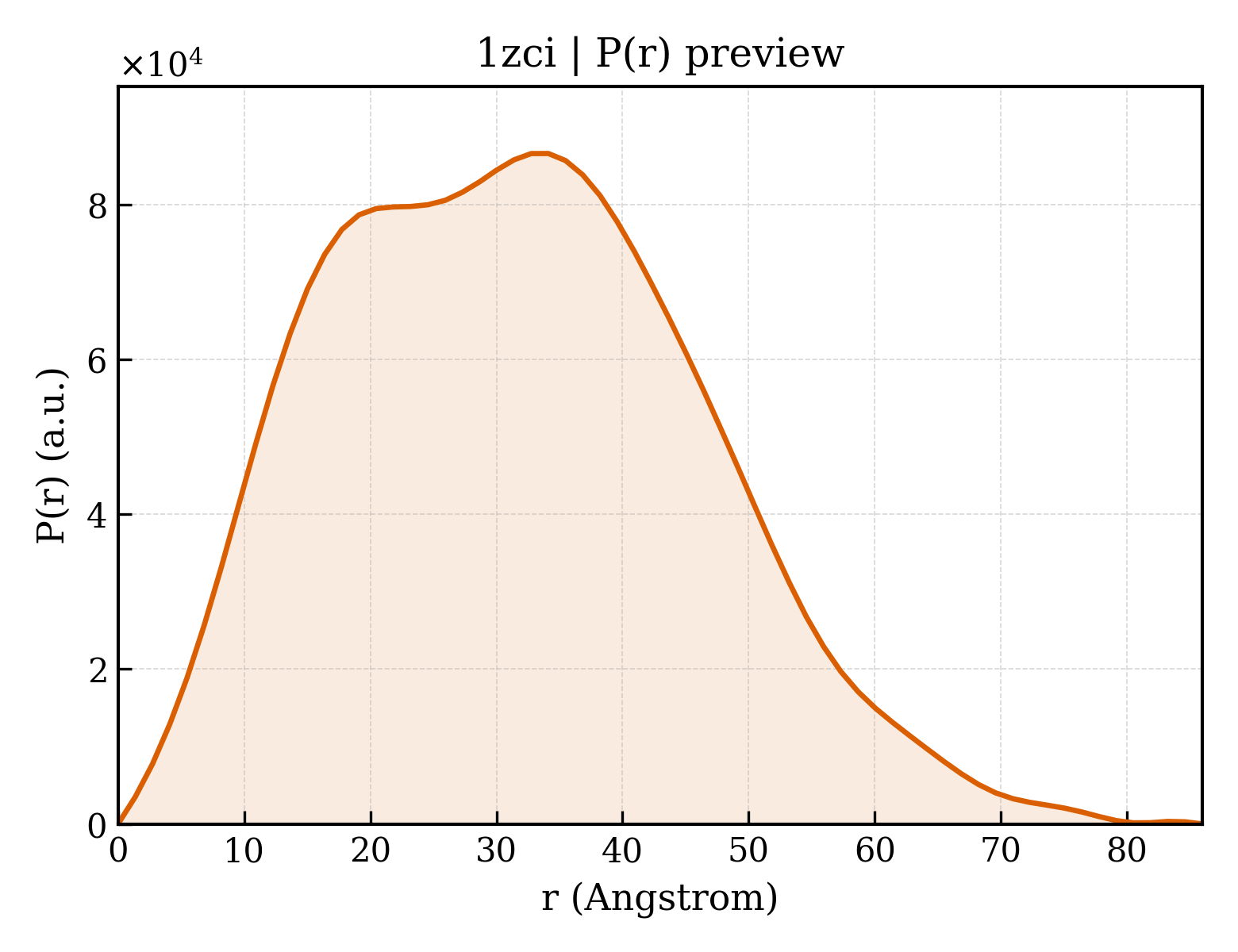

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 1zci |
| 沉积日期 deposition_date | 2005-04-12 |
| 结构标题 title | HIV-1 DIS RNA subtype F- monoclinic form |
| 关键词 keywords | HIV-1, RNA, loop-loop complex, metal ions; RNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 24.46 Å |
| 回转半径 Rg (电子) rg_electron | 24.26 Å |
| 零角强度 I(0) i0 | 43743000.00 |
| 分子量 molecular_weight | 30035.0 kDa |
| 排除体积 excluded_volume | 28100 ų |
| 包络体积 envelope_volume | 46291 ų |
| 水化壳体积 shell_volume | 17455 ų |
| 包络直径 envelope_diameter | 87.9 Å |
| 壳层 Rg shell_rg | 28.52 Å |
| 包络 Rg envelope_rg | 23.47 Å |
| 形状 Rg shape_rg | 24.22 Å |
| 总 Rg total_rg | 24.65 Å |
| 总原子数 total_atoms | 1964 |
| 残基数 n_residues | 88 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 86.0 Å |
| Rg (实空间) rg_real | 24.52 Å |
| Rg 误差 (实空间) rg_real_error | 0.76 Å |
| I(0) (实空间) i0_real | 4.3740e+07 |
| I(0) 误差 (实空间) i0_real_error | 5.9650e+05 |
| Rg (倒空间) rg_reciprocal | 24.51 Å |
| I(0) (倒空间) i0_reciprocal | 43740000.0000 |
| 解质量估计 total_estimate | 0.8576 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 34.1 Å |
| 偏度 Skewness skewness | 0.321 |
| 峰度 Kurtosis kurtosis | -0.356 |
| 角度范围 angular_range | — – 0.3250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 3467000.0000 |
| 实空间数据点数 n_real_points | 64 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.796;
Stabil: 0.999;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.765;
Smooth: 0.995
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 50.437 Å |
| 晶胞边长 b length_b | 31.762 Å |
| 晶胞边长 c length_c | 87.287 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 104.78 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 8 |
对称性 Symmetry
| 空间群 space_group | P 1 2 1 |
| 空间群编号 int_tables_number | 3 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.650 Å |
| 最低分辨率 resolution_low | 19.740 Å |
| R 因子 r_factor | 0.2420 |
| R_work r_work | 0.2420 |
| R_free r_free | 0.2500 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | 5'-R(*CP*(5BU)P*UP*GP*CP*UP*GP*AP*AP*GP*UP*GP*CP*AP*CP*AP*CP*AP*GP*CP*AP*AP*G)-3' |
| 分子量 formula_weight | 7465.4 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 4 |
聚合体 Polymer
| 聚合体类型 type | polyribonucleotide |
| 链编号 strand_id | A,B,C,D |
| 原子数 atom_count | 2271 |
CUUGCUGAAGUGCACACAGCAAG
Entity 2
non-polymer
| 描述 description | POTASSIUM ION |
| 分子量 formula_weight | 39.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 4 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 307 |
Polymorphism of Bulged-out Residues in HIV-1 RNA DIS Kissing Complex and Structure Comparison with Solution Studies.
J.Mol.Biol. (2006)
