SAXSdb — 1ziq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma crystallin E

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–173	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 3350, Magnesium Acetate, D2O, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.72 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ZIQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A5D GAMMAE CRYSTALLIN FROM RAT LENS Deposited 1998-02-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–173（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.30 Å
1A5D GAMMAE CRYSTALLIN FROM RAT LENS Deposited 1998-02-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–173（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.30 Å
1ZGT Structure of hydrogenated rat gamma E crystallin in H2O Deposited 2005-04-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–173（173 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 3350, magnesium Actetate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.254
1ZIE Hydrogenated gammaE crystallin in D2O solvent Deposited 2005-04-27	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–173（173 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG 3350, Magnesium Acetate, D2O, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.44 Å R-free 0.220
1ZIR Deuterated gammaE crystallin in H2O solvent Deposited 2005-04-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–173（173 aa）	Not recorded	ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.7；293 K；PEG 3350, Magnesium acetate, H2O, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.36 Å R-free 0.211

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CRGE_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–173； UniProt 1–173

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ziq
Deposition date deposition_date	2005-04-27
Structure title title	Deuterated gammaE crystallin in D2O solvent
Keywords keywords	4 Greek key motifs, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.21 Å
Radius of gyration Rg (electron density) rg_electron	16.91 Å
Forward intensity I(0) i0	13552700.00
Molecular weight molecular_weight	23251.0 kDa
Excluded volume excluded_volume	27085 Å³
Envelope volume envelope_volume	32151 Å³
Hydration-shell volume shell_volume	16034 Å³
Envelope diameter envelope_diameter	60.0 Å
Shell Rg shell_rg	22.84 Å
Envelope Rg envelope_rg	17.38 Å
Shape Rg shape_rg	16.89 Å
Total Rg total_rg	17.76 Å
Total atoms total_atoms	1623
Residues n_residues	173
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.3 Å
Rg (real space) rg_real	18.19 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	1.3550e+07
I(0) uncertainty (real space) i0_real_error	1.5790e+05
Rg (reciprocal space) rg_reciprocal	18.19 Å
I(0) (reciprocal space) i0_reciprocal	13550000.0000
Solution quality estimate total_estimate	0.8789
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.2 Å
Skewness Skewness skewness	0.356
Kurtosis Kurtosis kurtosis	-0.291
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2514000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Gamma crystallin E
Molecular weight formula_weight	21163.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1737

GKITFYEDRGFQGRHYECSTDHSNLQPYFSRCNSVRVDSGCWMLYEQPNFTGCQYFLRRGDYPDYQQWMGFSDSVRSCRLIPHSSSHRIRIYEREDYRGQMVEITDDCPHLQDRFHFSDFHSFHVMEGYWVLYEMPNYRGRQYLLRPGEYRRYHDWGAMNARVGSLRRIMDFY

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	125

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ziqa1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1ziqa2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

CATH v4.4 (2 domains)

Domain ID domain_id	1ziqA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1ziqA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.390 Å
Unit-cell length b length_b	43.330 Å
Unit-cell length c length_c	101.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.720 Å
Low-resolution limit resolution_low	50.630 Å
R factor r_factor	0.1900
R_work r_work	0.1850
R_free r_free	0.2250

fit	/app/data/saxs_computation/zi/1ziq/1ziq.fit
pddf	/app/data/pr_computation/zi/1ziq/1ziq.pr.out
profile	/app/data/saxs_computation/zi/1ziq/1ziq.dat

Deuterated gammaE crystallin in D2O solvent

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma crystallin E

State in the Current Structure

Other States of the Same Protein in the Database

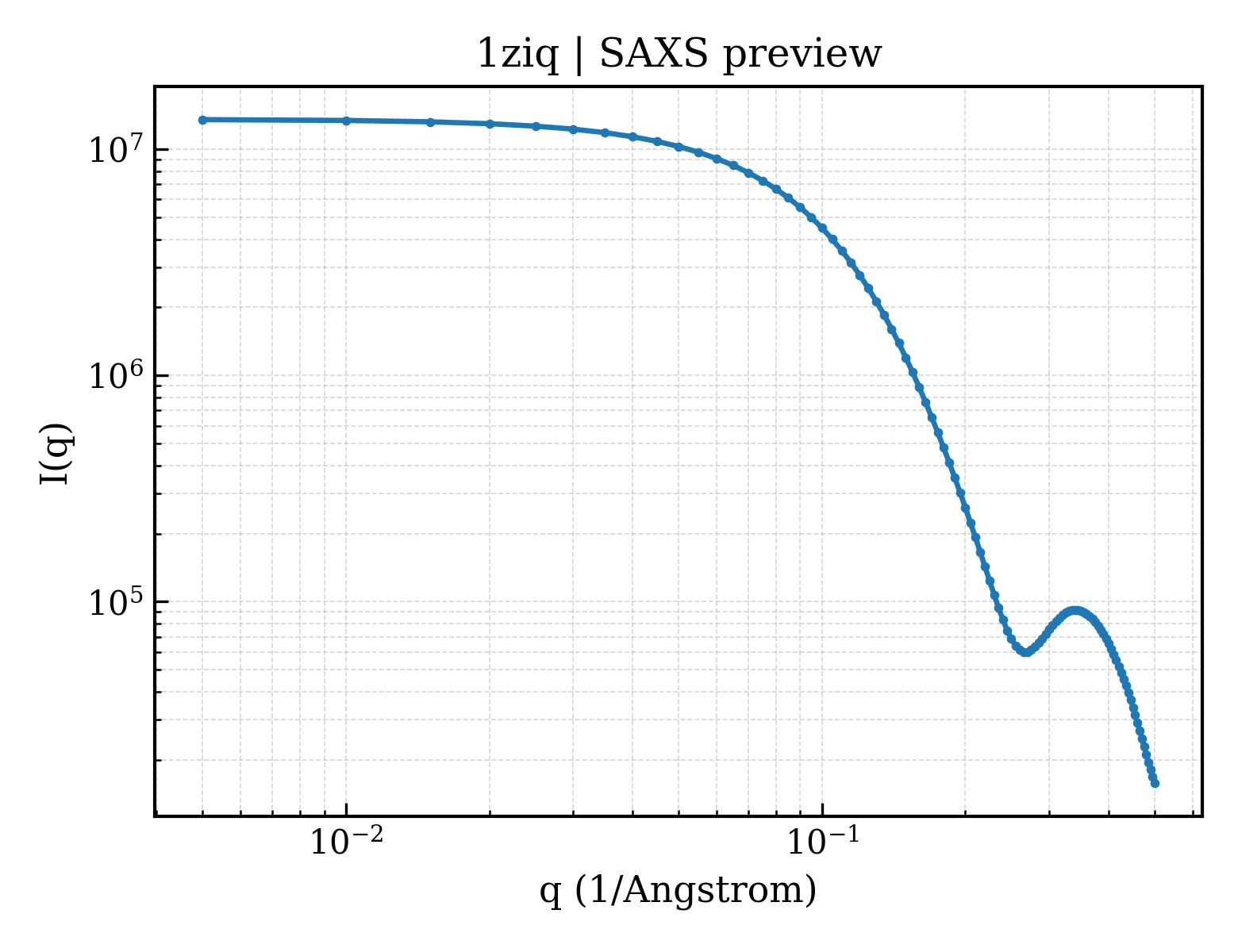

SAXS scattering curve SAXS Profile
