1zp0

Crystal Structure of Mitochondrial Respiratory Complex II bound with 3-nitropropionate and 2-thenoyltrifluoroacetone

Method: X-RAY DIFFRACTION D_max: 124.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

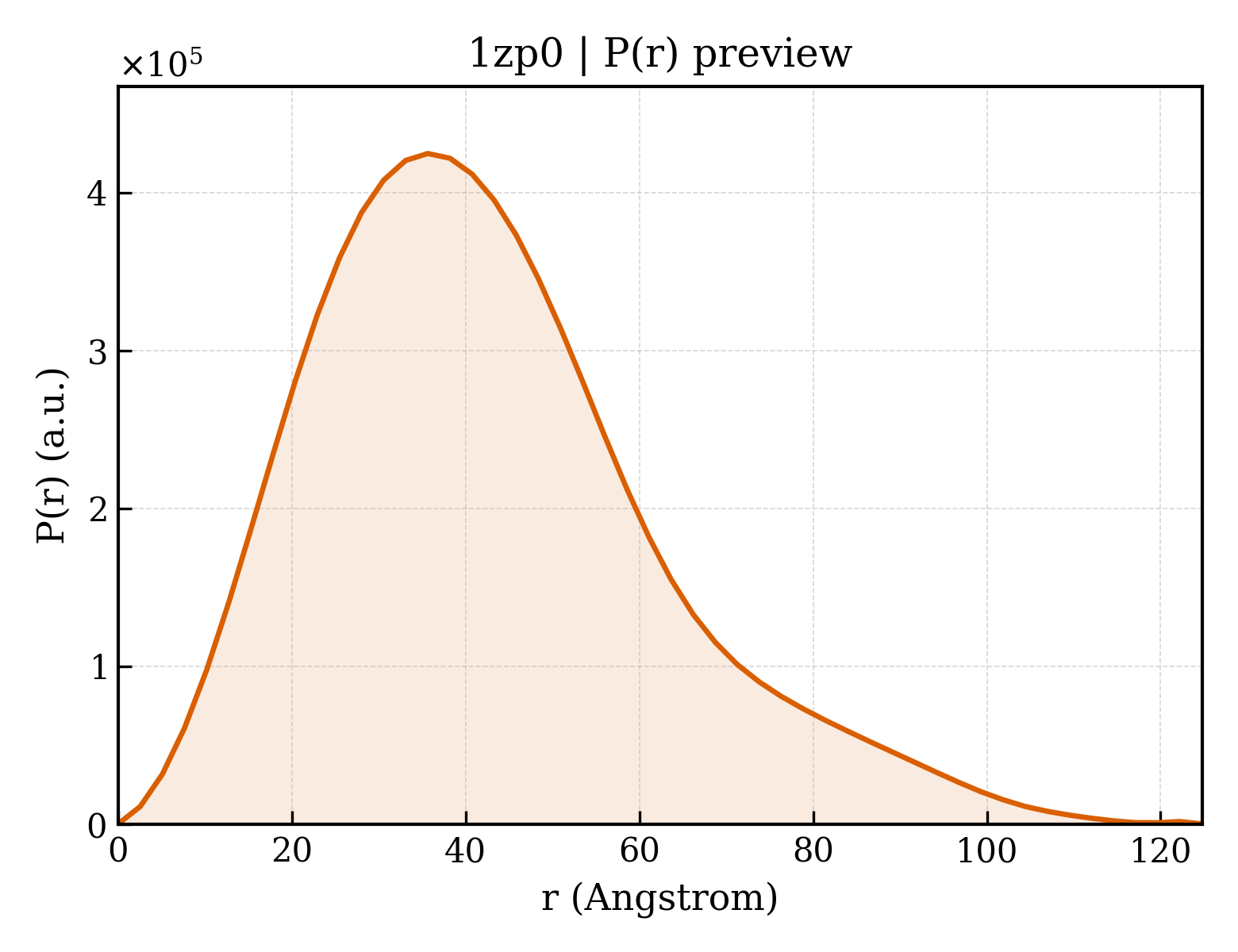

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1zp0
沉积日期 deposition_date	2005-05-16
结构标题 title	Crystal Structure of Mitochondrial Respiratory Complex II bound with 3-nitropropionate and 2-thenoyltrifluoroacetone
关键词 keywords	succinate, ubiquinone oxidoreductase, respiratory Complex II, inhibitors, membrane protein structure, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.65 Å
回转半径 Rg (电子) rg_electron	33.13 Å
零角强度 I(0) i0	245769000.00
分子量 molecular_weight	123670.0 kDa
排除体积 excluded_volume	153640 Å³
包络体积 envelope_volume	185150 Å³
水化壳体积 shell_volume	46989 Å³
包络直径 envelope_diameter	131.8 Å
壳层 Rg shell_rg	39.19 Å
包络 Rg envelope_rg	34.15 Å
形状 Rg shape_rg	33.20 Å
总 Rg total_rg	33.33 Å
总原子数 total_atoms	8631
残基数 n_residues	1092
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.8 Å
Rg (实空间) rg_real	32.96 Å
Rg 误差 (实空间) rg_real_error	1.21 Å
I(0) (实空间) i0_real	2.4580e+08
I(0) 误差 (实空间) i0_real_error	4.2490e+06
Rg (倒空间) rg_reciprocal	32.83 Å
I(0) (倒空间) i0_reciprocal	245700000.0000
解质量估计 total_estimate	0.7835
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.6 Å
偏度 Skewness skewness	0.706
峰度 Kurtosis kurtosis	0.386
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	84710000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.456; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.835; Smooth: 0.979

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (12)

Entity 1 polymer

描述 description	FAD-binding protein
分子量 formula_weight	68313.2 kDa
EC 编号 ec_number	1.3.5.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8634

SSAKVSDAISTQYPVVDHEFDAVVVGAGGAGLRAAFGLSEAGFNTACVTKLFPTRSHTVAAQGGINAALGNMEEDNWRWHFYDTVKGSDWLGDQDAIHYMTEQAPASVVELENYGMPFSRTEDGKIYQRAFGGQSLKFGKGGQAHRCCCVADRTGHSLLHTLYGRSLRYDTSYFVEYFALDLLMENGECRGVIALCIEDGSIHRIRARNTVVATGGYGRTYFSCTSAHTSTGDGTAMVTRAGLPCQDLEFVQFHPTGIYGAGCLITEGCRGEGGILINSQGERFMERYAPVAKDLASRDVVSRSMTLEIREGRGCGPEKDHVYLQLHHLPPEQLAVRLPGISETAMIFAGVDVTKEPIPVLPTVHYNMGGIPTNYKGQVLRHVNGQDQVVPGLYACGEAACASVHGANRLGANSLLDLVVFGRACALSIAESCRPGDKVPSIKPNAGEESVMNLDKLRFANGTIRTSELRLSMQKSMQSHAAVFRVGSVLQEGCEKILRLYGDLQHLKTFDRGMVWNTDLVETLELQNLMLCALQTIYGAEARKESRGAHAREDFKERVDEYDYSKPIQGQQKKPFQEHWRKHTLSYVDVKTGKVSLEYRPVIDKTLNEADCATVPPAIRSY

Entity 2 polymer

描述 description	Iron-sulfur protein
分子量 formula_weight	28792.3 kDa
EC 编号 ec_number	1.3.5.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

AQTAAATAPRIKKFAIYRWDPDKTGDKPHMQTYEIDLNNCGPMVLDALIKIKNEIDSTLTFRRSCREGICGSCAMNINGGNTLACTRRIDTNLDKVSKIYPLPHMYVIKDLVPDLSNFYAQYKSIEPYLKKKDESQEGKQQYLQSIEEREKLDGLYECILCACCSTSCPSYWWNGDKYLGPAVLMQAYRWMIDSRDDFTEERLAKLQDPFSLYRCHTIMNCTGTCPKGLNPGKAIAEIKKMMATYKEKKASV

Entity 3 polymer

描述 description	Large cytochrome binding protein
分子量 formula_weight	15304.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

LGTTAKEEMERFWNKNLGSNRPLSPHITIYRWSLPMAMSICHRGTGIALSAGVSLFGLSALLLPGNFESHLELVKSLCLGPTLIYTAKFGIVFPLMYHTWNGIRHLIWDLGKGLTIPQLTQSGVVVLILTVLSSVGLAAM

Entity 4 polymer

描述 description	Small cytochrome binding protein
分子量 formula_weight	10936.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

ASSKAASLHWTGERVVSVLLLGLLPAAYLNPCSAMDYSLAAALTLHGHWGIGQVVTDYVRGDALQKAAKAGLLALSAFTFAGLCYFNYHDVGICKAVAMLWKL

Entity 5 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	3-NITROPROPANOIC ACID
分子量 formula_weight	119.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	FE3-S4 CLUSTER
分子量 formula_weight	295.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 11 non-polymer

描述 description	4,4,4-TRIFLUORO-1-THIEN-2-YLBUTANE-1,3-DIONE
分子量 formula_weight	222.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 12 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

▼

6. 折叠分类 (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

结构域编号 domain_id	1zp0A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1zp0A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	700 — Flavocytochrome C3; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain

结构域编号 domain_id	1zp0A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	100 — Fumarate reductase/succinate dehydrogenase flavoprotein-like, C-terminal domain

结构域编号 domain_id	1zp0A04
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	80 — Rhinovirus 14, subunit 4
同源超家族 H-superfamily homologous superfamily	40 — succinate dehydrogenase protein domain

结构域编号 domain_id	1zp0B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	20 — Ubiquitin-like (UB roll)
同源超家族 H-superfamily homologous superfamily	30 — Beta-grasp domain

结构域编号 domain_id	1zp0B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1060 — Fumarate Reductase Iron-sulfur Protein; Chain B, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Alpha-helical ferredoxin

结构域编号 domain_id	1zp0C01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	540 — Single helix bin

结构域编号 domain_id	1zp0C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1300 — 3 helical TM bundles of succinate and fumarate reductases
同源超家族 H-superfamily homologous superfamily	10 — Fumarate reductase/succinate dehydrogenase, transmembrane subunit

结构域编号 domain_id	1zp0D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1300 — 3 helical TM bundles of succinate and fumarate reductases
同源超家族 H-superfamily homologous superfamily	10 — Fumarate reductase/succinate dehydrogenase, transmembrane subunit

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	70.330 Å
晶胞边长 b length_b	83.531 Å
晶胞边长 c length_c	294.180 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.3020
R_work r_work	0.2680
R_free r_free	0.2930

fit	/app/data/saxs_computation/zp/1zp0/1zp0.fit
pddf	/app/data/pr_computation/zp/1zp0/1zp0.pr.out
profile	/app/data/saxs_computation/zp/1zp0/1zp0.dat
