SAXSdb — 23sh

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	23sh
沉积日期 deposition_date	2026-02-15
结构标题 title	The composite Cryo-EM structure of the tail region of bacteriophage RAN69
关键词 keywords	bacteriophage, RAN69, tail, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	87.42 Å
回转半径 Rg (电子) rg_electron	88.32 Å
零角强度 I(0) i0	3813420000.00
分子量 molecular_weight	517890.0 kDa
排除体积 excluded_volume	645200 Å³
包络体积 envelope_volume	1108800 Å³
水化壳体积 shell_volume	113120 Å³
包络直径 envelope_diameter	309.5 Å
壳层 Rg shell_rg	71.85 Å
包络 Rg envelope_rg	86.93 Å
形状 Rg shape_rg	88.33 Å
总 Rg total_rg	88.10 Å
总原子数 total_atoms	36509
残基数 n_residues	4799
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	234.1 Å
Rg (实空间) rg_real	83.55 Å
Rg 误差 (实空间) rg_real_error	0.98 Å
I(0) (实空间) i0_real	3.6710e+09
I(0) 误差 (实空间) i0_real_error	7.0610e+07
Rg (倒空间) rg_reciprocal	84.43 Å
I(0) (倒空间) i0_reciprocal	3779000000.0000
解质量估计 total_estimate	0.8962
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	117.1 Å
偏度 Skewness skewness	0.189
峰度 Kurtosis kurtosis	-0.766
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.8267
最高正则化参数 α highest_alpha	63270000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.899; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	tail spike gp1
分子量 formula_weight	60926.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,J,O
原子数 atom_count	36509

MALVDVVRAGGYSIEYPQFSSMAKLKAFPHSEDGQLVRLLSWHEGVGLGGGLFKVSTSSTATGNDGTVVVASNGVRLLRVVNGPIWADMFGALPNSDIDSKPAVAAAYAYAASVNTDLYIGVAAYKFKGSTPINVDPSRAGIIGYQGKVRIDCSEFTGSVVFSINSSYSYTPAAYYNNLSPALQGLYVFGAKTSGVDGLLVGRETVGSDESYNGQTEVRECTFDKFDRNIRMGHNSWRFVFYKVNSLNALNPNGILYVPAGLDDSGEILSFYHCQFFDGAGSNIRLSCSSYTMVFNTCSFLNITFFVDSASSATVTCNGCNFENPGSASTRRYVDISAGHTNVFNIIGGSIVTNSNPGQTQALLYVSTDNLLNLVGVTVPYGGHYQQEQELGYHAFIGGAGTVTTSGVMLQLRNGAGTCPLHPSLSTFSNWDFGYGNLNAWTVDKGTGTSSVVEYLANAGPKGTEGAMRVAPVSVGTNVSQVQAVTNPGMFSMSCMVNIATTPGNAGQVSIGFLDAAGNRLPGGVSANLGTTTGWKVIGKNTLRGKVPIGAKQVRVNIQTVAGADVKYAYLLCNVVK

Entity 2 polymer

描述 description	nozzle gp13
分子量 formula_weight	86632.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MAQSLEGTIQSLLQGVSQQVPRERQPGQLGAQLNMLSDPVSGIRRRPPGEIVWESTIDNPGLDSLFTEYVERGTDGRHMLINTSNGNWWLLAKNGKTVVNSGNDPYFIATAGQTSLQTASIAGLTYILNTEMAPVTAVDNTGRIDPSTTGFFYVKAAAFQKRWEVTVTWSGGSVTGYYNVPDASSGTESAEWASASFVINALINGDPNGYGIGAAITAAGGTVVGFGAYMYIAGLPNLVVSTSSGDTYAVASGQSRVPQEQDLPAQLPAEADGAMCRVGTASSETAWYQFNYSERTWYEVGAYGSITKITNMPRELAADDNIIARDWEGRLAGNDDNNSNPGFIENGYITGIAAFQGRLVLLSGSSVDMSASGLYQRFYRSTVTSLLDTDRISISSASAQDSVYRTAVQFNRDLVLFANSMQAVVPGSAVLTPTNASISITSTYDCDSRVTPVMAGQTVIYPNKRNDSYAGILELIPSPYTAAQYTTQDATVHLPRYIPGRVLQMQNSSVTNMAFSRMSGERNSLLVYEFMWGGSDGAKMQAAWHKWSFPYPILSVQALEDEVFLYMQGPSPSNKLLIVSMDPREGYQLGSEYREAYSDLQKQVQVQDGVFTVPAVLRPVGWADNYKEELILTYLPSNPMGPTEVGIKEIAGENTLRVVRGVPDGTYVIGRRYRSTFTLTTPILRDQNDKLVGSGHVRLLRLDVAVRNSGHFDVQVLDTPRDVNWGGELTGILMNSKELTLGQALRMDLATITVPCRTNADTTEVTLFTEGSMELNVLDISYILRYNQRRRRI

Entity 3 polymer

描述 description	tail fiber gp9
分子量 formula_weight	32818.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r,i,n

MAYSWQEQIKPAGTQDIQCDIEYLDKSYIHVYLDGVETTGYTWTSSTNIRLNTALTVNTTVLLIRKTEREYLYIEFASGSPFIEVNVDSQNTQFLHLAQELVEGRAIPGFYGTISMNGYRITDLANPTNSQDAATKAYVDAADALLGQRIDAEAATRKAADDALSMRTSALENTFISGVETVSYPWSTVLAEATDEVTPGLAFTKAVVEINGVGQIRGYSFEIIDNTILFAETLPAGTVVAARLGADVTAGDGFATQASVDYLADSLGDLAYLDTAEAVPDATGAGDVVAQLNALLASLRTSGVLAS

Entity 4 polymer

描述 description	adaptor gp14
分子量 formula_weight	21286.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y,d

MRELDAINLTLEALGESRVMDINTSNPSAGLARSALARNRRGLLSTGFWFNVVEREVAPTADGFIKVPWNQLAVYDAGSDSKYGVRDGNLYDLMEQDQYFDSSVKLKIVLDLDFEDLPEHAAMWVANYTTAQVYLNDLGGDSNYANYAQEAERYKSMVLREHLRNQKFSTSKTRFARRIRRARFMV

Entity 5 polymer

描述 description	portal gp19
分子量 formula_weight	58217.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w,0

MEQKATLAELFKKDQDAGVLDASEKFAQWTLSTIFTRDDSLDGRRRPLERDYQSTGAQLVNTAATKIVGALFPQGTSFFRFSKSSDLDEFISSLGSAATAESKLAEVENTASQKVFEKDGYAAKLQAVKLLLVTGNALEYIDERTGKSIVYSVRNFTVRRDGSGNVLRLIIRERASVQDLPEDFRGTFYRDKDPYGDVDIYTAACRKVKRTEDGAEVVSYEVYQEADGHRIGDSSTYPELELPYNVLVWNLVSGEHYGRGLVEDYAGDFARLSVLSEALTNYEVESARLIPLIDASSGLDVDEFSTSETGEAVQVGGGGSNGNSKSPVTAYEGGSAQKIQWIASNIQMLEQKLSRAFMYTGNSRQGERVTAYEIRQNAKEAEAAMGGGFSILSDTWLRKLAYLYTALVYPRFKLYLSEGVVNINVTVGTSALAKAAAADKLLEAAQSMQLAIPVLEQITPRFNKDACVDWYFDAYGIVSEPFMYTEEQLQQKQKVQDASADVSAGAAQDQLQGLTAADPTVAGKQLGLLPS

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	53029

fit	/app/data/saxs_computation/3s/23sh/23sh.fit
pddf	/app/data/pr_computation/3s/23sh/23sh.pr.out
profile	/app/data/saxs_computation/3s/23sh/23sh.dat

The composite Cryo-EM structure of the tail region of bacteriophage RAN69

SAXS 散射曲线 SAXS Profile

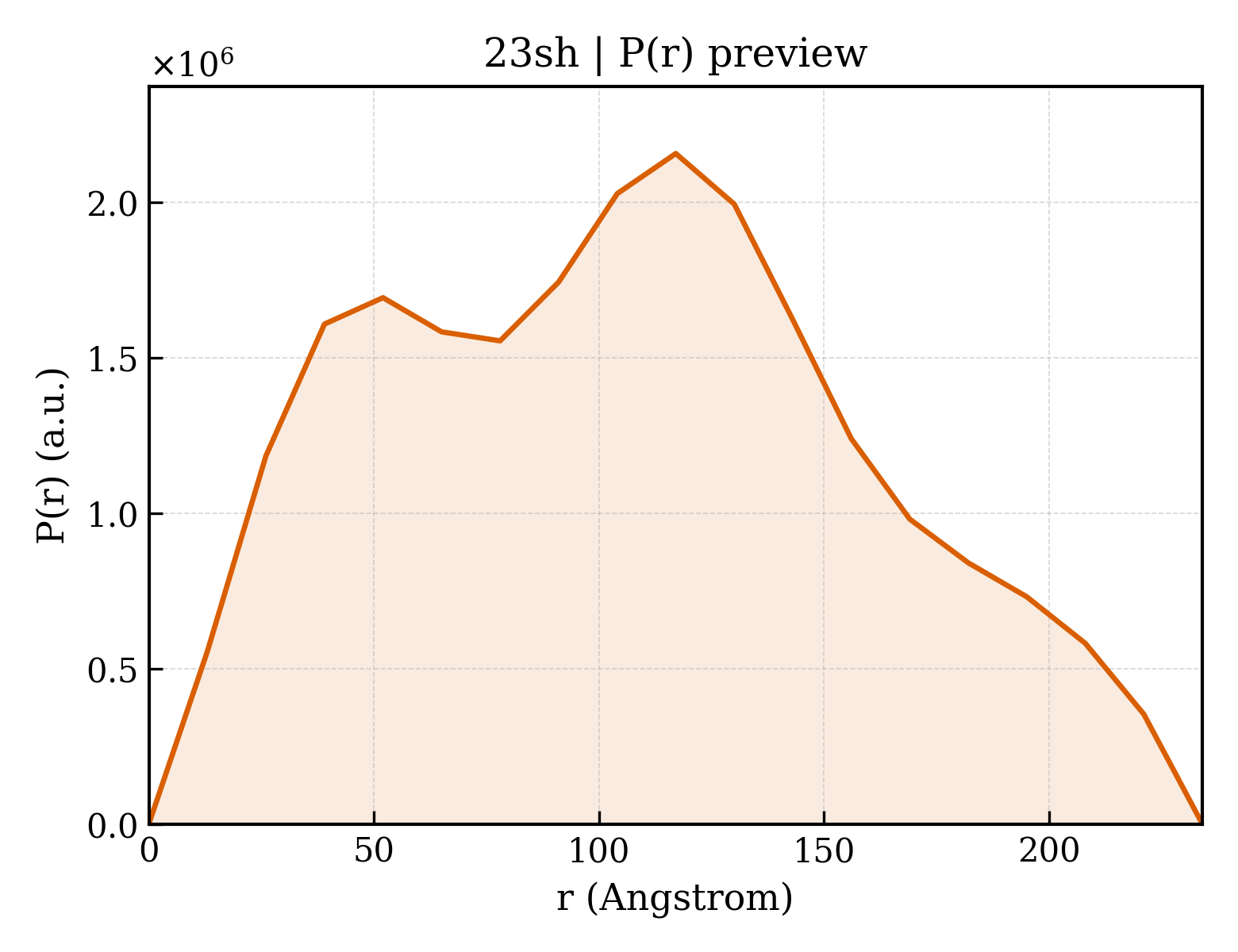

P(r) 距离分布 P(r) Distribution
