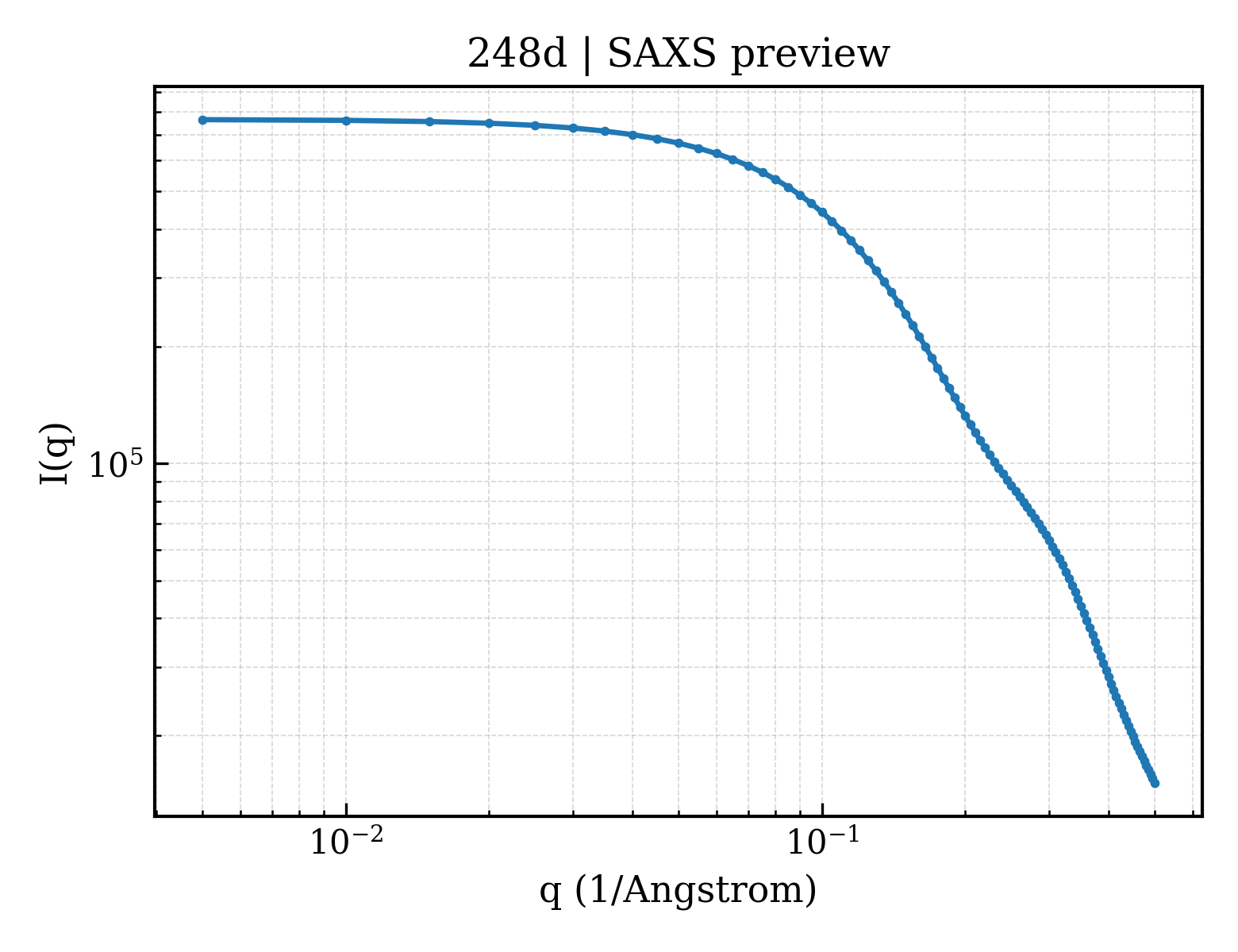

SAXS 散射曲线 SAXS Profile

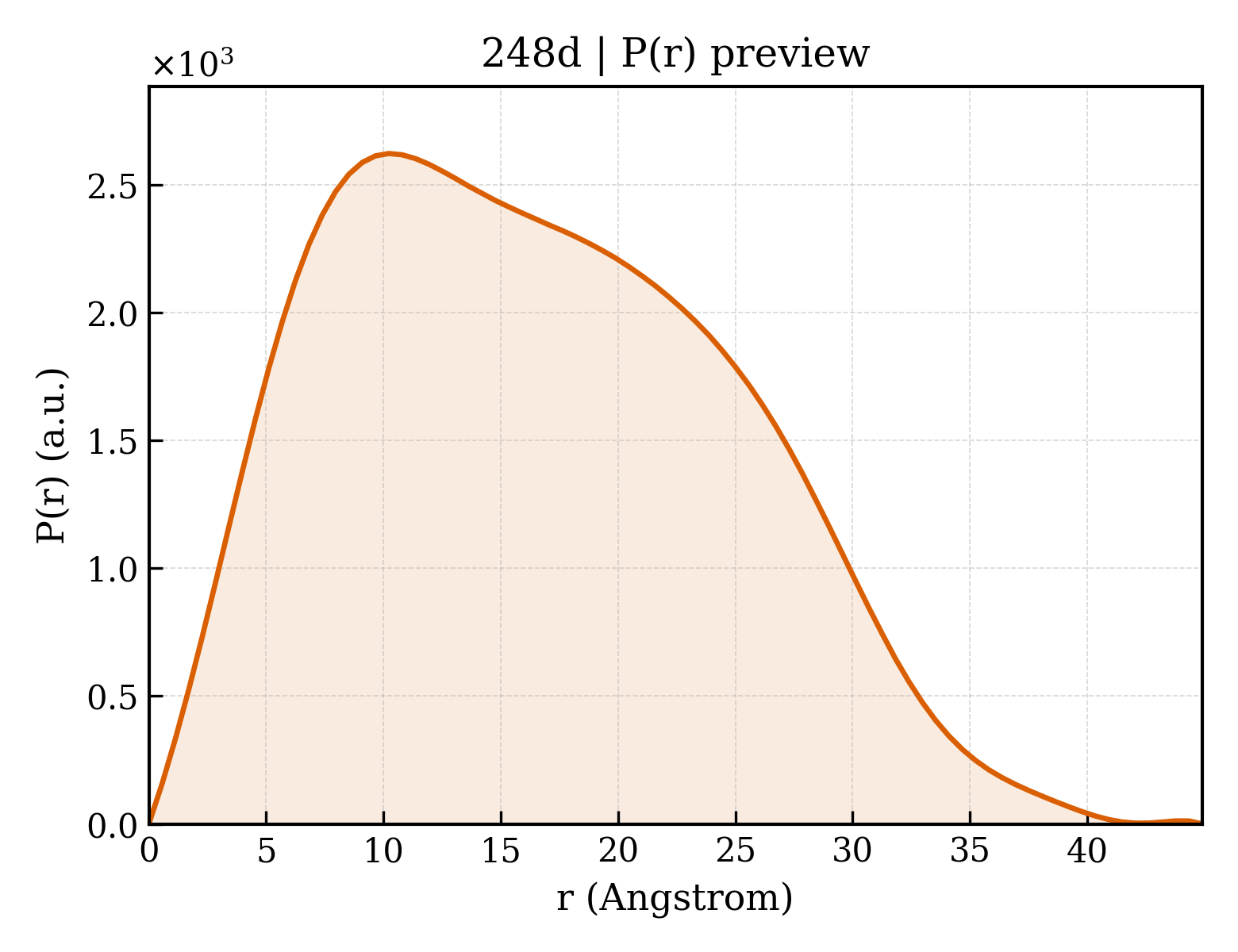

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 248d |
| 沉积日期 deposition_date | 1996-02-02 |
| 结构标题 title | CRYSTAL STRUCTURES OF AN A-FORM DUPLEX WITH SINGLE-ADENOSINE BULGES AND A CONFORMATIONAL BASIS FOR SITE SPECIFIC RNA SELF-CLEAVAGE |
| 关键词 keywords | A-DNA/RNA, DOUBLE HELIX, BULGES, DNA-RNA complex; DNA/RNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 12.92 Å |
| 回转半径 Rg (电子) rg_electron | 12.77 Å |
| 零角强度 I(0) i0 | 765484.00 |
| 分子量 molecular_weight | 3851.0 kDa |
| 排除体积 excluded_volume | 3911 ų |
| 包络体积 envelope_volume | 6043 ų |
| 水化壳体积 shell_volume | 4753 ų |
| 包络直径 envelope_diameter | 42.8 Å |
| 壳层 Rg shell_rg | 16.20 Å |
| 包络 Rg envelope_rg | 12.79 Å |
| 形状 Rg shape_rg | 12.72 Å |
| 总 Rg total_rg | 13.55 Å |
| 总原子数 total_atoms | 257 |
| 残基数 n_residues | 11 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 44.9 Å |
| Rg (实空间) rg_real | 13.02 Å |
| Rg 误差 (实空间) rg_real_error | 0.44 Å |
| I(0) (实空间) i0_real | 7.6550e+05 |
| I(0) 误差 (实空间) i0_real_error | 8.7750e+03 |
| Rg (倒空间) rg_reciprocal | 13.01 Å |
| I(0) (倒空间) i0_reciprocal | 765500.0000 |
| 解质量估计 total_estimate | 0.6942 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 10.2 Å |
| 偏度 Skewness skewness | 0.307 |
| 峰度 Kurtosis kurtosis | -0.667 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 27740.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.829;
Stabil: 1.000;
Sysdev: 0.368;
Positv: 1.000;
Valcen: 0.451;
Smooth: 0.978
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 25.890 Å |
| 晶胞边长 b length_b | 33.970 Å |
| 晶胞边长 c length_c | 57.560 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 8 |
对称性 Symmetry
| 空间群 space_group | C 2 2 21 |
| 空间群编号 int_tables_number | 20 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 1.830 Å |
| 最低分辨率 resolution_low | 10.000 Å |
| R 因子 r_factor | 0.1590 |
| R_work r_work | 0.1590 |
| R_free r_free | 0.2360 |
Entity 1
polymer
| 描述 description | ;DNA/RNA (5'-R(*GP*CP*GP*)-D(*AP*TP*AP*TP*AP*)-R(*CP*GP*C)-3'), ORTHORHOMBIC
; |
| 分子量 formula_weight | 3454.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide/polyribonucleotide hybrid |
| 链编号 strand_id | A |
| 原子数 atom_count | 295 |
GCGATATACGC
Entity 2
non-polymer
| 描述 description | SPERMINE |
| 分子量 formula_weight | 202.3 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 38 |
Crystal structures of an A-form duplex with single-adenosine bulges and a conformational basis for site-specific RNA self-cleavage.
Chem.Biol. (1996)
Files (7)
- pr_distribution /app/data/pr_computation/48/248d/pr_distribution.json
- pr_output /app/data/pr_computation/48/248d/248d.pr.out
- pr_plot /app/data/visualization/pr_computation/48/248d/248d_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/48/248d/248d.dat
- saxs_fit /app/data/saxs_computation/48/248d/248d.fit
- saxs_log /app/data/saxs_computation/48/248d/248d.log
- saxs_plot /app/data/visualization/saxs_computation/48/248d/248d_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/48/248d/248d.fit |
| pddf |
/app/data/pr_computation/48/248d/248d.pr.out |
| profile |
/app/data/saxs_computation/48/248d/248d.dat |
