279d
;CRYSTAL STRUCTURE OF THE SELF-COMPLEMENTARY 5'-PURINE START DECAMER D(GCGCGCGCGC) IN THE Z-DNA CONFORMATION-PART I ;

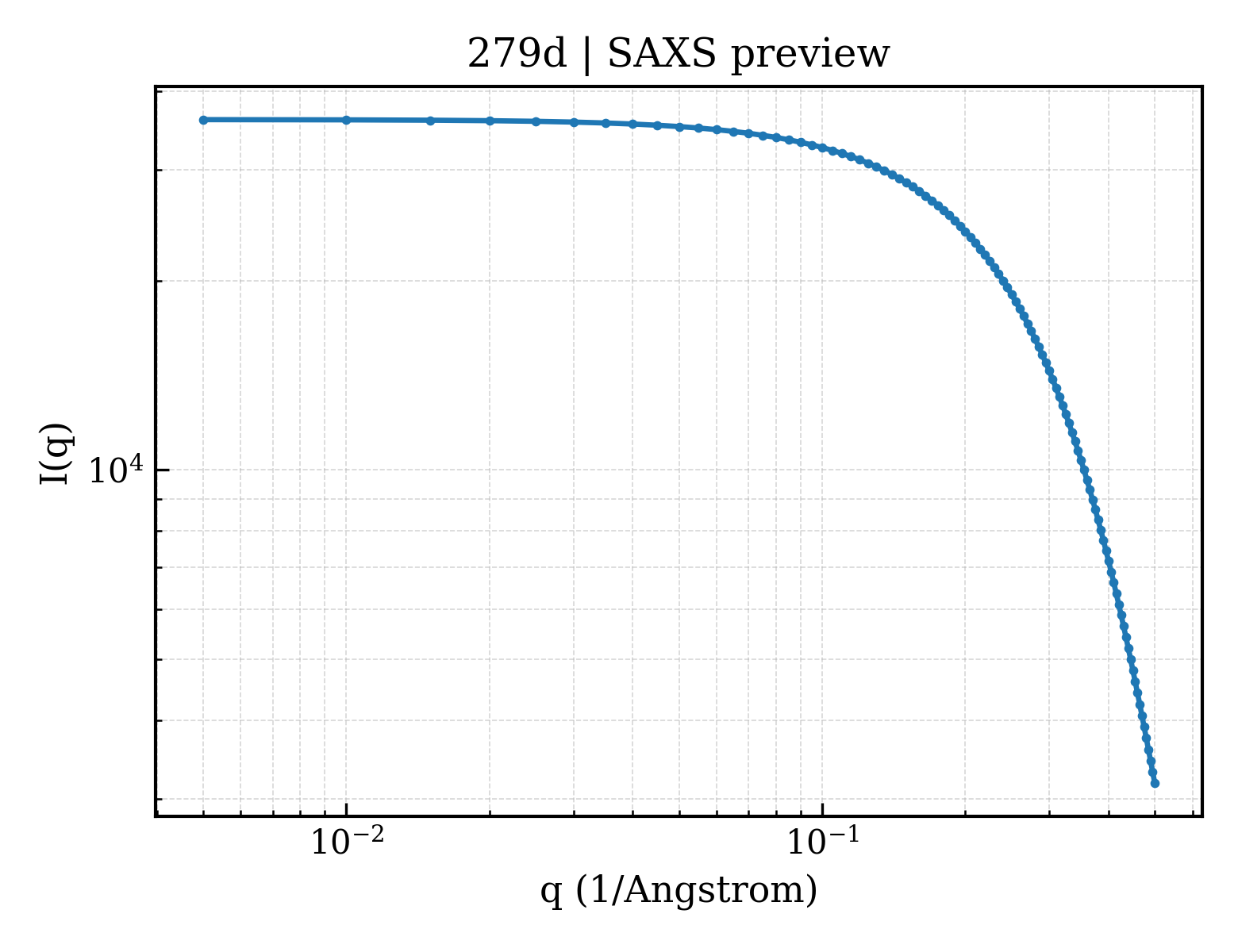

SAXS 散射曲线 SAXS Profile

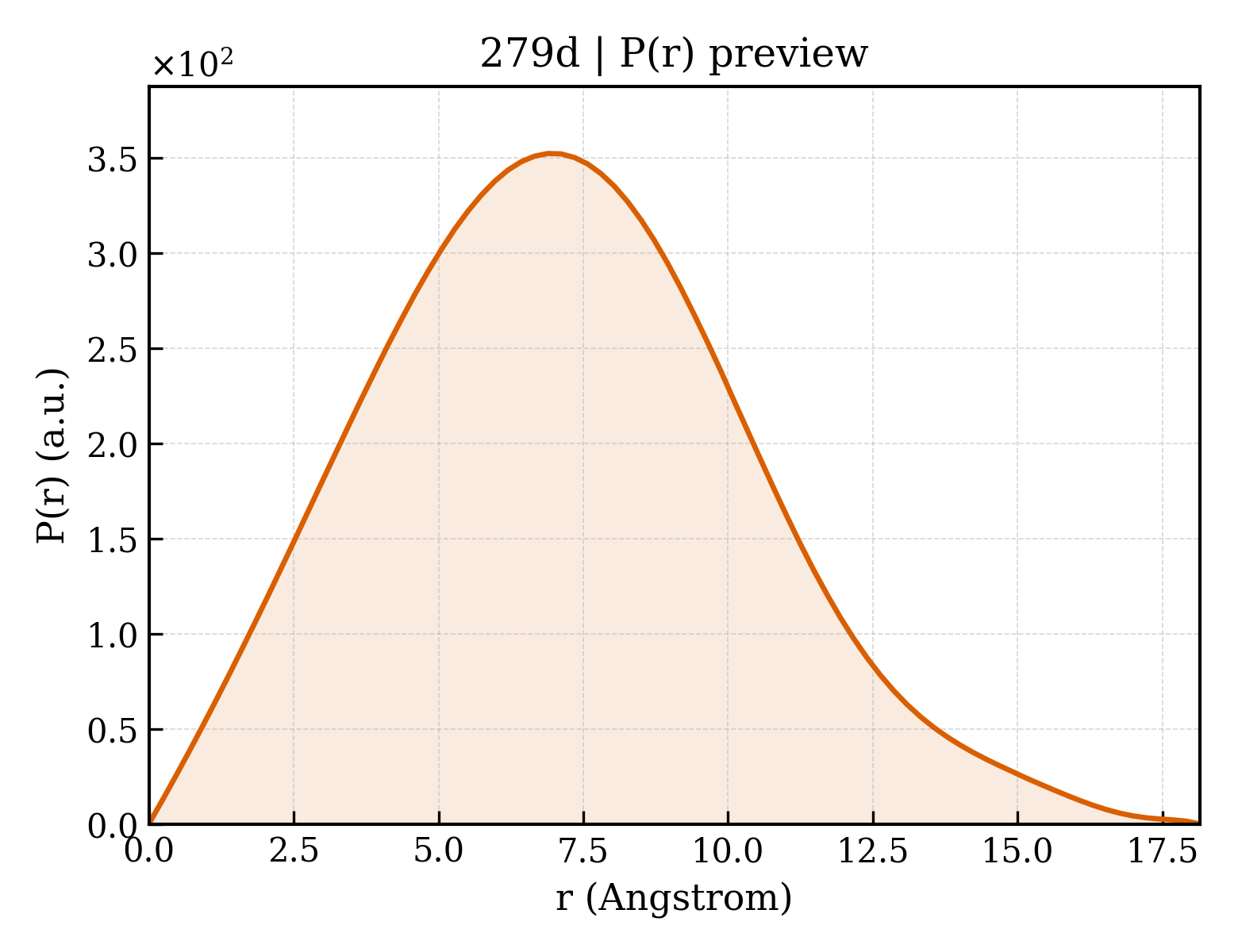

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 279d |
| 沉积日期 deposition_date | 1996-05-21 |
| 结构标题 title | ;CRYSTAL STRUCTURE OF THE SELF-COMPLEMENTARY 5'-PURINE START DECAMER D(GCGCGCGCGC) IN THE Z-DNA CONFORMATION-PART I ; |
| 关键词 keywords | Z-DNA, DOUBLE HELIX, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 5.54 Å |
| 回转半径 Rg (电子) rg_electron | 4.05 Å |
| 零角强度 I(0) i0 | 36048.00 |
| 分子量 molecular_weight | 620.4 kDa |
| 排除体积 excluded_volume | 588 ų |
| 包络体积 envelope_volume | 610 ų |
| 水化壳体积 shell_volume | 1692 ų |
| 包络直径 envelope_diameter | 13.0 Å |
| 壳层 Rg shell_rg | 7.82 Å |
| 包络 Rg envelope_rg | 4.43 Å |
| 形状 Rg shape_rg | 3.96 Å |
| 总 Rg total_rg | 5.68 Å |
| 总原子数 total_atoms | 41 |
| 残基数 n_residues | 2 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 18.1 Å |
| Rg (实空间) rg_real | 5.54 Å |
| Rg 误差 (实空间) rg_real_error | 0.27 Å |
| I(0) (实空间) i0_real | 3.6050e+04 |
| I(0) 误差 (实空间) i0_real_error | 2.8330e+02 |
| Rg (倒空间) rg_reciprocal | 5.54 Å |
| I(0) (倒空间) i0_reciprocal | 36050.0000 |
| 解质量估计 total_estimate | 0.8938 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 6.9 Å |
| 偏度 Skewness skewness | 0.287 |
| 峰度 Kurtosis kurtosis | -0.219 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 508.5000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.904; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.940 |
