SAXS 散射曲线 SAXS Profile

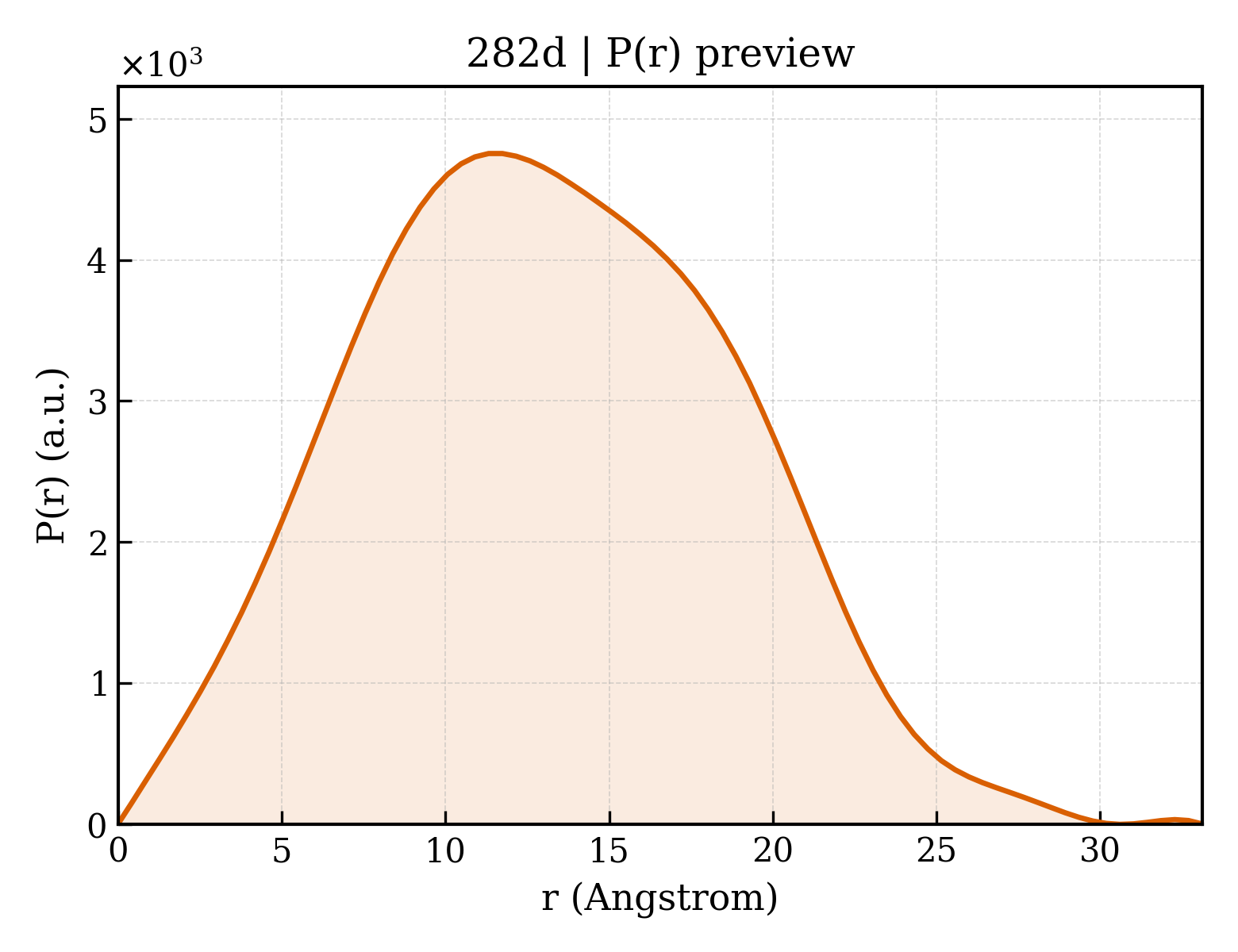

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 282d |
| 沉积日期 deposition_date | 1996-08-26 |
| 结构标题 title | A CONTINOUS TRANSITION FROM A-DNA TO B-DNA IN THE 1:1 COMPLEX BETWEEN NOGALAMYCIN AND THE HEXAMER DCCCGGG |
| 关键词 keywords | RIGHT HANDED DNA, DOUBLE HELIX, COMPLEXED WITH DRUG, DNA; DNA |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 10.10 Å |
| 回转半径 Rg (电子) rg_electron | 9.09 Å |
| 零角强度 I(0) i0 | 912436.00 |
| 分子量 molecular_weight | 4382.0 kDa |
| 排除体积 excluded_volume | 4513 ų |
| 包络体积 envelope_volume | 5099 ų |
| 水化壳体积 shell_volume | 5284 ų |
| 包络直径 envelope_diameter | 29.5 Å |
| 壳层 Rg shell_rg | 13.58 Å |
| 包络 Rg envelope_rg | 9.38 Å |
| 形状 Rg shape_rg | 8.93 Å |
| 总 Rg total_rg | 10.29 Å |
| 总原子数 total_atoms | 296 |
| 残基数 n_residues | 12 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 33.1 Å |
| Rg (实空间) rg_real | 10.06 Å |
| Rg 误差 (实空间) rg_real_error | 0.33 Å |
| I(0) (实空间) i0_real | 9.1240e+05 |
| I(0) 误差 (实空间) i0_real_error | 1.0270e+04 |
| Rg (倒空间) rg_reciprocal | 10.06 Å |
| I(0) (倒空间) i0_reciprocal | 912400.0000 |
| 解质量估计 total_estimate | 0.8943 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 32.3 Å |
| 偏度 Skewness skewness | 0.153 |
| 峰度 Kurtosis kurtosis | -0.475 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 39640.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.888;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.990;
Smooth: 0.967
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 45.845 Å |
| 晶胞边长 b length_b | 45.845 Å |
| 晶胞边长 c length_c | 58.075 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 90.00 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 16 |
对称性 Symmetry
| 空间群 space_group | P 43 21 2 |
| 空间群编号 int_tables_number | 96 |
| 晶系 crystal_system | — |
精修参数 Refinement
| 分辨率 resolution | 2.400 Å |
| 最低分辨率 resolution_low | 18.000 Å |
| R 因子 r_factor | 0.1830 |
| R_work r_work | — |
| R_free r_free | — |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | ;DNA (5'-D(*CP*CP*CP*GP*GP*G)-3')
; |
| 分子量 formula_weight | 1810.2 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polydeoxyribonucleotide |
| 链编号 strand_id | A,B |
| 原子数 atom_count | 343 |
CCCGGG
Entity 2
non-polymer
| 描述 description | NOGALAMYCIN |
| 分子量 formula_weight | 787.8 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 47 |
A continuous transition from A-DNA to B-DNA in the 1:1 complex between nogalamycin and the hexamer dCCCGGG.
J.Biol.Chem. (1996)
Files (7)
- pr_distribution /app/data/pr_computation/82/282d/pr_distribution.json
- pr_output /app/data/pr_computation/82/282d/282d.pr.out
- pr_plot /app/data/visualization/pr_computation/82/282d/282d_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/82/282d/282d.dat
- saxs_fit /app/data/saxs_computation/82/282d/282d.fit
- saxs_log /app/data/saxs_computation/82/282d/282d.log
- saxs_plot /app/data/visualization/saxs_computation/82/282d/282d_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/82/282d/282d.fit |
| pddf |
/app/data/pr_computation/82/282d/282d.pr.out |
| profile |
/app/data/saxs_computation/82/282d/282d.dat |
