28ye

50S ribosomal subunit with E-tRNA and RsfS from the alphaproteobacteria Asaia platycodi

Method: ELECTRON MICROSCOPY D_max: 216.0 Å Quality: GOOD

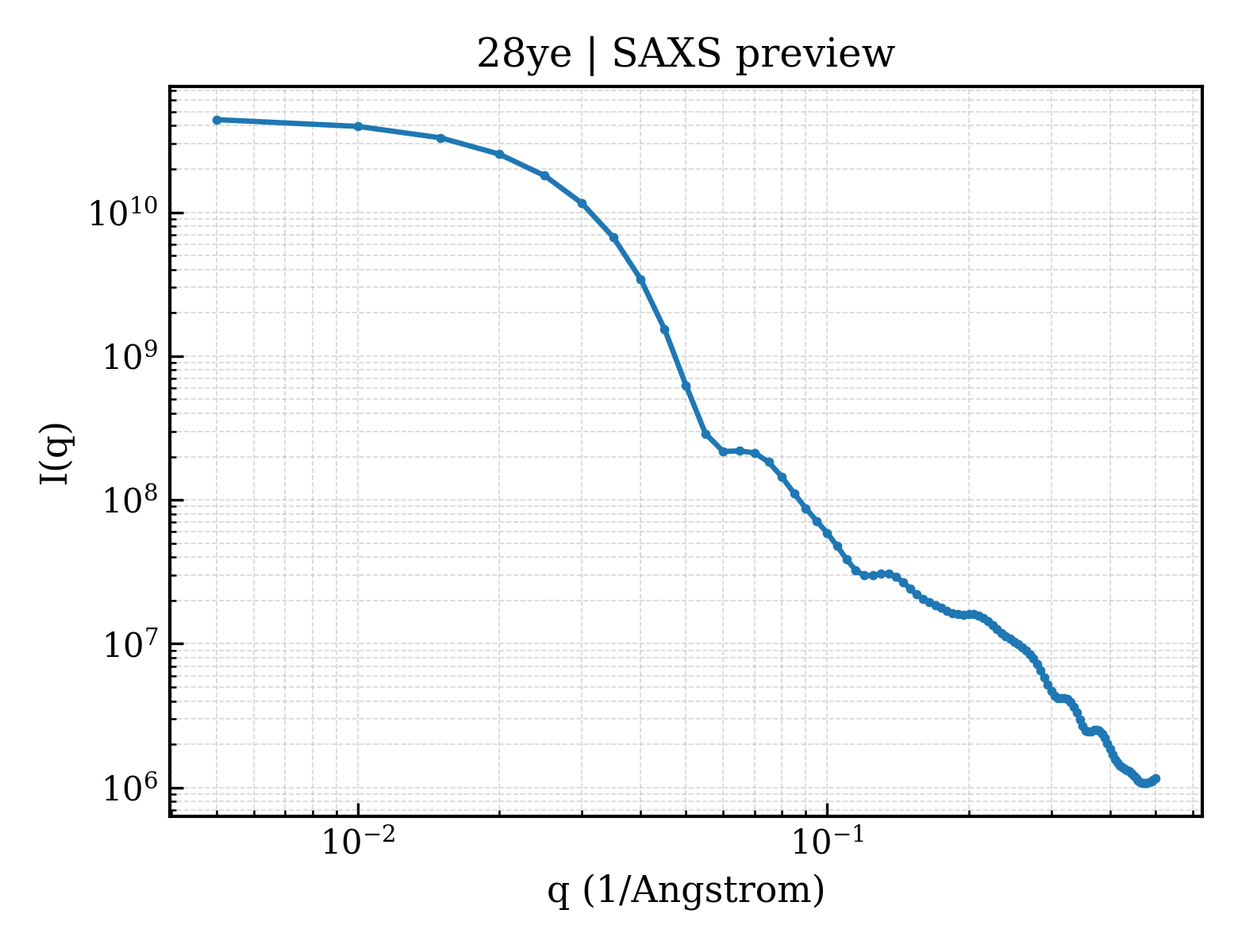

SAXS 散射曲线 SAXS Profile

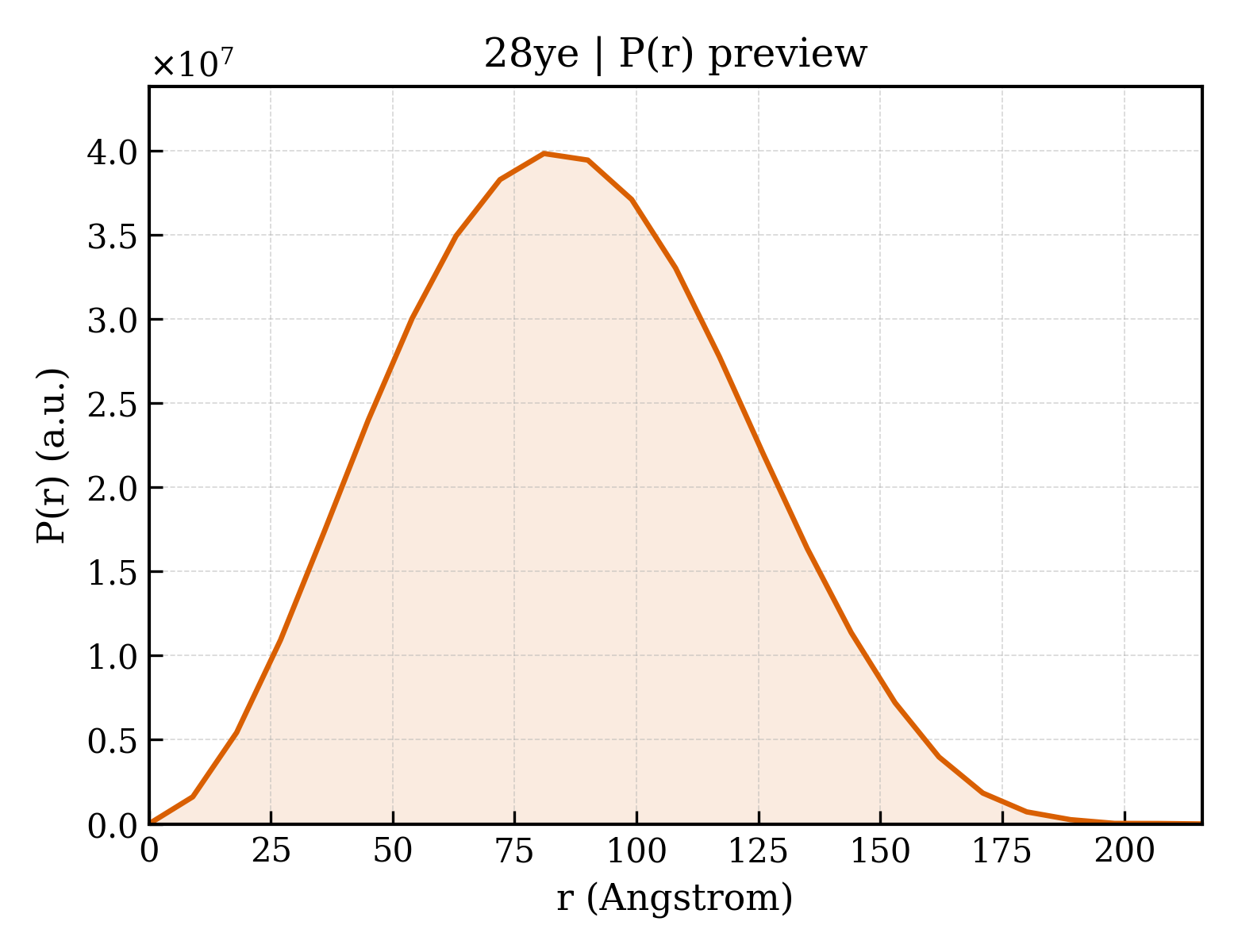

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	28ye
沉积日期 deposition_date	2026-02-27
结构标题 title	50S ribosomal subunit with E-tRNA and RsfS from the alphaproteobacteria Asaia platycodi
关键词 keywords	Ribosome, 50S, RsfS; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.98 Å
回转半径 Rg (电子) rg_electron	66.86 Å
零角强度 I(0) i0	45627400000.00
分子量 molecular_weight	1175500.0 kDa
排除体积 excluded_volume	1206200 Å³
包络体积 envelope_volume	2045900 Å³
水化壳体积 shell_volume	233160 Å³
包络直径 envelope_diameter	225.7 Å
壳层 Rg shell_rg	80.00 Å
包络 Rg envelope_rg	66.18 Å
形状 Rg shape_rg	66.91 Å
总 Rg total_rg	66.85 Å
总原子数 total_atoms	79050
残基数 n_residues	5708
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	216.0 Å
Rg (实空间) rg_real	65.47 Å
Rg 误差 (实空间) rg_real_error	1.33 Å
I(0) (实空间) i0_real	4.5630e+10
I(0) 误差 (实空间) i0_real_error	8.2760e+08
Rg (倒空间) rg_reciprocal	66.38 Å
I(0) (倒空间) i0_reciprocal	45700000000.0000
解质量估计 total_estimate	0.8652
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.0 Å
偏度 Skewness skewness	0.157
峰度 Kurtosis kurtosis	-0.457
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	8774000000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.825; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.830

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (30)

Entity 1 polymer

描述 description	Large ribosomal subunit protein bL36
分子量 formula_weight	4943.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z
原子数 atom_count	79050

MKIRNSLKSAKLRDKDCRVVRRRGRVYVINKKNPRMKARQG

Entity 2 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	30385.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MALKHFNPTTPSTRGTVLIDRSELYKGKPVKQLTEGKNKTGGRNNHGRTTSRFRGGGHKQSYRYVDFKRRKFDVAGIVERLEYDPNRTAFIALIKYEDGELAYILAPQRVKVGDQVIAGERTDVKPGNAMPLGSMPVGTIVHNIELKPGAGGKIARSAGTYCQLVGKDAGYAQVKLQSGELRLVRGECMATVGAVSNPDNMNQHLGKAGRNRWLGRRPHNRGVVMNPVDHPHGGGEGRTSGGRHPVTPWGKPTKGYKTRVNKKTDSLIIRRRKTGK

Entity 3 polymer

描述 description	23S rRNA
分子量 formula_weight	883724.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GAGAAGGGCAUUCGGUGGAUGCCUUGGCAUCAGGAGGCGACGAAAGACGUGGCACGCUGCGAAAAGCCACGGGGAGCUGCGAGCAAGCUUUGAUCCGUGGAUAUCUGAAUGGGGAAACCCACCUAGCGAUAGGUAUCAUGCCCUGAAUACAUAGGGGUAUGAGGCGAACCCGGGGAACUGAAACAUCUCAGUACCUGGAGGAAAAGACAUCAACAGAGAUUCCGCUAGUAGUGGCGAGCGAACGCGGAACAGGCCAGUGGCCAUUGUGAAAGAAGCAGAACGGUCUGGAAAGUCCGGCGAUAAUGGGUGAUAGCCCCGUAUGCGUAGUGUUCACGAUGGUUCUUGAGUAGGGCGGGGCACGUGAAACCCUGUCUGAACAUGGGGGGACCACCCUCCAAGCCUAAAUACUCCCUGAUGACCGAUAGUGAACAAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGAUGAGGGGAGUGAAAGAGACCUGAAACCGGAUGCCUACAAGCAGUCGGAGCCUCUUAUGGGGUGACGGCGUACCUUUUGUAUAAUGGGUCAGCGAGUUUCUGUUUGCAGCGAGCUUAAGCCGGUAGGUGUAGGCGUAGCGAAAGCGAGUCUGAAUAGGGCGAAUGAGUUGCUGGCAGAAGACCCGAAACCGAGUGAUCUAGCCAUGGCCAGGCUGAAGGUGCGGUAACACGCACUGGAGGGCCGAACCCACGCCUGUUGAAAAAGUCGGGGAUGAGCUGUGGCUAGGGGUGAAAGGCCAAUCAAACUCGGAGAUAGCUGGUUCUCCGCGAAAUCUAUUGAGGUAGAUCGUCACGUAUUGCCCUCGGGGGUAGAGCACUGGAUGGGCUAGGGGGACCCAAAGUCUUACCAAACCUAACCAAACUCCGAAUACCGAGGAGUAUGAGCGUGGCAGACAGACAGUGGGUGCUAAGGUCCAUUGUCGAGAGGGAAACAGCCCAGACCACCAGCUAAGGCCCCCAAAUCGUGGCUAAGUGGGAAAGGAUGUGGGGAUUCCAAAACAACCAGGAGGUUGGCUUAGAAGCAGCCAUCCUUUAAAGAAAGCGUAAUAGCUCACUGGUCUAAUAGAAACCCUGCGCCGAAAAUGUAACGGGGCUCAAGCCACGUGCCGAAGCUGUGGGUGCAUAUCUUUGAUAUGCGCGGUAGCGGAGCGUUCCGUAGGUCUGCGAAGGAGACGGGGUGACCCUCUCUGGAGAUAUCGGAAGUGCGAAUGCUGACAUGAGUAGCGACAAACAGUGCGAGAAACACUGUCGCCGAAAGUCCAAGGGUUCCUGCGCAAGGUUAAUCCACGCAGGGUGAGCCGGCCCCUAAGGCGAGGGCGAAAGCCGUAGUCGAUGGGAACCAGUUGAAUAUUACUGGGCCUGCCAGAAGUGACGAAUGCAAUAUGUUGUCUGGUCUUAUUGGAUUGACCAGGCUUUUGGAGCAUUCCAGGAAAUAGCUCUGGCGUAUAGACCGUACCCGAAACCGACACAGGUGGACUGGUAGAGAAUACCAAGGCGCUUGAGAGAACGAUGCUGAAGGAACUAGGCAAAUUACUUGUGUAACUUCGGGAUAAGCAAGACCCGUAUGUGGGCAACCAUGUGCGGGUGGCACAGACCAGGGGGUAGCGACUGUUUAGUAAAAACACAGGGCUGUGCGAAGUCGAGAGACGACGUAUACGGCCUGACGCCUGCCCGGUGCCGGAAGGUUAAGAGGAGAUGUGCAAGCAUUGAAUUGAAGCCCCGGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAACGACUUCCCCACUGUCUCCAGCAUCGACUCAGCGAAAUUGAAUUCCCCGUGAAGAUGCGGGGUACCCGCGGUCAGACGGAAAGACCCUAUGAACCUUUACUGCAGCUUUGCAGUGGCAUCAGAGACAUCCUGUGUAGGAUAGGUGGGAGGCUAUGAACCCGAGGCGCCAGCUUCGGUGGAGCCGUCCUUGAAAUACCACCCUGAAUUUUUCUGAUGUCUAACCGAGACCAGUCUAGCCUGGUCCGGGACCCUGCAUGGUGGGCAGUUUGACUGGGGCGGUCGCCUCCCAAAGUGUAACGGAGGCGCGCGAUGGUGGGCUCAGGUCGGUCGGAAACCGACUGUCGAGUGCAAUGGCAUAAGCCCGCCUGACUGUGAGAGUGACAGCUCGAACAGAGACGAAAGUCGGCCAUAGUGAUCCGGUGGUCCCACGUGGACGGGCCAUCGCUCAACGGAUAAAAGGUACUCUAGGGAUAACAGGCUGAUCUCCCCCAAGAGUCCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGGAGCAGGUCCCAAGGGUUCGGCUGUUCGCCGAUUAAAGUGGUACGUGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGUGUAUGAGACUUGAGAGGAUUUGUCCCUAGUACGAGAGGACCGGGAUGAACAUACCUCUGGUGUACCGGUUGUCGCGCCAGCGGCACAGCCGGGUAGCUAAGUAUGGACGGGAUAACCGCUGAAAGCAUCUAAGCGGGAAACCCACCUCAAAACUAGGUCUCACAGGGCCGUGAAAGACCAUCACGUCAAUAGGCCGGGUGUGGAAGCGUGGUAACACGUGAAGCUAACCGGUCCUAAUCGCCCAUAUCGCU

Entity 4 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7580.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MPKMKTKSSVKKRFKITATGKVMCGPGNKRHGLINRPQKMKRTNRGPQTMTDMDAKTVKQWAPYGLA

Entity 5 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5270.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MKRTYQPSKLVRKRRHGFRARMETVGGRRVINNRRAKGRKKLSA

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL33
分子量 formula_weight	6330.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MAKSNVIQIRLVSTAETGYFYVTKKNARSATGKMEVRKYDPVVRKHVAFREAKIK

Entity 7 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	7436.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAVPKRKTTPSRMGMRRSHHALTVQAHAECSNCGELKRPHHVCAHCGHYDGREVVASGKTLKTTVRV

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6549.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAENKTVRVKQIASAIGRKPGQADTLVGLGLRGIGSERELEDTPSVRGMIRKVAHLIQVEG

Entity 9 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	8423.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MADAYKVADLRAKSADELDALLLDLKREQLNLRFQAATGQSEGVGRVRVLRRAIARIKTVAHQSKNKVGAKTSTAES

Entity 10 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	11121.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MSRRCQITGKGVLTGNNVSHANNKTRRRFLPNLQEITLLSDILGTGVRLRLSTQGIRTVEHNGGLDSFLITTPNRKLPVEAQVIKRRILRAQESKAAQTA

Entity 11 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	9183.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MAQKKAGGSSRNGRDSAGRRLGVKKFGGEAVIAGNIIVRQRGTKMMAGSNVGVGRDHTLFALADGAVKFTRRAEGRVHVSVTLAEAAE

Entity 12 polymer

描述 description	Large ribosomal subunit protein bL25
分子量 formula_weight	22683.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MTNMTSLEVSTRAKAGKGAARATRRAGLVPGVVYGGKQEPALIQIDPRIIHKEMVRGGWRSRLFELPLEGGTVRALLREVQLHPVTDAPIHVDFQRLAAGEKVHVTVSIHVTGEDKAPGIKRGGVLNLVRHTVDVMADVDSIPASFTVDLSALDIHDNVRWDDLTGTENVTPVLQLPNFVIATIAPPTVDAEMEAEAAAKAAAEAAAPAKKK

Entity 13 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11483.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MAARIKKGDQVLVLSGSSRGTRGEVLAVLPKVEKAIVRGVAVAKRHQKPTRMNQEGGIIAKEMPVHLSNLKLVDPKSGKPTRVGFRQLEDGRKVRVAKVTGEVIEG

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	12480.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MTTSIVLARRNKALRMTRESMFDIVRAPLITEKATALSERNQVVFRVAMTAAKPEIKVAVETLFGVKVVSVNTLVQKGKTKMVKGRPGRRSDIKKAYVQLAEGQSIDLTAKLG

Entity 15 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	15759.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSKPKHIRTLADTEAQAVARNIRVSPRKLNLVAAMIRNQPADKAIAALTFSRRRIAQEVRKALESAVANAENNHQLDVDQLVVKTAEVGKSIVMKRFHARGRGRSSRIEKFFSHLKIVVAERAAEEAPAPKGKGKDAAEQKAA

Entity 16 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11301.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MFAVIRTGGKQYRVTPQITLKVEKLEAEAGTTITFSDVLAVGSDAGIKIGAPLVAGATVTATVIAQDRLDTVIIFKKRRRQNSRRKNGHRQHVTVLRIDAINAA

Entity 17 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	14604.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MARVKRGVTTHARHKKVLDLAKGYRGRSSTNYRIALERVEKALRYAYRDRRNKKRDFRALWIQRINAAVREQGLTYSKFINGLAKAGIEIDRKVLAAIAFDDAATFAEIVKLAQMALDLPAEEQTAQA

Entity 18 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	15574.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MRHGVAGRKLNVTSTHRAAMFRNMAVAIIKHEQITTTLPKAKEIRPVVEKLITLGKRGTLHARRQAFAQLRDETIVTKLFSTIAERYQGRSGGYTRVLKAGVRYGDNADMAVVEMVDRDVDAKGKDSGPVINQSGEEPMAA

Entity 19 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15212.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MLSPKRTKFRKAHKGRIHGLAKGGTTLNFGAFGLKALEPERITARQIEASRRAITRAMKRAGRVWIRIFPDLPVSTKPAEVRMGSGKGSPEFWVARVKPGRVLFEIEGVPPEVAREALALGAAKLPIKTKFITRIGEA

Entity 20 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	16795.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MNLNELRDNAGARYRKKRLGRGIGSGKGKTSGRGVKGQKAREGVSLNGFEGGQLPLYRRMPKRGFKNIFRKEFAPVNLGAIDRALADGKLQADATITEETLRAAGLVGTGKYAGIRLLAKGELTRAVTVEVSGASATAIAAVEKAGGSVKVAAKAEAPAEA

Entity 21 polymer

描述 description	Large ribosomal subunit protein uL14
分子量 formula_weight	13324.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MIHPETNLEVADNSGARQVQCIKVLGGSKRKTASVGDVIVVSVKEAIPRGKVKKGDVHQAVIVRTSYPVRRADGSAIRFDKNAAVLINKSMEPIGTRIFGPVVRELRARKFMKIISLAPEVL

Entity 22 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	17559.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MKTTLSLKPAEVTKGWTLIDAEGLVLGRLATIIATRLRGKHKPQYTPHVDCGDNIVVINAEKIVLTGNKVGQKLFHYHTGHPGGIKERTITQRLEGKNPGSVIEKAVERMITRGPLQRAQMKHLYVYAGDKHPHEGQQPVKLDVASMNRKNTLNVIEA

Entity 23 polymer

描述 description	Large ribosomal subunit protein bL9
分子量 formula_weight	21119.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MSQTEVILLQRVEHLGQMGEIVRVKPGYARNFLLPQGKALRANAQNRQRFETERAQLEAQNLKRREEAERLAERMHGLSVVIIRQAGDSGSLYGSVTTRDIALAVTASGLTVGRNQVVLVEPIKMLGLVEARVDLHPEVSIPVTVNVARSEEEAERQARGEAVVAEEDEYVLETEVEGDESAIEGEVEGAAV

Entity 24 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19490.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MSRVGKYPVVIPAGVDISITDGSLTAKGKRGSLTMPLTRFVEAKVEDGKVAILPVGNRSRETWTMWGTTRAIVANLVKGVSEGFSKTLEITGTGFRASVQGSNLVMNLGYSHDVVYPIPADVKITTPRPTAITVEGNDKQRVGQVALDIRNFRKPEPYKGKGVRYETEVLRRKEGKKK

Entity 25 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	21742.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MEYDIKTLDNGSAGTVSLPEELFGATPRADIMARVVHWQLAKRRAGTHRTKGMGEVSGTTKKPFRQKGTGSARQGSLRAPQFRTGGVVHGPVVRDHGYDLPKKVRRLGLISALSQKAAAGKLIVIDQAAGVTKTREAAAKLAALGWSSALIVDGAVDVAFGRAVRNLPKIDVLPTIGANVYDILNHDVLVLTRAGLEGLKERLA

Entity 26 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	24438.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MRTGLIAKKLGMTRLFKEDGTHVPVTVLHLDEVEVVDARTQERDGYTAVQIGMSKAKVKNVTKPMRGHYARTKVEPKKTLVEFRVAEDAVLEAGTKLSAAHFVVGQKIDVTGTSKGKGFAGVMKRWNFAGLEASHGVSISHRSHGSTGQRQDPGKVFKGKKMAGHMGDERITTLNLEVAAVDAERNLIMVRGSIPGAKDGLVMIRDAIKKARHADAPYPAATAAAAG

Entity 27 polymer

描述 description	E-site tRNA (heterogeneous fragment modelled as poly-U with the CCA-end)
分子量 formula_weight	5487.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	c

UUUUUUUUUUUUUUUCCA

Entity 28 polymer

描述 description	5S rRNA (fragment)
分子量 formula_weight	36341.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	d

CUGGUGGCUAUGGCGGGAGACUUCCACCCGAUCCCAUCCCGAACUCGGACGUGAAACGCCCCAGCGCCUAUGAUACUGCAUCUUAAGAUGCGGAAAAGUCGGUCGCCGCCAGG

Entity 29 polymer

描述 description	Large ribosomal subunit protein bL19
分子量 formula_weight	14342.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MNIVQQYEAREIERLTAARPVPEFQAGDTVRVGVRVVEGTREERVQAYEGVVIARSNKGLNSNFTVRKISNGEGVERIFPLYSPSIAEIAVVRRGKVRRAKLYYLRERSGKSARIAERPRDVAKTAS

Entity 30 polymer

描述 description	Ribosome silencing factor S
分子量 formula_weight	16392.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MKTAGTPRKKAAAAGPRKTRAAAAPRETVGRELVEKALGVITTSLDEDKAEDIVTLDLRGRASFADHMVIATGIADRQIAAMASHVEDKLNEIGIKRITIEGANGTDWVLLDTGDIVVHLFKPESRALYALERMWGKDLDDSAADEADTTDL

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.98 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	48969

fit	/app/data/saxs_computation/8y/28ye/28ye.fit
pddf	/app/data/pr_computation/8y/28ye/28ye.pr.out
profile	/app/data/saxs_computation/8y/28ye/28ye.dat

50S ribosomal subunit with E-tRNA and RsfS from the alphaproteobacteria Asaia platycodi

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (30)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
