Structure of D236A mutant E. coli Aspartate Transcarbamoylase in presence of Phosphonoacetamide at 2.90 A resolution

Method: X-RAY DIFFRACTION D_max: 118.9 Å Quality: GOOD

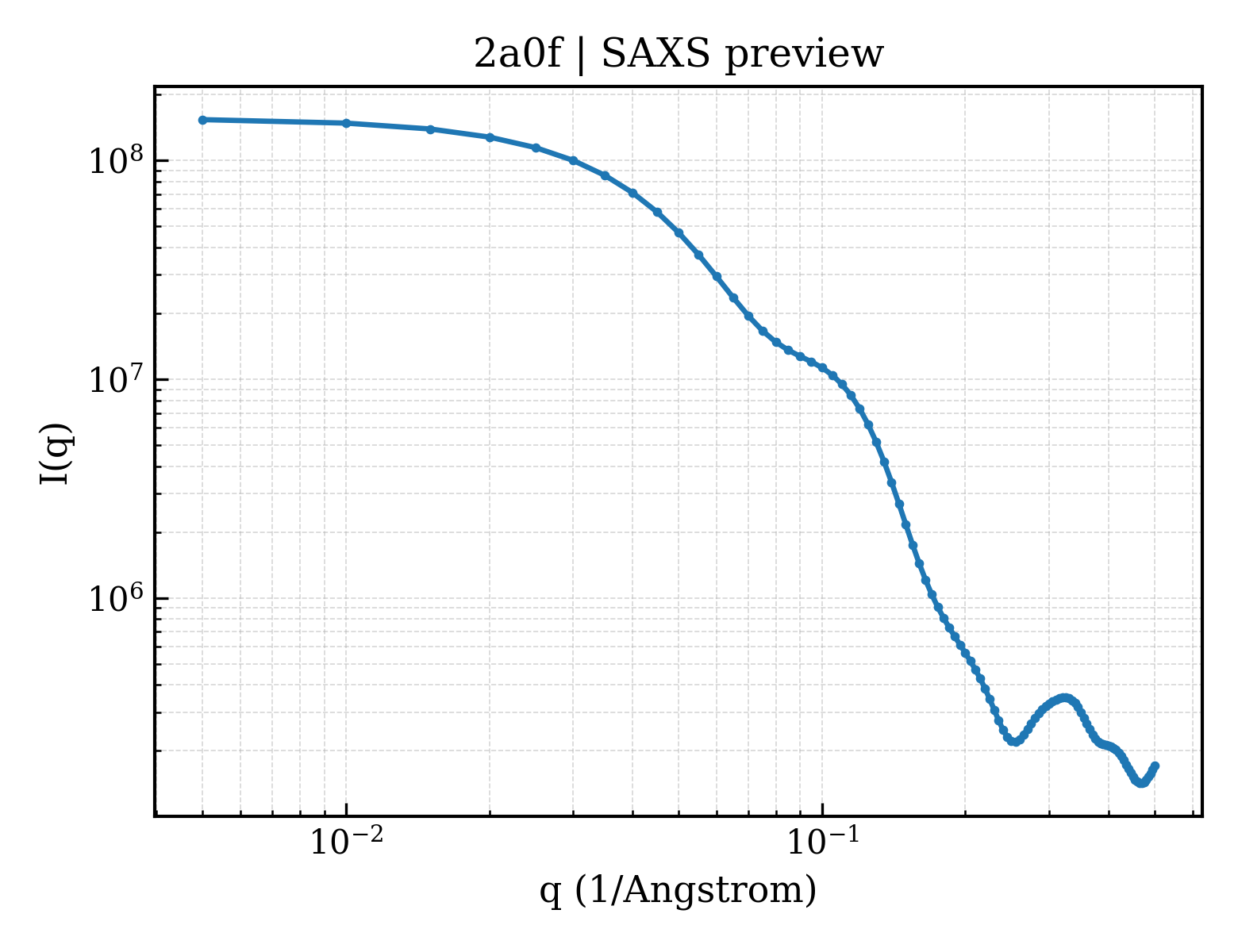

SAXS 散射曲线 SAXS Profile

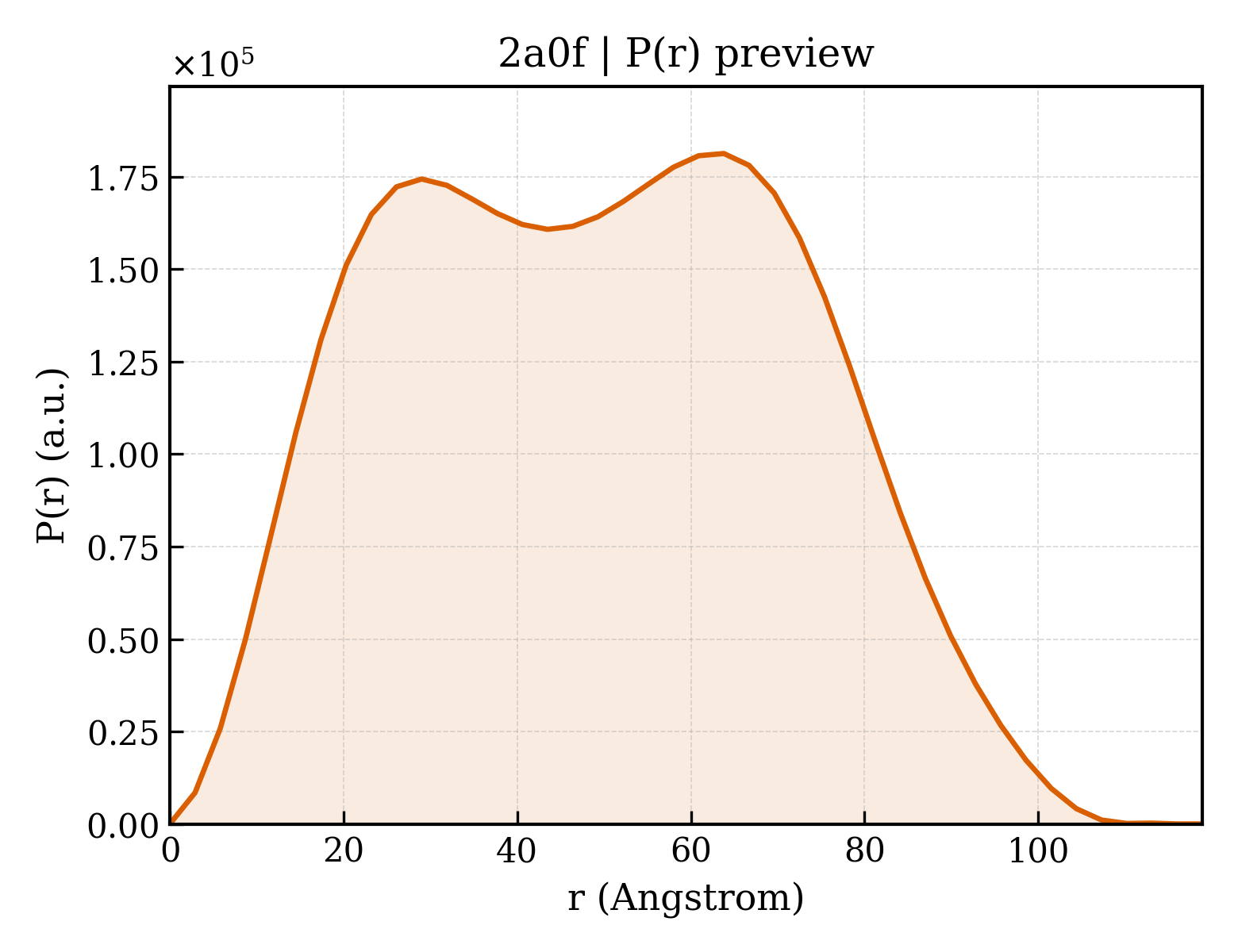

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2a0f
沉积日期 deposition_date	2005-06-16
结构标题 title	Structure of D236A mutant E. coli Aspartate Transcarbamoylase in presence of Phosphonoacetamide at 2.90 A resolution
关键词 keywords	;homotropic cooperativity, catalytic cycle, allosteric regulation, Alternate conformations, transferase-transferase regulator COMPLEX ;; transferase/transferase regulator
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.34 Å
回转半径 Rg (电子) rg_electron	37.97 Å
零角强度 I(0) i0	155727000.00
分子量 molecular_weight	101180.0 kDa
排除体积 excluded_volume	126780 Å³
包络体积 envelope_volume	171640 Å³
水化壳体积 shell_volume	37673 Å³
包络直径 envelope_diameter	116.5 Å
壳层 Rg shell_rg	44.32 Å
包络 Rg envelope_rg	36.71 Å
形状 Rg shape_rg	37.99 Å
总 Rg total_rg	38.30 Å
总原子数 total_atoms	7110
残基数 n_residues	912
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.9 Å
Rg (实空间) rg_real	38.29 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	1.5570e+08
I(0) 误差 (实空间) i0_real_error	2.7740e+06
Rg (倒空间) rg_reciprocal	38.33 Å
I(0) (倒空间) i0_reciprocal	155700000.0000
解质量估计 total_estimate	0.8134
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	63.8 Å
偏度 Skewness skewness	0.080
峰度 Kurtosis kurtosis	-0.913
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22550000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.875; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Aspartate carbamoyltransferase catalytic chain
分子量 formula_weight	34293.1 kDa
EC 编号 ec_number	2.1.3.2
突变 mutation	D236A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	7489

ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLAPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Aspartate carbamoyltransferase regulatory chain
分子量 formula_weight	17143.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	PHOSPHONOACETAMIDE
分子量 formula_weight	139.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	379

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2a0fa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2a0fa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2a0fb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d2a0fb2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

结构域编号 domain_id	d2a0fc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2a0fc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2a0fd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d2a0fd2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	2a0fA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2a0fA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2a0fB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	2a0fB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

结构域编号 domain_id	2a0fC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2a0fC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2a0fD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	2a0fD02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	120.452 Å
晶胞边长 b length_b	120.452 Å
晶胞边长 c length_c	155.242 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 3 2 1
空间群编号 int_tables_number	150
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2790
