2a5h
2.1 Angstrom X-ray crystal structure of lysine-2,3-aminomutase from Clostridium subterminale SB4, with Michaelis analog (L-alpha-lysine external aldimine form of pyridoxal-5'-phosphate).
1. Protein Identity and Related Structures Protein Identity & Related Structures
No usable UniProt protein identity is available for this entry.
The relationship tables retain this entry's assembly and composition data, but cross-PDB links for the same protein cannot be established reliably without a unified protein identity.
Assembly Composition of the Current Entry
| Assembly | Physical composition | Protein state | 蛋白 / DNA / RNA / 其他Polymer | Data consistency |
|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | 4 / 0 / 0 / 0 | Consistent with protein count |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
2. Structure Basics 2. Structure Basics
| Entry ID entry_id | 2a5h |
| Deposition date deposition_date | 2005-06-30 |
| Structure title title | 2.1 Angstrom X-ray crystal structure of lysine-2,3-aminomutase from Clostridium subterminale SB4, with Michaelis analog (L-alpha-lysine external aldimine form of pyridoxal-5'-phosphate). |
| Keywords keywords | ;radical sam, four-iron-four-sulfur cluster, 4Fe4S, FS4, SAM, S-adenosylmethionine, alpha-beta channel, pyridoxal-5'-phosphate, external aldimine, Michaelis analog, ISOMERASE ;; ISOMERASE |
| Experimental Method method | X-RAY DIFFRACTION |

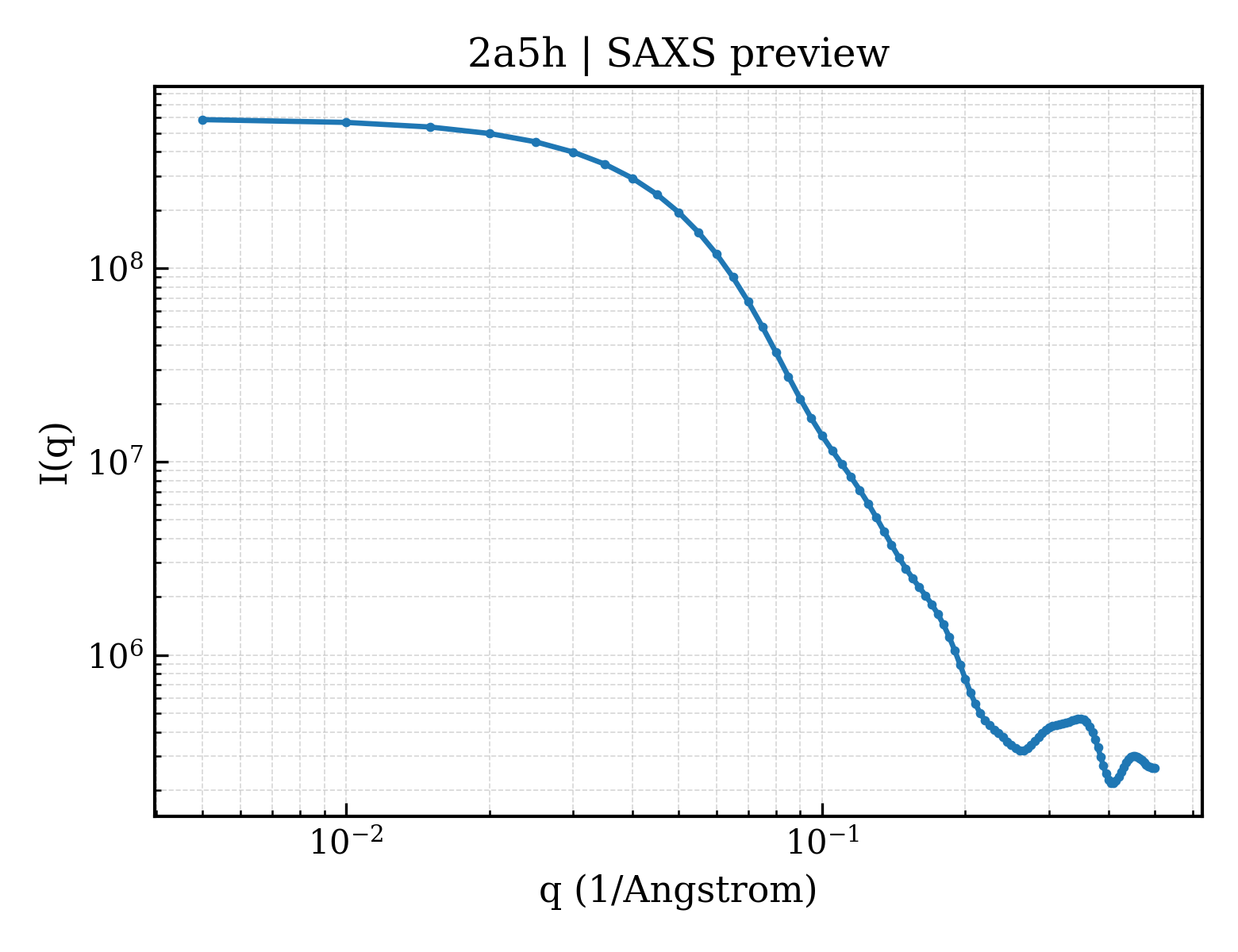

3. Official assembly/model SAXS Official SAXS Profiles
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
2a5h__assembly_1__model_1
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
2a5h__assembly_1__model_1 | I(q)
2a5h__assembly_1__model_1 | P(r) · Pending
| Rg（Guinier） | 36.31 Å |
| Rg (electron density) | 35.78 Å |
| Total Rg | 36.18 Å |
| Atom count | 13254 |
| Residues | 1602 |
| Excluded volume | 236680 ų |
| Maximum q | 0.500 Å⁻¹ |
4. Crystallography and Experiment 4. Crystallography & Experiment
5. Entities and Polymers Entities & Polymers (8)
6. Fold Classification (SCOP + CATH) 12 domains
CATH v4.4 (12 domains)
| Domain ID domain_id | 2a5hA01 |
| Class class | 6 — Special |
| Architecture architecture | 10 — Helix non-globular |
| Topology topology | 140 — Helix Hairpins |
| Homologous superfamily homologous superfamily | 1170 — |
| Domain ID domain_id | 2a5hA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 20 — Alpha-Beta Barrel |
| Topology topology | 20 — TIM Barrel |
| Homologous superfamily homologous superfamily | 70 — Aldolase class I |
| Domain ID domain_id | 2a5hA03 |
| Class class | 6 — Special |
| Architecture architecture | 20 — Other non-globular |
| Topology topology | 120 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| Homologous superfamily homologous superfamily | 40 — |
| Domain ID domain_id | 2a5hB01 |
| Class class | 6 — Special |
| Architecture architecture | 10 — Helix non-globular |
| Topology topology | 140 — Helix Hairpins |
| Homologous superfamily homologous superfamily | 1170 — |
| Domain ID domain_id | 2a5hB02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 20 — Alpha-Beta Barrel |
| Topology topology | 20 — TIM Barrel |
| Homologous superfamily homologous superfamily | 70 — Aldolase class I |
| Domain ID domain_id | 2a5hB03 |
| Class class | 6 — Special |
| Architecture architecture | 20 — Other non-globular |
| Topology topology | 120 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| Homologous superfamily homologous superfamily | 40 — |
| Domain ID domain_id | 2a5hC01 |
| Class class | 6 — Special |
| Architecture architecture | 10 — Helix non-globular |
| Topology topology | 140 — Helix Hairpins |
| Homologous superfamily homologous superfamily | 1170 — |
| Domain ID domain_id | 2a5hC02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 20 — Alpha-Beta Barrel |
| Topology topology | 20 — TIM Barrel |
| Homologous superfamily homologous superfamily | 70 — Aldolase class I |
| Domain ID domain_id | 2a5hC03 |
| Class class | 6 — Special |
| Architecture architecture | 20 — Other non-globular |
| Topology topology | 120 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| Homologous superfamily homologous superfamily | 40 — |
| Domain ID domain_id | 2a5hD01 |
| Class class | 6 — Special |
| Architecture architecture | 10 — Helix non-globular |
| Topology topology | 140 — Helix Hairpins |
| Homologous superfamily homologous superfamily | 1170 — |
| Domain ID domain_id | 2a5hD02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 20 — Alpha-Beta Barrel |
| Topology topology | 20 — TIM Barrel |
| Homologous superfamily homologous superfamily | 70 — Aldolase class I |
| Domain ID domain_id | 2a5hD03 |
| Class class | 6 — Special |
| Architecture architecture | 20 — Other non-globular |
| Topology topology | 120 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| Homologous superfamily homologous superfamily | 40 — |
