SAXSdb — 2a7l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical ubiquitin-conjugating enzyme LOC55284

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–117	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；3 M NaCl, 0.1 M bisTris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.82 Å R-free 0.300
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–117	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；3 M NaCl, 0.1 M bisTris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.82 Å R-free 0.300

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2A7L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2MT6 Solution structure of the human ubiquitin conjugating enzyme Ube2w Deposited 2014-08-14	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 150；Pressure ambient NMR sample composition 200-400 uM [U-100% 13C; U-100% 15N] Ube2w, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
8A58 X-ray structure of TRIM21 RING E3 ligase in complex with E2 enzyme Ube2W Deposited 2022-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–151（151 aa） Chain B 1–151（151 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；0.1 M Bicine pH 9.0, 5% PEG 6000, 0.1M TCEP hydrochloride	Resolution 2.25 Å R-free 0.259

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q96B02_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–136； UniProt 1–117 Author chain B； PDBConstruct 20–136； UniProt 1–117

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2a7l
Deposition date deposition_date	2005-07-05
Structure title title	Structure of the human hypothetical ubiquitin-conjugating enzyme, LOC55284
Keywords keywords	STRUCTURAL GENOMICS CONSORTIUM, (SGC), UBIQUITIN, UBIQUITIN- CONJUGATING ENZYME, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.98 Å
Radius of gyration Rg (electron density) rg_electron	26.51 Å
Forward intensity I(0) i0	12787400.00
Molecular weight molecular_weight	27458.0 kDa
Excluded volume excluded_volume	34583 Å³
Envelope volume envelope_volume	52487 Å³
Hydration-shell volume shell_volume	17930 Å³
Envelope diameter envelope_diameter	88.6 Å
Shell Rg shell_rg	31.13 Å
Envelope Rg envelope_rg	26.01 Å
Shape Rg shape_rg	26.46 Å
Total Rg total_rg	27.30 Å
Total atoms total_atoms	1924
Residues n_residues	246
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

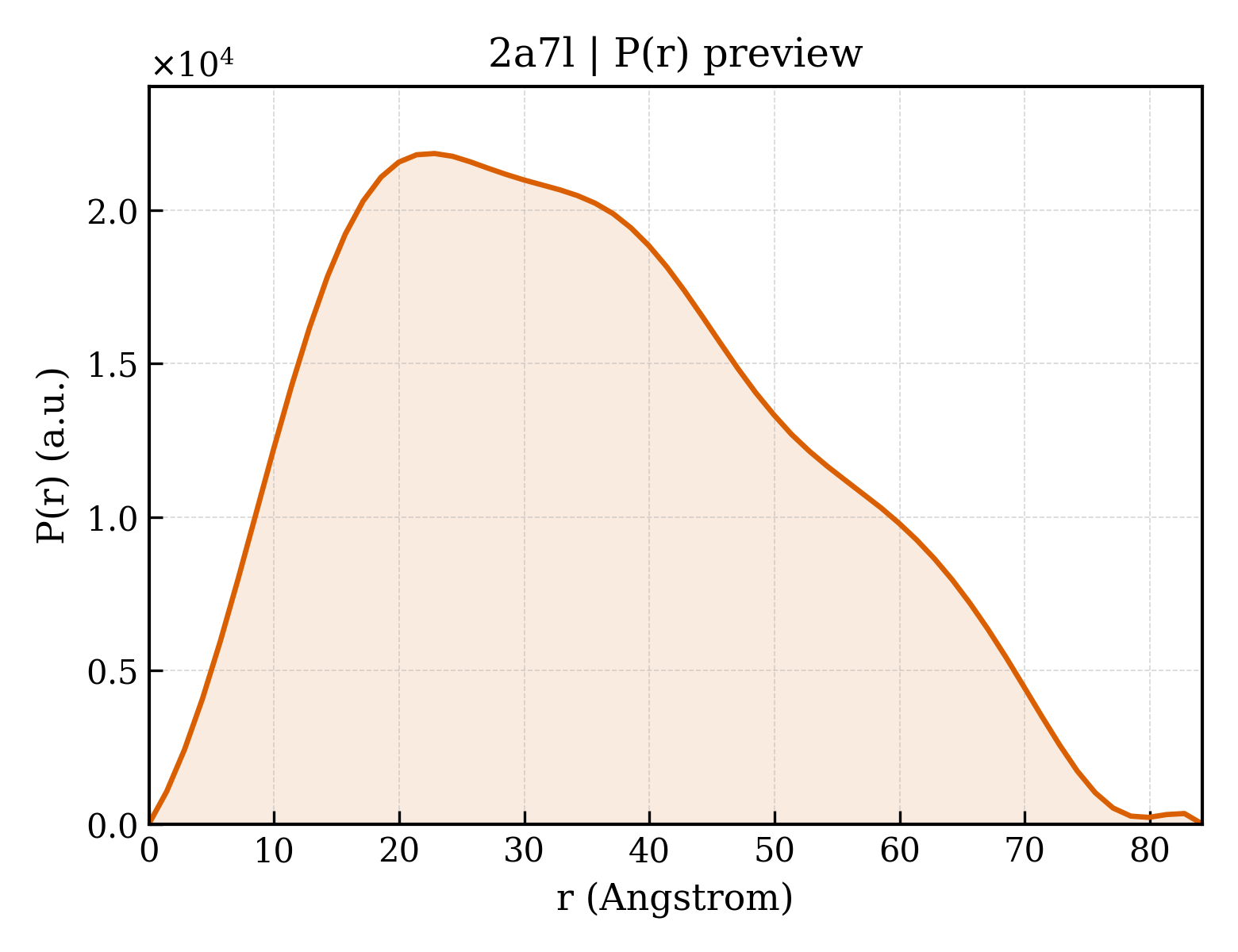

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.2 Å
Rg (real space) rg_real	27.14 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	1.2790e+07
I(0) uncertainty (real space) i0_real_error	1.8170e+05
Rg (reciprocal space) rg_reciprocal	27.09 Å
I(0) (reciprocal space) i0_reciprocal	12790000.0000
Solution quality estimate total_estimate	0.8856
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.8 Å
Skewness Skewness skewness	0.329
Kurtosis Kurtosis kurtosis	-0.703
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1405000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.737; Smooth: 0.923

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical ubiquitin-conjugating enzyme LOC55284
Molecular weight formula_weight	15159.3 kDa
EC 编号 ec_number	6.3.2.19
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2124

MGSSHHHHHHSSGLVPRGSMASMQKRLQKELLALQNDPPPGMTLNEKSVQNSITQWIVDMEGAPGTLYEGEKFQLLFKFSSRYPFDSPQVMFTGENIPVHPHVYSNGHICLSILTEDWSPALSVQSVCLSIISMLS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	200

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2a7la1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d2a7la2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2a7lb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d2a7lb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2a7lA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	2a7lB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

▶

8. Citations (1)

▶

Unit-cell length a length_a	38.595 Å
Unit-cell length b length_b	60.655 Å
Unit-cell length c length_c	133.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	24.440 Å
R factor r_factor	0.2638
R_work r_work	0.2618
R_free r_free	0.2998

fit	/app/data/saxs_computation/a7/2a7l/2a7l.fit
pddf	/app/data/pr_computation/a7/2a7l/2a7l.pr.out
profile	/app/data/saxs_computation/a7/2a7l/2a7l.dat
