2ahe

Crystal structure of a soluble form of CLIC4. intercellular chloride ion channel

Method: X-RAY DIFFRACTION Dmax: 73.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chloride intracellular channel protein 4

Homo sapiens

UniProt Q9Y696

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–251 Not recorded No other associated polymer X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 1.80 Å R-free 0.229

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2AHE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2D2Z Crystal structure of Soluble Form Of CLIC4 Deposited 2005-09-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–252（252 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；sodium citrate, ethanol, Magnesium Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.262
2D2Z Crystal structure of Soluble Form Of CLIC4 Deposited 2005-09-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–252（252 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；sodium citrate, ethanol, Magnesium Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.262
2D2Z Crystal structure of Soluble Form Of CLIC4 Deposited 2005-09-21 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–252（252 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；sodium citrate, ethanol, Magnesium Chloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.262
3OQS Crystal structure of importin-alpha bound to a CLIC4 NLS peptide Deposited 2010-09-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 198–207（10 aa） Fragment：NLS (Nuclear Localisation Signal) UNP residues 198-207
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；0.7M sodium citrate, 10mM DTT, 70mM HEPES pH 7.4, vapor diffusion, hanging drop, temperature 293K
Resolution 2.00 Å R-free 0.237

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CLIC4_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–251； UniProt 1–251

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

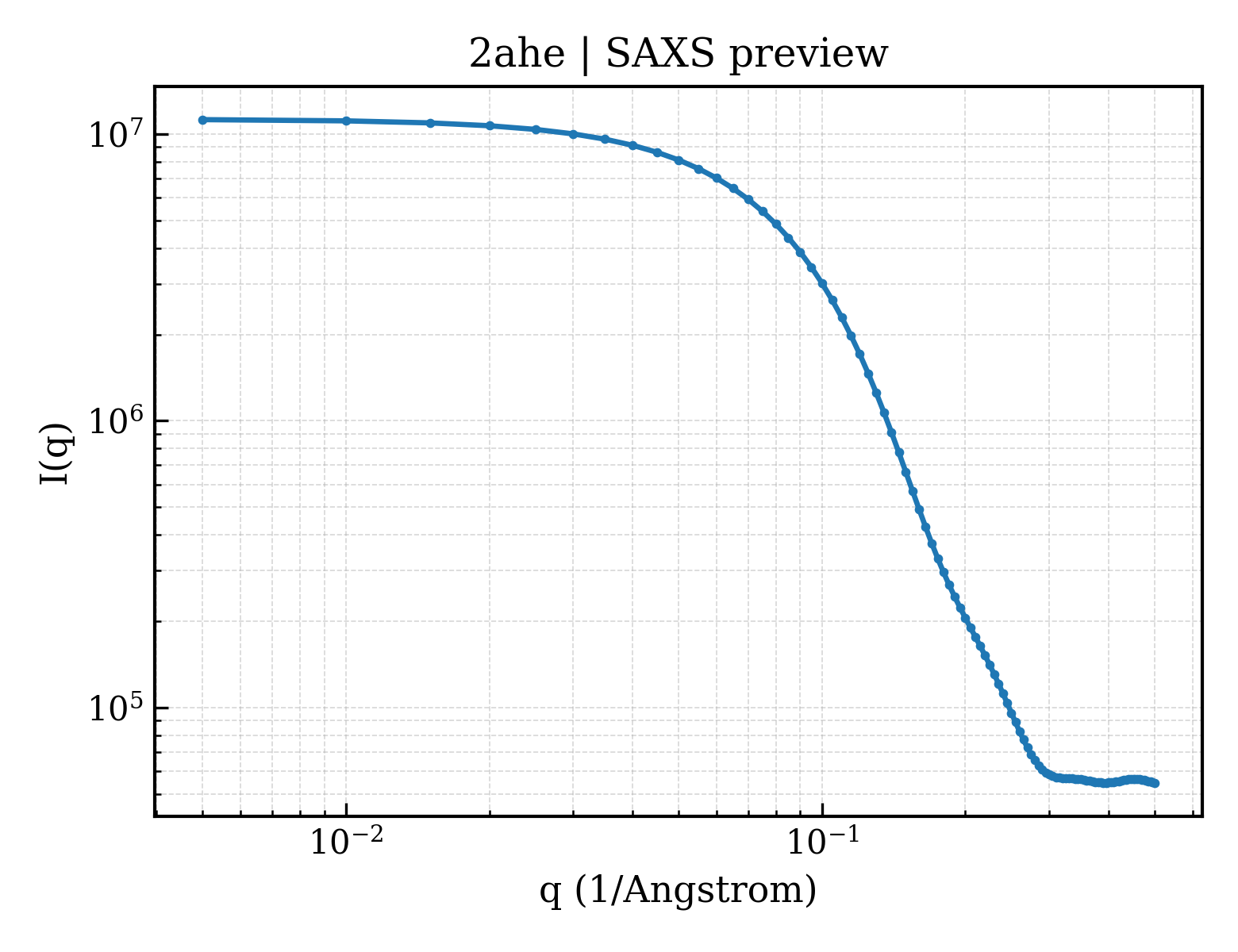

SAXS scattering curve SAXS Profile

SAXS profile for 2ahe

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2ahe
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2ahe
Deposition date deposition_date2005-07-28
Structure title titleCrystal structure of a soluble form of CLIC4. intercellular chloride ion channel
Keywords keywordsGlutathione-S-transferase superfamily, CLIC4, NCC27, chloride ion channel, METAL TRANSPORT; METAL TRANSPORT
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier19.82 Å
Radius of gyration Rg (electron density) rg_electron18.78 Å
Forward intensity I(0) i011260300.00
Molecular weight molecular_weight25843.0 kDa
Excluded volume excluded_volume32814 ų
Envelope volume envelope_volume38559 ų
Hydration-shell volume shell_volume17475 ų
Envelope diameter envelope_diameter71.0 Å
Shell Rg shell_rg24.73 Å
Envelope Rg envelope_rg19.31 Å
Shape Rg shape_rg18.77 Å
Total Rg total_rg19.79 Å
Total atoms total_atoms1820
Residues n_residues228
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax73.8 Å
Rg (real space) rg_real19.78 Å
Rg uncertainty (real space) rg_real_error0.68 Å
I(0) (real space) i0_real1.1260e+07
I(0) uncertainty (real space) i0_real_error1.6520e+05
Rg (reciprocal space) rg_reciprocal19.79 Å
I(0) (reciprocal space) i0_reciprocal11260000.0000
Solution quality estimate total_estimate0.8278
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary22.9 Å
Skewness Skewness skewness0.302
Kurtosis Kurtosis kurtosis-0.259
Angular range angular_range— – 0.4000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha2619000.0000
Real-space data points n_real_points72
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.641; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.839; Smooth: 0.995
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd2ahea1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.47 — Thioredoxin fold
Superfamily Superfamily superfamilyc.47.1 — Thioredoxin-like
Family Family familyc.47.1.0 — automated matches
Domain ID domain_idd2ahea2
Class classa — All alpha proteins
Fold Fold folda.45 — GST C-terminal domain-like
Superfamily Superfamily superfamilya.45.1 — GST C-terminal domain-like
Family Family familya.45.1.0 — automated matches
Domain ID domain_idd2ahea3
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id2aheA01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id2aheA02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily10 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
