2air

T-state Active Site of Aspartate Transcarbamylase:Crystal Structure of the Carbamyl Phosphate and L-alanosine Ligated Enzyme

Method: X-RAY DIFFRACTION D_max: 114.9 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

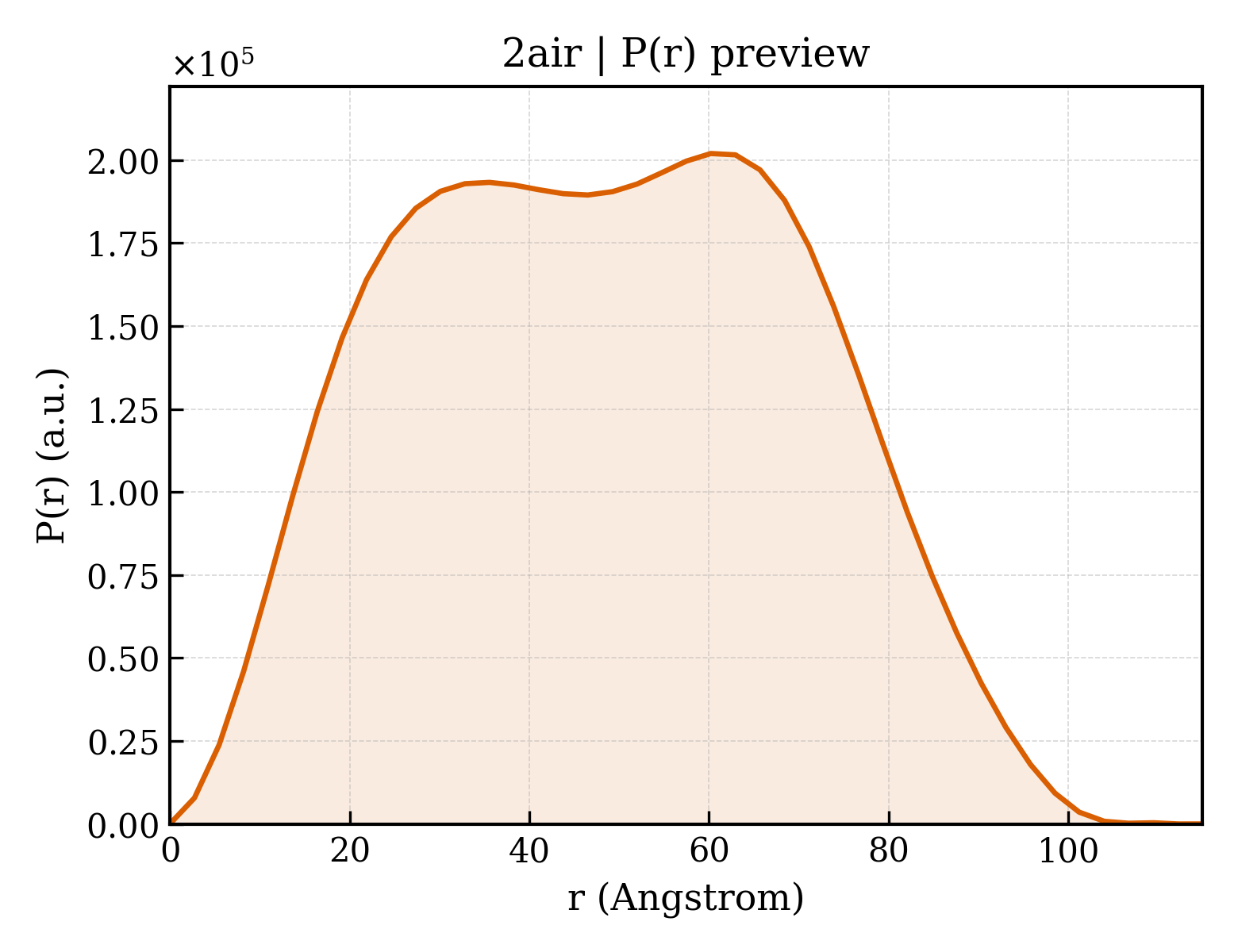

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2air
沉积日期 deposition_date	2005-07-30
结构标题 title	T-state Active Site of Aspartate Transcarbamylase:Crystal Structure of the Carbamyl Phosphate and L-alanosine Ligated Enzyme
关键词 keywords	Aspartate Transcarbamylase, Alanosine, Carbamyl Phosphate, T-state, Transferase; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.64 Å
回转半径 Rg (电子) rg_electron	37.15 Å
零角强度 I(0) i0	167221000.00
分子量 molecular_weight	103530.0 kDa
排除体积 excluded_volume	129380 Å³
包络体积 envelope_volume	177950 Å³
水化壳体积 shell_volume	40311 Å³
包络直径 envelope_diameter	115.1 Å
壳层 Rg shell_rg	43.05 Å
包络 Rg envelope_rg	36.09 Å
形状 Rg shape_rg	37.16 Å
总 Rg total_rg	37.49 Å
总原子数 total_atoms	7270
残基数 n_residues	926
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	114.9 Å
Rg (实空间) rg_real	37.53 Å
Rg 误差 (实空间) rg_real_error	0.76 Å
I(0) (实空间) i0_real	1.6720e+08
I(0) 误差 (实空间) i0_real_error	2.4520e+06
Rg (倒空间) rg_reciprocal	37.61 Å
I(0) (倒空间) i0_reciprocal	167200000.0000
解质量估计 total_estimate	0.9027
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	60.2 Å
偏度 Skewness skewness	0.058
峰度 Kurtosis kurtosis	-0.880
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22380000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.934

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Aspartate carbamoyltransferase catalytic chain
分子量 formula_weight	34337.1 kDa
EC 编号 ec_number	2.1.3.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,G
原子数 atom_count	7876

ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRASDLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Aspartate carbamoyltransferase regulatory chain
分子量 formula_weight	17143.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,H

MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	PHOSPHORIC ACID MONO(FORMAMIDE)ESTER
分子量 formula_weight	141.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	3-[HYDROXY(NITROSO)AMINO]-L-ALANINE
分子量 formula_weight	149.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	606

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2aira1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2aira2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2airb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d2airb2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

结构域编号 domain_id	d2airg1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2airg2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.78 — ATC-like
超家族 Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
家族 Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	d2airh1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.2 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain
家族 Family family	d.58.2.1 — Aspartate carbamoyltransferase, Regulatory-chain, N-terminal domain

结构域编号 domain_id	d2airh2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.7 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain
家族 Family family	g.41.7.1 — Aspartate carbamoyltransferase, Regulatory-chain, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	2airA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2airA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2airB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	2airB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

结构域编号 domain_id	2airG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2airG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

结构域编号 domain_id	2airH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	140 — Aspartate carbamoyltransferase regulatory subunit, N-terminal domain

结构域编号 domain_id	2airH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	20 — Aspartate carbamoyltransferase regulatory subunit, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	129.152 Å
晶胞边长 b length_b	129.152 Å
晶胞边长 c length_c	198.097 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2390
R_work r_work	0.2390
R_free r_free	0.2730
